Seeley WF2000 Manuale
WF2000 Gas Wall Furnace
Service TRAINING 2011.
Note: Service Personal Must be Appropriately
Qualified and Trained to work on this appliance.
All National, and State, Gas and Electrical
regulations must be fully adhered to.
Installation by a unqualified person will void
the product warranty.

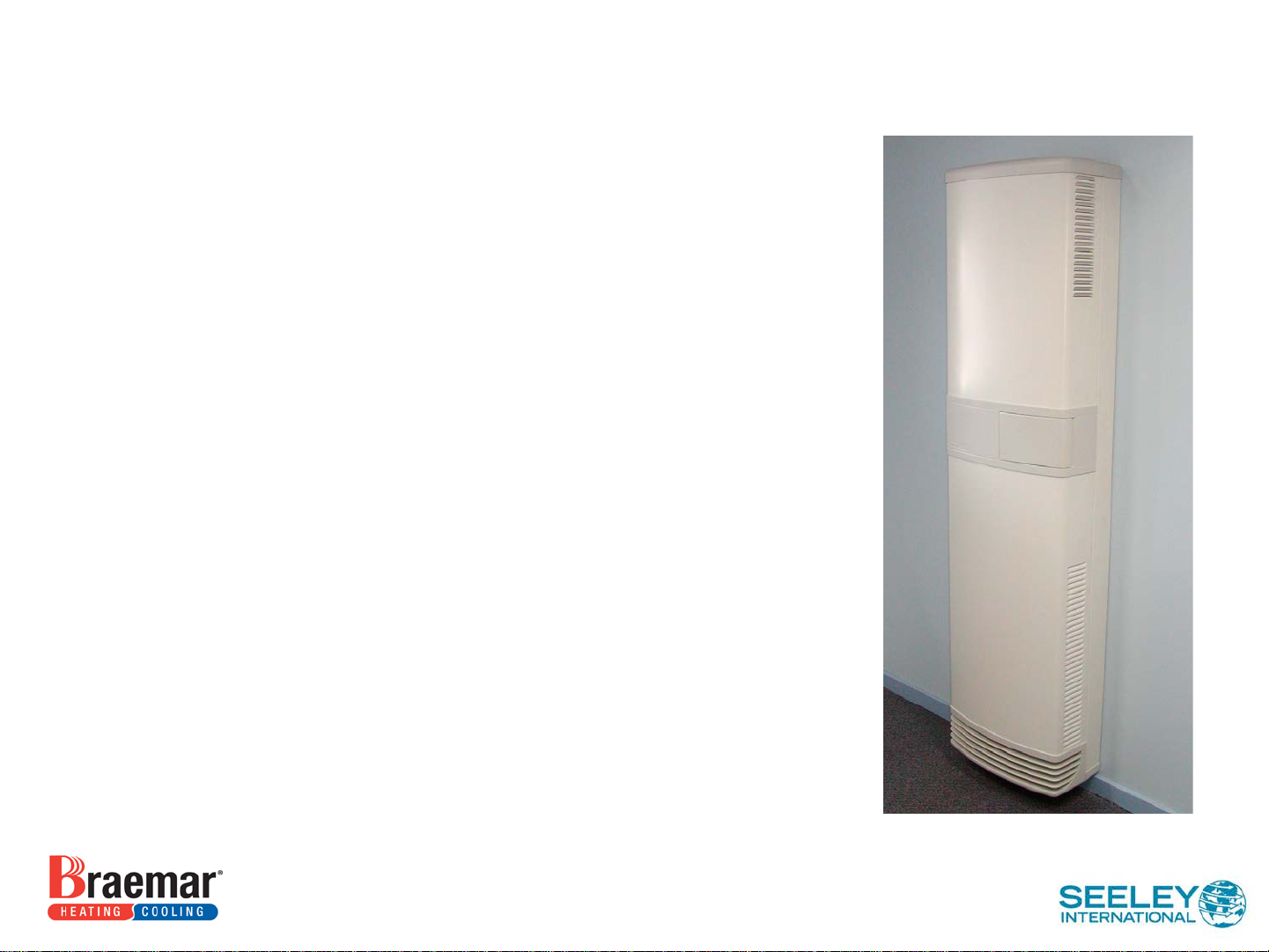

WF2000 Wall FURNACE
•Listen to the Clients issues.
•Does the client understand, their product?
•Is the unit Installed & Commissioned correctly?
•Old & New series case removal.
•Cosmetic changes only.
•The internal heater remains identical.
•Diagnosing & Testing units.
•Discuss installation requirements.
•WF2000 26MJ/h, 30MJ/h & 40MJ/h application.
**NOTE : 26MJ/h Unit is no longer manufactured
Input Output
30MJ = 8.34kW
40MJ = 11.1kW

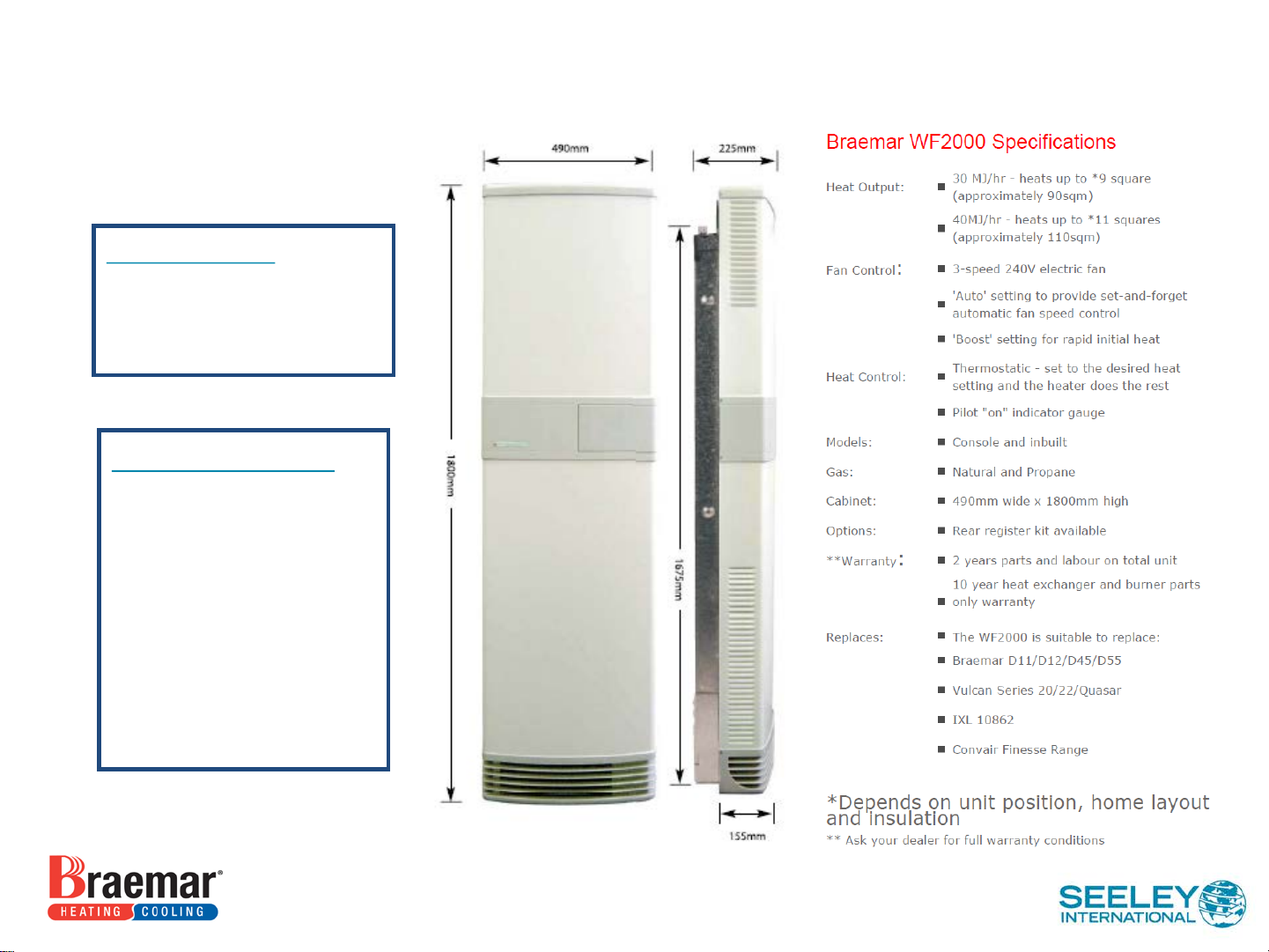

Shipping Details
Length -1850
Width -545
Depth -240
Volume -.24 m3
Weight -46kg
WF2000 – WALL FURNACE

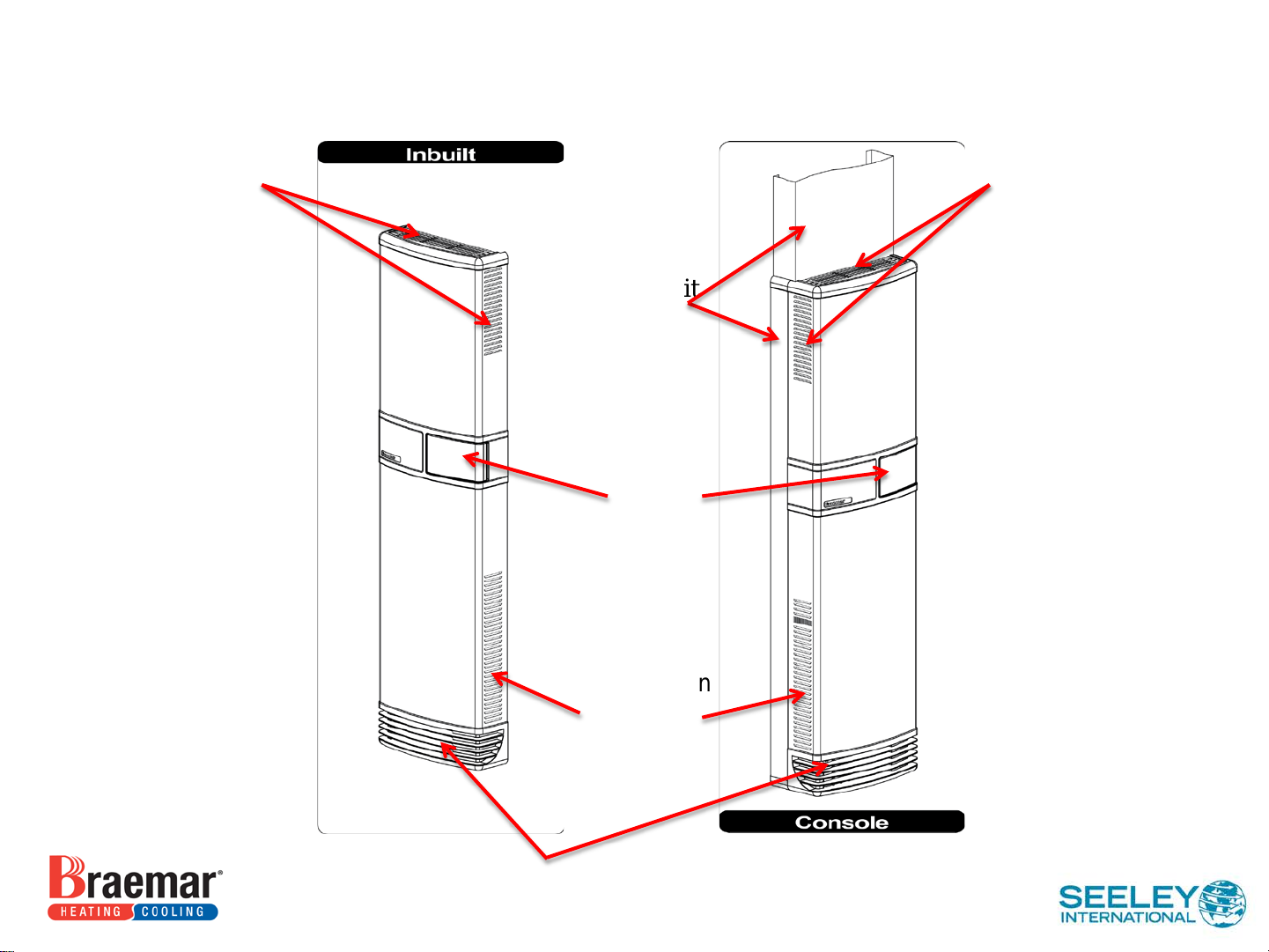

Installation Types
Control
Panel
Door
Combustion
Air Intake
Vents
RoomAir
Inlets
RoomAir
Inlets
Main Heat Outlet
INBUILT
(Semi-Recessed )
Unit fits into a purpose
built wall cavity.
CONSOLE
(Surface Mounted)
Unit fits against an
existing wall.
Optional kit
attached

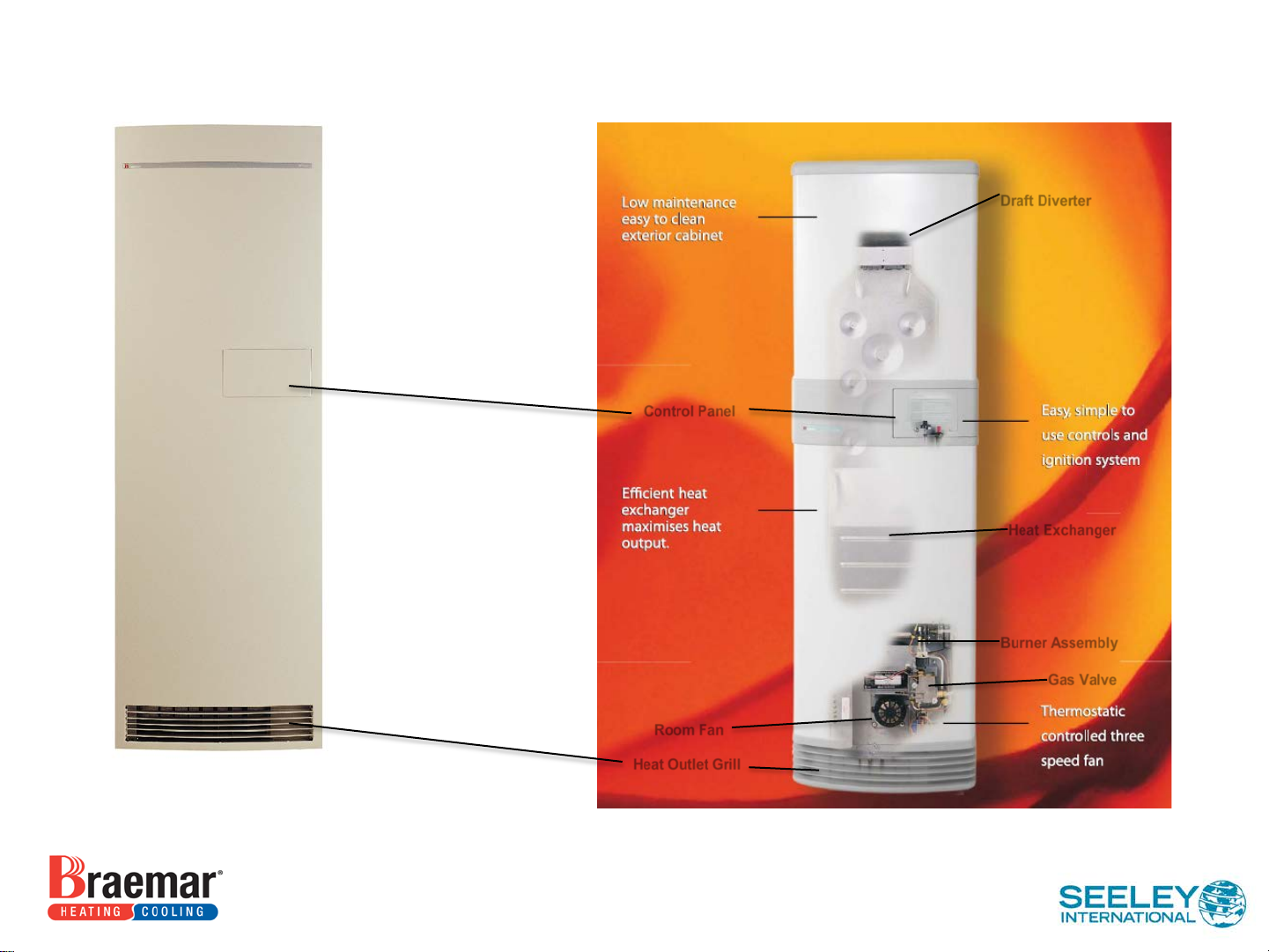

WF2000 Wall FURNACE
Old Style Cabinet
Draft Diverter
Heat Exchanger
New Style Cabinet
Room Fan
Heat Outlet Grill
Gas Valve
Control Panel
Burner Assembly

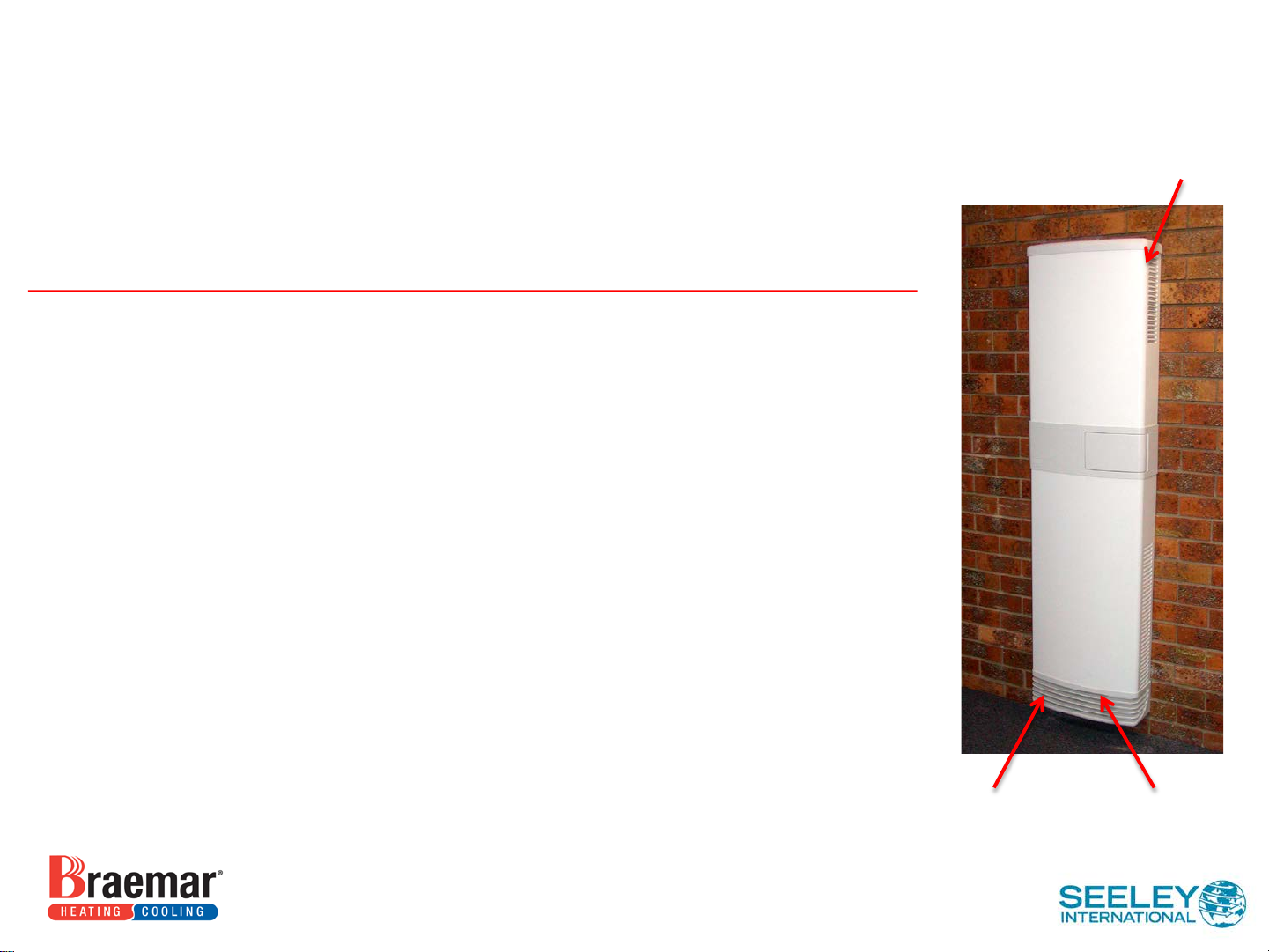

WF2000 – WALL FURNACE
New Style Case Unplug Earth Connection
(Inside cover) when dismantling

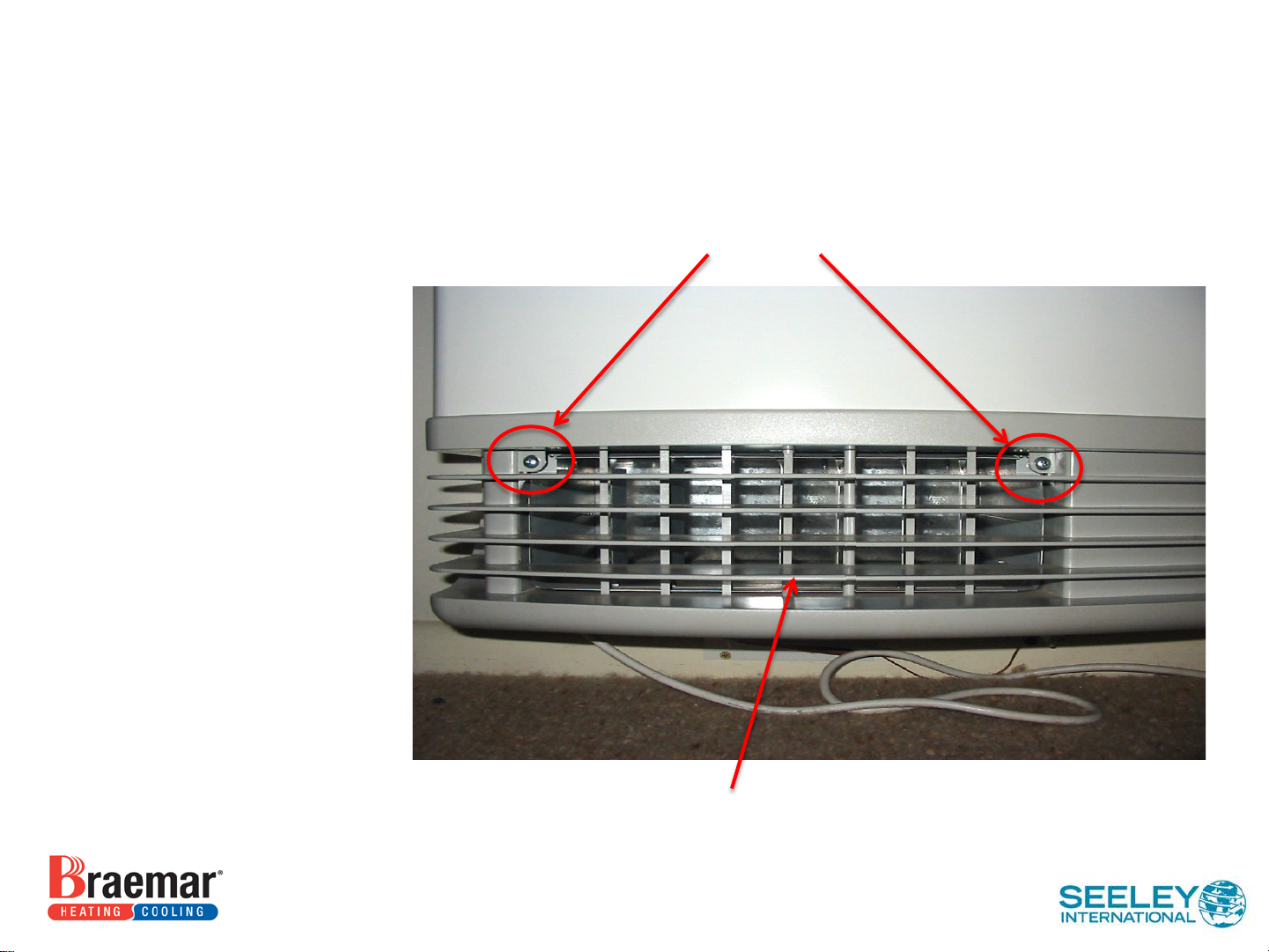

Remove Two (case securing)
Screws (through the grill)
Make sure the power is off & unit unplugged
DISMANTLING
•Turn the power off & unplug.
•Carefully remove the two securing screws
through the front lower grill.
•Pull the case forward, at the bottom.
•Lift the case up, and place the case on the floor.
•Unplug the earth wire at the top right (inside)
the case.
•Don’t forget to reconnect when reassembling unit.
•Carefully place the case in a safe location.
•You now have full access to the heater.
Clearance Between
Heater & Floor
100mm Minimum
200mm Maximum.
Cover Securing Screws
Vertical Direction Louvers
WF2000 – WALL FURNACE
Dismantling

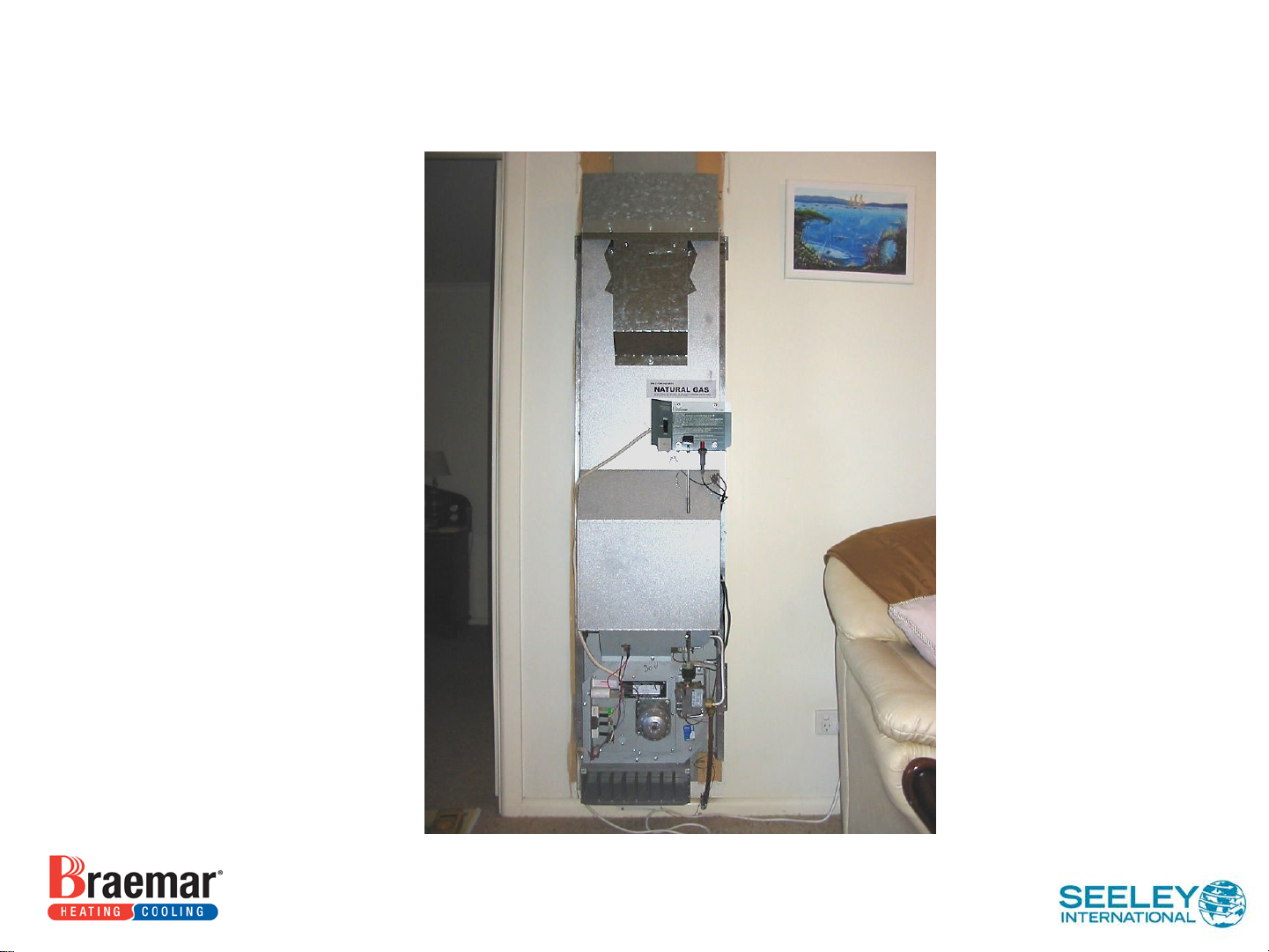

WF2000 With Cover Removed.
Pilot Head
Thermocouple Flame
Sensor.
Ignition Electrode
“V” Shaped Pilot Flame
Complete Pilot Assembly
FLAME ON
