Seenergy SVR-304 Basic Manuale utente
Entry-Level 4 Channel
Network Video Recorder
User’s Manual v1.6.0
SVR-304 Basic SVR-104 Basic
4 Channel (Basic)
Network Video Recorder
User’s Manual
English
2
Table of Contents
Copyrights & Trademarks 4
System Requirements 5
Product Description 6
Hardware Illustration 7
SVR-104 Basic 7
SVR-304 Basic 8
LEDs and Buttons 9
Hard Drive Installation 10
SVR-104 Basic 11
SVR-304 Basic 12
Connect to the NVR 13
1. Live View 17
1.1 Retrieve camera’s video stream 18
1.2 Retrieve camera’s status 18
1.3 Perform Sequence Viewing 19
1.4 PTZ Control 20
1.5 Perform PTZ Preset Viewing 21
1.6 Live Video Control Buttons 23
1.7 Change Web UI Display Language 26
1.8 Live View through iPhone 27
1.9 Live View through Blackberry Phones 31
2. Playback 34
2.1 Methods to Search Playback Videos 35
2.2 Export Playback Videos to AVI Files 40
2.3 Play Exported AVI Videos With NVR Media Player 43
2.4 Open Event Snapshot Images with NVR Media Player 44
3. System Setup 45
3.1SystemCongurations 45
3.1.1 Network Settings 45
3.1.2 DDNS Service 47
3.1.3 Time and Date 53
3.1.4 User Account 54
3.1.5 Group Privilege 55
3.1.6 Disk Setup 57
3.2ChannelCongurations58
3.2.1 Add a Camera 58
3.2.2 OSD Settings 61
3.2.3 PTZ Preset Settings 62
3.2.4 PTZ Preset Sequence 64
3.2.5 E-Map Setting 65
3.2.5.1 Local Map Setting 67
3.2.5.2 Google Map Setting 68
3.3EventCongurations 69
3.3.1 General Settings 69
3.3.2 Event Servers 71
3.3.3 Event Triggers 75
3.4RecordingCongurations 77
3.4.1 General Settings 77
3.4.2 Schedule Recording 79
4 Channel (Basic)
Network Video Recorder
User’s Manual
English
3
3.5 System Options 81
3.5.1 Device Information 81
3.5.2 Logs and Reports 82
3.5.3 Maintenance 82
Reboot the NVR 83
Firmware Upgrade 84
Reset the NVR to Factory Default 86
3.5.4 Disk Status 87
4 Channel (Basic)
Network Video Recorder
User’s Manual
English
4
Copyright
SEEnergy Corp © 2008
Trademarks
SEEnergy SVR-104 Basic/304 Basic Network Video Recorder is a regis-
tered trademark of SEEnergy Corp.
Microsoft and Windows are registered trademarks of Microsoft Corpo-
ration.
All other trademarks mentioned in this document are trademarks of
their respective owners.
Disclaimer
This document is intended for general information purposes only, and
due care has been taken in its preparation.
Any risk arising from the use of this information rests with the recipi-
ent, and nothing herein should be construed as constituting any kind
of warranty.
SEEnergyreservestherighttomakeadjustmentswithoutpriornoti-
cation.
All names of people and organizations used in this documentís ex-
amplesarectitious.Anyresemblancetoanyactualorganizationor
person, living or dead, is purely coincidental and unintended.
Copyrights & Trademarks
4 Channel (Basic)
Network Video Recorder
User’s Manual
English
5
System Requirements
The following are minimum system requirements for the system to op-
erate Embedded Network Video Recorder (ENVR):
Operating System
Microsoft® Windows® 2000 Professional, Windows® XP Professional
(32 bit) or Windows® Server 2003 (32 bit)
Browser
Microsoft Internet Explorer 6 or above
CPU
Minimum Intel® Pentium® 4 2.4 GHz or higher (Dual Core is recom-
mended)
RAM
Minimum 1 GB of RAM, 2GB or above is recommended
Network
Minimum 10/100 Ethernet (Gigabit Ethernet is recommended)
Graphics Adapter
AGP or PCI-Express, minimum 1024×768, 16 bit colors.
(We highly recommend to work above the 1024 x 768 resolution to get
the full experience of the software)
• Make sure your display DPI setting is set to default at 96DPI
• To set DPI value, right-click on desktop, choose “Settings” tab >> “Ad-
vanced” >> “General”
Contents Inside the Installation CD
• Adobe Acrobat Reader
• NVR Search Utility
• User’s Manual
• Quick installation Guide
• Datasheet
4 Channel (Basic)
Network Video Recorder
User’s Manual
English
6
Product Description
The SEEnergy SVR-104/304 Basic are designed for use within a surveil-
lance system, and performs recordings and playbacks pictures from
network cameras in the system. It is designed for small scale applica-
tions such as retail store. Up to 4 cameras can be connected via a net-
work and it is possible to record their camera pictures. It is possible
to perform the settings or operate the NVR using a web browser in-
stalled on a PC connected to a network and live videos can be viewed
on major mobile devices through its web browser. Recorded video can
be played back from remote site by a PC. The NVR is compatible with
most major brand cameras and its ability to automatically search and
ndtheavailablecamerasonthenetworkcangreatlyreducetheuser’s
effort when confguring the system.
• Two-way Audio
• SEEnergy Smart Camera Search
• Mobile Devices Remote Monitoring
• Pure Web Based Administration
• Manage up to 4 Network Cameras
• Compatible with Major Brand Cameras
• High Quality Live/Playback Video
• Export Playback Videos to AVI
4 Channel (Basic)
Network Video Recorder
User’s Manual
English
7
Hardware Illustration
(Manual Recording)
SVR-104 Basic
4 Channel (Basic)
Network Video Recorder
User’s Manual
English
8
(Front)
(Rear)
HDD Tray
HDD Tray
Power button
and LED
HDD LEDs
USB Connector
Power jack
Ethernet jack
USB connector
Reset/Restart but-
ton
SVR-304 Basic
4 Channel (Basic)
Network Video Recorder
User’s Manual
English
9
LEDs and Buttons
Power Button: (Blue when ON) Press to turn on/off the system
Front LEDs:
OS LED
Solid green: System ready
Off: System Off
Blinking:
1. System shutting down
2. Upgradingrmware
a) Through USB drive: Blinking indicating the upgrade is in pro-
cess.Oncermwareupgradecompletes,theLEDgoesoff.Manuallyturn
off the power and turn it back on would be required afterwards.
b) Through the web UI: Blinking indicating the upgrade is in pro-
cess.Oncermwareupgradecompletes,theLEDgoesoff.TheNVRwill
thenrestartautomatically.Onceitnishesrestarting,theLEDshouldturn
to solid green to indicate the system is now ready.
3. Restoringpreviouslysavedcongurationle
a) Through USB drive: The LED should blink to indicate the process
has started. The LED will then go off to indicate the process is complete.
Manually turn off the power and turn it back on would be required after-
wards.
b) Through Web UI: The LED should blink to indicate the process
has started. The LED will then go off to indicate the restoring is complete
and the system is restarting. The OS LED should indicate in solid green
once the system becomes ready.
Recording LED
Solid amber: recording
Off: not recording
Blinking: Manual recording:
When “manual recording button” is pressed
* To start manual recording with the “manual recording button”, press and hold
the button for 2 seconds then release it. Follow the same procedure to stop.
4 Channel (Basic)
Network Video Recorder
User’s Manual
English
10
Restart Button
Press and release the button for hardware re-
start. The OS LED should should go off during the
restart to indicate the system is restarting. The
LED should indicate in solid green once the sys-
tem becomes ready.
Reset Button
Press this button will restore the system’s set-
tings to factory default values. To start, press and
hold the button for 5 seconds then release it once
the OS LED goes off. The OS LED should indicate
in solid green once the system becomes ready.

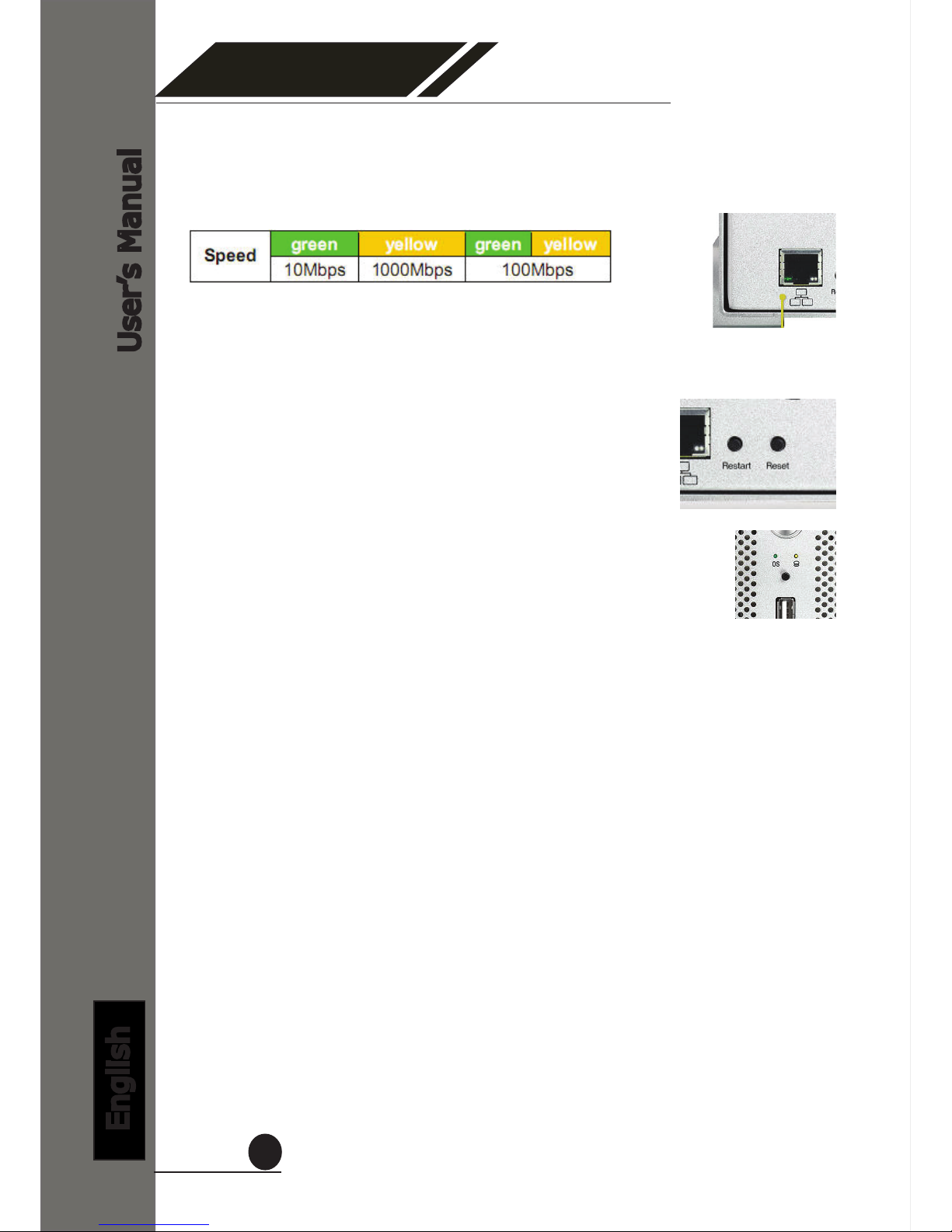

Ethernet Port LED
The green LED on the left indicates the link connection and the LED on the
right indicates the speed
