Sega NAOMI Manuale utente

SEGA ENTERPRISES, INC. USA

1ST PRINTING

MARCH 99

MANUAL NO. 999-0784

SEGA NAOMI

Jamma Compatible

Conversion KIT

Warranty

Your new Sega Product is covered for a period of 90 days from the date of shipment. This certifies

that the Printed Circuit Boards, Power Supplies and Monitor are to be free of defects in workman-

ship or materials under normal operating conditions. This also certifies that all Interactive Control

Assemblies are to be free from defects in workmanship and materials under normal operating condi-

tions. No other product in this machine is hereby covered.

Sellers sole liability in the event a warranted part described above fails shall be, at its option, to

replace or repair the defective part during the warranty period. For Warranty claims, contact your

Sega Distributor.

Should the Seller determine, by inspection that the product was caused by Accident, Misuse, Ne-

glect, Alteration, Improper Repair, Installation or Testing, the warranty offered will be null and void.

Under no circumstances is the Seller responsible for any loss of profits, loss of use, or other dam-

ages.

This shall be the exclusive written Warranty of the original purchaser expressed in lieu of all other

warranties expressed or implied. Under no circumstance shall it extend beyond the period of time

listed above.

INSTALLATION

OF MACHINE 2. In the INPUT TEST mode, check each SW and VR.

3. In the OUTPUT TEST mode, check each of lamps.

4. In the MEMORY TEST mode, check ICs on the IC Board.

Choose MEMORY TEST in the MENU mode to allow the

MEMORY test to be performed. In this test, PROGRAM

RAMs, ROMs, and ICs on the IC Board are checked.

Periodically perform the following:

1. MEMORY TEST

2. Ascertain each setting.

3. In the INPUT TEST mode, test the CONTROL device

4. In the OUTPUT TEST mode, check each of lamps.

1. In the INPUT TEST mode, check each SW and VR.

2. Adjust or replace each SW and VR.

3. If the problem can not be solved yet, check the CONTROL’s moves.

In the MONITOR ADJUSTMENT mode, check to see if the

MONITOR adjustment is appropriately made.

1. MEMORY TEST

2. In the SOUND TEST mode, check the sound related ROMs.

Check such data as game play time and histogram to adjust the

difficulty level, etc

1. Check to see that each setting is as per standard setting made

at the time of shipment.

MEMORY

MONITOR

DATA CHECK

CONTROL

SYSTEM

When the machine is installed, perform the following:

IC BOARD

When performing installation, servicing product or changing game boards refer to individual kit instructions

for each of the listed items below:

1 . EXPLANATION OFTESTAND DATA DISPLAY

ITEMS DESCRIPTION

In the case where plural machines are linked for communication play, if even one seat enters

the test mode, all of the linked seats will enter the test mode. Therefore, if any one of the

linked machines is in play, use care so as not to use the test mode.

The contents of the setting changes made will not be effective unless the test mode is

finished in the test mode. When the setting is changed, be sure to “EXIT” in the menu mode.

Do not press the TEST BUTTON during network check at the time of turning the power on or

exiting from the test mode. If anyone of the linked machines uses the test mode during

network check, all other Seats will continue network checking. Cause all of the Seats to

reenter the test mode and then have all of the Seats exit from the test mode simultaneously.

CAUTIONS TO BE HEEDED WHEN USING THE TEST MODE:

By operating the switch unit, periodically perform the tests and data check. When installing the machine initially or

collecting cash, or when the machine does not function correctly, perform checking in accordance with the explanations

given in this section. The following shows tests and modes that should be utilized as applicable.

PERIODIC

SERVICING

1 - 2 TEST MODE

System Menu. This test mode mainly allows the IC board to be checked for accurate functioning, monitor color to be

adjusted as well as COIN ASSIGNMENTS and GAME ASSIGNEMENTS to be adjusted.

The contents of settings changes in SYSTEM ASSIGNMENTS, COIN ASSIGNMENTS, and

GAME TEST MODE are stored when the test mode is EXITed. If the power is turned off

before EXITing, the contents of setting changes are ineffective. Be very careful of this

point.

3.) Bring the arrow to the item of Game TEST MODE and press the TEST button to display the GAME TEST MENU

peculiar to ZOMBIE REVENGE. See the next page onward.

4.) Upon finishing the test, bring the arrow to EXIT and press the TEST button to return to the Gam Mode.

1 - 3 GAME TEST MODE

Bring the arrow to the item of GAME TEST MODE in

the SYSTEM TEST MENU, and press the Test button to

display the TEST MENU peculiar to ZOMBIE RE-

VENGE.

Press the SERVICE button to move the arrow. Bring the

arrow the desired item and press the TEST button.

Upon finishing the test, bring the arrow to EXIT and

press the TEST button to return to the SYSTEM MENU

MODE.

SYSTEM MENU

USA VERSION

RAM TEST

JVS TEST

SOUND TEST

SYSTEM ASSIGNMENTS

COIN ASSIGNMENTS

BOOKKEEPING

BACKUP DATA CLEAR

CLOCK SETING

ROM BD TEST

GAME TEST MODE

(ZOMBIE REVENGE IN USA)

->EXIT

SELECT WITH SERVICE BUTTON

AND

PRESS TEST BUTTON

1.) After turning power on, press the TEST button to have the following test item menu displayed.

2.) Press the SERVICE button to move the arrow. Bring the arrow to the desired item and press the TEST button.

OPERATION REQUIREMENTS OF THIS GAME:

In the SYSTEM ASSIGNMENTS,

the CABINET TYPE is set to 2 PLAYER(s)

and MONITOR TYPE is set to HORIZONTAL.

COIN ASSIGNMENTS intial settings

<USA, EXPORT, AUSTRALIA Version>

COIN CHUTE TYPE COMMON

COIN/ CREDIT SETTING #12

SEQUENCE SETTING OF COIN ASSIGNMENTS

SEQUENCE 1: Number of credits required for Game Start. (intial value=1)

SEQUENCE 2: Number of credits required for CONTINUE (intial value=1)

SEQUENCE 3-8: NOT USED

MEANING OF DISPLAY IN BOOKEEPING (2/2)

P1(P2) SEQ 1: Play frequency of Player 1 (Player 2)

P1(P2) SEQ 2: Frequency of CONTINUE by Player 1 (Player 2)

P1(P2) SEQ 3-8: NOT USED

(ZOMBIE REVENGE) TEST MENU

INPUT TEST

SOUND TEST

GAME ASSIGNMENTS

STICK SETTING

BOOKKEEPING

BACKUP DATA CLEAR

->EXIT

SELECT WITH SERVICE BUTTON

AND

PRESS TEST BUTTON

1 - 4 INPUT TEST

This test displays the state of each switch.

If this switch goes ON when activated, it is satisfactory.

Display varies depending on the JOYSTICK TYPE setting in (3) GAMEASSIGNMENTS.

1P (2P) UP-DOWN shows the minimum value when the Stick is inclined downward, and the maximum value when the

Stick is inclined upward.

1P (2P) LEFT-RIGHT sows the minimum value when the Stick is inclined to the right, and the maximum when the

Stick is inclined to the left. When the Stick is untouched, the CENTER value is displayed. If each of the center,

minimum, and maximum value is within range of 70-8F,00-0F, and F0-FF respectively, it is satisfactory.

If the value is not satisfactory, return to the MENU mode, make adjustment in (4) STICK SETTING, and reconfirm the

value in this test.

Press the test menu to have the MENU return onto the screen.

1 - 5 SOUND TEST

This allows sound and background used in the game to be checked/ tested.

Pressing the service button increase the number by one

and changes the sound.

Press the TEST button to have the MENU return to the

screen.

INPUT TEST

START1 :OFF START2 :OFF

SW_SHOT 10 :OFF SW_SHOT 20 :OFF

SW_SHOT 11 :OFF SW_SHOT 21 :OFF

SW_SHOT 12 :OFF SW_SHOT 22 :OFF

TEST-SW :OFF SERVICE-SW :OFF

1P UP - DOWN (VOLUME_0) :80

1P LEFT - RIGHT (VOLUME_1) :80

2P UP - DOWN (VOLUME_4) :80

2P LEFT - RIGHT (VOLUME_5) :80

PRESS TEST BUTTON TO EXIT

INPUT TEST

START1 :OFF START2 :OFF

SW_SHOT 10 :OFF SW_SHOT 20 :OFF

SW_SHOT 11 :OFF SW_SHOT 21 :OFF

SW_SHOT 12 :OFF SW_SHOT 22 :OFF

SW_UP1 :OFF SW_UP2 :OFF

SW_DOWN1 :OFF SW_DOWN2 :OFF

SW_LEFT1 :OFF SW_LEFT2 :OFF

SW_RIGHT1 :OFF SW_RIGHT2 :OFF

TEST-SW :OFF SERVICE-SW :OFF

PRESS TEST BUTTON TO EXIT

SOUND TEST

BGM : 00

SELECT WITH SERVICE BUTTON

PRESS TEST BUTTON TO EXIT

1 - 6 GAME ASSIGNMENTS

Allows game difficulty adjustments to be performed/

changed.

SELECTION OF DESIRED ITEM

1.) Press the SERVICE button to move the -> and bring

it to the desired item.

2.) Press the TEST btuuon to change the seting.

3.) Afte the device seting is finished, bring the -> to

EXIT and press the TEST button.

(A) JOYSTICK TYPE (ANALOG, DIGITAL (NORMAL))

This allows the Control Panel’s JOYSTICK TYPE to be selected.

(B) GAME DIFFICULTY

(VERY EASY, EASY, MEDIUM EASY, NORMAL, BITS HARD, MEDIUM HARD, HARD, VERY HARD)

Sets the characteer’s “LIFE” value.

(D) VIOLENCE MODE (OFF, ON)

Sets the blood color to ON (red) or OFF(green). This item is displayed for the USA version only and

not for EXPORT, KOREA, AUSTRALIA versions.

GAME ASSIGNMENTS

JOYSTICK TYPE DIGITAL

GAME DIFFICULTY NORMAL

MAX LIFE 256

VIOLENCE MODE OFF

->EXIT

SELECT WITH SERVICE BUTTON AND

PRESS TEST BUTTON TO EXIT

1 - 7 STICK SETTING

If the JOSTICK TYPE is set to DIGITAL in (3) GAME ASSIGNMENTS, the ANALOG STICK volume can be

adjusted.

ADJUSTING THE VOLUME VALUE

Starring from the untouched status of 1P (2P) DIGITAL STICK, adjust the Volume value by moving the Stick fully UP/

DOWN/LEFT/RIGHT within the maximum movable ranges.

There after, the adjustment is finished if the MENU mode returns when the TEST button is pressed in the status and

Stick is untouched.

After adjustment, be sure to check in (1) INPUT TEST to confirm that the value is satisfactory.

If the value is not staisfactory, return to STICK SETTING and adjust the Volume value. If the satisfactory value is not

obtained after adjusting several times, then, the STICK may be amlfunctioning.

In the case JOYSTICK TYPE is set to DIGITAL, the following is displayed.

Press the TEST button to have the MENU return to the screen.

NEW JAMMAANALOG

MIN CENTER MAX

1P UP - DOWN: 00 80 FF

(VOLUME 0)

1P LEFT - RIGHT: 00 80 FF

(VOLUME 1)

20 UP - DOWN: 00 80 FF

(VOLUME 4)

20 LEFT - RIGHT: 00 80 FF

(VOLUME 5 )

PRESS TEST BUTTON TO EXIT

NEW JAMMA DIGITAL

STICK TYPE IS SET DIGITAL!!

PRESS TEST BUTTON TO EXIT

1 - 8 BOOKKEEPING

This test mode allows each of the CREDIT/TIME/GAME data to be ascertained.

(A) NUMBER OF GAMES

1P, 2P total game playfrequency.

(B) NUMBER OF CONTINUE

1P, 2P continue game playfrequency.

Total number of times both the COIN CHUTE’S are actuated.

(D) COIN CREDIT

Number of CREDITS registered by COIN insertion only.

(E) SERVICE CREDIT

The SERVICE SWITCH usage frequency.

(F) TOTAL CREDIT

Total number of CREDITS.

(G) TOTAL TIME

Machine’s total actuated time (excluding the test performance time).

(H) PLAY TIME

Displays total game play time.

(I) AVERAGE TIME

Average Game play time.

(J) LONGEST TIME

Displays the longest play time.

(K) SHORTEST TIME

Displays the shortest play time.

Press the test button to proceed to the next page.

Press the TEST button to have the MENU return to the screen.

BOOKKEEPING

GAME REPORT PAGE 1/2

NUMBER OF GAMES 0

1P GAMES 0

2P GAMES 0

NUMBER OF CONTINUE 0

1P GAMES 0

2P GAMES 0

TOTAL COIN 0

COIN CREDIT 0

SERVICE CREDIT 0

TOTAL CREDIT 0

TOTAL TIME 0D 0H 0M 0S

PLAY TIME 0D 0H 0M 0S

AVERAGE PLAY TIME 0D 0H 0M 0S

LONGEST PLAY TIME 0D 0H 0M 0S

SHORTEST PLAY TIME 0D 0H 0M 0S

PRESS TEST BUTTON TO EXIT

1 - 9 BACK UP DATA CLEAR

Clears the contents of BOOKKEEPING.

When clearing bring-> to YES and when not clearing, to NO, by using the SERVICE SW and then push the TEST

button.

When clearing has been finished, COMPLETED will be dislayed.

Pressing the TEST button will have the MENU return to the screen.

BOOKKEEPING

TIME HISTOGRAM PAGE 2/2

0M00S ~ 0M29S 0

0M30S ~ 0M59S 0

1M00S ~ 1M29S 0

1M30S ~ 1M59S 0

2M00S ~ 2M29S 0

2M30S ~ 2M59S 0

4M00S ~ 4M29S 0

4M30S ~ 4M59S 0

5M00S ~ 5M29S 0

5M30S ~ 5M59S 0

6M00S ~ 6M29S 0

6M30S ~ 6M59S 0

7M00S ~ 7M29S 0

7M30S ~ 7M59S 0

8M00S ~ 8M29S 0

8M30S ~ 8M59S 0

9M00S ~ 9M29S 0

9M30S ~ 9M59S 0

OVER

PRESS TEST BUTTON TO EXIT

BACK UP DATA CLEAR

YES (CLEAR)

->NO (CANCEL)

SELECT WITH SERVICE BUTTON AND

PRESS TEST BUTTON TO EXIT

Page 2/2 displays by-play-time play frequency.

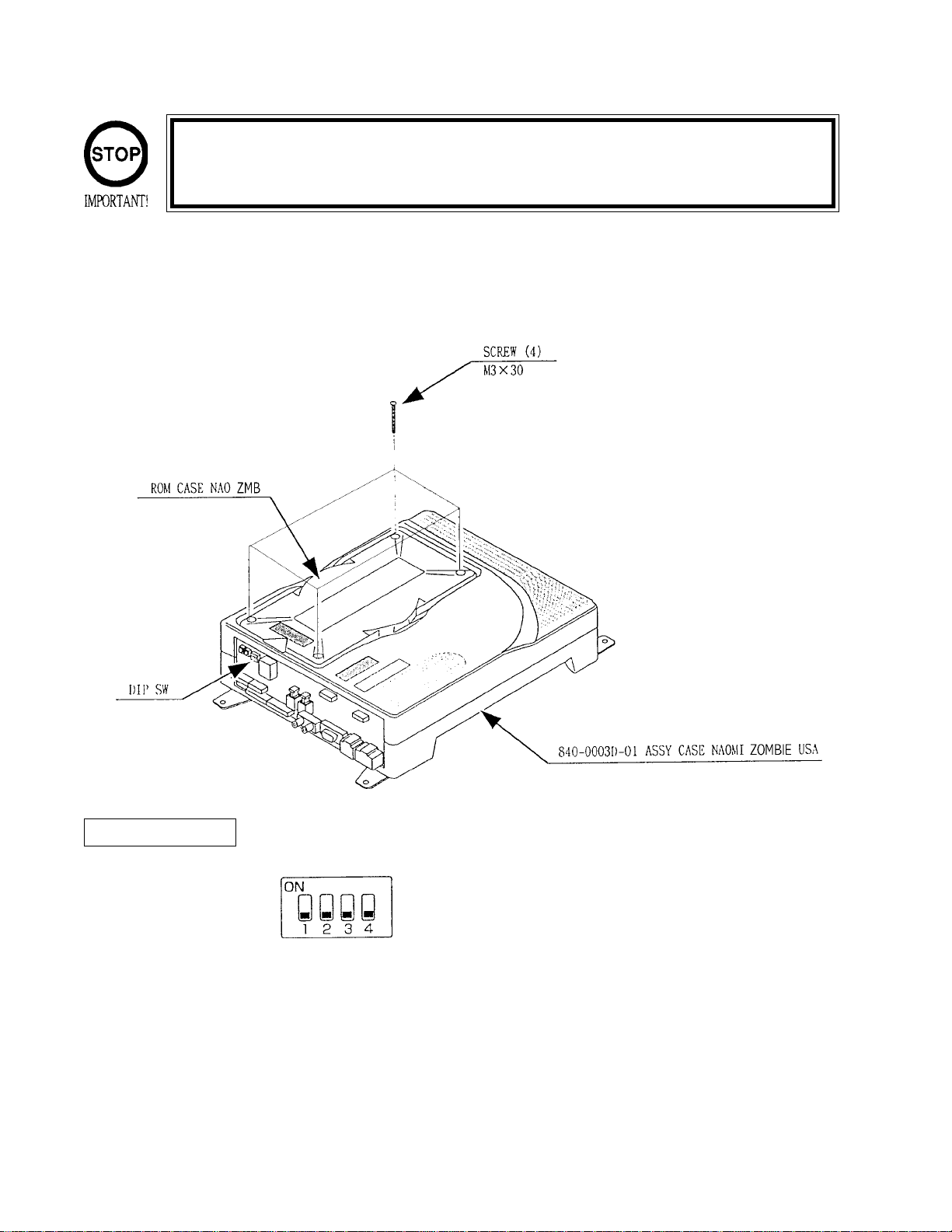

DIP SW SETTINGS

ASSY CASE NAO USA (840-0003D-01) : ZOMBIE USA

Ensure that the DIP SW setting is performed as designated. Failure to observe this

may cause functioning not suitable for the operation, or malfunctioning.

2. GAME BOARD

2 -1 COMPOSITION OF GAME BOARD

Altri manuali per NAOMI

Indice

Altri manuali Sega Macchina per videogiochi arcade

Sega

Sega Triple Play Manuale di istruzioni

Sega

Sega Mushiking Manuale utente

Sega

Sega LINDBERGH RED Manuale utente

Sega

Sega Hot Racer Manuale utente

Sega

Sega OUTRUN 2 SPECIAL TOURS DELUXE Manuale utente

Sega

Sega Sonic Allstarts Kids Basketball Manuale utente

Sega

Sega MISSION IMPOSSIBLE ARCADE Guida all'applicazione

Sega

Sega UFO CATCHER Manuale utente

Sega

Sega Sonic Allstarts Manuale utente

Sega

Sega The Maze of the Kings Manuale utente

Sega

Sega ALL AIR TRIX DLX Manuale di riferimento

Sega

Sega 18 Wheeler Manuale utente

Sega

Sega Grid 42 Manuale utente

Sega

Sega Virtua Tennis 2 Guida alla risoluzione dei problemi

Sega

Sega Buster Bubble Manuale utente

Sega

Sega ATV Slam Manuale utente

Sega

Sega JUNGLE TREASURES Manuale utente

Sega

Sega Double Spin Manuale utente

Sega

Sega Transformers Human Alliance Manuale utente

Sega

Sega THE HOUSE OF THE DEAD III DELUXE Manuale utente

Sega

Sega OUTRUN 2 SPECIAL TOURS SDX Manuale utente

Sega

Sega Giant Plants vs Zombies The Last Stand Manuale utente

Sega

Sega Let's Go ISLAND! Manuale utente

Sega

Sega Royal Rumble Standard Version Manuale utente

Manuali Macchina per videogiochi arcade popolari di altre marche

Universal Space

Universal Space COCONUT BASH Manuale utente

Bay-Tek

Bay-Tek EVOLVE Manuale utente

Global VR

Global VR America's Army Istruzioni per l'installazione e il funzionamento

Atronic

Atronic Cashline Manuale utente

Universal Space

Universal Space Checky Monkey Manuale utente

Bay-Tek

Bay-Tek Skee Ball 1908 Alley Manuale utente

Aristocrat Technologies

Aristocrat Technologies Mars X Upright Manuale utente

Family Fun Companies

Family Fun Companies Reactor Guida rapida

Universal Space

Universal Space FRUIT MANIA Extreme Manuale utente

falgas

falgas CARRUSEL FIESTA Manuale utente

Konami

Konami DanceDanceRevolution Manuale utente

Bay-Tek

Bay-Tek quik drop Manuale utente

Bandai Namco

Bandai Namco PAC-MAN BATTLE ROYALE CHOMPIONSHIP DELUXE Manuale utente

Adrenaline

Adrenaline Flying Tickets Istruzioni per l'installazione e il funzionamento

Swinks

Swinks Stern Pinball Ghostbusters Manuale utente

Innovative Concepts in Entertainment

Innovative Concepts in Entertainment MONOPOLY ROLL-N-GO Manuale utente

jakar

jakar SPEED CARS Manuale utente

Carmelli

Carmelli HAT TRICK NG1015H Manuale utente
