Sena Parani-UD100 Manuale utente

Bluetooth USB Adapter

Parani-UD100

User Guide

Version 1.0.2

2011-05-16

User Guide for the Parani-UD100

Document Version 1.0.2

Firmware version 1.0.X

Printed in Korea

Sena Technologies reserves the right to make changes and improvements to its product without providing notice.

Trademark

Parani™is a trademark of Sena Technologies, Inc.

Windows® is a registered trademark of Microsoft Corporation.

Ethernet® is a registered trademark of XEROX Corporation.

Notice to Users

When a system failure may cause serious consequences, protecting life and property against such consequences with a backup system or safety device

is essential. The user agrees that protection against consequences resulting from system failure is the user's responsibility.

This device is not approved for life-support or medical systems.

Changes or modifications to this device not explicitly approved by Sena Technologies will void the user's authority to operate this device.

Precautions and Safety

Do not drop or subject the device to impact. Damage to your products may result from improper use.

Keep away from harsh environments including humid, dusty, and smoky areas. Damage to your products may result from improper use.

Do not use excessive force onthe buttons or attempt to disassemble the device. Damage to your products may result from improper use.

Do not place heavy objects onthe product. Damage to your products may result from improper use.

Revision History

Revision Date Name Description

V1.0.0 2009-01-29 CP Moon Initial Revision History

V1.0.1 2009-06-01 CP Moon Update product specification

Add using Bluetooth stereo headset

V1.0.2 2011-05-16 WJ Kim Add note

Contents

1. Introduction 5

1.1. Overview............................................................................................................................... 5

1.2. Package Check List .............................................................................................................. 5

1.3. Product Specification............................................................................................................. 6

2. Installing the Bluetooth Software 7

3. Using the Bluetooth Adapter 10

3.1. Using Bluetooth Serial Port ..................................................................................................11

3.2. Using Dial-up Network (DUN)..............................................................................................16

3.3. Using Bluetooth Stereo Headset.......................................................................................... 20

Appendix A. Mechanical Drawing 24

Appendix B. Warranty 25

B.1. GENERALWARRANTY POLICY........................................................................................25

B.2. LIMITATION OF LIABILITY ................................................................................................. 25

B.3. HARDWARE PRODUCT WARRANTY DETAILS................................................................. 25

B.4. SOFTWARE PRODUCT WARRANTY DETAILS ................................................................. 26

B.5. THIRD-PARTY SOFTWARE PRODUCT WARRANTY DETAILS .........................................26

Appendix C. Contact Information 27

1. Introduction

1.1. Overview

Thank you for purchasing Parani-UD100. Parani-UD100 is a Bluetooth-USB adapter with replaceable external antenna. Parani-UD100 supports

Bluetooth2.0+EDR class 1 with working distance up to 300 meters. In addition, working distance can be further extended using optional dipole or patch

antennas. Parani-UD100 supports USB 2.0 for the computer interface and can be used with Windows using Bluetoothstack driver included in the CD or

MAC OS X using MAC OS X Bluetoothstack driver.

1.2. Package Check List

Parani-UD100

Stub Antenna

Quick Start Guide

CD-ROM including Windows Bluetooth driver, User Guide and Data sheet

1.3. Product Specification

Standards Bluetooth2.0+EDR Class 1

USB 2.0

Max Transfer Rate 3 Mbps (EDR)

Frequency Range 2.402 ~ 2.480GHz

Transmit Output Power +19dBm (+6dBm EDR) E.I.R.P

Receive Sensitivity Basic 1Mbps: -88 dBm

EDR2Mbps: -87dBm

EDR3Mbps: -82dBm

Antenna Connector RP-SMA

Antenna Gain Default Stub Antenna: 1 dBi

Optional Dipole Antennas: 3 dBi & 5 dBi

Optional Patch Antenna: 9 dBi

Working Distance

(InOpen Field)

Stub antenna – Stub antenna: 300 m

Dipole (3 dBi) – Dipole (3 dBi) : 400 m

Dipole (5 dBi) – Dipole (5 dBi): 600 m

Patch antenna – Patch antenna: 1 km

* working distance can vary depending on install environment

Bluetooth Stack Software Toshiba

Bluetooth Profiles DUN, FAX, LAP, SPP, HID, HCRP, FTP, OPP, A2DP, AVRCP, GAVDP, HSP,

HFP, PAN, BIP

Computer OS Support Windows 2000/XP/Vista (32/64bit)

Linux (3rd party driver required)

MACOS X (MACOS X driver required)

Size 72(L) x22(W) x 10(H) mm

Operating Temperature -20 ~ +70℃

Storage Temperature -40 ~ +85℃

Humidity 90% Non-condensing

RegulatoryApprovals FCC, CE, TELEC, KCC, Bluetooth SIG

Warranty 1 year limited warranty

Note *:

Bluetooth v2.0 supports improved AFH function. AFH function is to mitigate the interference between WiFi and Bluetooth radios by

automatically avoiding the active WiFi channel from Bluetooth link. However, AFH does not provide a complete solution making WiFi and

Bluetooth work together in harmony. It is highly recommended for users to test their wireless system enough before deployment since the

overall system performance is affectedby various environmental factors such as distance between them.

2. Installing the Bluetooth Software

This chapter describes how to install and set up the Bluetoothsoftware on your computer when you plug the Parani-UD100 to your computer for the first

time.

Before connecting the Parani-UD100, you must install the Bluetooth software. You should also uninstall any kind of Bluetooth driver or utility

already installed on your computer such as Widcomm BTW or Toshiba, if any.

a. Insert the installation software CD.

b. Click on “Install Bluetooth Utility / Driver”

c. The InstallSheld wizard is started. Click the Next button. (Figure 2.1)

d. Read the License and click the “I accept the terms in the license agreement”radio button. Then click the Next button. (Figure 2.2)

Figure 2.1: InstallShield wizard Figure 2.2: License Agreement

e. Click the Install button to begin the installation. (Figure 2.3)

f. During installation, you should plug in the Parani-UD100 to USB port. After plugging in it, click the OK button. (Figure 2.4)

Figure 2.3: Ready to install

Figure 2.4: Plug in the Bluetooth device

g. Installationis completed. Click the Finish button.

h. Click the Yes buttonto restart your PC.

Figure 2.5: InstallShield wizard complete

Figure 2.6: restart your PC

Note: Latest Toshiba Device Driver

http://aps2.toshiba-tro.de/bluetooth/index.php?page=download-toshiba

3. Using the Bluetooth Adapter

This chapter describes how you can use Parani-UD100 to make use of SPP and DUN services. For more information on other Bluetooth services, please

refer to the online Help provided by the Bluetooth Manager software. To open the Bluetooth Manager Help, please right-click on the Bluetooth Manager

icon on the tray, and thenclickon“Help”(Figure 3.1).

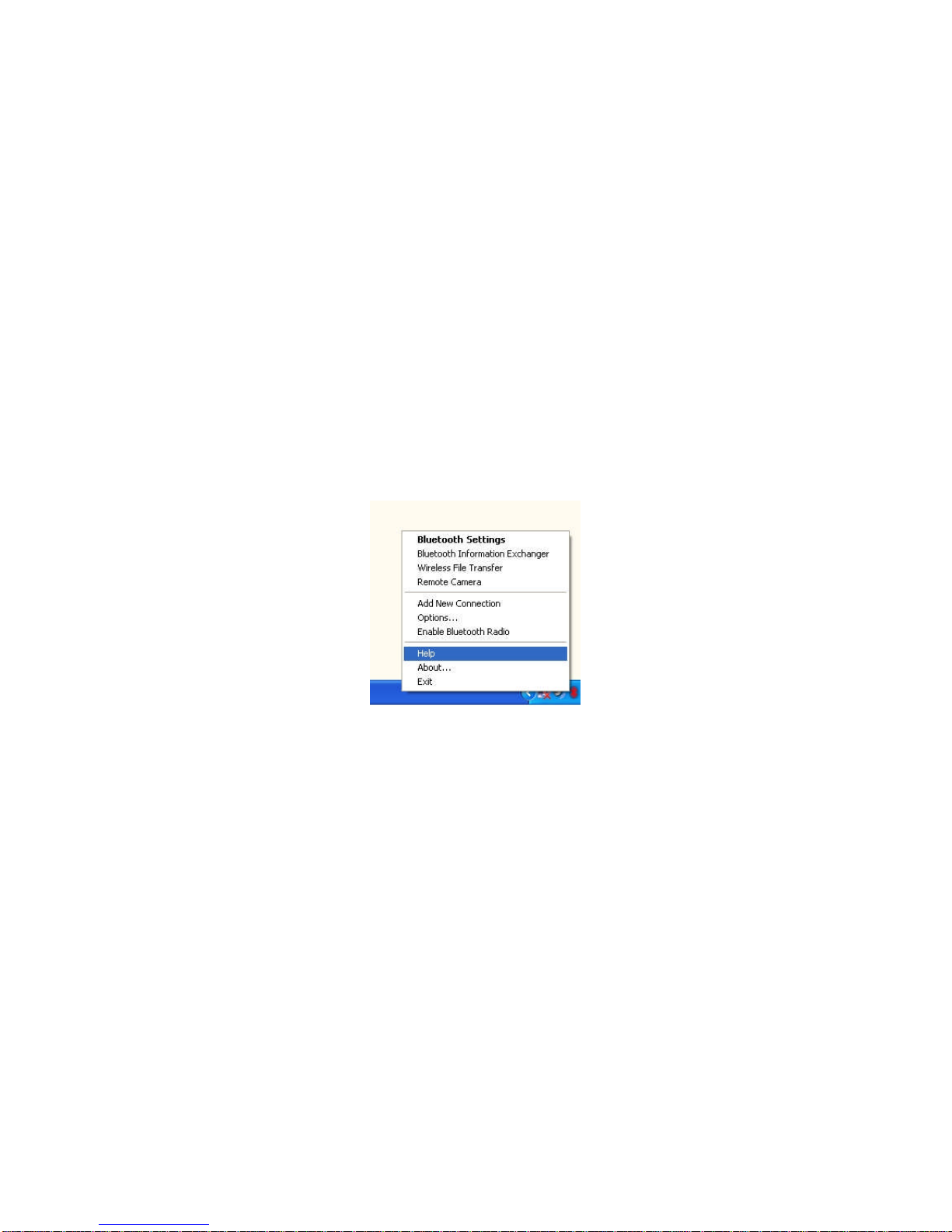

Figure 3.1: Getting Help File
