SENA
QUICK START GUIDE
ENGLISH
5R
MOTORCYCLE BLUETOOTH®
COMMUNICATION SYSTEM
SENA Technologies, Inc.
Customer Support: sena.com
Downloadable Sena Software
Download the SENA MOTORCYCLES App on Google Play
Store or App Store.
SENA MOTORCYCLES
• Device Configuration Setting
Download the following items at sena.com.
Firmware
Sena Device Manager
• Firmware upgrade
• Device configuration setting
Quick Start Guide,
User’s Guide
Follow us on Facebook, YouTube, Twitter and Instagram to check
the latest information and helpful tips.
Product Details
Speakers and
Microphone Port
LCD Display
DC Power Charging &
Firmware Upgrade Port
(+) Button
(-) Button
Multi-function Button
Installation
• For more information about installation, refer to the User’s Guide.
Using the Clamp for Headset Main Unit
12
3
Using the Glued Surface Mounting Adapter for Headset Main Unit
1 2
3 4
Installing the Speakers
1 2
3

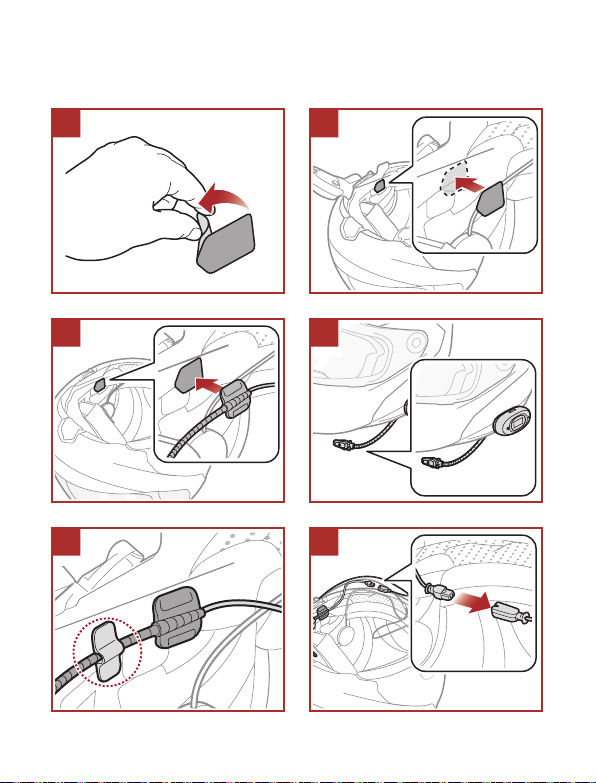

Installing the Wired Boom Microphone
1 2
3 4
5 6
Installing the Wired Microphone
1 2
3 4
Icon Legend
1x
TAP Tap button the specified
number of times 10s
HOLD Press and Hold button for the
specified amount of time
“Hello” Audible prompt
Basic Operations
Powering On
1s
HOLD
READY
Powering Off
1x
TAP GOOD BYE
Volume Up/Down
1x
TAP
or
1x
TAP
Checking the Battery Level
LCD Display
Battery Indicator
READY
= High
= Medium
= Low
= Extremely Low
= Charging
Phone Pairing
① 10s
HOLD
“Configuration menu”
② 1x
TAP
“Phone pairing”
③ Select 5R in the list of Bluetooth
devices detected.
Device B
Pi
Bluetooth
5R
• The headset will enter the Phone Pairing mode automatically
when you initially turn on the headset.
• For more information on phone pairing, refer to the User’s Guide.
Using the Phone
LCD Display
Call Status
010 1234 5678
= Incoming Call
= Outgoing call
= On the Phone Call
= Reject a call
