Senix CSX2-M Manuale utente
20V MAX LITHIUM ION
CORDLESS CHAINSAW
Operator's manual
Model: CSX2-M
CSX2-M-0
For customer support, please call 1-800-261-3981 or send email to:
SAVE THIS MANUAL FOR FUTURE REFERENCE.
ORIGINAL INSTRUCTIONS
TM
EN - 2 WWW.SENIXTOOLS.COM

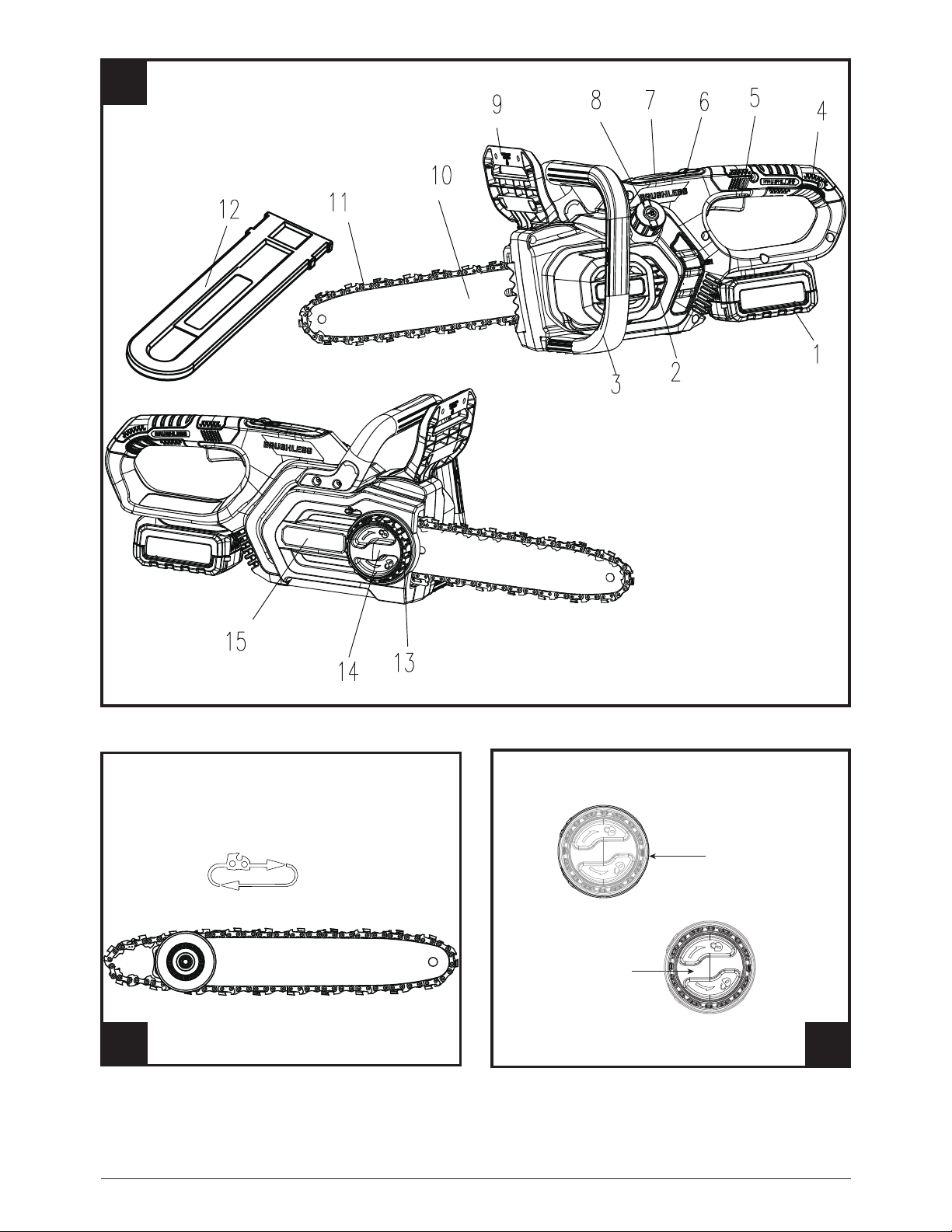

Tensioning Knob
Side Cover Knob
1
23
WWW.SENIXTOOLS.COM 3 - EN
Drive Sprocket
4
6
98
7
5
Trigger Lock-out
Trigger Switch
Danger zone
Escape
route Escape
route
Danger zone
EN - 4 WWW.SENIXTOOLS.COM
Direction of fall
Notch
50 mm Felling back cu
t
Hinge
50 mm
Keep work off ground. Leave support limbs until log is cut.
Log supported along the entire length
Cut from top (overbuck). Avoid cutting earth.
Bucking a log
Stand on uphill side when cutting because log may roll
2nd cut overbuck (2/3 diameter)
to meet 1st cut (to avoid pinching)
1st cut underbuck
(1/3 diameter)
to avoid splintering
Log supported one end
2nd cut underbuck (2/3 diameter)
to meet 1st cut (to avoid pinching)
Log supported both ends
1st cut overbuck (1/3 diameter)
to avoid splintering
10 11
12 13
1514
WWW.SENIXTOOLS.COM 5 - EN
Light Button
1716
EN - 6 WWW.SENIXTOOLS.COM
TABLE OF CONTENTS
SAFETY & INTERNATIONAL SYMBOLS ...........................6
SAFETY INSTRUCTIONS....................................................7
KNOW YOUR UNIT............................................................15
SPECIFICATIONS*............................................................15
ASSEMBLY.........................................................................16
OPERATION.......................................................................17
MAINTENANCE..................................................................19
TROUBLESHOOTING........................................................21
PARTS................................................................................22
WARRANTY.......................................................................23
SAFETY & INTERNATIONAL
SYMBOLS
Explanation of safety & international symbols describes
safety and international symbols and pictographs that may
appear on this product. Read the operator’s manual for
complete safety, assembly, operating and maintenance and
repair information.
Caution / Warning.
To reduce the risk of injury, user must read
instruction manual.
Wear eye protection.
Wear hearing protection.
Wear respiratory protection.
Wear protective gloves.
Do not expose to rain.
DANGER – Keep hands away from blade.
Avoid power lines, use in dry conditions.
Keep all bystanders at least 50 ft. away.
Thrown objects can ricochet and result in
personal injury or property damage.
Contact of the guide bar tip with any object
should be avoided.
Tip contact can cause the guide bar to to
move suddenly upward and backward,which
can cause serious injury.
Always use two hands when operating the
chain saw.
Do not dispose of battery packs in rivers or
immerse in water.
Do not dispose of battery packs in fire. They
will explode and cause injury.
Use and store the battery within an temperature
below 122°F(50°C).
Do not disassemble, crush, heat above
212°F(100°C); Never expose the battery to
microwaves or high pressures.
WWW.SENIXTOOLS.COM 7 - EN
SAFETY INSTRUCTIONS
GENERAL POWER TOOL SAFETY
WARNINGS
WARNING!
Read all safety warnings and all
instructions. Failure to follow the
warnings and instructions may result
in electric shock, fire and/or serious
injury.
Save all warnings and
instructions for future reference.
The term “power tool” in the
warnings refers to your mains-
operated (corded) power tool or
battery-operated (cordless) power
tool.
1) Work Area Safety
a. Keep work area clean and well
lit. Cluttered or dark areas invite
accidents.
b. Do not operate power tools
in explosive atmospheres,
such as in the presence of
flammable liquids, gases or
dust. Power tools create sparks
which may ignite the dust or
fumes.
c. Keep children and bystanders
away while operating a power
tool. Distractions can cause you
to lose control.
2) Electrical Safety
a. Power tool plugs must match
the outlet. Never modify
the plug in any way. Do not
use any adapter plugs with
earthed (grounded) power
tools. Unmodified plugs and
matching outlets will reduce risk
of electric shock.
b. Avoid body contact with
earthed or grounded surfaces,
such as pipes, radiators,
ranges and refrigerators.
There is an increased risk of
electric shock if your body is
earthed or grounded.
c. Do not expose power tools
to rain or wet conditions.
Water entering a power tool
will increase the risk of electric
shock.
d. Do not abuse the cord. Never
use the cord for carrying,
pulling or unplugging the
power tool. Keep cord away
from heat, oil, sharp edges
or moving parts. Damaged or
entangled cords increase the
risk of electric shock.
e. When operating a power tool
outdoors, use an extension
cord suitable for outdoor
use. Use of a cord suitable for
outdoor use reduces the risk of
EN - 8 WWW.SENIXTOOLS.COM
energising power tools that have
the switch on invites accidents.
d. Remove any adjusting key
or wrench before turning the
power tool on. A wrench or a
key left attached to a rotating
part of the power tool may result
in personal injury.
e. Do not overreach. Keep
proper footing and balance at
all times. This enables better
control of the power tool in
unexpected situations.
f. Dress properly. Do not wear
loose clothing or jewelry.
Keep your hair, clothing and
gloves away from moving
parts. Loose clothes, jewellery
or long hair can be caught in
moving parts.
g. If devices are provided for the
connection of dust extraction
and collection facilities,
ensure these are connected
and properly used. Use of
dust collection can reduce dust-
related hazards.
4) Power Tool Use And Care
a. Do not force the power tool.
Use the correct power tool for
your application. The correct
power tool will do the job better
and safer at the rate for which it
electric shock.
f. If operating a power tool in a
damp location is unavoidable,
use a residual current device
(RCD) protected supply. Use
of an RCD reduces the risk of
electric shock.
3) Personal Safety
a. Stay alert, watch what you
are doing and use common
sense when operating a power
tool. Do not use a power tool
while you are tired or under
the influence of drugs, alcohol
or medication. A moment of
inattention while operating
power tools may result in serious
personal injury.
b. Use personal protective
equipment. Always wear
eye protection. Protective
equipment such as dust mask,
non-skid safety shoes, hard
hat, or hearing protection used
for appropriate conditions will
reduce personal injuries.
c. Prevent unintentional starting.
Ensure the switch is in the off-
position before connecting to
power source and/or battery
pack, picking up or carrying
the tool. Carrying power tools
with your finger on the switch or
WWW.SENIXTOOLS.COM 9 - EN
was designed.
b. Do not use the power tool if
the switch does not turn it
on and off. Any power tool that
cannot be controlled with the
switch is dangerous and must be
repaired.
c. Disconnect the plug from
the power source and/or
the battery pack from the
power tool before making
any adjustments, changing
accessories, or storing
power tools. Such preventive
safety measures reduce the
risk of starting the power tool
accidentally.
d. Store idle power tools out of
the reach of children and do
not allow persons unfamiliar
with the power tool or these
instructions to operate the
power tool. Power tools are
dangerous in the hands of
untrained users.
e. Maintain power tools. Check
for misalignment or binding
of moving parts, breakage of
parts and any other condition
that may affect the power
tools operation. If damaged,
have the power tool repaired
before use. Many accidents are
caused by poorly maintained
power tools.
f. Keep cutting tools sharp and
clean. Properly maintained
cutting tools with sharp cutting
edges are less likely to bind and
are easier to control.
g. Use the power tool and any
accessories in accordance
with these instructions, taking
into account the working
conditions and the work to be
performed. Use of the power
tool for operations different from
those intended could result in a
hazardous situation.
5) Battery Tool Use And Care
a. Recharge only with the
charger specified by the
manufacturer. A charger that is
suitable for one type of battery
pack may create a risk of fire
when used with another battery
pack.
b. Use power tools only with
specifically designated battery
packs. Use of any other battery
packs may create a risk of injury
and fire.
c. When battery pack is not in
use, keep it away from other
metal objects, like paper clips,
coins, keys, nails, screws or
other small metal objects,
EN - 10 WWW.SENIXTOOLS.COM
• Always hold the chain saw
with your right hand on the
rear handle and your left hand
on the front handle. Holding
the chain saw with a reversed
hand configuration increases
the risk of personal injury and
should never be done. NOTE:
For chain saws designed with
the guide bar on the left side,
the reference to “right hand”
and “left hand” positioning is
reversed.
• Hold the power tool by
insulated gripping surfaces
only, because the saw
chain may contact hidden
wiring. Saw chains contacting
DƎOLYHƎZLUHPD\PDNHH[SRVHG
metal parts of the power tool
ƎOLYHƎDQGFRXOGJLYHWKHRSHUDWRU
an electric shock.
• Wear safety glasses and
hearing protection. Further
protective equipment for
head, hands, legs and feet
is recommended. Adequate
protective clothing will reduce
personal injury by flying debris
or accidental contact with the
saw chain.
• Do not operate a chain saw in
a tree. Operation of a chain saw
while up in a tree may result in
that can make a connection
from one terminal to another.
Shorting the battery terminals
together may cause burns or a
fire.
d. Under abusive conditions,
liquid may be ejected from
the battery; avoid contact.
If contact accidentally occurs,
flush with water. If liquid contacts
eyes, additionally seek medical
help. Liquid ejected from the
battery may cause irritation or
burns.
6) Service
a. Have your power tool
serviced by a qualified repair
person using only identical
replacement parts. This will
ensure that the safety of the
power tool is maintained.
CHAIN SAW SAFETY WARNINGS
• Keep all parts of the body
away from the saw chain when
the chain saw is operating.
Before you start the chain
saw, make sure the saw chain
is not contacting anything.
A moment of inattention while
operating chain saws may cause
entanglement of your clothing or
body with the saw chain.
