Sennheiser AC 3000 Dimensioni

Active splitter

Broadband input modules

Optional selective input modules

DC power supplied to antenna head amplifiers

Robust 19’’ housing in 3000 Series design

Delivery includes: ASA 3000, rack mounting kit, telescopic antennas,

mains cable

The ASA 3000 is an active

antenna splitter for multi-

channel wireless microphone

systems with up to 16 chanels

(8 x EM 3031, 8 x 3032 or

8 x EM 3532). The ASA 3000 is

suitable for the entire UHF

range but can optionally be

equipped with selective input

filter modules to narrow the

input frequency range.

ASA 3000 Product

News

3000 Series

Cat. No. 09407 US

Cat. No. 09408 UK

Cat. No. 09423 EU

Technical Data

Antenna splitter 2 x 1:8 active

Frequency range 470 – 870 Hz

Distribution attenuation 0 dB

Nominal impedance 50 Ω

Connectors BNC sockets

DC supply to power 12 V, 70 mA,

head amplifiers short circuit-proof

Power supply 100 – 240 V, 50 – 60 Hz

Dimensions 19’’, 1 U

Accessories

Selective input module IM 3000 Cat. No. 05241

Active directional antenna A 12 AD UHF Cat. No. 04156

Passive omni-directional

antenna A 1031-U Cat. No. 04645

Ground plane antenna GZA 1036-9 Cat. No. 02336

Co-axial antenna cable, RG 58 GZL 1019 A1 (1 m) Cat. No. 02324

GZL 1019 A5 (5 m) Cat. No. 02325

GZL 1019 A10 (10 m) Cat. No. 02326

Passive directional antenna A 2003-UHF Cat. No. 03658

095186 09/04 Printed in Germany Sennheiser is a trademark of Sennheiser electronic GmbH & Co. KG

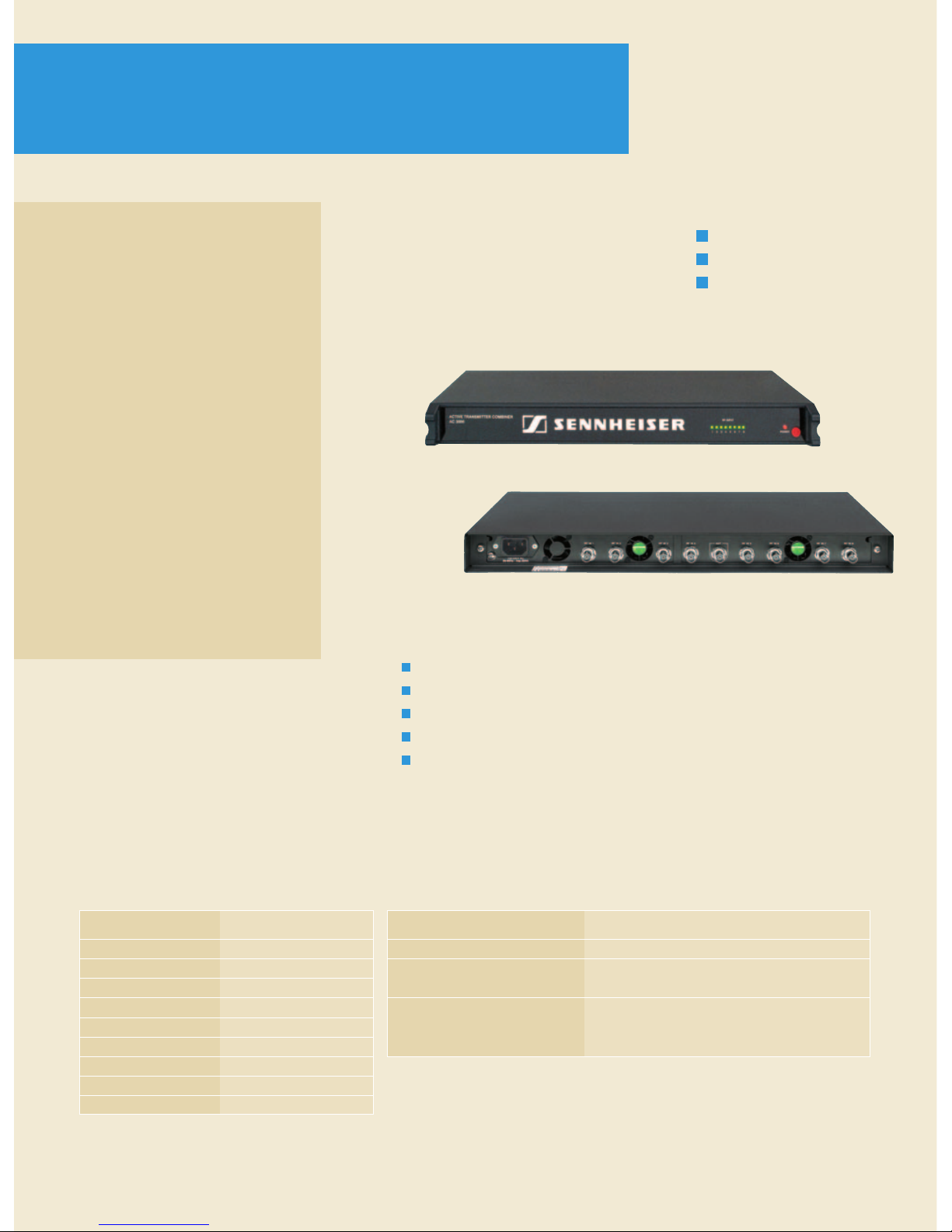

Active antenna combiner

Broadband inputs and outputs

Rugged 19” housing in 3000 Series design

Eight LEDs for indicating RF power at the inputs

Delivery includes: AC 3000, rack mounting kit, mains cable

The AC 3000 is an active

antenna combiner for creating

high-quality 8-channel

wireless monitoring systems

for stage use or talk-back

applications, for example in TV

studios. It combines the

RF signals of up to eight

SR 3054/SR 300 G2 trans-

mitters or four SR 3056 twin

transmitters onto a single

antenna such as the

A 2003 UHF directional

antenna or A 1031 U omni-

directional antenna.

AC 3000 Product

News

3000 Series

Cat. No. 09409 US

Cat. No. 09410 UK

Cat. No. 09424 EU

Technical Data

Antenna combiner 8:1

Frequency range 470 – 870 Hz

Distribution attenuation 0 dB

RF input power max. 100 mW per input

Impedance 50 Ω

Power supply 100 – 240 V, 50 – 60 Hz

Power consumption max. 120 VA

Temperature range -10°C to +50°C

Weight 3 kg

Accessories

Passive directional antenna A 2003-UHF Cat. No. 03658

Passive omni-directional

antenna A 1031-U Cat. No. 04645

Co-axial antenna cable, GZL 1019 A1 (1 m) Cat. No. 02324

BNC connectors GZL 1019 A5 (5 m) Cat. No. 02325

GZL 1019 A10 (10 m) Cat. No. 02326

Please note: Active antennas must not be used with this product.

095186 09/04 Printed in Germany Sennheiser is a trademark of Sennheiser electronic GmbH & Co. KG
