Sennheiser RS 110 II Manuale utente

Quick Guide

Consignes de sécurité

Indicaciones de seguridad

Guia de Segurança

Sicherheitshinweise

Guida per la sicurezza

Veiligheidsgids

RS 110 II

standard batteries

AAA 1.5 V

FRESPTITNLJP DE EN

Delivery includes

HDR 110 II headphones

TR 110 II transmitter with

audio connection cable

SA103K-09G/NT9-3A (EU) mains unit

(for EU market only)

SA103K-09B/NT9-3A (UK) mains unit

(for UK market only)

Batteries, AAA size, 1.5 V

Adapter, 1/4“ (6.3 mm)

Quick

Guide Quick Guide

Safety

Guide Safety Guide

The diagrams corresponding to the chapter headings

can be found on the fold-out page.

Preparing the transmitter for use

The transmitter is prepared for wall mounting (recess at the

rear of the transmitter). The required mounting material

(screws and plugs) is not included in the delivery.

Connecting the transmitter to an audio output of

your audio source

왘Choose a suitable place near your audio source (e.g. TV,

stereo or home cinema system). Avoid placing the trans-

mitter close to metal objects such as shelf bars, reinforced

concrete walls, etc. as this can decrease the transmitter’s

range.

왘Connect the transmitter‘s audio connection cable:

• either directly to the headphone socket or

• to the 1/4“ (6.3 mm) adapter and a corresponding

headphone socket.

왘Set the volume for the headphone output of your audio

source to a medium level. If the headphone output volu-

me is set too low, the transmitter automatically switches

off.

Some TVs have a function that mutes the TV loud-

speakers when you connect a transmitter. If neces-

sary, change this setting via the operating menu of

your TV.

Connecting the transmitter to the mains

왘Connect the mains unit to the socket at the rear of the

transmitter. Plug the mains unit into a wall socket. The

transmitter switches on and the ON/OFF LED lights up

green.

Preparing the headphones for use

Opening the battery compartments

왘Turn the ear pads in the direction of the arrow until you

overcome a slight resistance and lift them off the ear

cups.

Inserting and replacing the batteries

왘Insert the supplied batteries. Secure the ear pads to the

ear cups.

FRESPTITNLJP DE EN

Using the RS headphone system

Switching on the audio source

왘Switch on the audio source. The transmitter automatically

switches on and off together with the audio source. The

ON/OFF LED lights up green.

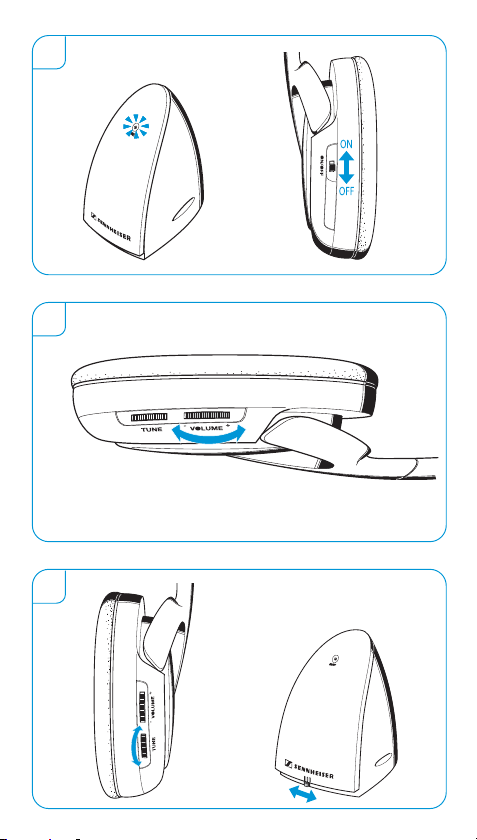

Switching on the headphones/adjusting the volume

왘First, set the volume on the headphones to a low level.

왘Switch on the headphones and set the volume to the

desired level.

왘Switch off the headphones after use to save battery power.

Optimizing the reception

왘Adjust the receiver channel with the TUNE control on the

headphones.

However, if reception is subject to interference:

왘Change the transmission channel by setting the switch

at the bottom of the transmitter to another position and

re-adjust the receiver channel with the TUNE control on

the headphones. Some electronic devices (e.g. televisi-

ons) can cause interference to your wireless headphone

system. If this happens, increase the distance between

the transmitter and the interference source.

Specifications and

Frequently Asked Questions (FAQs)

왘Visit our website at www.sennheiser.com.

Manufacturer declarations

Warranty

Sennheiser electronic GmbH & Co. KG gives a warranty of

24 months on this product. For the current warranty con-

ditions, please visit our website at www.sennheiser.com or

contact your Sennheiser partner. Before putting the product

into operation, please observe the respective country speci-

fic regulations.

In compliance with the essential requirements and other

relevant provisions of the following Directives:

• RoHS Directive (2002/95/EC)

• WEEE Directive (2002/96/EC)

Please dispose of this product by taking it to your

local collection point or recycling center for such

equipment.

• Battery Directive (2006/66/EC)

Please dispose of the batteries as special waste

or return them to your specialist dealer. In order

to protect the environment, only dispose of

exhausted batteries.

CE Declaration of Conformity

• R&TTE Directive (1999/5/EC)

• EMC Directive (2004/108/EC)

• Low Voltage Directive (2006/95/EC)

• EuP Directive (2005/32/EC)

The CE Declaration of Conformity is available on our website

at www.sennheiser.com.

In compliance with:

Europe/UK

RS 120 II

RS 115 II

RS 119 II

Sennheiser electronic GmbH & Co. KG

Am Labor 1, 30900 Wedemark, Germany

www.sennheiser.com

Printed in China, Publ. 04/11, 545190/A01
