Package contents

HDR 118 headphones

TR 118 transmitter with

audio connection cable

NT9-3A power supply unit (EU version)

NiMH rechargeable batteries, AAA size, 1.2 V

Adapter, 1/4“ (6.3 mm)

Manual Instruction manual

Safety Guide

The diagrams corresponding to the chapter

headings can be found on the fold-out page.

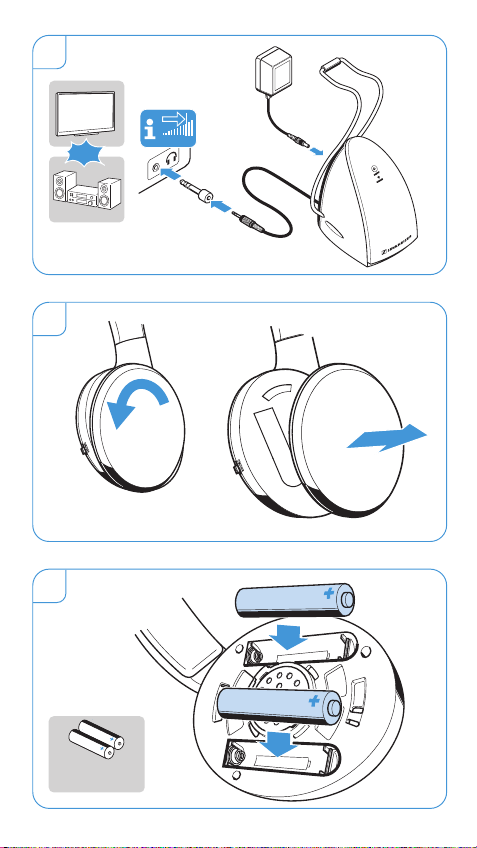

Preparing the transmitter for use

The transmitter is prepared for wall mounting (recess at the

rear of the transmitter). The required mounting material

(screws and plugs) is not included in the delivery.

Connecting the transmitter to an audio output of

your audio source

왘Choose a suitable place near your audio source (e.g. TV,

stereo or home cinema system). Avoid placing the trans-

mitter close to metal objects such as shelf bars, rein-

forced concrete walls, etc. as this can decrease the trans-

mitter’s range.

왘Connect the transmitter‘s audio connection cable:

• either directly to the headphone socket or

• to the 1/4“ (6.3 mm) adapter and a corresponding

headphone socket.

왘Set the volume for the headphone output of your audio

source to a medium level. If the headphone output vol-

ume is set too low, the transmitter automatically switch-

es off.

Some TVs have a function that mutes the TV loud-

speakers when you connect a transmitter. If neces-

sary, change this setting via the operating menu of

your TV.

Connecting the transmitter to the power supply system

왘Connect the power supply unit to the socket at the rear

of the transmitter. Plug the power supply unit into a wall

socket. The transmitter switches on and the ON/OFF LED

lights up green.

Preparing the headphones for use

Opening the battery compartments

왘Turn the ear pads in the direction of the arrow until you

overcome a slight resistance and lift them off the ear

cups.

Inserting and replacing the rechargeable batteries

CAUTION

왘Only use NiMH rechargeable batteries, never

use standard batteries!

왘Insert the supplied rechargeable batteries. Secure the ear

pads to the ear cups.

왘Charge the rechargeable batteries for at least 24 hours

prior to first time use. Subsequent charging time

depends on the previous operating time and is up to

18 hours max.

왘Place the headphones on the charging cradle of the trans-

mitter. The red CHARGE LED lights up, indicating that the

batteries are being charged. The CHARGE LED remains lit

even when the rechargeable batteries are fully charged.

Using the headphone system

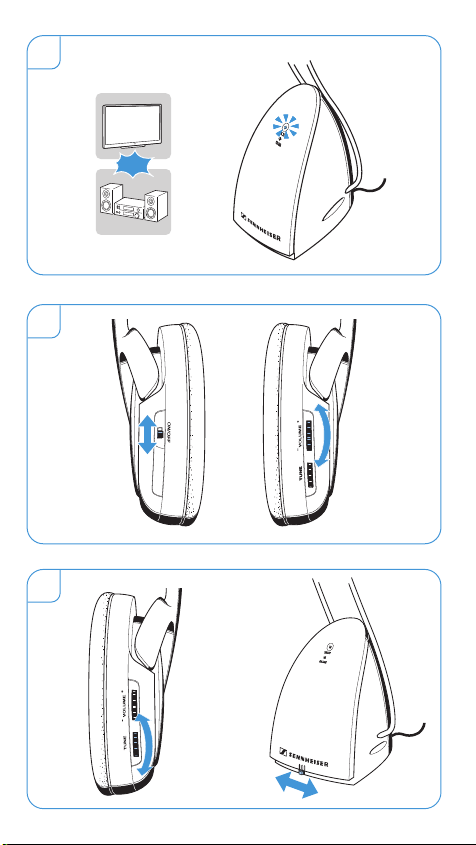

Switching on the audio source

왘Switch on the audio source. The transmitter automatical-

ly switches on and off together with the audio source. The

ON/OFF LED lights up green.

Switching on the headphones/adjusting the volume

왘First, set the volume on the headphones to a low level.

왘Switch on the headphones and set the volume to the de-

sired level.

왘Switch off the headphones after use to avoid discharging

the batteries.

Optimizing the reception

왘Adjust the receiver channel with the TUNE control on the

headphones.

However, if reception is subject to interference:

왘Change the transmission channel by setting the switch at

the bottom of the transmitter to another position and re-

adjust the receiver channel with the TUNE control on the

headphones. Some electronic devices (e.g. televisions)

can cause interference to your wireless headphone sys-

tem. If this happens, increase the distance between the

transmitter and the interference source.

Specifications and additional information

왘Specifications are included on the inside

cover page.

왘Visit our website at www.sennheiser.com.

Manufacturer declarations

Warranty

Sennheiser electronic GmbH & Co. KG gives a warranty of 24

months on this product.

For the current warranty conditions, please visit our website

at www.sennheiser.com or contact your Sennheiser partner.

In compliance with the essential requirements

• WEEE Directive (2012/19/EU)

Please dispose of this product by taking it to your

local collection point or recycling center for such

equipment.

• Battery Directive (2013/56/EU)

Please dispose of the rechargeable batteries as

special waste or return them to your specialist

dealer. In order to protect the environment, only

dispose of exhausted batteries.

CE Declaration of Conformity

• RoHS Directive (2011/65/EU)

• R&TTE Directive (1999/5/EC)

• EMC Directive (2004/108/EC)

• Low Voltage Directive (2006/95/EC)

• ErP Directive (2009/125/EU)

The CE Declaration of Conformity is available on our website

at www.sennheiser.com.

Before putting the product into operation, please observe

the respective country specific regulations.

In compliance with:

Europe

Specifications/Caractéristiques techniques/

Especificaciones técnicas/Dados técnicos/

Technische Daten/Dati tecnici/Technische

specificaties

General/Généralités/General/Geral/Allgemein/

Informazioni generali/Algemeen

Frequency range/Plage de

fréquences/ Rango de frecuencia/

Escopo da frequência/

Frequenzbereich/Gamma di

frequenza/Frequentiebereik

863.35 MHz –

864.75 MHz

No. of channels/Nombre de canaux/

N°. de canales/Número de canais/

Anzahl der Kanäle/N. di canali/

Aantal kanalen

TR 118 Transmitter/Émetteur/Transmisor/Transmissor/

Sender/Trasmettitore/Zender

Modulation/Modulation/

Modulación/Modulação/

Modulationsart/Modulazione/

Modulatie

FM, stereo

Power supply/Alimentation/

Alimentación de corriente/

Alimentador/Stromversorgung/

Alimentazione/Voeding

i/p: 100-240 V AC,

50-60 Hz, 0.1 A

o/p: 9 V DC, 0.34 A,

3.06 W

Power consumption/Consommation

de courant/Consumo de

corriente/Consumo de corrente/

Stromverbrauch/Consumo di

corrente/Stroomverbruik

< 1.8 VA

RS118-8_EU_SP7.indb 1RS118-8_EU_SP7.indb 1 21.07.2014 14:51:2321.07.2014 14:51:23

Signal-to-noise ratio/Rapport

signal/bruit/Relación señal/

ruido/Relação sinal-ruído/

Signalrauschabstand/Rapporto

segnale-rumore/Signaal-/

ruisverhouding

> 65 dBA

Connector/Connecteur/Conector/

Conector/Stecker/Connettore/

Stekker

3.5 mm/6.3 mm

stereo

Weight/Poids/Peso/Peso/Gewicht/

Peso/Gewicht 180 g

Dimensions/Dimensions/

Dimensiones/Dimensões/

Abmessung/Dimensioni/

Afmetingen

85 mm x 225 mm x

133 mm

HDR 118 Receiver/Récepteur/Receptor/Receptor/

Empfänger/Ricevitore/Ontvanger

Transducer principle/Transducteur/

Principio del transductor/Princípio

transdutor/Wandlerprinzip/

Principio del trasduttore/

Transducer-principe

open, dynamic

Ear coupling/Couplage auriculaire/

Acoplamiento al oído/Acoplamento

ao ouvido/Sitz am Ohr/Tipo di

cuffie/Ooromsluiting

supraaural

Frequency response/Réponse

en fréquence/Respuesta de

frecuencia/Resposta em frequência/

Übertragungsbereich/Risposta in

frequenza/Frequentiebereik

22 – 18,500 Hz

RS118-8_EU_SP7.indb 2RS118-8_EU_SP7.indb 2 21.07.2014 14:51:2321.07.2014 14:51:23
