Sennheiser BW BW 900 Manuale

SennheiserBW900WirelessMicrophonewithRockerSwitch

Set‐UpandInstructionsforUse

Thisuniquemicrophoneisdesignedforusewithatelephone,butcanalsobeconnectedtoaPCvia

severalmechanisms.ConnectingtheBW900toaBluetoothconnectionisdiscussedelsewhere.These

instructionsdescribehowtoconnectyourBW900toapcusingareliablewiredconnectionwithaGN

NetcomSeleCTswitchandit’sincludedmodulartotwin3.5mmcable.

PreliminarySet‐Up:First,youmustmakethebasicconnectionoftheBW900,SeleCTSwitch,yourPC

andyourtelephone.Dependinguponwhetheryouhaveanofficetelephonewithamodular“headset”

jack,oraregularcordedtelephone,usetheset‐updescribedbelow,usingtheincludedmodular

telephonecords.

Figure1:SetupwithstandardcordedtelephoneFigure2:Set‐upwithPhonewithHeadsetJack



TypicalSet‐upinwhichBW900isusedbothPC

andtelephone.SeleCTswichisusedtotoggle

backandforthbetweenPCandtelephone.

AlthoughtheUSBadapterisoptional,itishighly

recommended.

Set‐upinwhichBW900isusedwithPCand

telephonehavingamodularheadsetjack.

Switchisusedtotogglebackandforthbetween

PCandtelephone



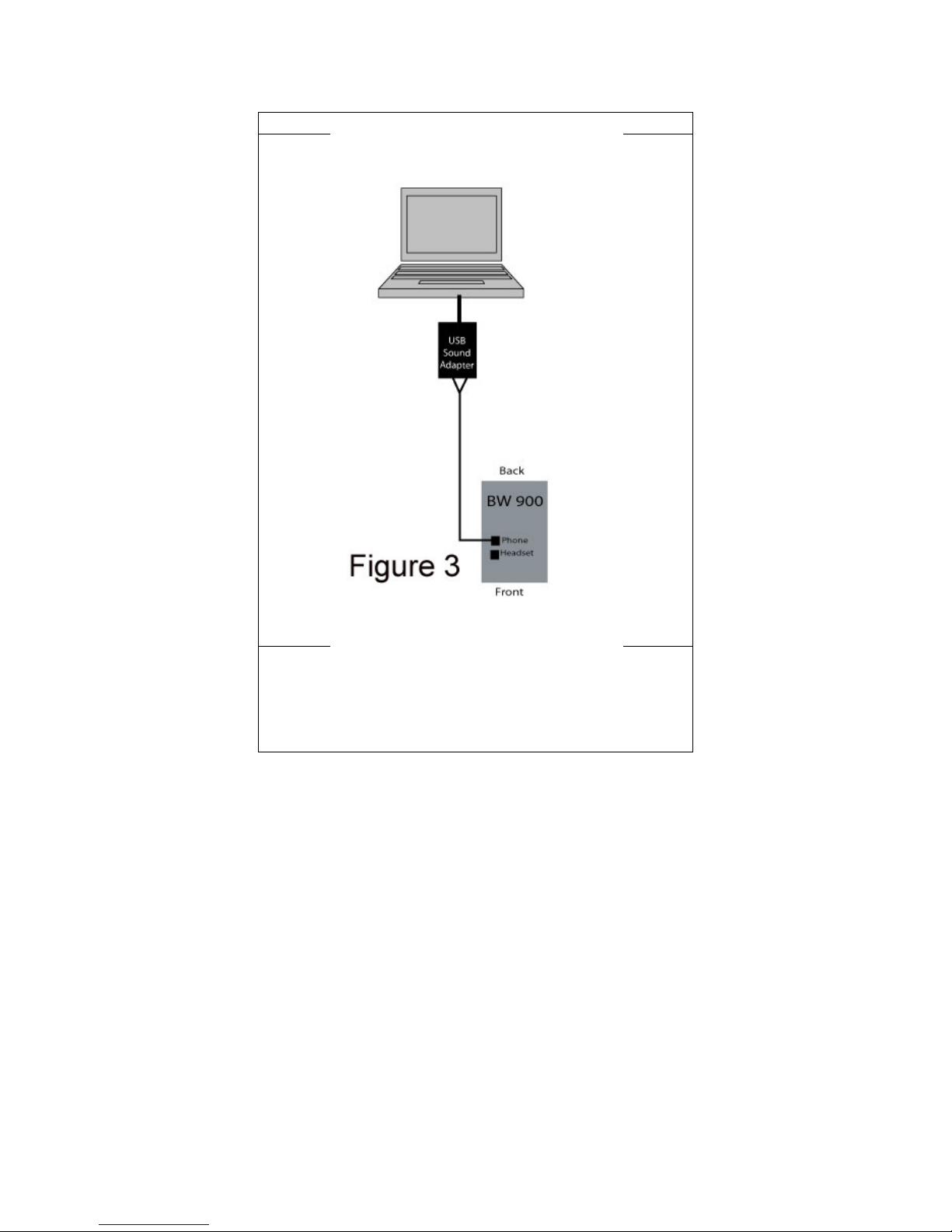

Figure3:ComputerOnlySet‐up

Set‐upinwhichBW900isusedonlywithPCandnot

telephone.Inthisset‐uptheSeleCTswitchisnotused,but

they‐cable(modulartodouble3.5mmplug)cableisused

tomaketheconnection.AlthoughtheUSBadapteris

optional,itishighlyrecommended.



Detailsofconnections:

WithStandardTelephone:

1. Amodulartelephonecablemustconnectfromthe“Phone”jackontheBW900tothe

centralplugontheSeleCTSwitch

2. Amodulartelephonecablemustconnectfromthe“headset”jackontheBW900tothe

telephonereceiver

3. Theright‐mostjackontheSeleCTswitchconnectstothetelephonejacktowhichthe

telephoneheadsetnormallyconnects.

4. TheY‐cableincludedwiththeSeleCTswitchispluggedintotheleft‐most(PC)jackonthe

SeleCTswitchandthetwo3.5mmplugsareattachedeithertoaUSBsoundadapteror

directlytothemicrophoneandsoundjackonthethePC.AlthoughtheuseofaUSBadapter

isoptional,itishighlyrecommend.

WithaTelephoneHavingaModular“Headset”Jack:

1. Amodulartelephonecableisusedtomakeaconnectionfromthe“Phone”jackonthe

BW900tothemiddlejackontheSeleCTswitch

2. Amodulartelephonecableisusedtoconnecttheright‐mostjackontheSeleCTswitchto

the“headset”jackonthetelephone

3. TheY‐cableincludedwiththeSeleCTswitchispluggedintotheleft‐most(PC)jackonthe

SeleCTswitchandthetwo3.5mmplugsareattachedeithertoaUSBsoundadapteror

directlytothemicrophoneandsoundjackonthePC.AlthoughtheuseofaUSBadapteris

optional,itishighlyrecommend.

WithPConly:

1. Thisset‐updoesnotrequireuseoftheSeleCTswitchbutonlytheY‐cablethatcomeswith

theswitch

2. Connectthemodularendofthey‐cabletothemodular“phone”jackontheBW900base.

3. Connectthetwo3.5mmaudioplugsonthey‐cabletotheappropriatejacksoneitheraUSB

soundadapter(ifused)ordirectlytothemicrophoneandsoundjackonthePC

PreparingtheBW900forUsewithyourPCandTelephone:

1. BesureyouhavefullychargedtheBW900

2. Makeallrequiredconnectionsasshownabove

3. Set‐uptheBW900asappropriateforyourtelephone(refertothemanualfordetails)of

thesesteps)byopeningthesmalldoorontheleftsideoftheBW900

a. SetslidingswitchtoeithertheA,B,orCpositionandseewhichworksbestwith

yourtelephone

b. MakeacallwiththeBW900,usingtheBW900bluetoothheadsetandwhiletalking,

rotatethevolumeknobuntilthepersonontheotherendindicatesyourspeaking

volumeisappropriate.

4. PreparethetheBW900foryourPC

a. Ifusingtherockerswitch,besureyouhaveitsettotheleft(PC)position

b. Ifbeingused,besureyourUSBsoundadapterisconnectedanddriversinstalled

(thisisautomaticonceit’sattached)

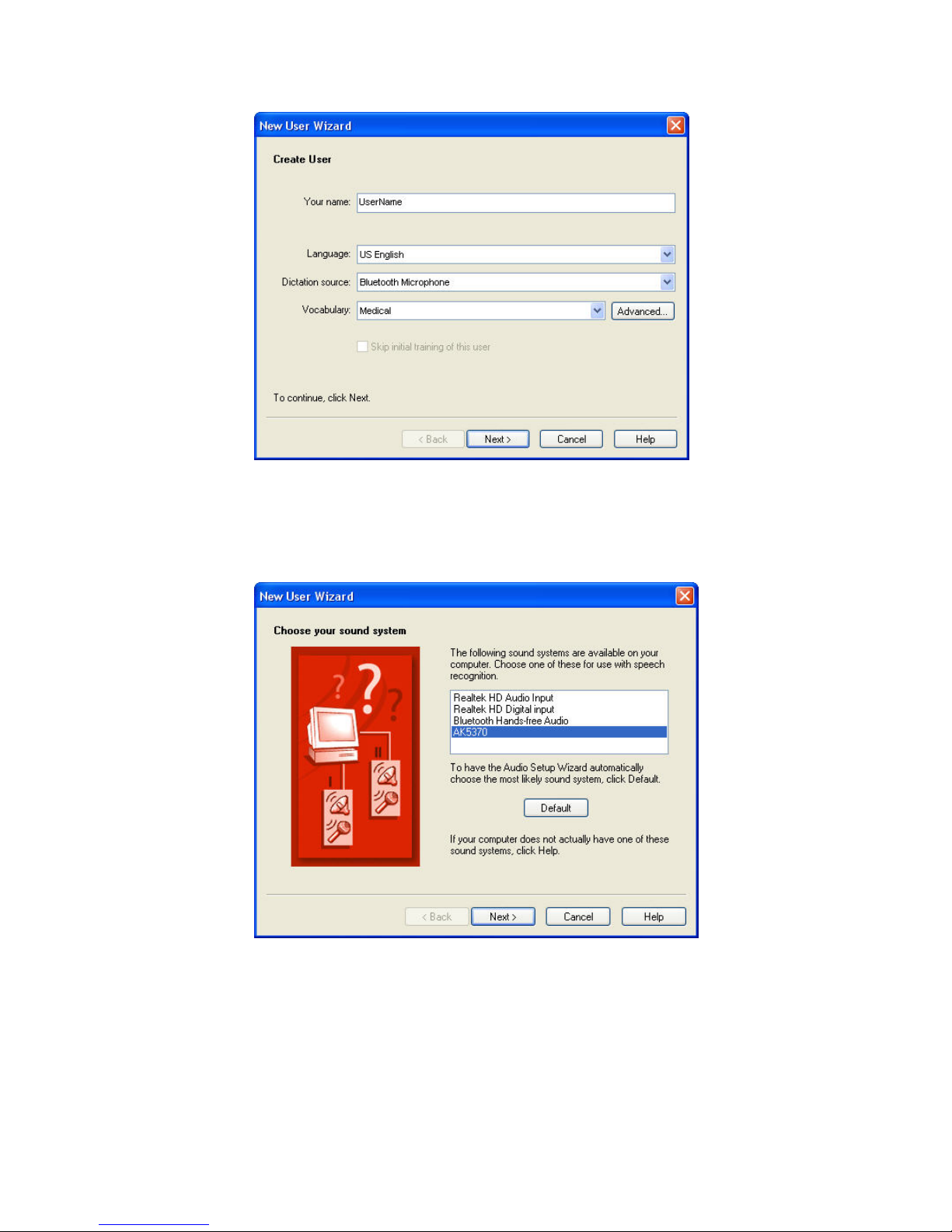

c. StartDragonNaturallySpeakingandcreateanewuser(NaturallySpeaking>Manage

Users>New)

d. Selectbluetoothmicrophoneasthedictationsource



e. Inthenextstep,chooseyoursoundsystem(eitheryourUSBsoundadapterorthe

builtinsoundcardonyourPC.



f. Continuetrainingforanewuser,followingallinstructionsandreadingappropriate

trainingtext

UsingtheBW900WirelessMicrophone:

WithyourPC(forspeechrecognitionandotherPCapplications):



1. Besureyourmicrophoneisfullycharged

2. IfusingtheSeleCTrockerswitch,besuretodepresstheleftsidetoselectPC

3. Removethemicrophonefromthecradle/chargerandmountonyourear,placingtheendofthe

boomabout¾inchfromthesideofyourmouth

4. ActivatetheBluetoothconnectionbypressingeitherthebasestationorheadsethookbutton

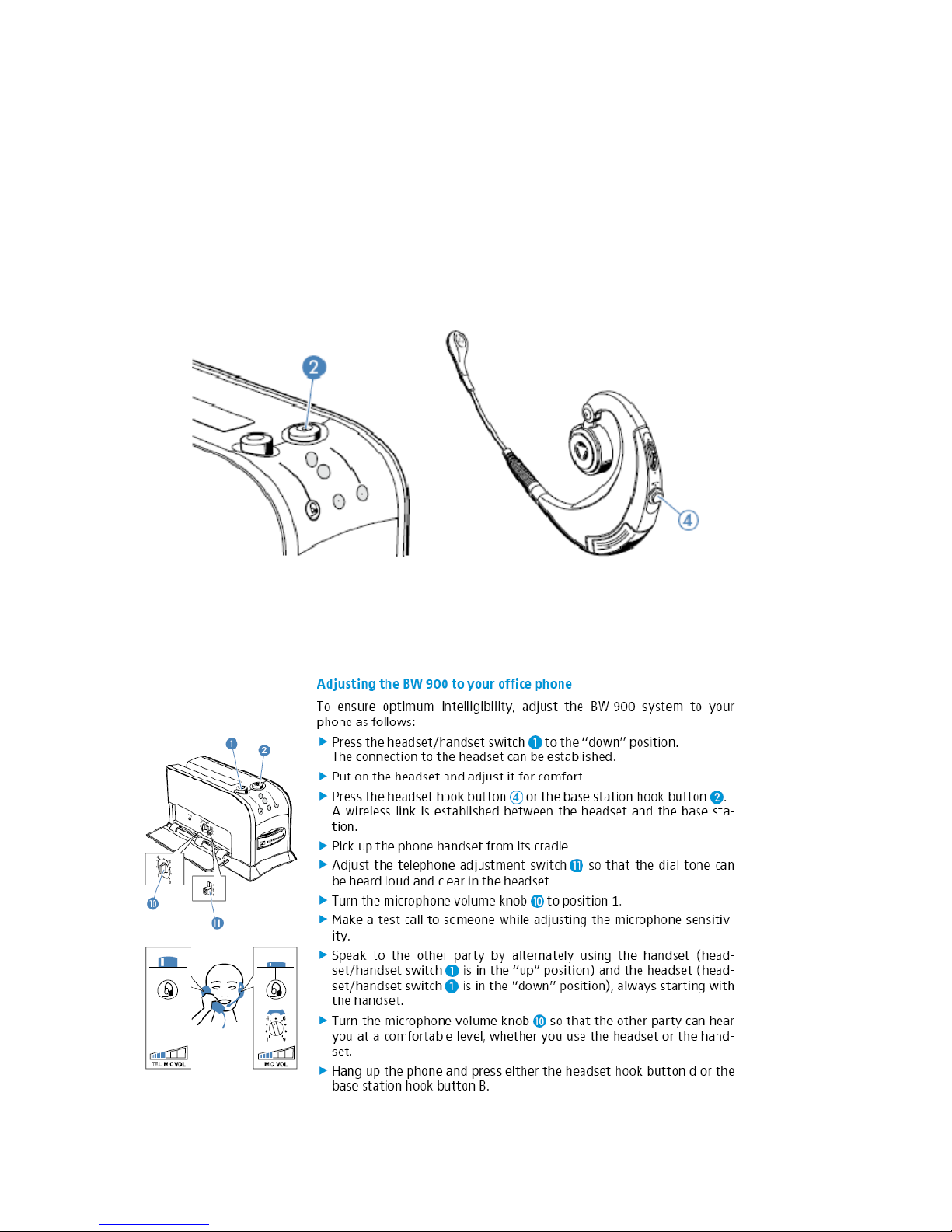

markedby(2)and(4)inthediagrambelow.Upondoingso,asmalliconwillshineblueonthe

basestationbelowthehookbutton.Thissignifiescommunicationbetweentheheadsetand



5. Usethemicrophonewithdragonasyouwouldwithanyothermicrophone

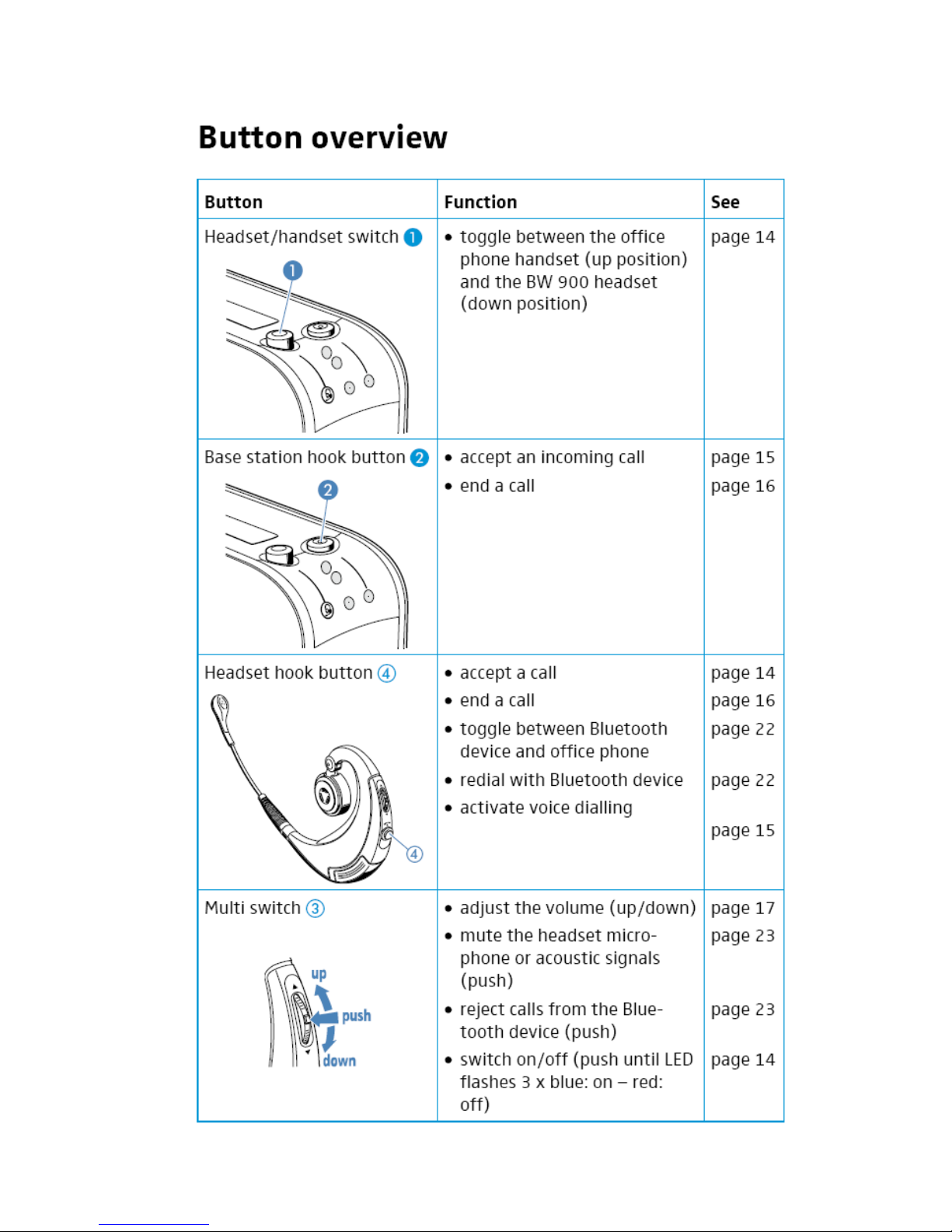

MiscellaneousinstructionsfromtheBW900Manual


