Instructions for use

604

The cardioid 604 is a dynamic microphone suitable for

mikingdrums,percussionsaswellasbrassandwoodwind

instruments.

The frequency response and cardioid pick-up pattern are

optimised for use with snares and toms. The mic has a

veryhighsoundpressurehandlingcapability(inexcessof

160 dB). The sound inlet basket is made from stainless

steel.

The integral standmount screws directly onto mic stands

or to the supplied microphone clamp. The clamp allows

the microphone to be directly attached to the rim of the

instrument.

Features

yRugged reinforced glass-fibre body

yLow sensitivity to impact and handling noise

yVery high sound pressure handling capability 

(in excess of 160 dB)

yHumbucking coil

yEasy to position due to compact design

yIntegral stand mount

Delivery includes

y604 microphone

yMZH 604 microphone clamp

yPouch

yInstructions for use

yWarranty Certificate

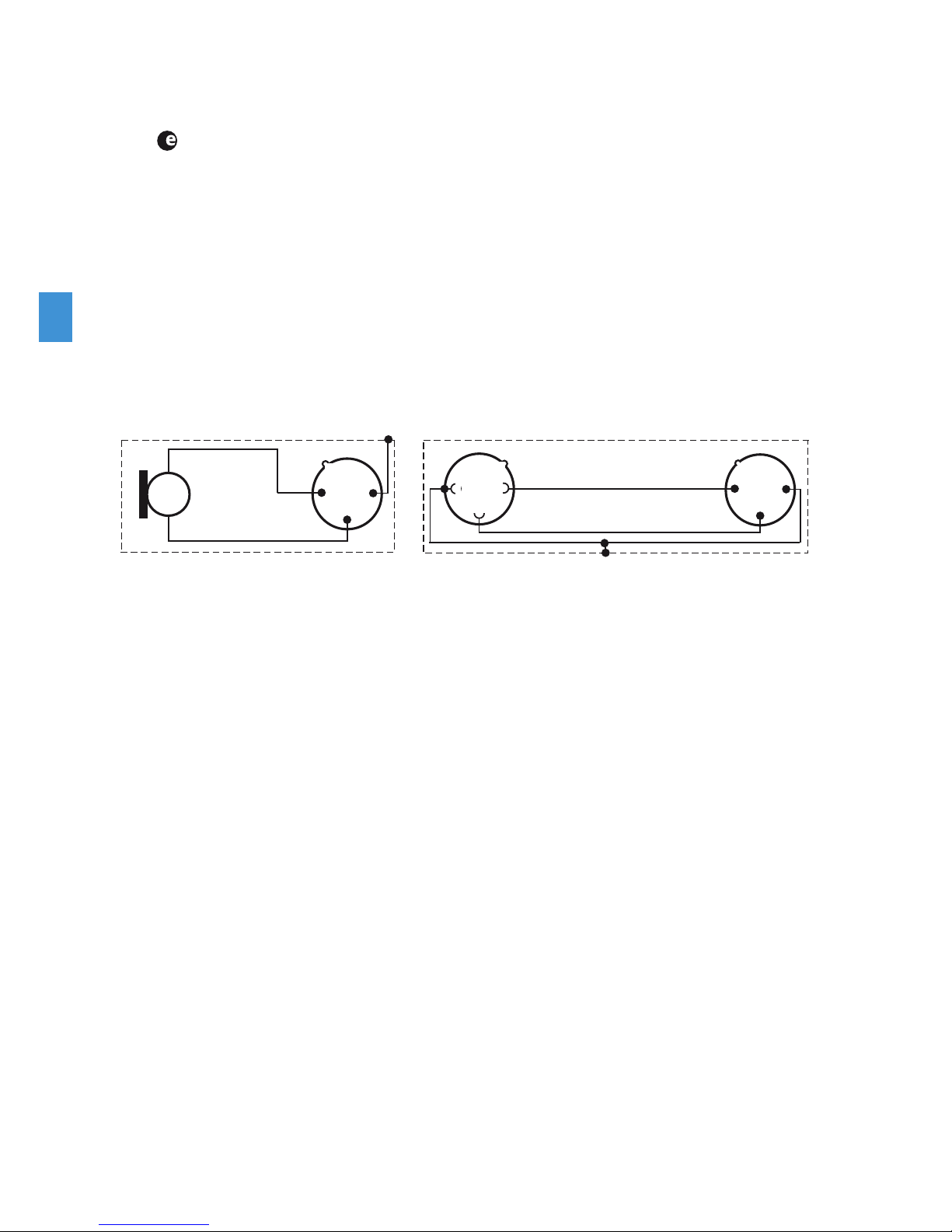

Pin assignment of XLR-3 connector

XLR

XLRXLR

Positioning the microphone

Drums

In order to prevent interference due to crosstalk between

adjacentsoundsources,trytopositionthemicrophoneso

that the interfering sound source is located in the angle

area of the highest cancellation of the microphone

(approx. 135°; see polar diagram).

Position Resulting sound Commentary

More fundamental,

little overtones Position on the drum: 

3–5 cm above the 

drumskin, the

fundamental to

overtones ratio can be

adjustedbychangingthe

angle of the microphone.

The most balanced

results are obtained at

an angle of 30–60°.

Less fundamental, 

many overtones

Use of a second 604 

for picking up the 

bottom of the drumskin

and the snares. NB: The

lower microphone must

be phase-reversed to

avoid phase-cancellation

effectsduetothe second

microphone being on the

other side of the

drumskin.

Polar diagram

Frequency response curve

000

8000

6000

500

000

- 7

500

000

5000

0000

, 1

, 5 c

- 4

Specifications

Transducer principle dynamic

Frequency response 40.....18,000 Hz

Pick-up pattern cardioid

Sensitivity

(free field, no load) (at 1 kHz) 1.8 mV/Pa

Nominal impedance (at 1 kHz) 350 :

Min. terminating impedance 1 k:

Connector XLR-3

Operating temperature 0°C to +40°C

Dimensions Ø 33 x L 59 mm

Weight 60 g

Overview of microphone applications

Variant

Application

e602-II

e604

e606

e608

e614

e815

e825

e835

e840

e845

e865

Vocals xxxxxx

Choirs x

Studio, 

acoustic instruments x

Orchestra x

Brass / Saxophone xx x

Acoustic guitar x

Acoustic bass x

Guitar amplifiers x

Bass amplifiers x

Leslie xxx

Piano, grand piano x

Kick drums x

Snare drums xxx

Rack toms xxx

Floor toms xxx

Congas xxx

Cymbals x

Percussion xxxx

Overheads x

Manufacturer declarations

Warranty

2 years

Approval Sennheiser electronic GmbH & Co. KG declare that

this device is in compliance with the applicable CE

standards and regulations.

Beforeputtingthedeviceintooperation,pleaseobservetherespec-

tive country-specific regulations!

WEEE Declaration

Please dispose of this product at the end of its operati-

onallifetimebybringingittoyourlocalcollectionpoint

or recycling centre for such equipment.

Sennheiser electronic GmbH & Co. KG

30900 Wedemark, Germany

www.sennheiser.com

PrintedinGermany Publ. 08/08 511650/A03

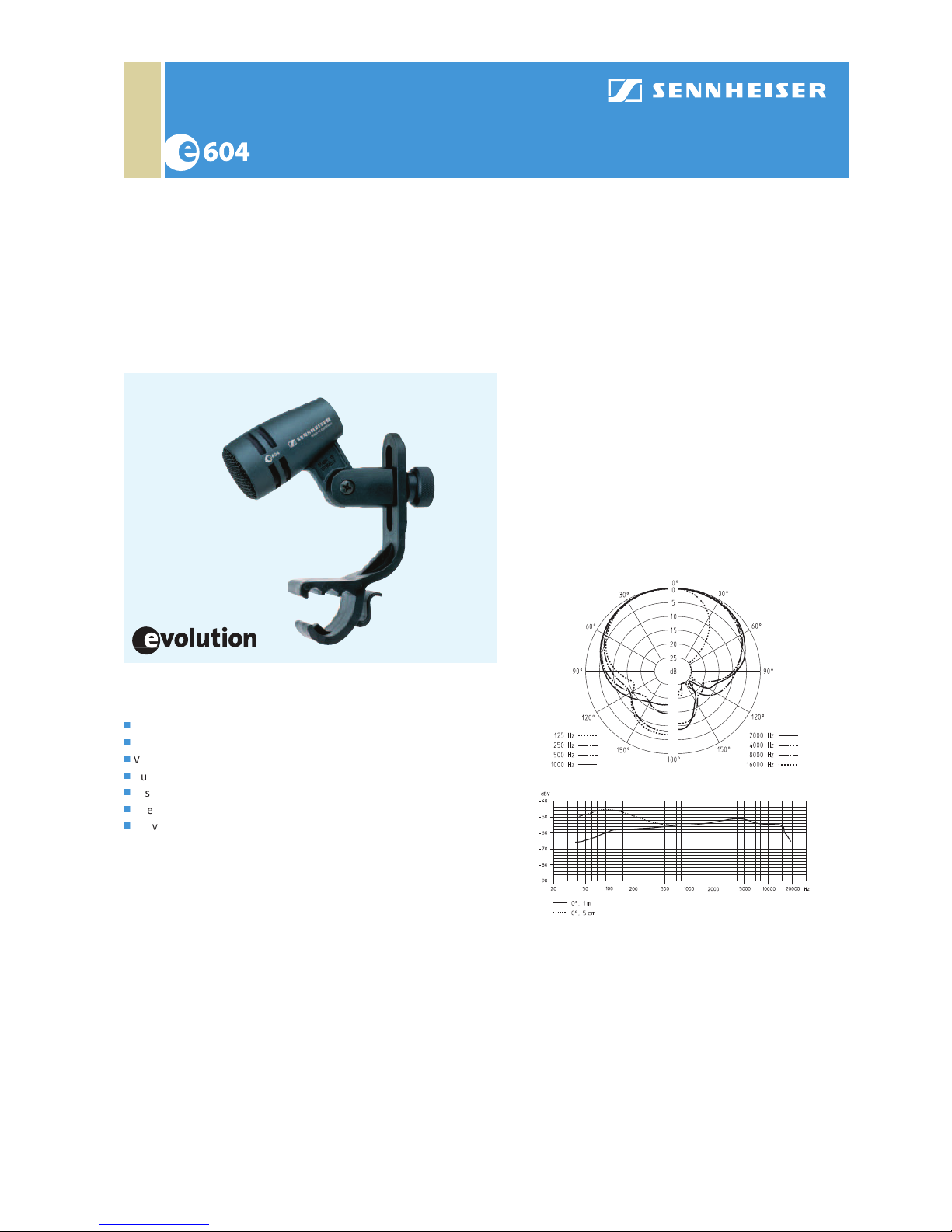

Microphones | Dynamic Microphone

General Description

The e 604 is a cardioid microphone especially suitable for use with drums

and brass instruments.

Features

Rugged reinforced glass-ﬁbre body

Low sensitivity to impact and handling noise

Very high sound pressure handling capability

Hum compensating coil

Easy to position due to compact design

Integral stand mount

Delivery includes: 1 e 604

1 drum clip

1 pouch

Technical Data

Pick-up pattern ...................................................................... cardioid

Frequency response .................................................40 – 18,000 Hz

Sensitivity (free field, no load, 1 kHz)...........................1.8 mV/Pa

Nominal impedance ................................................................. 350 Ω

Min. terminating impedance..................................................... 1 kΩ

Dimensions .................................................................. Ø 33 x 59 mm

Weight ...........................................................................................60 g

Profile

Cardioid instrument microphone, hum compensating coil,

frequency response 40 Hz – 18 kHz, sensitivity (free field,

no load) 1.8 mV/Pa at 1 kHz, nominal impedance 350 Ω, min.

terminating impedance 1 kΩ, dimensions Ø 33 x 59 mm,

weight 60 g.

Cat. No. 004519
