Sennheiser Evolution E 606 Manuale utente

606

Bedienungsanleitung

Instructions for use

Notice d‘emploi

Istruzioni per l‘uso

Instrucciones para el uso

Gebruiksaanwijzing

e606.book Seite 1 Donnerstag, 16. Dezember 2004 8:41 08

Bedienungsanleitung..............................................................3

Instructions for use.................................................................9

Notice d’emploi......................................................................15

Istruzioni per l’uso.................................................................21

Instrucciones para el uso......................................................27

Gebruiksaanwijzing...............................................................33

e606.book Seite 2 Donnerstag, 16. Dezember 2004 8:41 08

606

The 606 is a dynamic microphone with

super-cardioid

pick-up pattern

, offering a particularly direct sound when

miking guitars amps. The lightweight voice coil

construction and rigid dome provide an extended high

frequency performance.

Its laterally mounted capsule has been specially

developed for miking guitars amps face-on and and

extremely close to the signal source. The super-cardioid

pick-up pattern provides good isolation from other on-

stage signals.

Due to its flat design, the 606 is easy to position.

Features

Rugged metal body

Shock-mounted capsule

Super-cardioid pick-up pattern

Hum compensating coil

Delivery includes

606 microphone

Pouch

Instructions for use

Warranty Certificate

e606.book Seite 9 Donnerstag, 16. Dezember 2004 8:41 08

Positioning the microphone

Loudspeaker of a guitar amplifier

In order to prevent interference due to crosstalk between

adjacentsoundsources,trytopositionthemicrophoneso

that the interfering sound source is located in the angle

area of the highest cancellation of the microphone

(approx. 135°; see polar diagram)

Position Resulting sound Commentary

Many trebles,

aggressive sound Microphone directed

towards the dome of

the loudspeaker.

Less trebles, more

lower mids,

smoother sound

Balanced, natural

sound

Good starting position:

Microphone directed

towards the middle

between dome and

edge of the loud-

speaker. If necessary,

turnthemicrophoneby

approx. 30° towards

the edge.

Less trebles, more

lower mids,

smoother sound

Microphone directed

towards the edge of

the loudspeaker.

e606.book Seite 10 Donnerstag, 16. Dezember 2004 8:41 08

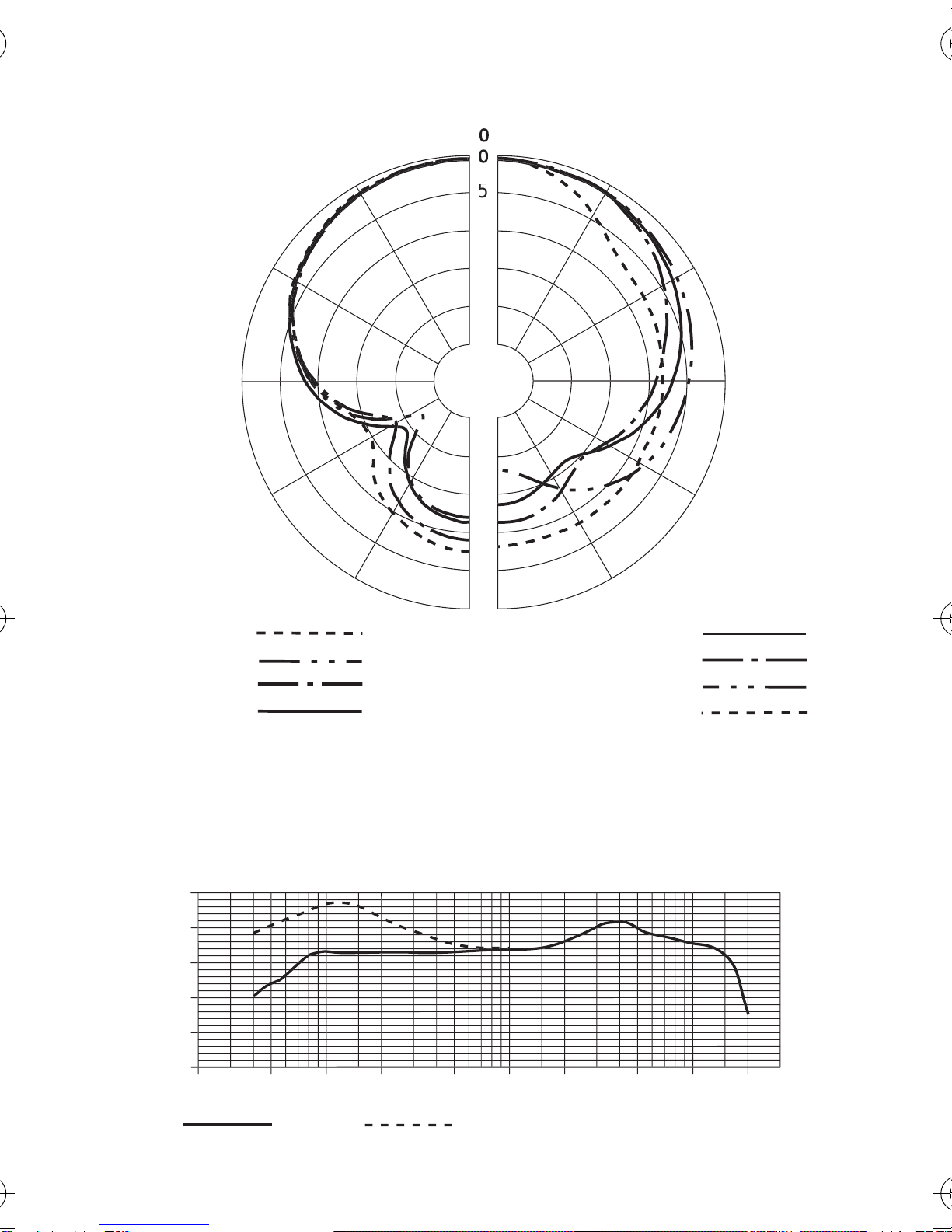

Polar diagram

Frequency response curve

000

8000

6000

500

000

- 7

500

000

5000

0000

5 c

- 4

e606.book Seite 11 Donnerstag, 16. Dezember 2004 8:41 08

Specifications

Transducer principle dynamic

Frequency response 40.....15,000 Hz

Pick-up pattern super-cardioid

Sensitivity

(free field, no load at 1 kHz) 1.5 mV/Pa

Nominal impedance (at 1 kHz) 350 Ω

Min. terminating impedance 1 kΩ

Connector XLR-3

Dimensions 55 mm

x 34 mm

x 134 mm

Weight 140 g

Pin assignment of XLR-3 connector

12 3

XLR

XLRXLR

e606.book Seite 12 Donnerstag, 16. Dezember 2004 8:41 08

Overview of microphone applications

Variant

Application

e602

e604

e606

e608

e614

e815

e825

e835

e840

e845

e865

Vocals xxxxxx

Choirs x

Studio,

acoustic instruments x

Orchestra x

Brass / Saxophone xx x

Acoustic guitar x

Acoustic bass x

Guitar amplifiers x

Bass amplifiers x

Leslie xxx

Piano, grand piano x

Kick drums x

Snare drums xxx

Rack toms xxx

Floor toms xxx

Congas xxx

Cymbals x

Percussion xxxx

Overheads x

e606.book Seite 13 Donnerstag, 16. Dezember 2004 8:41 08

e606.book Seite 14 Donnerstag, 16. Dezember 2004 8:41 08

Konformitätserklärung

Sennheiser electronic GmbH& Co. KG erklären, dass dieses Gerät

die anwendbaren CE-Normen und Vorschriften erfüllt.

Approval

Sennheiser electronic GmbH & Co. KG declare that this device is

in compliance with the applicable CE standards and regulations.

Certification

Sennheiser electronic GmbH & Co. KG déclarons que cet appareil

est en conformité avec les normes CE.

Certificazione

SennheiserelectronicGmbH&Co.KGdiachiarachequestoappa-

recchio risponde alle normative e alle prescrizioni CE applicabili.

Autorizacion

Sennheiser electronic GmbH & Co. KG declara que este aparato

cumple las normas y directrices de la CE aplicables.

Vergunning

Sennheiser electronic GmbH & Co. KG verklaren, dat dit toestel

voldoet aan de toepasselijke CE-normen en voorschriften.

Diese Service-Nummer gilt nur für Deutschland

e606.book Seite 1 Donnerstag, 16. Dezember 2004 8:41 08

Sennheiser electronic GmbH & Co. KG

30900 Wedemark, Germany

Phone +49 (5130) 600 0

Fax +49 (5130) 600 300

www.sennheiser.com

PrintedinGermany Publ. 09/04 511651/01

e606.book Seite 2 Donnerstag, 16. Dezember 2004 8:41 08
