FGD-0108
Temperature and Humidity Sensor
Quick Installation Guide
Informational Reference for Authorized Installers and Fitters

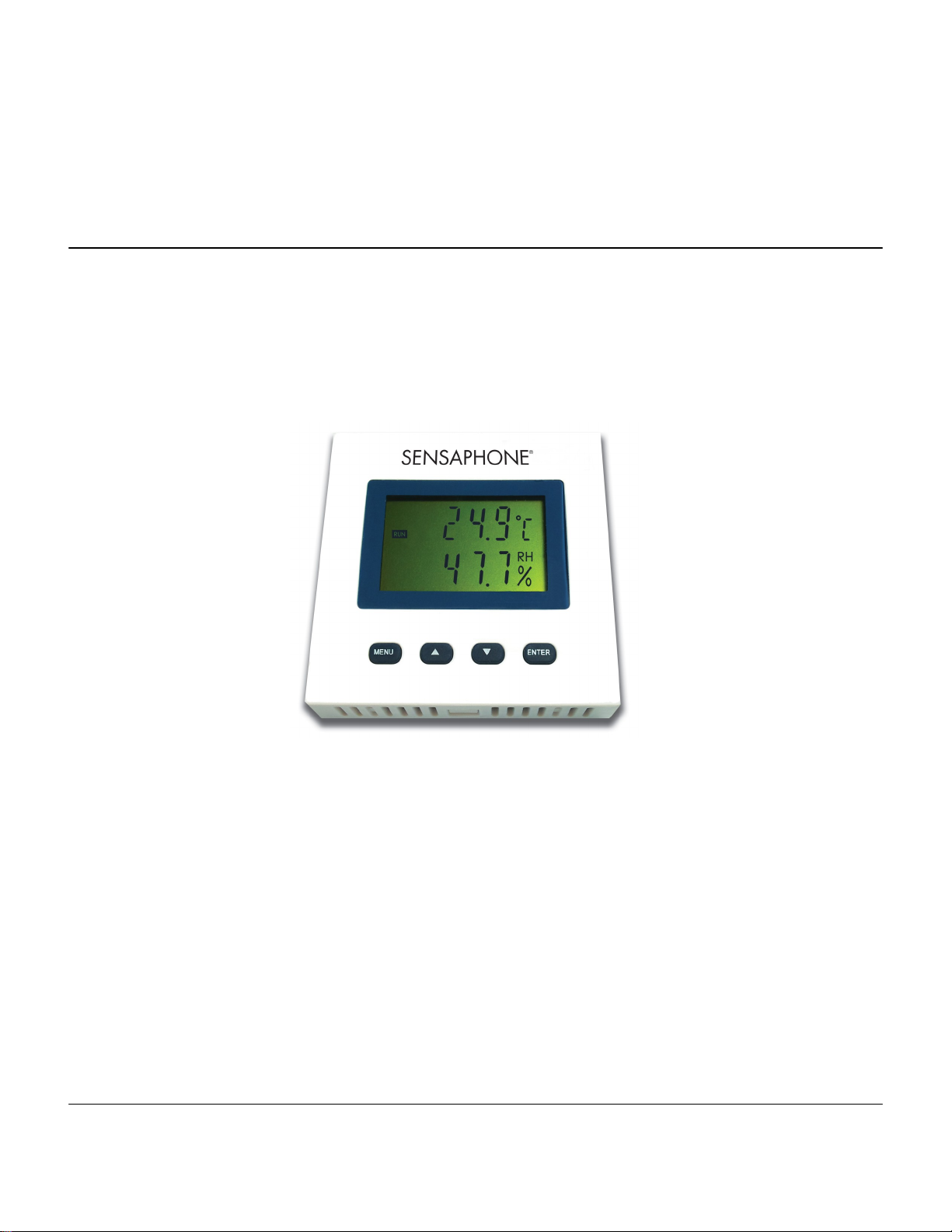

1. Overview
FGD-0108 temperature and humidity sensor is compact and user friendly. It measures and
displays both ambient temperature and relative humidity at the same time.
Page 1
Main Features:
1. 12V DC (5-15V DC) Main Power Input
2. Temperature Sensing Range: -20℃–70℃ (-4℉–158℉) (Accuracy: ± 0.5℃ at 25℃)
3. Humidity Sensing Range: 0 –100% RH (Accuracy: ± 5% RH at 25℃)
4. Temperature Display Unit: Degree Celsius or Degree Fahrenheit
5. Normally Open (NO) Solid State Output
6. Dimension: 80 x 80 x 28mm
7. Weight: 220g
8. Material: ABS

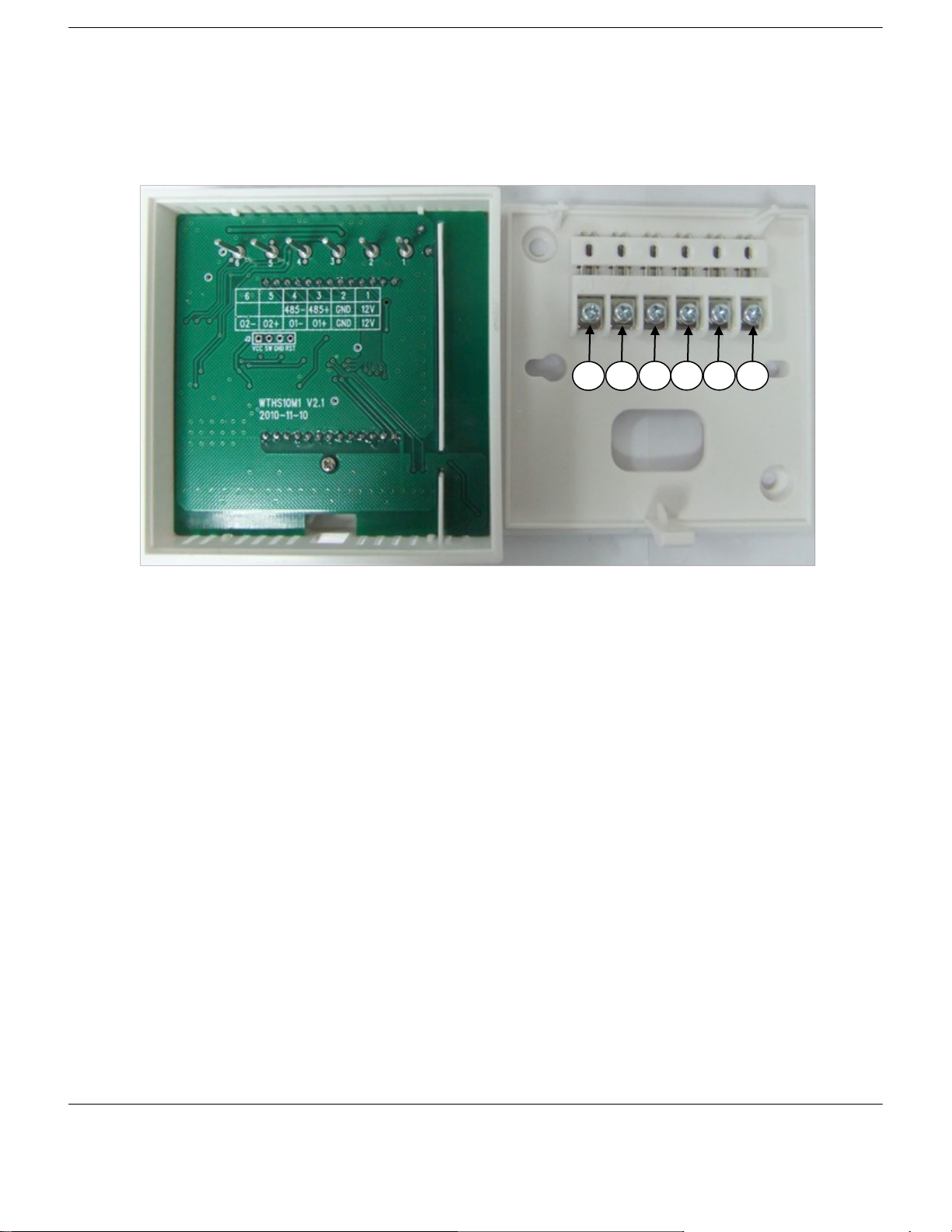

2. Wiring Connection
Page 2
1 2
3
4
5 6
1: 12V DC+
2: GND
3: Temperature NO
4: Temperature COM
5: Humidity NO
6: Humidity COM
Page 3

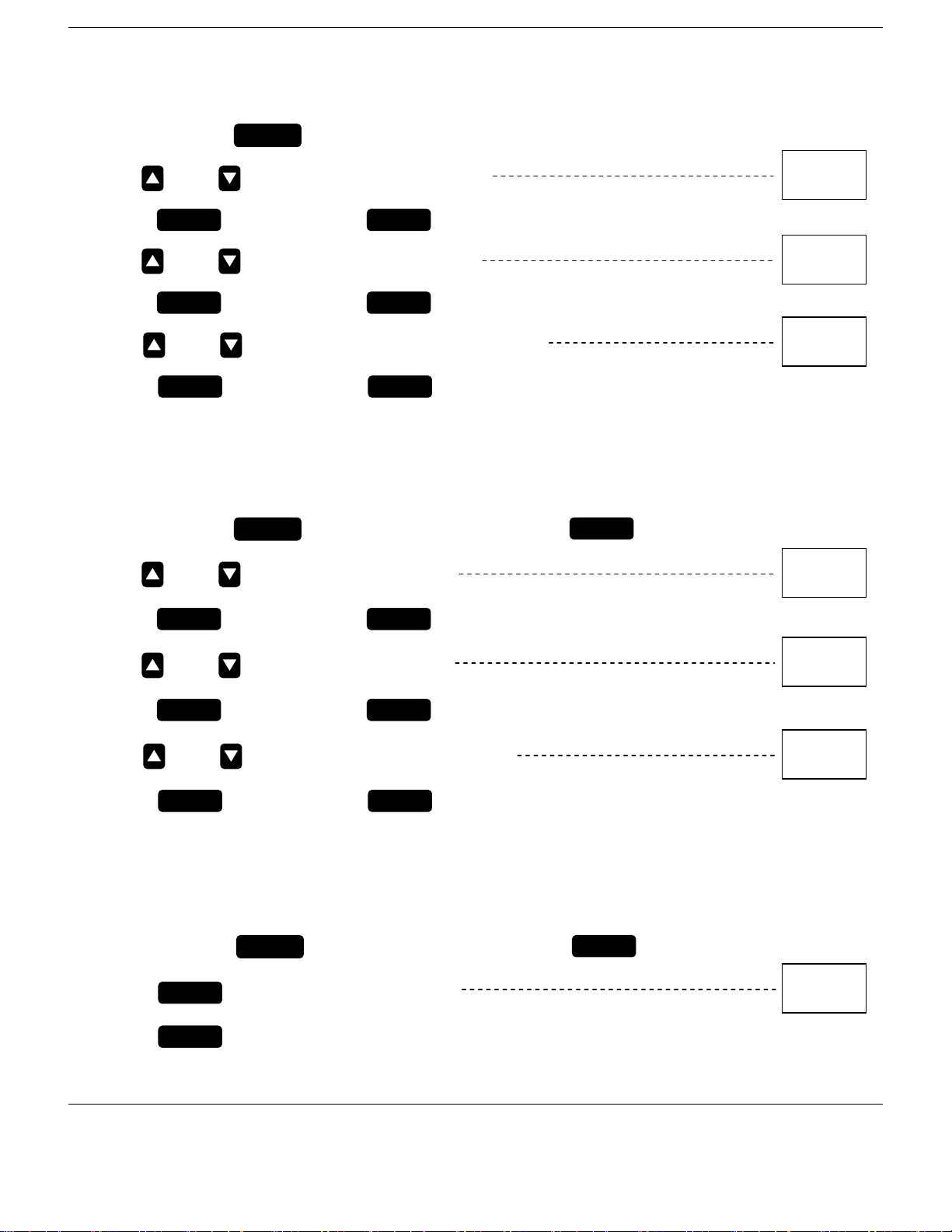

3.1 Configure High / Low Temperature Limit
MENU
1. Press and hold for 3 seconds
3. Press to save, press to go to next page
ENTER MENU
5. Press to save, press to go to next page
ENTER MENU
7. Press to save, press for 5 times to exit
ENTER MENU
2. Use and to set high temperature limit Set 35℃
HI
4. Use and to set low temperature limit Set 15℃
Lo
6. Use and to set temperature hysteresis width Set 0.5℃
dL
3.2 Configure High / Low Humidity Limit
MENU
1. Press and hold for 3 seconds and then press for 3 times
MENU
3. Press to save, press to go to next page
ENTER MENU
5. Press to save, press to go to next page
ENTER MENU
7. Press to save, press twice to exit
ENTER MENU
2. Use and to set high humidity limit Set HI
80%
4. Use and to set low humidity limit Set Lo
30%
6. Use and to set humidity hysteresis width Set dL
5%
3.3 Reset to Factory Default
MENU
1. Press and hold for 3 seconds and then press for 6 times
MENU
3. Press to exit
MENU
2. Press to restore to factory default
ENTER
dEFt
Page 4

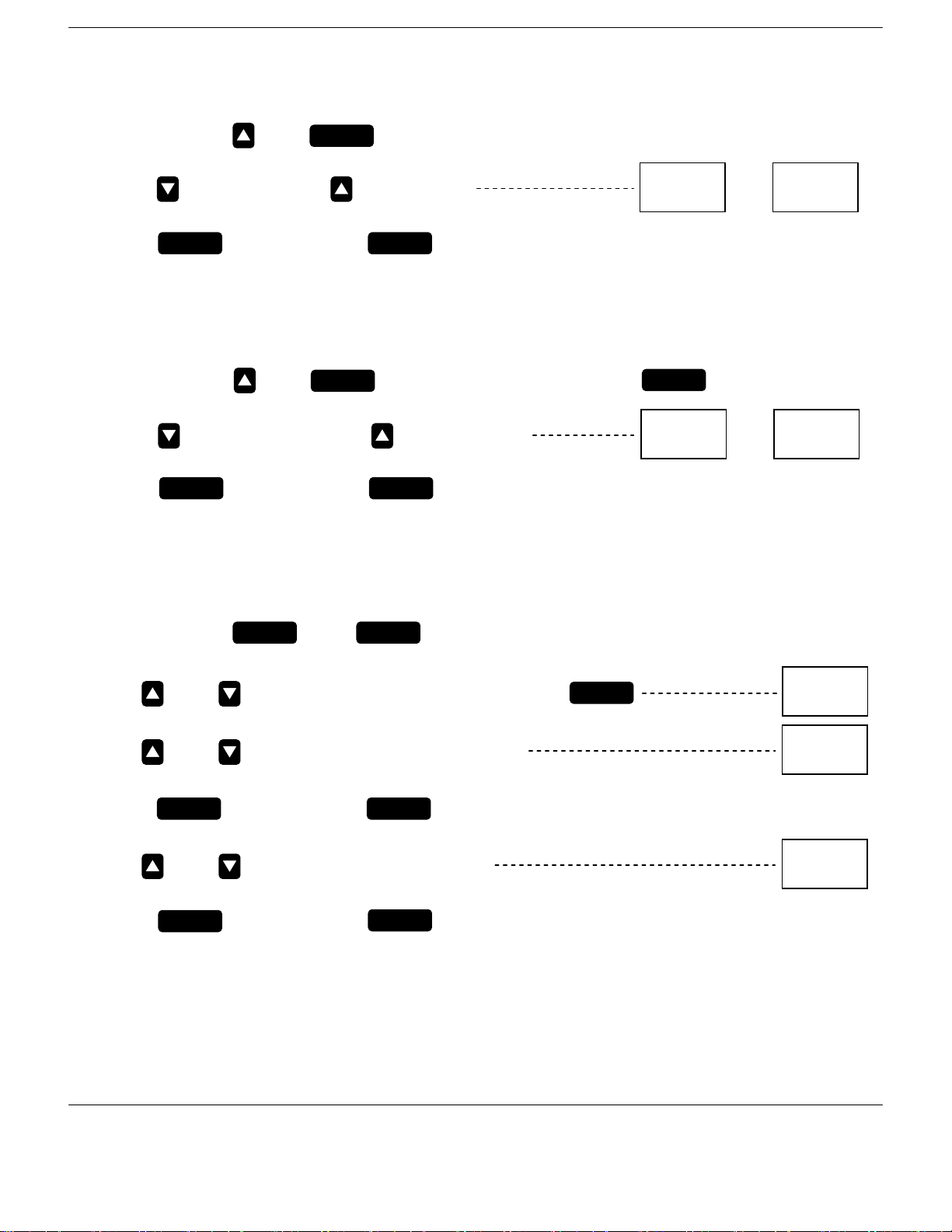

3.4 Configure Temperature Display Unit ℃ / ℉
3. Press to save, press for 3 times to exit
ENTER MENU
1. Press and hold for 3 secondsand ENTER
2. Press for Degree C / for Degree F Set ℃Set ℉
/
3.5 Configure Humidity Display RH.
3. Press to save, press twice to exit
ENTER MENU
2. Press for no RH display /for RH display Set
Set
RH
/
1. Press and hold for 3 seconds and then pressand ENTER MENU
ENTER
3.6 Temperature and Humidity Offset Value Setting
4. Press to save, press to go to next page
ENTER MENU
6. Press to save, press to exit
ENTER MENU
1. Press and hold for 3 secondsand ENTERMENU
2. Use and to input password: 11 and then press PS
11
3. Use and to input temperature offset value ERR 0.0℃
SET
5. Use and to input humidity offset value ERR RH
SET 0.0 %
