MPS-4100productguide • • • toc-1

Table of contents

1Overview

Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-1

General description - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-1

Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-2

Antenna Pattern - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-2

Operating frequencies and polarization - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-3

Built-in AGC - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-3

PLL circuit - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-3

Alarm output - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-4

Alignment - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-4

Audio output- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-4

Self-test - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-4

MPS-4100 Transmitter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-5

MPS-4100 Receiver - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-6

Coverage pattern - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-6

2 Installation

Installation planning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-1

Positioning the MPS-4100 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-1

Terrain------------------------ - - - - - - - - - - - - - - - - - - - - - - - - - ------2-2

Microwavesignalconsiderations- - - - - - - - - - - - - - - - - - --------------------2-3

Physical protection- - - - - - - ------------------------------------ - - - -2-3

Optimumsecurity - - - - - - - ------- ----------------------------- - - - -2-3

Wiring and configuration- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-4

MPS-4100 configuration options - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-5

Transmitter S1 (tamper)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-5

Transmitter jumper - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-5

Receiver S1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-5

Receiver S2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-6

Receiver jumpers - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-6

DIP-switch illustration conventions- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-6

Mounting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-7

Mounting procedure - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-8

Relay output wiring - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-10

tableofcontents

toc - 2 • • • MPS-4100productguide

MPS-4100 Transmitter wiring - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-10

S1 - Transmitter tamper configuration- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-11

Definition of functions (Transmitter tamper)- - - - - - - - - - - - - - - - - - - - - - - - - - - 2-11

MPS-4100 Receiver wiring - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-12

Receiver wiring procedure- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-12

Receiver details - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-13

Receiver features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-14

Velocity response - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-14

Receiver DIP-switch functions- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-15

Receiver DIP-switch settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-16

Definition of Receiver DIP-switch functions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-16

Network wiring (Silver/StarNeT 1000)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-17

Communication Interface Card - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-17

Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-18

Software setup - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-18

System configuration - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-19

Installing the Communication Interface Card- - - - - - - - - - - - - - - - - - - - - - - - - - - 2-19

Setting the network device address - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-20

Setting the baud rate- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-20

Connecting the network wiring- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-21

Mounting the Communications Interface Card - - - - - - - - - - - - - - - - - - - - - - - - - - 2-22

Labelling- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-22

Setting up the MPS-4100 Receiver card- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-23

Wiring the Receiver for Silver/StarNeT 1000 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-24

Single Zone - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-24

Dual Zone (Host/Slave configuration) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-24

Host or Slave Transmitter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-25

Host Receiver - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-25

Slave Receiver - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-26

Network Wiring (MX-5000 Series)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-28

Transmitter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-28

Host Receiver - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-28

Slave Receiver - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-29

3 Power Up and Alignment

Powering up - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-1

Relay output version- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-1

Network version (Silver Network/StarNeT 1000)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-1

Alignment - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-2

Alignment procedure - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-2

Unstable zones (significant snowfall) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-3

Final testing and adjustment - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-3

Silver Network Test- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-4

StarNeT 1000 Test - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-4

MX-5000 Series test - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-4

Changing antenna polarity - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-5

Self-Test function- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-5

tableof contents

MPS-4100productguide • • • toc-3

Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-6

Non-detection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-6

High false alarm rate- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-6

Silver Network/StarNeT 1000 Communication Interface Card - - - - - - - - - - - - - - - - - 3-7

MPS-4100 Specifications- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-8

aApplicationnotes

Do’s and Don’ts a planning primer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - a-1

Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - a-1

Microwave basics - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - a-1

Microwave detection zone size - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - a-1

Unit separation and the mid-point zone width - - - - - - - - - - - - - - - - - - - - - - - - - - a-3

Physical limitations to the maximum beam width - - - - - - - - - - - - - - - - - - - - - - - - a-4

Site Rules - DO’s and DON’Ts - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - a-4

Ground cover rules for reliable detection- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - a-6

Low-security applications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - a-6

Rules for areas with significant snow accumulation- - - - - - - - - - - - - - - - - - - - - - - - a-6

Post mounting and grounding - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - a-7

Stacking bistatic microwaves- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - a-8

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - a-8

Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - a-8

Good practice - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - a-8

Determining the mounting height - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - a-9

Mounting height procedure- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - a-10

Heavy snow areas - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - a-11

Advantages of microwave stacking- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - a-12

Disadvantages of microwave stacking- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - a-12

Conclusion - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - a-12

b StarNeT 1000 CIC

Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - b-1

Communication Interface Card - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - b-1

Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - b-2

Software setup - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - b-2

System configuration - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - b-2

Installing the Com card - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - b-3

Setting the network device address - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - b-3

Setting the baud rate- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - b-4

Connecting the network wiring- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - b-4

Mounting the Communications Interface Card - - - - - - - - - - - - - - - - - - - - - - - - - - - b-5

Labelling- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - b-5

MPS-4100productguide • • • 1-1

1Overview

Introduction

The MPS-4100 Microwave Protection System provides exterior perimeter

intrusion detection coverage. The MPS-4100 detects movement within a

microwave field between the Transmitter and Receiver and initiates an alarm to

alert responding personnel.

General description

The MPS-4100 bistatic microwave system consists of one Transmitter (Tx) unit

and one Receiver (Rx) unit. The Transmitter is a Dielectric Resonant Oscillator

(DRO) designed to radiate microwave power at 10.525 GHz. This oscillator is

pulse modulated (on-off switched at a 50% duty cycle) with a selectable frequency

of 3, 4.5, 7.5, 10.5, 18 or 27 kHz. The transmitted energy is received and

processed by the Receiver using Phase Locked Loop (PLL) technology. An intruder

moving in the pattern causes variations in the signal and is detected. This is

referred to as multi-path detection.

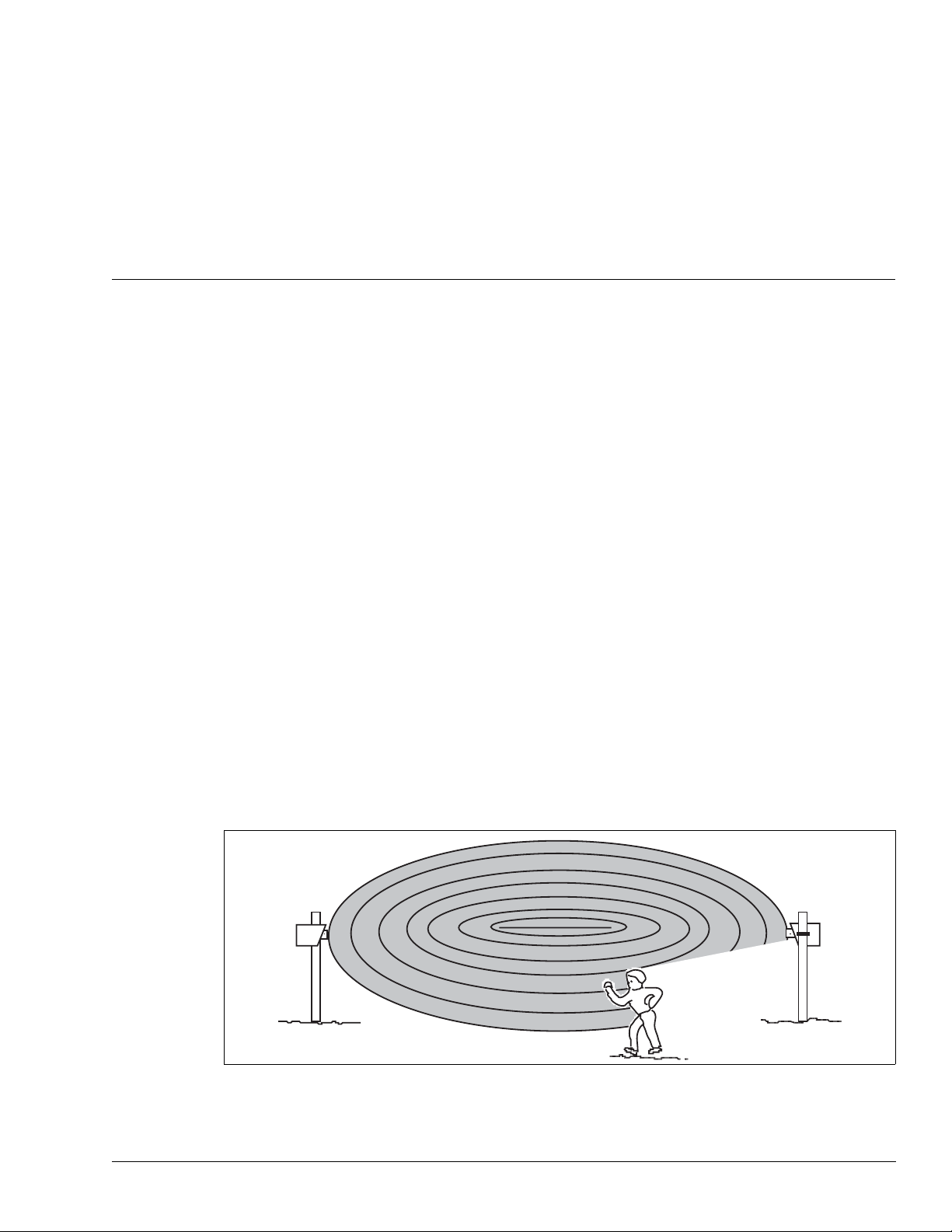

Figure 1-1 MPS-4100 operation

Features

1-2• • • MPS-4100productguide

Features

AntennaPattern

The pattern of the microwave field is established by the Planar Linear Array

Antenna elements housed within the Transmitter and Receiver. The maximum

range is 183 m (600 feet). The pattern width is proportional to the distance

between the Transmitter and Receiver (see Figure 1-4).

Figure 1-2 MPS-4100 microwave unit

Features

MPS-4100productguide • • • 1-3

Operatingfrequenciesandpolarization

Six selectable modulation frequencies allow multiple sets of MPS-4100 to be used

in either a stacked or linear configuration. Selecting different modulation

frequencies prevents crosstalk between different units located in the same area.

The Planar Linear Array Antenna transmits the microwave signal in either a

vertical or horizontal polarization depending on the orientation of the antenna

assembly. The output polarization can be changed by rotating the antenna

assembly 90 degrees. This reduces interference between multiple units mounted

in close proximity to each other.

Vertical polarization = Narrow Beam;

Horizontal polarization = Wide Beam;

default setting = Narrow Beam.

The Transmitter and Receiver in a microwave link must use the

same modulation frequency and antenna polarization.

Built-inAGC

The received RF amplified signal is processed by an automatic gain control (AGC)

amplifier enabling the amplifier output to be held to a constant level, regardless

of the Transmitter-Receiver separation distance (maximum TX-RX separation

distance = 183 m {600 feet}). The amplifier output is applied to a phase-locked

loop (PLL) detector which operates as a narrow bandpass filter at the selected

modulation frequency. The Receiver’s modulation frequency is selected to match

the modulation frequency of the Transmitter, while rejecting spurious signals and

other Transmitters.

PLLcircuit

The PLL detector output is a voltage level which is held constant under normal

conditions by the slow-acting AGC loop. Rapidly changing signal strength caused

by a target moving into the microwave beam is not affected by the AGC loop and

causes an AC signal to appear at the PLL detector output. The signal is amplified,

filtered and compared with upper and lower alarm threshold voltages. Whenever

a signal exceeds either threshold voltage, an alarm is generated. The gain of the

signal amplifier may be adjusted with a Sensitivity potentiometer on the circuit

board. The signal bandwidth, affecting the MPS-4100 response to moving targets,

may be set to Fast or Slow with a PCB jumper. The Slow setting detects human

intruders (default setting) and the Fast setting detects moving vehicles.

Features

1-4• • • MPS-4100productguide

Alarmoutput

Two alarm reporting formats are available for signalling alarm or tamper

conditions. The formats are dry relay contacts and network communications.

For relay contact notification, the MPS-4100 provides jumper-selectable NC/NO

relay outputs for alarm and tamper conditions. The alarm output relay is

energized on power-up and goes into an alarm condition upon loss of DC power.

A NC/NO tamper output is available on both the Receiver and Transmitter.

For network communications there are three options, the Silver Network, the

StarNeT 1000 Alarm Display and Control system, and the MX-5000 Series

Command and Control Center. For the Silver Network and StarNeT 1000, an

optional Communication Interface Card (CIC) provides redundant

communications between the MPS-4100 and the alarm display and control

system. For the MX-5000 Series system, a network transponder enables multiplex

communication over a twisted pair using the proprietary CEnDe protocol. Each

network communication option requires a CIC, which plugs into header P1 on

the Receiver circuit board. Each CIC can handle two microwave zones, enabling

the reporting of an adjacent relay version MPS-4100 system.

Alignment

Accurate alignment of the Transmitter and Receiver, which establishes the

strongest possible signal, is facilitated by a built-in alignment aid. A series of LED’s

on the Receiver circuit board indicate when optimum alignment and maximum

signal strength have been achieved. A 600 ohm impedance audio jack and voltage

test points are also provided on the Receiver card to enable headphones or a

voltmeter to be used as alignment aids.

Audiooutput

The MPS-4100 Receiver has a built-in audio output that can be used to evaluate

signal variations in the detection path. A tone is generated, which corresponds to

objects moving within the microwave field. The tone varies in frequency and

amplitude according to the disturbance in the microwave field. During quiescent

operation, no tone is generated. As an intruder moves within the protected area,

an audio tone is generated. The tone increases in volume and pitch in relation to

the disturbance of the microwave field. The audio output can be taken to an

amplifier. The Receiver circuit board includes a 3 mm (1/8 in.) audio plug for

connecting a headphone to the local audio output. The local audio output is very

useful in locating the source of nuisance alarms generated by moving objects

within the detection path.

Self-test

The Receiver includes a self-test function to verify proper operation. A 12 VDC

input activates the self-test, which then generates a multi-path signal that

simulates a disruption of the microwave field. The Receiver processes the signal

and generates an alarm.

Altri manuali SENSTAR Sensore di sicurezza

SENSTAR

SENSTAR FlexPI C8DA0402-001 Manuale utente

SENSTAR

SENSTAR UltraWave E4FG0101 Manuale utente

Manuali Sensore di sicurezza popolari di altre marche

THORLABS

THORLABS PDA10JT Manuale utente

Waeco

Waeco UV-DETECT Manuale utente

Intermatic

Intermatic IOS-DSIMF Manuale utente

urmet domus

urmet domus 1083 Manuale utente

Siemens

Siemens AZL66 Series Manuale utente

BTI

BTI Profiline Multi Finder Manuale utente

Challenger

Challenger SL01 Manuale utente

DMP Electronics

DMP Electronics 1122INT Manuale utente

Rielta

Rielta Ladoga MK-RK Manuale utente

Mirion Technologies

Mirion Technologies ACCURAD PRD Manuale utente

Bosch

Bosch DS835 Manuale utente

DBI SALA

DBI SALA EZ Stop Manuale dell'operatore

Lamptime

Lamptime ST05C Manuale utente

Ubiquiti

Ubiquiti MFI-MSC Manuale utente

Subsite

Subsite 910R Istruzioni per l'installazione

Satel

Satel OPAL Pro Manuale utente

Aleph

Aleph XC-1XTEU Manuale utente

Pima

Pima LARIS QUAD Manuale utente
