VSN240-MP MicroRadarTM Sensor Installation Quick Start Guide (Parking)
Pre-Installation: Suggested VSN240-MP congurations for parking
1
1608 4th Street Suite 200 Berkeley CA 94710 |parking@sensysnetworks.com|P 510.548.4620 F 510.548.8264
Congure Parking Sensors

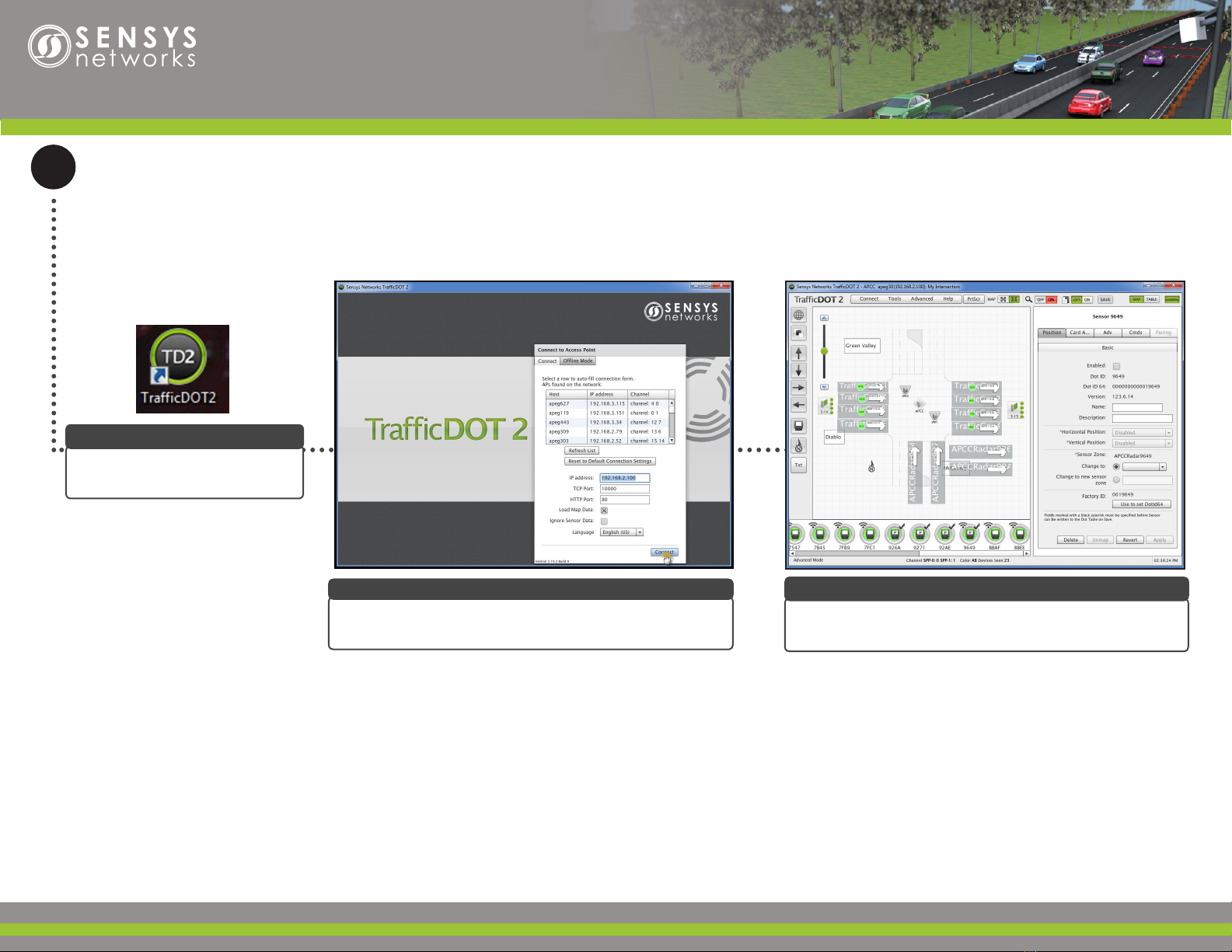

Select an IP Address from the list of access points and click
Connect.
Connect to Access Point
Click the TrafcDOT icon to start
the conguration program.
Run TrafcDOT
2
VSN240-MP Installation Quick Start Guide (Parking)
From the Main window, select a MicroRadar sensor from the
tray. The Sensor Conguration Panel displays on the left.
Select MicroRadar Sensor
1608 4th Street Suite 200 Berkeley CA 94710 |parking@sensysnetworks.com|P 510.548.4620 F 510.548.8264
Congure Parking Sensors (cont.)
2
VSN240-MP Installation Quick Start Guide (Parking)

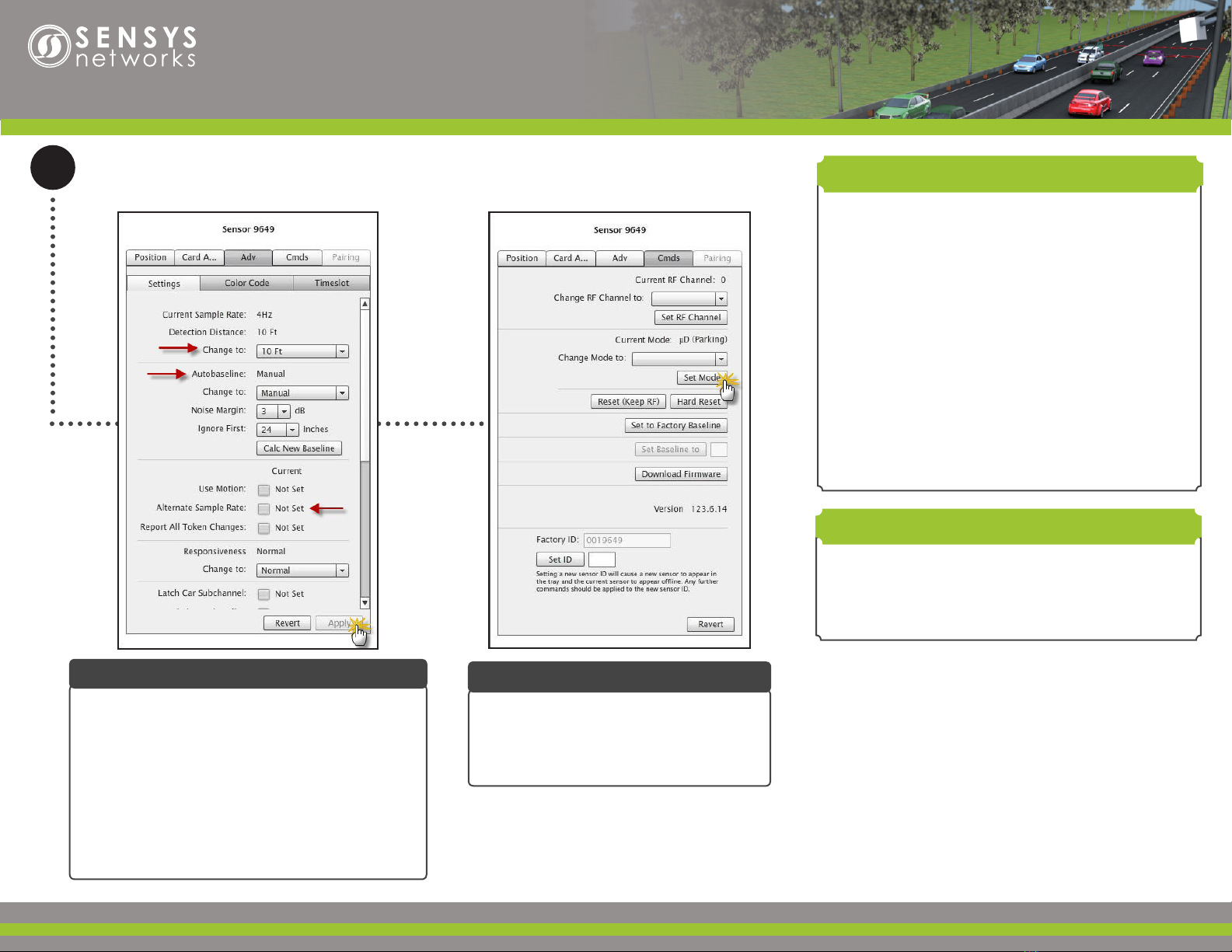

From the Adv window:
1. Set the Detection Distance by selecting 6 Feet
or 10 Feet from the Change To drop-down list.
2. Set the Autobaseline by selecting Manual from
the Change To drop-down list.
3. Click Apply.
Note: To access the elements in the Adv window,
select Set Advanced Mode from Advanced menu
option.
Set Detection Range
From the Cmds window:
1. Select µD (Parking) from the Change
Mode To drop-down list.
2. Click Set Mode.
Select Sensor Mode
The recommended Adv settings for parking detection are:
• Alternate Sample Rate - Disabled
• Current Sample Rate - 1 Hz
Note: The default Alternate Sample Rate for µD
(Parking) is 1 Hz.
• Detection Distance - 6 Feet or 10 Feet
Note: Do not use 4 Feet for parking detection.
• Autobaseline - Manual
• Noise Margin - 3 dB
Note: Increase Noise Margin if sensor is too sensitive,
and decrease Noise
M
argin if sensor is too dull.
• Ignore First - 24 inches
• Calc New Baseline - Click
Recommended Adv Settings
The recommended Cmds settings for parking detection are:
• Current Mode - µD (Parking)
• Set to Factory Baseline - Click if receiving false or
no parking detections
Recommended Cmds Settings
