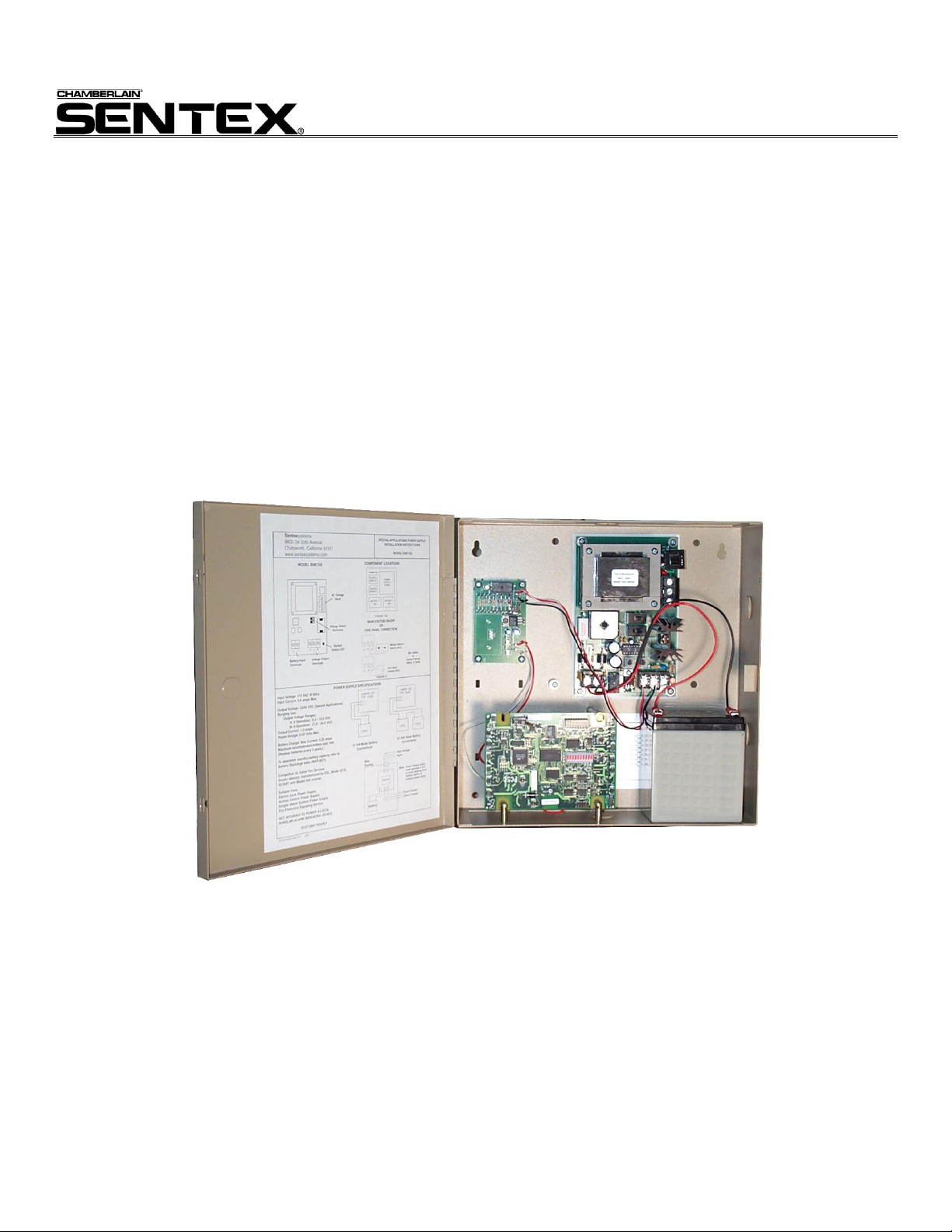

Sentex EM3000 Manuale utente

Doc 6001536, Rev C

EM3000

Access Control System

Installation Instructions

EM3000 Controller (EMC)

2Contents

Doc 6001536, Rev C

Contents

Introduction __________________________________________________________________________ 3

Step 1: Unpacking the EM3000___________________________________________________________ 4

Parts Supplied _______________________________________________________________________________4

Parts Not Supplied ____________________________________________________________________________4

Step 2: Review the EM3000 Specifications__________________________________________________ 5

Step 3: Access Control Overview __________________________________________________________ 6

Determining Your Needs _______________________________________________________________________7

Planning Your Site____________________________________________________________________________7

EMC ___________________________________________________________________________________8

Readers ___________________________________________________________________________________9

Door Strike, Door Status Sensors, PIRs and REXs ___________________________________________________9

Step 4: Installation of the EM3000 System_________________________________________________ 10

Grounding _________________________________________________________________________________10

Noise Suppression ___________________________________________________________________________12

Preparing to Install the EMC and Accessories______________________________________________________13

Installing the EMC Cabinet ____________________________________________________________________14

Installing the Reader and Door Lock _____________________________________________________________14

Running Cable to Dedicated PC ________________________________________________________________16

Wiring the EMC_____________________________________________________________________________16

Step 5: Power and Test the EM3000 System________________________________________________ 21

Powering the EMC___________________________________________________________________________21

Connect Battery Backup ______________________________________________________________________22

Testing the EMC System ______________________________________________________________________23

EMC Power-Up Checklist _____________________________________________________________________23

Reading the Ten-Segment LED Array____________________________________________________________24

Step 6: Configuring a Multi-EMC System _________________________________________________ 25

Communicating with Multiple EMCs (via RS-485) _________________________________________________25

Addressing Each EMC Through the DIP Switch____________________________________________________26

Step 7: Troubleshooting________________________________________________________________ 27

Possible Problems ___________________________________________________________________________27

Frequently Asked Questions Guide ______________________________________________________________28

System Error Messages _______________________________________________________________________30

Glossary of Terms ____________________________________________________________________ 31

Introduction 3

Doc 6001536, Rev C

Introduction

This manual explains how to install the EM3000 components (and connect a unit to a computer) to create

an access control system. This manual is divided into seven sections, referred to as steps:

Step 1: Lists those components that are supplied and not supplied. Refer to page 4.

Step 2: Provides EM3000 specification information such as system features, capacities, and

cable requirements and maximum lengths. Refer to page 5.

Step 3: Defines “Access Control” and explains how to plan for your system installation. Refer to

page 6.

Step 4: Identifies the specific connections for each component. Refer to page 10.

Step 5: Outlines the proper sequence of events for powering up the system. Refer to page 21.

Step 6: Explains what you need to know about adding multiple EMCs and components to the

system. Refer to page 25.

Step 7: Lists various trouble-shooting tips and FAQs, useful if the system is not performing

properly upon start-up. Refer to page 27.

4Step 1: Unpacking the EM3000

Doc 6001536, Rev C

Step 1: Unpacking the EM3000

Every installation will have at least (1) one EM3000 System Kit (SN7000410) and one (1)

Software/Communications Kit (SN7050002). For multi-EMC systems or existing installations, the system

kit may be ordered separately. Inspect each kit for missing items or damage. Keep ALL packing material

for protection in case you have to return the unit for any reason.

Parts Supplied

As you unpack your kits, ensure that you have all the supplied parts for each kit. If any parts are missing,

contact Sentex Systems (see last page for contact information).

PART DESCRIPTION PART # QTY.

SYSTEM KIT, MODEL EMC102: SN7000410 1

 Cabinet, Power Supply Assy., & Controller Board SN1900410 1

 Power Supply Assy., 12VDC, 1A, with cabinet SN1660035 1

 Controller Board (EMC) SN1110226 1

 Battery, Rechargeable, 12V, 4AH SN5900058 1

 Documentation Package (Installation) SN1700036 1

 Installation Instructions (This Manual) SN6001536 1

 Quick Installation Guide SN6001540 1

 Screwdriver SN4700000 1

SOFTWARE/COMMUNICATIONS KIT: SN7000405 1

 RS-485 Kit (Converter, Power Supply, & Instructions) SN8100294 1

 RS-485 Converter SN8100302 1

 Power Supply, 12VDC, 100 mA SN5300093 1

 Converter Installation Instructions SN6001545 1

 Software Kit (EMWin) SN7050002 1

 EMWin Software CD SN6050073 1

 EMWin User’s Guide SN6001541 1

 Software License Agreement SN6001509 1

Note: Both the System Kit (SN7000410) and the Software/Communications Kit (SN7000405) may be

packaged together.

Parts Not Supplied

Required:

 Personal Computer with Windows 98, NT, or 2000 operating system; available COM port.

 Wire and cable, as required for installation.

Optional:

 Electronic Door Strikes or Magnetic Locks.

 Optional: Request to Exit (REX) or Motion Sensors (for exiting a secured door).

Step 2: Review the EM3000 Specifications 5

Doc 6001536, Rev C

Step 2: Review the EM3000 Specifications

EMC FEATURES

2 – Reader Ports (Wiegand format compatible)

2 – Door Strike Relays (Form C Contacts, 2 Amps @

28VDC max.)

2 – Supervised Door Status Inputs

2 – Supervised Request to Exit Inputs

1 – Enclosure Tamper Switch

SYSTEM CAPACITIES

Cardholder Capacity: 3,000

Time Periods: 32

Holiday Time Periods: 32

Holiday List: 365 Days

History Transactions:

1,000 (at EMC) & 50,000 (in

EMWin)

Access Levels: 255

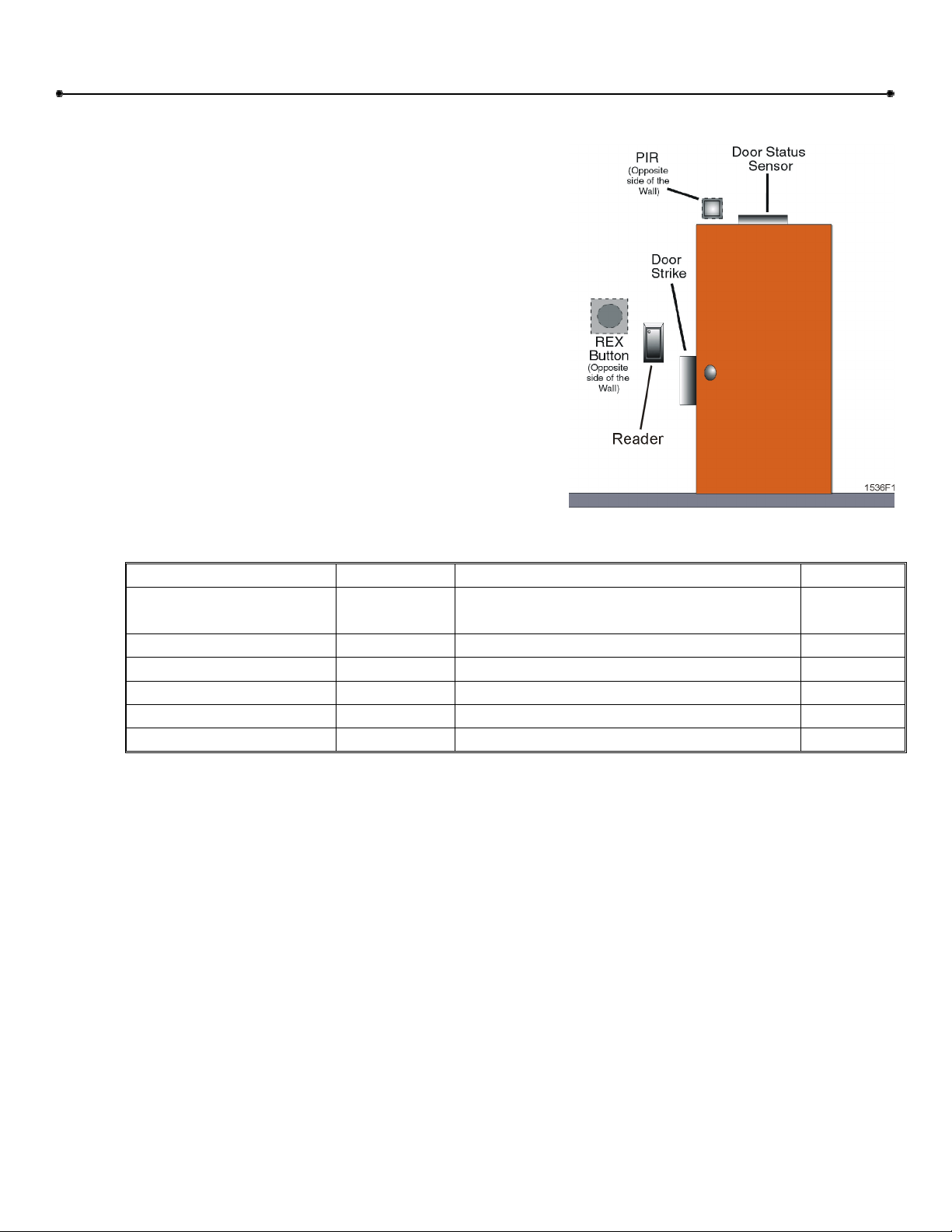

Figure 1

CABLE REQUIREMENTS AND MAXIMUM LENGTHS

Cable Type Conductors # of Gauge Maximum

RS-485 Communications 424 AWG 2 twisted pairs/stranded/shielded

(Belden 1419A or equiv.) 4000 ft

Reader to EMC 5 22 AWG stranded/shielded 500 ft.

Door Strike to EMC 2 18 AWG stranded 500 ft.

REX (Push Button) 2 22 AWGstranded/shielded 1000 ft.

REX (PIR) 4 22 AWGstranded/shielded 1000 ft.

Door Status Contact 2 22 AWGstranded/shielded 500 ft.

Notes:

 Door strike/lock wire gauge may vary with actual loads of device.

 Distance from PC to last EMC must not exceed 4000 feet.

 Do not exceed more than 32 EMCs in a system.

POWER SUPPLY

Each EMC is powered at 12VDC through the power supply board (connected to a 110VAC power

source). The unit also includes a 12VDC, 4AH battery backup.

FACTORY SETTINGS

Each EMC address is factory-set as EMC #1. Communications are set for direct connect (RS-485).

6 Step 3: Access Control Overview

Doc 6001536, Rev C

Step 3: Access Control Overview

Electronic access control has revolutionized the world of locksmiths and security. The safety in one’s

surroundings is essential. With electronic access control, where keys are replaced by electronic cards, a

person’s access to his/her place of employment/residence can be monitored and controlled. Strangers or

guests are limited in their access to a complex and workers or residents can feel safe in knowing that their

possessions and work environment are safe from those outside their office or home.

ACCESS CONTROL POINTS

An access control point is usually a door where a person’s access is controlled by time, duration and

privilege. Is this person allowed to enter this door? At what time(s) of the day and week is this person

allowed in or out? How long is this person allowed in through this door before s/he has to come out?

Each EMC can have (2) two access control points per panel, or (2) two doors. Additional units

added to the first then increase the number of doors one unit can control and monitor. With two

EMCs hooked together, one can monitor four doors; with three EMCs hooked together, one can

monitor six doors, and so on.

An access control environment can vary by the number of units in a system and the number of doors

that can be monitored. Likewise, the equipment or elements in an access control point may vary due

to the level of security needed or the kind of access allowed.

HOW THE SYSTEM WORKS

On the system level, the EM3000 software runs the access control system by communicating

instructions from the computer through an RS-485 communications converter to the EMC.

The EMC uses card readers as the access control device to gain entry. Each EMC will manage two

readers and the accompanying door sense equipment. Door locks, usually door strikes or magnetic

locks, must be powered by a separate low voltage power supply other than that powering the EMC

and readers. There is often a door monitoring contact that is used to monitor if the door is closed or

open.

Other types of equipment that can be used include:

 A REX (Request To Exit) device: A push button that releases the door lock to allow one to

exit through the door.

 A PIR (Passive Infrared Detector): A detector that has the same function as a REX, but is

activated by body temperature. These are important if monitoring the door for alarm activity is

used. The REX equipment bypasses the alarm detection software for a period of time to allow

free exit. If the REX equipment is not used, and the door is being monitored for alarms, an

alarm will be generated every time someone leaves through the door.

Step 3: Access Control Overview 7

Doc 6001536, Rev C

Determining Your Needs

Start by deciding the kind of installation you need. Some sites require a tremendously enhanced level of

access control, coupled with a security staff. However, most systems require only a fraction of that

amount. Which kind of access control system do you need?

Start with a detailed description of what your system needs to accomplish. Every site will differ because of

the different objectives and requirements. Some examples are:

 A store needs to limit shoplifters from leaving through unauthorized exits and to maintain control of

the delivery areas, stock rooms, and the store when it’s closed.

 An office building needs to monitor when employees enter and leave departments, to inhibit

entrance by unauthorized people, and to control exits.

 An institution or hospital requires that individuals stay in certain areas and out of other ones during

normal operation, but then have the ability to exit the site in case of emergencies.

These are just a few examples. Know what each particular site will require and the level of control that will

be required.

Planning Your Site

A detailed plan of your site is probably the most important element of installing a system in a matter of

hours versus a matter of days. Before proceeding, be aware of the necessities and limitations of different

parts of the system.

1536F2

Separate

Power

Supply

110

VAC

110

VAC

(Other side

of wall)

REX

Door

Strike

Reader

Door Status

Contact

36” to 48”

90cm to 120cm

(

Make sure installation

complies with local

city, state, and federal

guidelines).

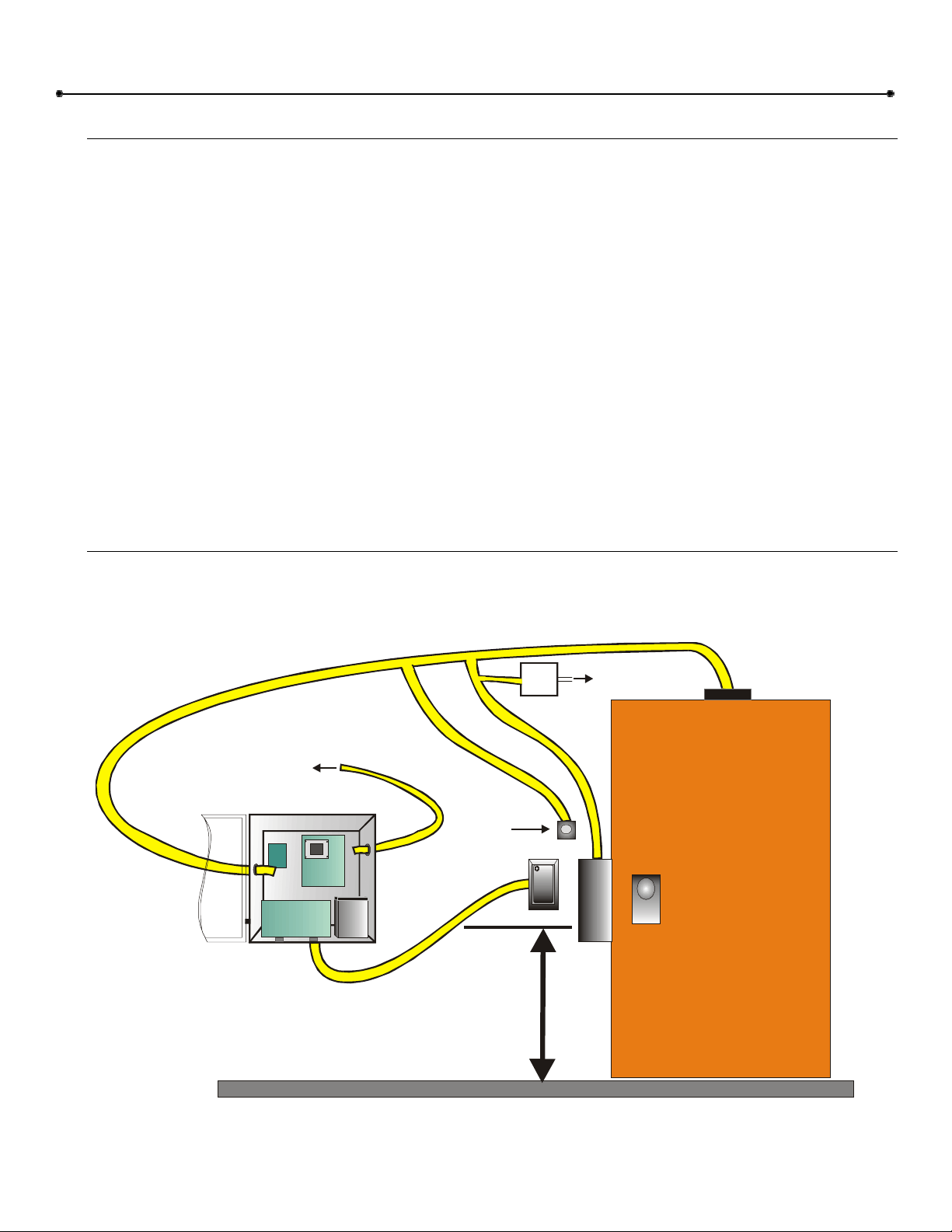

Figure 2: Planning Your Site

8 Step 3: Access Control Overview

Doc 6001536, Rev C

SYSTEM SETUP REQUIREMENTS

In every case, an access control system will require the set up and placement of the following:

 EMC with its 12VDC Power Supply Board connected to a 110VAC junction box

 Personal Computer that monitors the access control system

 At the access control point, a Reader that determines access and a functional Electronic

Door Lock (with its own dedicated power supply) that allows access through the access point

Note: If your site must be fully functional during a power failure, door locks must have their

own battery back-up.

EMC

The proper placement of the EMC is the most

important decision in planning your installation.

Find a location that is dry, safe from large

temperature variations, and most importantly,

secure from the unexpected (e.g., vandalism).

The recommended installation locations are:

1. Telephone/ PBX rooms

2. Computer rooms

3. A wall near one of the Readers (protected

area)

4. Above a false ceiling

The EMC is rated for indoor installation only.

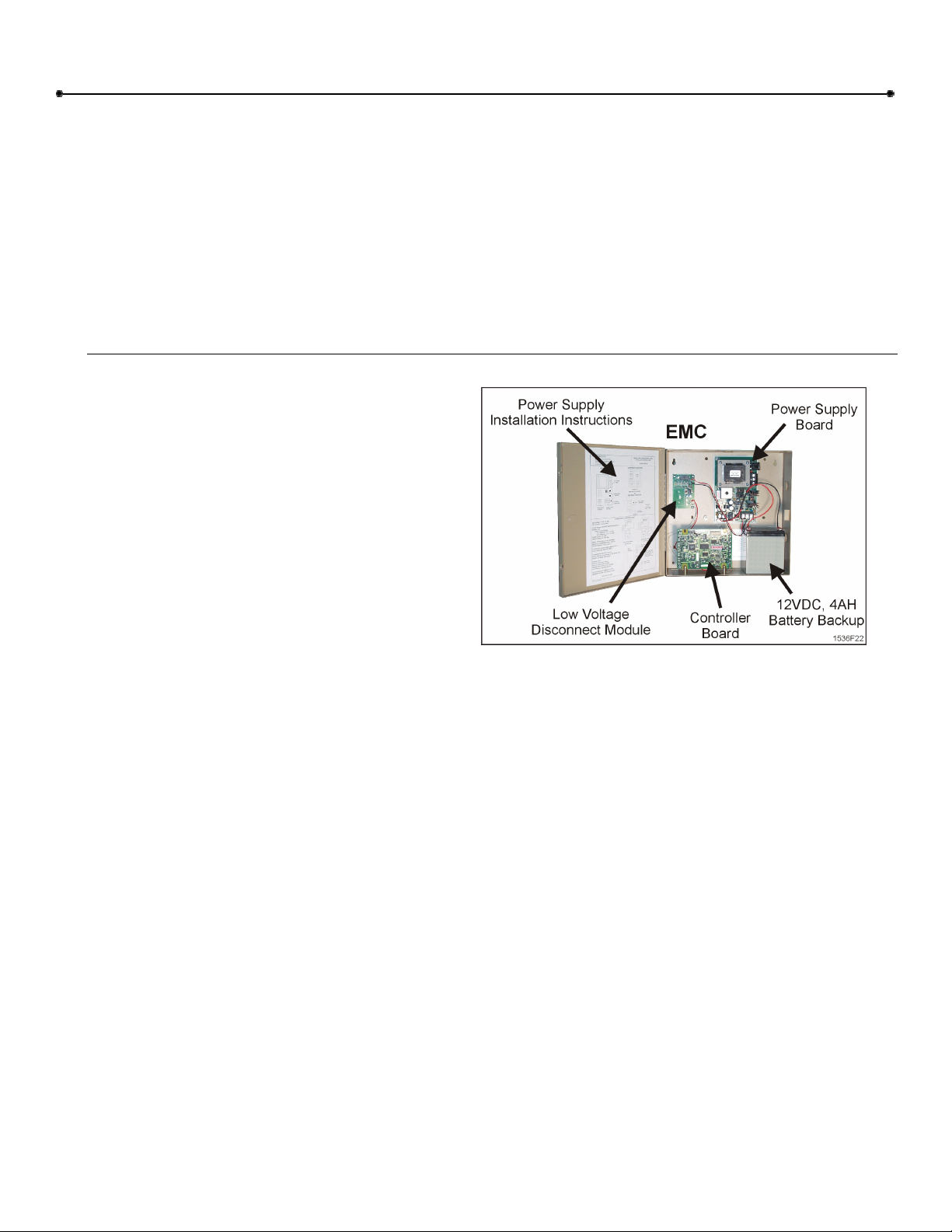

Figure 3: EMC

To keep your EMC working properly, place where:

 the temperature range is between 45-135 F (non-condensing).

 maximum distance from reader(s) to EMC is 500 feet.

 maximum cable distance from the PC (at the RS-485 converter) to the last EMC (if you are

using more than one) is 4,000 ft. If your installation absolutely requires a longer distance, use

an RS-485 repeater (such as B&B Electronics-485OP) to amplify the signal. Refer to the

repeater’s installation instructions for more information.

You should select an area that is the most convenient for cabling and future maintenance.

Step 3: Access Control Overview 9

Doc 6001536, Rev C

Readers

Readers should always be less than 500 feet

from the EMC.

Sentex recommends that you place your reader

between 36-48” (90cm-120cm) from the floor,

though installation should conform to the local, city,

county and state installation codes.

Figure 4: Reader Installation

Door Strike, Door Status Sensors, PIRs and REXs

Like the reader and the door lock, the door status

sensor and REX must be positioned within 500 feet of

EMC. The door sense is most often placed at the top of the

door in order to “sense” the position of the door (open,

closed, forced).

The PIR or the REX are placed on the opposite side of the

wall and allows people to exit the room or hall. The PIR is

used for automatic exit procedures or motion-detectors,

while the REX is used for manual exits.

SUPERVISED DOOR SENSE AND REX INPUTS

Sentex Systems recommends installing “supervised”

Door Sense and REX inputs. Supervised inputs allow

the system to monitor when Door Sense or REX wires

have been shorted or cut (see also Reading the Ten-

Segment LED Array on page 24).

 For installing supervised Door Sense and REX

inputs, refer to Figure 12 (page 16) and Figure

13 (page 17).

Figure 5: Door Strikes, Status Sensors,

PIRs and REXs

10 Step 4: Installation of the EM3000 System

Doc 6001536, Rev C

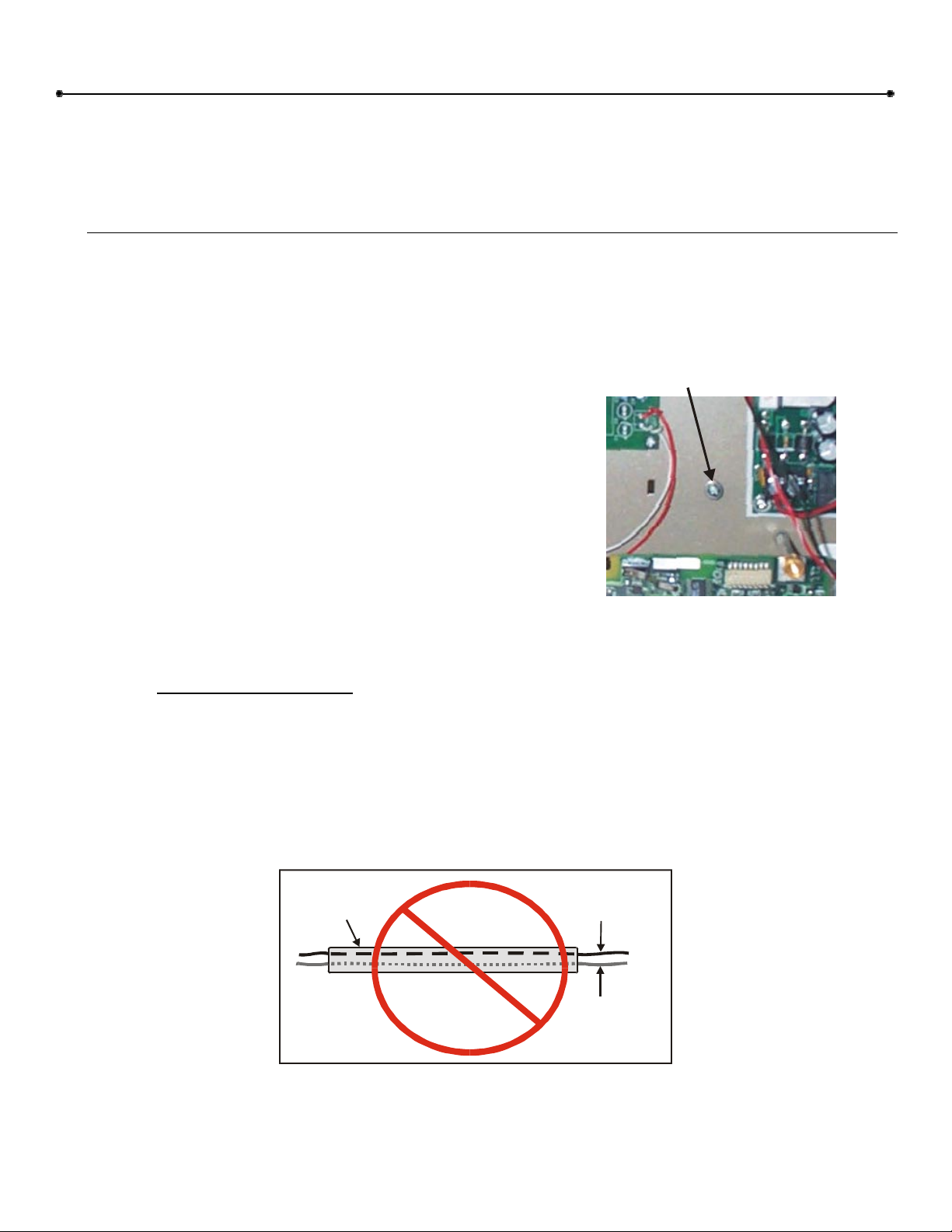

Step 4: Installation of the EM3000 System

Before you begin, review the safety guidelines that follow. Installation of your system should take

approximately 1-3 hours per access control point (depending on your familiarity).

Grounding

The EM3000 contains parts that may be damaged by static discharge. A proper earth ground connection

will significantly reduce the chances of damage or improper operation.

Damage caused by static discharge is not covered by warranty.

To be effective, the ground connection must be

made by running 12 AWG shielded copper wire to a

good ground point (e.g., an electrical panel, a

metallic cold water pipe that runs into the earth, or

a grounding rod at least 10 feet in length that is

driven into the earth) within 12 feet of the unit.

Ground all shield/drain wires (except RS-485

cables) at the earth ground screw, located within

the EMC cabinet (see Figure 6). Ground

shield/drain wire of RS-485 cable at the PC (using

a case screw).

Even if you have a good earth ground, you should

try to discharge any static before handling the

circuit boards.

Ground all shield/drain wires

(except RS-485 cables) here

1536F23

Figure 6: Earth Ground Screw Location

Tips to Ground Yourself

1. Use a grounding strap.

2. Touch a metallic, cold water pipe that runs into the earth.

PROPERLY ROUTING THE CABLES

Do not route data and power cables in the same conduit. Cross-talk and transmission of electrical

noise may result. The EMC’s printed circuit boards will become damaged if the power cable grounds

to the data cable.

ConduitPower

Wire

Data/Signal

Wire

1536F30

Figure 7: How NOT to route power and data wires

Indice

Manuali Portale popolari di altre marche

LST

LST M500RFE-AS Manuale utente

Kinnex

Kinnex Media Gateway Manuale utente

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuale utente

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuale utente

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuale utente

Telsey

Telsey CPVA 500 - SIP Manuale utente

RTA

RTA 460A-NNA4 Scheda tecnica

Shaw

Shaw Gateway HDPVR Manuale utente

ABB

ABB VSN900 Guida rapida

Commander

Commander Pulse Manuale utente

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuale utente

NETGEAR

NETGEAR C6300BD Manuale utente

Amit

Amit CDW531AM Manuale utente

HMS

HMS Netbiter EasyConnect EC150 Manuale utente

Huawei

Huawei EchoLife HG620 Manuale utente

AT&T

AT&T U-verse 3801 Manuale per l'uso e la cura

Logic IO

Logic IO RTCU MX2 turbo Manuale utente

Suttle

Suttle MediaMAX MXM-521 Manuale utente
