SEOWON INTECH WiMAX SWC-5100W Manuale utente
XXXTFPXPOJOUFDIDPLS5&-
&/+0:6#*26*5064%3&".
*OUSPEVDUJPOUPUIF1SPEVDU
'VODUJPOBM'FBUVSFT
-&%*OGPSNBUJPO
3FBS4JEF*OGPSNBUJPO
$POGJHVSBUJPO
/FUXPSL$POGJHVSBUJPO
1BDLBHF$POUFOUT
1$$POGJHVSBUJPO8JOEPXT91
)PXUPDIFDLZPVS*1BEESFTT
$1&#VJMUJO8FC4FSWFS"DDFTT
$1&4FUVQPOUIFXFCQBHF
-"/-"/$POGJHVSBUJPO
-"/4UBUVT
4XJUDI4UBUVT
7P*14UBUVT
"QQMJDBUJPO'JSFXBMM
"QQMJDBUJPO%.;1PSU'PSXBSEJOH
"QQMJDBUJPO71/QBTTUISPVHI
"ENJO7FSTJPO
"ENJO1BTTXPSE
"ENJO$1&6QHSBEF
"ENJO3FCPPU%FGBVMU4FUUJOH
8J[BSE4FUUJOH
5SPVCMF4IPPUJOH
0QFSBUJOH*OGPSNBUJPO
1SPEVDU8BSSBOUZBOE$VTUPNFS4VQQPSU
8BSSBOUZ*OGPSNBUJPO
$POUFOUT
01
*OUSPEVDUJPOUPUIF1SPEVDU
This product receives external WiMAX signals to construct in-building infrastructure on a WiMAX
network, and is covered by Ethernet network internally. The product serves as a relay as well as
an internet router.
However, the purpose of the product is mostly to supply signals to users, with the emphasis
being its relay rather than its modem functions.
It is also a wired and wireless internet router that enables several systems to share a single
internet address supplied by a high-speed internet service provider.
Function Features
IEEE802.16e WiMAX Support Wave1 = DL : 10Mbps / UL : 4Mbps
Wave2 = DL : 30Mbps / UL : 6Mbps
IEEE802.3u Ethernet Support 10/100Mbps wired LAN connectable
RJ-11 VoIP Support 1 x RJ-11 for Analog Telephone Service
LAN Port 1 Port 10/100Mbps Ethernet Switch built-in
Cable Auto Sense Straight (Direct) or Cross Cable auto sensing
NAT function Supports up to 253 wired and wireless connections and internet router*
Firewall function Manages basic firewall and IP/Port/based access
02

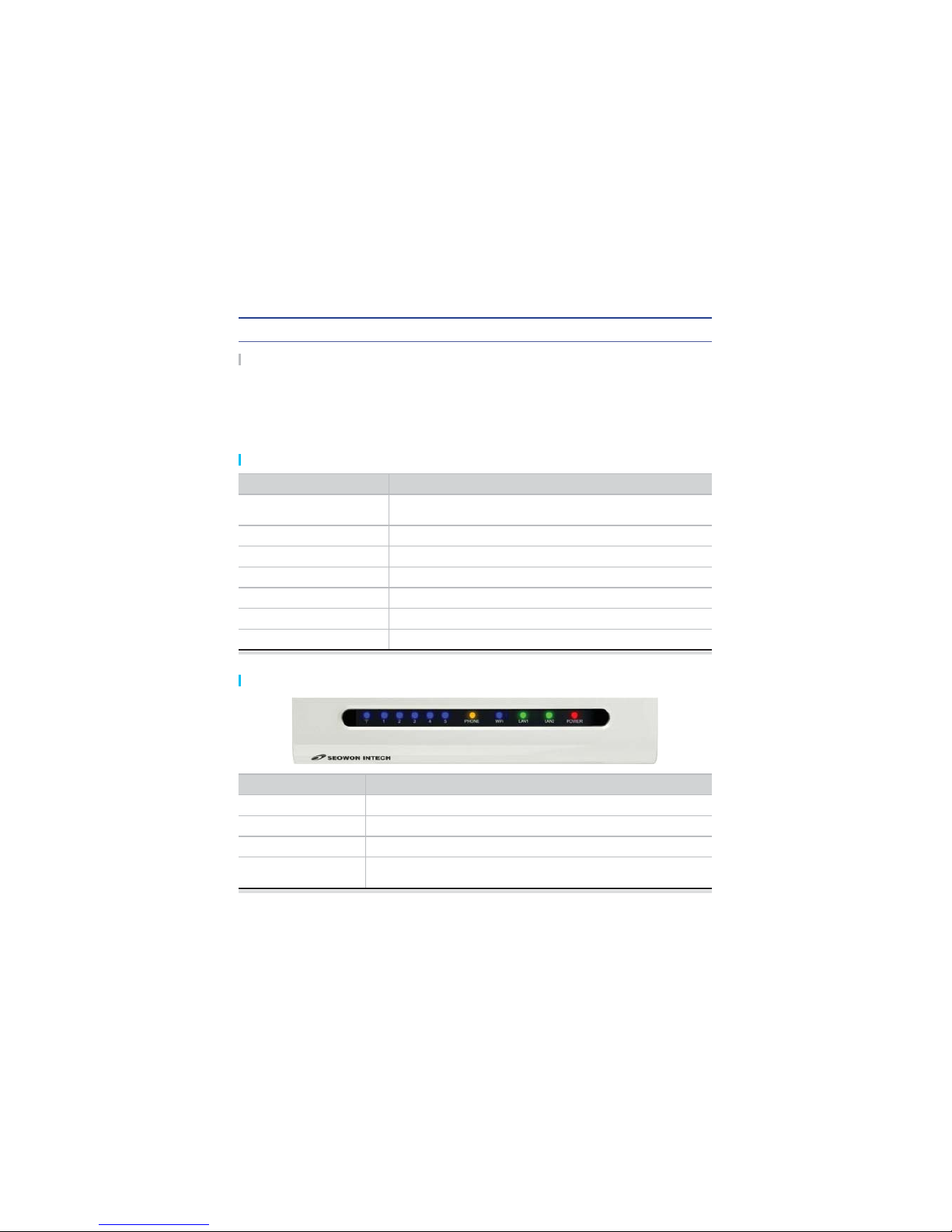

LED Indicator Function
PWR Power Supply status (On at Power ON)
LAN ON when connected to PC, Flashing at communication
PHONE ON when connected to Telephone, Flashing at communication
RSSI Representation WiMAX received signal strength indication(RSSI),
on when the mode was selected router.
Functional Features
LED Information
*OUSPEVDUJPOUPUIF1SPEVDU
03

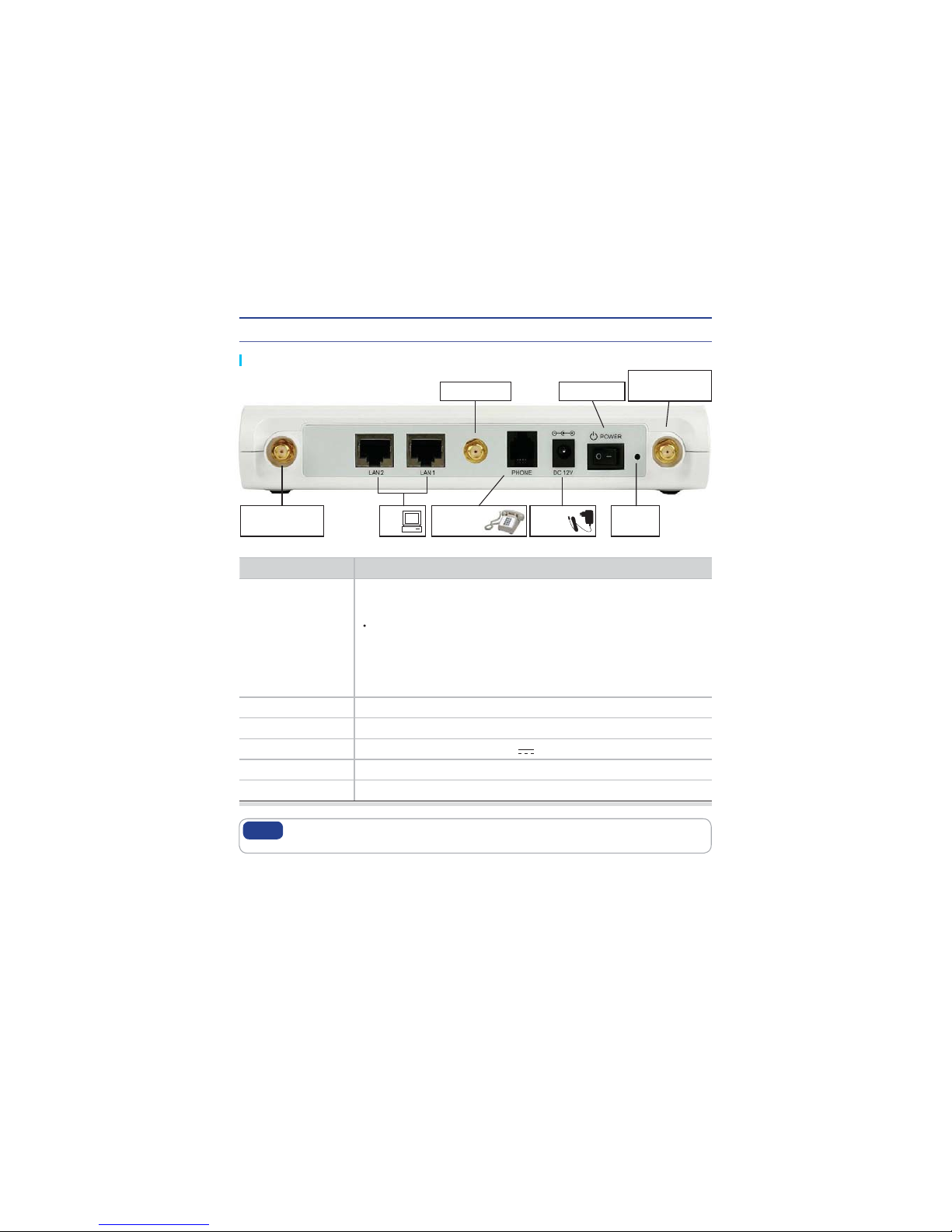

Rear Side Information
If you lost LOGIN password for router or IP address after change, use the Reset
switch to restore its original Factory Default settings.
Note
Antenna1
WiMAX Diversity
Antenna3 WiFi
Hardware
Reset
Power Switch
PC Power
Adapter
Item Details
External Antenna
Antenna1 : WiMAX Diversity
Antenna2 : WiMAX Main
Separable external antenna
User external type antenna attachable
* Antenna Classification
- 2.3G : M23
- 2.5G : M25
- 3.5G : M35
- WiFi : WiFi(Optional)
LAN PC or Hub connection
PHONE Telephone connection
DC 12V Power Adapter connection (DC 12V 2.0A)
POWER Power On/Off Switch (Switch between On/Off by pressing right or left)
RESET Restore the VoIP CPE Factory Default
Antenna1
WiMAX Diversity
TelePhone
To verify the normal operation of the router, check the following LEDs after connecting the router,
modem, and PC with a LAN cable, as follows:
LED Normal Operation Actions to take if not illuminated
PWR ON when connecting adapter Check for adapter power failure
LAN ON when cable is connected normally Check cable connection and PC power supply
PHONE On when Phone cable is connected
normally Check cable connection and Telephone
WiMAX RSSI
Represents WiMAX received signal
strength indication (RSSI), ON when in
router mode
Check that router mode is selected
$POGJHVSBUJPO
If one or more LED lights is not in “normal operation”, take the actions specified in the table.
Install a router after connecting to the network.
If normal connection between router and PC is checked, you have to set up the PC and router.
PC setup is to control network configuration for Windows 98, Windows 2000, or Windows XP to
use the Internet while the PC is connected to a router.
Router setup is to connect a router to the Internet. Please refer to the CPE Setup chapter.
04

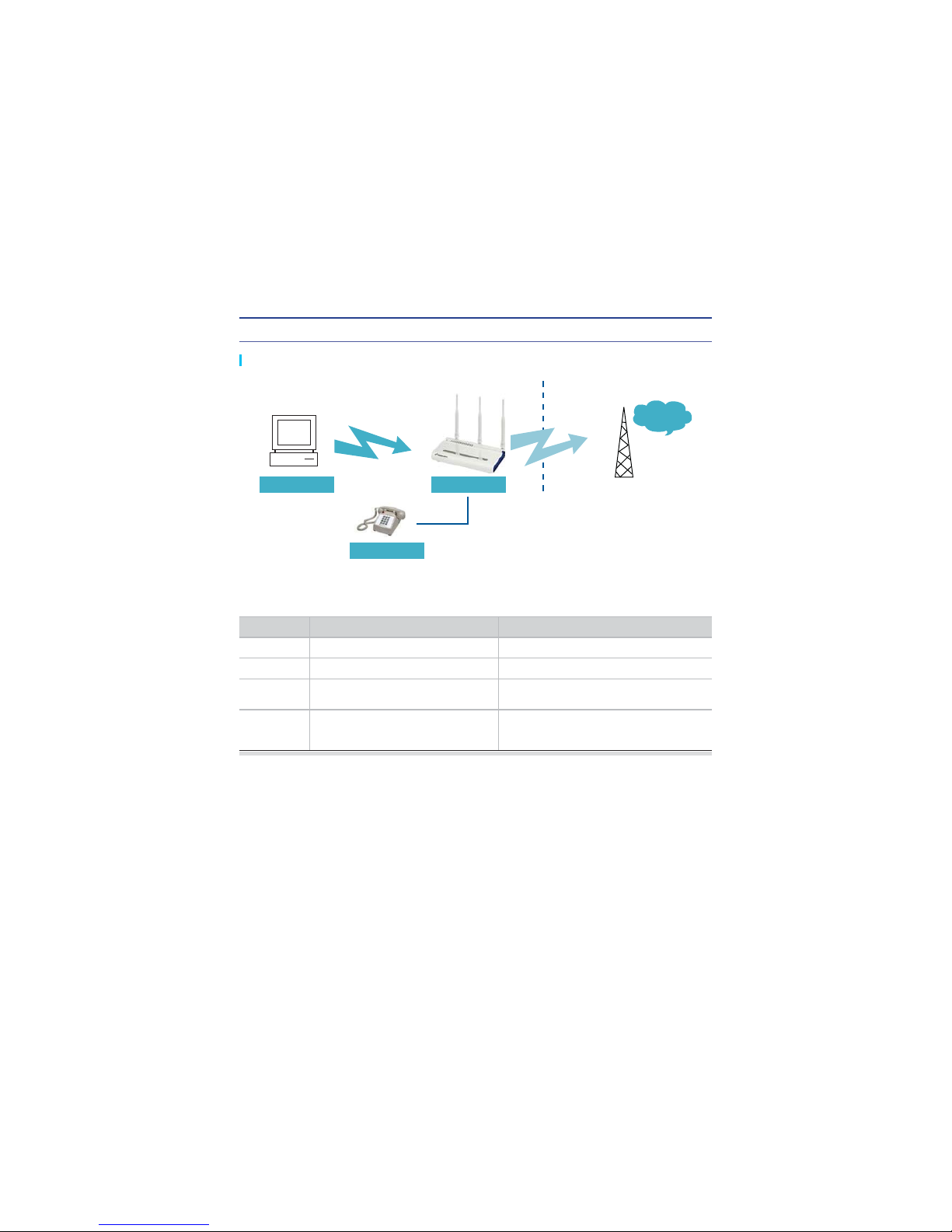

Network Configuration
Local Network External NetworkGateway
PC WiMAX
Internet
Telephone
$POGJHVSBUJPO
05
Package Contents
Main Unit User Manual CD
Antenna X 3
XXXTFPXPOJOUFDIDPLS5&-
&/+0:6#*26*5064%3&".
AdapterTelephone CableUTP Cable
06
$POGJHVSBUJPO

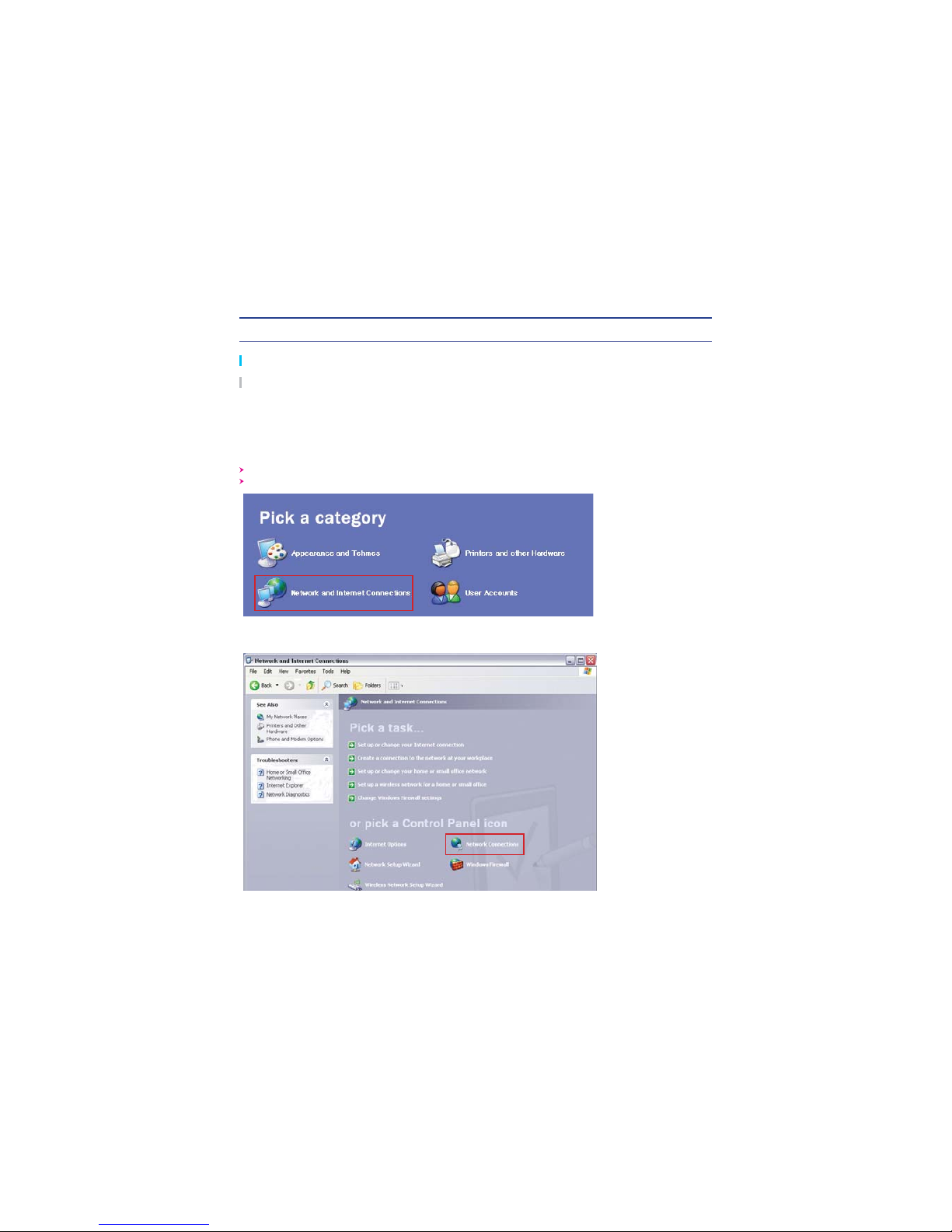

PC Configuration (Windows XP)
Click the Windows Start button, and select Settings >> Control Panel from the menu.
Double-click the “Network Connection” icon in the Control Panel.
This procedure is used to restore Windows XP’s TCP/IP setup to the default values. If Windows
has just been installed for the first time on the PC, no changes should be required, but you
should check to confirm that all values are normal according to the following.
After completing the TCP/IP setup of the PC, connect PC and CPE with a LAN cable and turn
CPE on before Windows starts up to determine whether an IP address is obtained from CPE
automatically.
Double-click the Network and Internet Connections
Double-click the Network Connection
$POGJHVSBUJPO
07

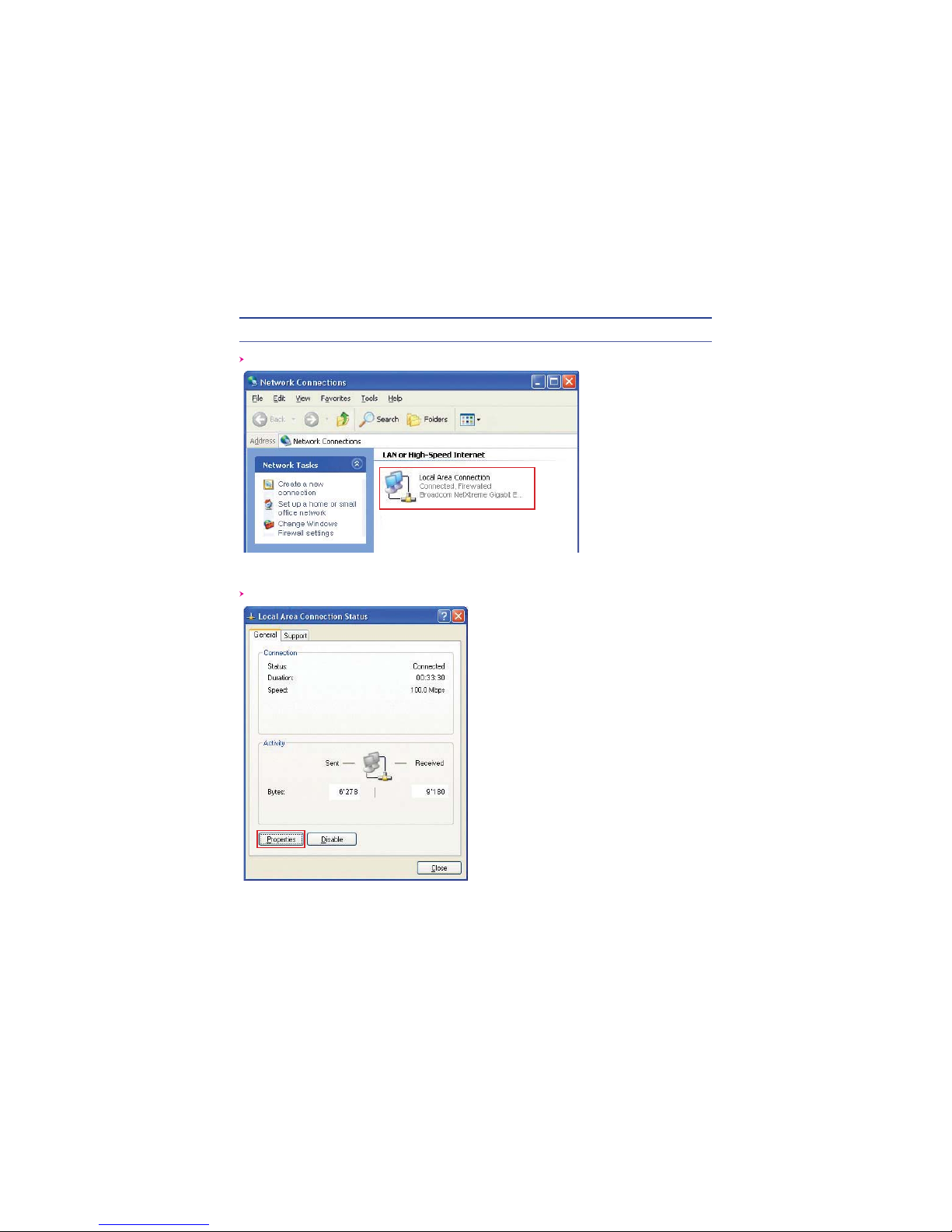

Double-click the Local Area Connection from the Network Connection list to select it.
Click “Properties” in the Local Area Connection Status window.
Double-click the Local Area Connection
Click Properties
08
$POGJHVSBUJPO

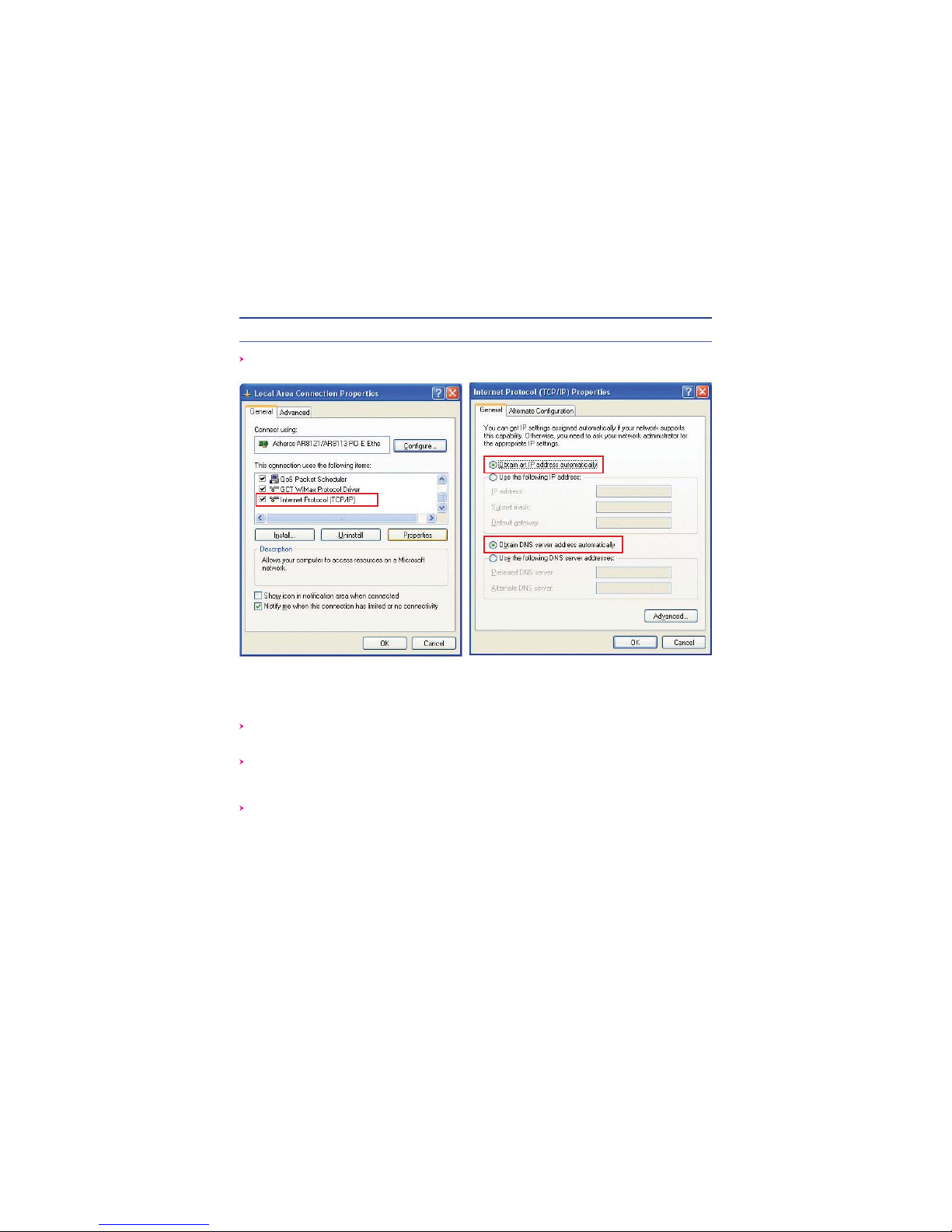

Double-click Internet Protocol (TCP/IP) to open its Properties window, and then select
“Obtain an IP address automatically” and “Obtain a DNS Server address automatically”.
After completing setup, click OK and close all of the Local Area Connection Properties
windows.
When TCP/IP setup is completed, an IP address is automatically assigned by CPE.
For automatic assignment, the PC and the CPE should be connected with a LAN cable.
If they are not connected with a cable, connect them with a LAN cable and restart the PC.
You can check the automatic IP address assignment by using the ipconfig command from the
Command Prompt.
Double-click TCP/IP Select the ‘Obtain an IP address automatically’ ,
‘Obtain a DNS Server address automatically’ and
click OK
$POGJHVSBUJPO
09

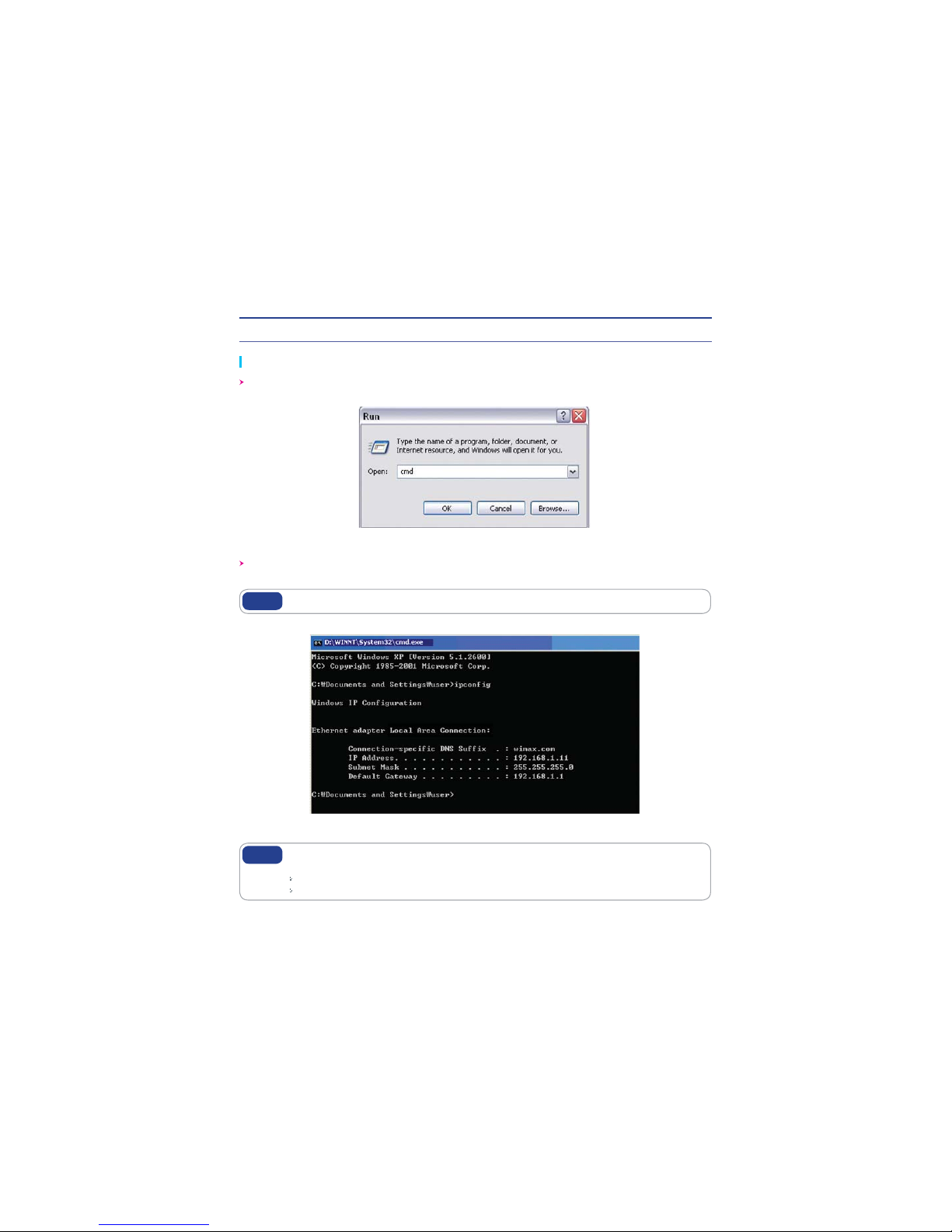

To run the Command Prompt, click the Start button at the lower left corner of the Windows
screen. Click Run, then enter “cmd” in the Open box, and click OK.
When the Command Prompt window opens, enter the “ipconfig” command to verify the IP
address, Subnet mask, and Gateway, which are automatically assigned to PC.
All PCs connected to CPE will receive their own assigned IP address.
Note
Run cmd
Verify IP address
If an IP address is not assigned, check the following, and then restart the PC and
check whether an IP address is assigned.
LAN cable connection between PC and CPE
Check TCP/IP setup details
Note
How to check your IP address
