Serigstad FLEXIFEED Manuale utente
INSTRUCTION MANUAL
08.07.2019
Automate heavy and time consuming work!
FLEXIFEED
Etbl. 1864
CONTENTS
INTRODUCTION

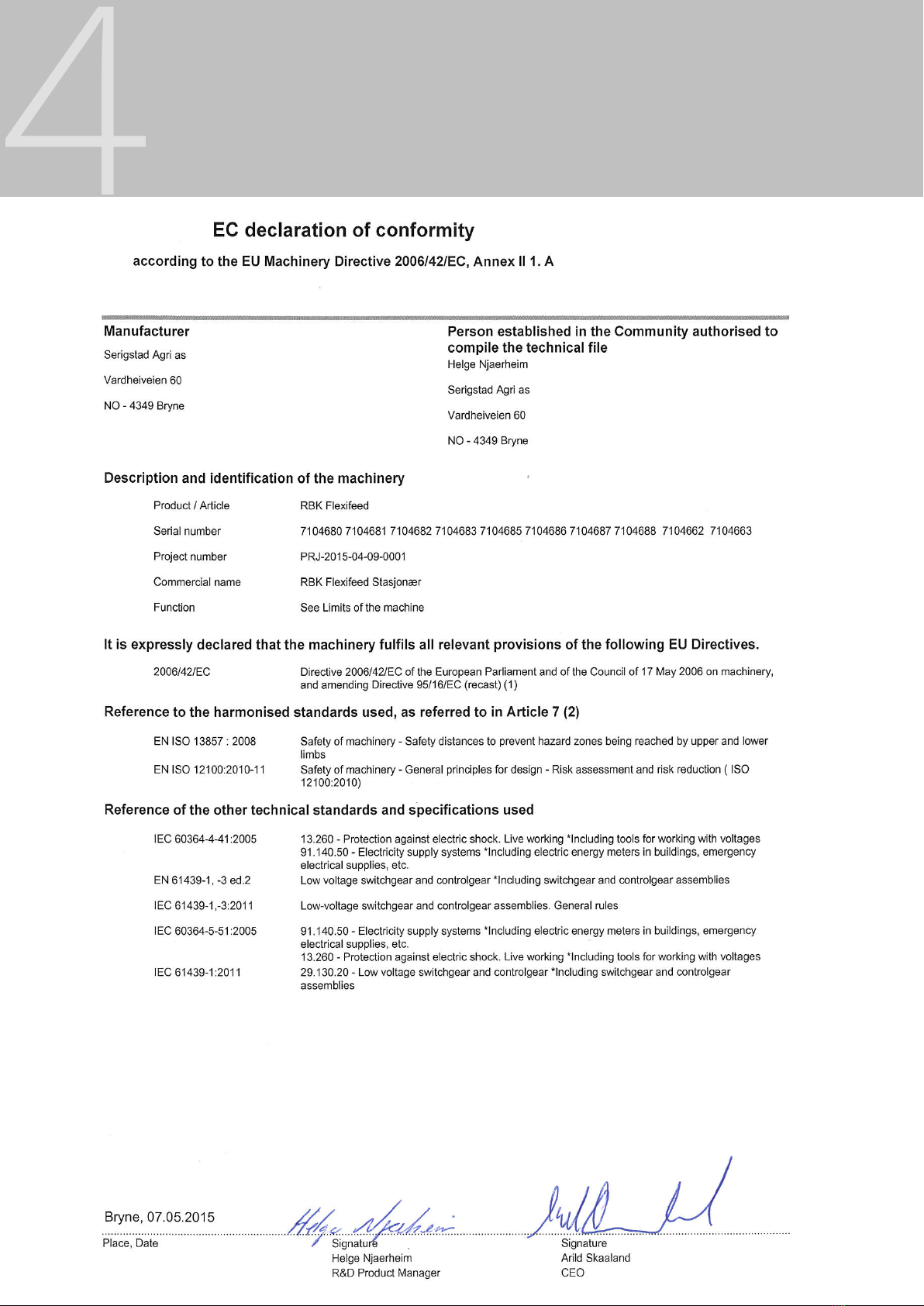

DECLARATION OF CONFORMITY
SAFETY
INSTALLATION
CONNECTING
CUSTOMIZATION
USE
MAINTENANCE
TROBLESHOOTING
SPARE PARTS
OPTIONAL EQUIPMENT
RECYCLING
CONTACT
3
4
5 - 11
12
13 - 15
17 - 19
21 - 22
23 - 25
26
27 - 34
35 - 38
39
40
A great deal of the heavy silage
handling is taken away due to
Serigstad feed solutions.
We appreciate the trust shown to our company purchasing Serigstad
FlexiFeed. The product is tested and built on a highly reliable and known
technology. The product fulll strict safety and quality requirements.
On delivery our distributor will give you information about control,
maintenance and adjustments on the machine. The brief introduction
is not a compensation for the more detailed and necessary information
given in this instruction manual.
This instruction manual includes detailed safety instructions, use and
maintenance guidance, knowledge of functions and use of FlexiFeed.
Dear customer!
INTRODUCTION
The system has one year warranty against fabrications- and material
defects. Serigstad Agri reserve the right to change the design without
obligation for previously delivered products.
We hope the product meets your expectations and needs!
Best regards
Helge Njærheim
Research & Development Manager
Serigstad Agri
4
DECLARATION OF CONFORMITY
SAFETY INSTRUCTIONS
DANGER
WARNING
WARNING!
ALWAYS CHECK MACHINE BEFORE USE TO ENSURE PROPER AND SAFE
OPERATION.
COVERS AND PROTECTIVE MEASURES MUST ALWAYS BE CLOSED DURING
OPERATION.
KEEP VISUAL SUPERVISION OF MACHINE DURING STARTUP AND OPERATION.
MACHINES PLACED ON STANDS, PLATFORMS OR IN RAILS MUST BE
SECURED WITH OBSTRUCTIONS OR SAFE ZONE TO PREVENT ACCESS TO
HAZARD AREAS.
Indicates an imminent dangerous situation which, if not avoided, may
result in serious injury or death.
Indicates a potential dangerous situation which, if not avoided, may
result in serious injury.
The label shows exposed danger areas when he covers are opened or
removed.
SAFETY
6
Read instruction
manual before use.
Keep distance to run-
ning equipment.
Do not stand in danger
zone during startup or
operation!
Serial number plate
Lifting: See dened lifting points labeled on
machine.
Use labeled points when lifting the machine.
Use labeled points for lifting the machine with forklift.
Keep clear to hanging load!
SAFETY FIRST!
Crushing hazard, op-
erating machine can
cause serious injury
or death.
Transport
Covers must be closed
during operation.

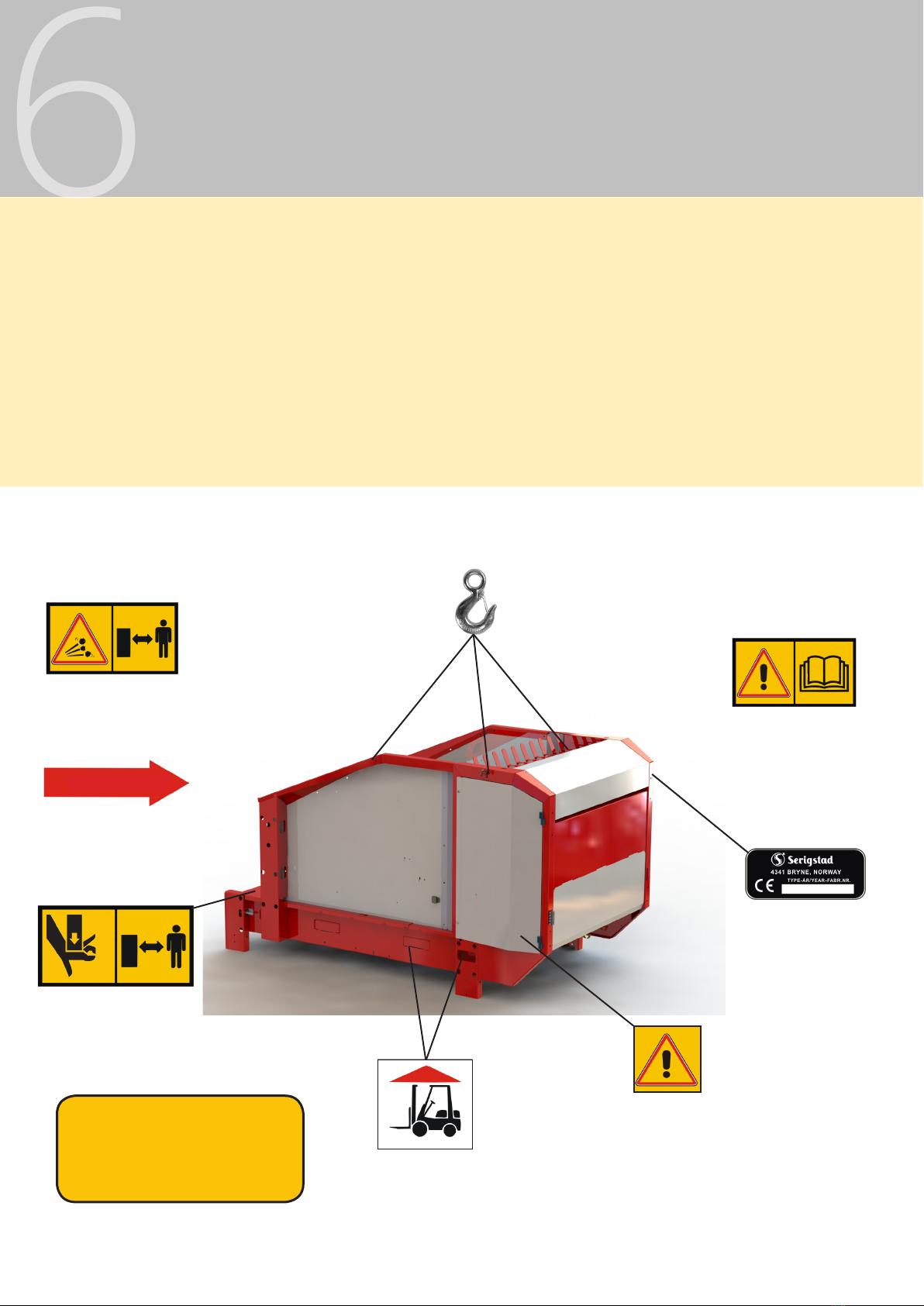

Figure 1 FlexiFeed with machine labels
DANGER ZONE
Tighten conveyor belt after
use of new machine.
(Paint is worn o).
Check frequently!
SAFETY
Danger sign 996745 - red zone
WARNING! Disconnect power supply before entering
high risk area for maintenance or adjustments.
Standing in danger zone during operation may cause
serious injury or death.
Warning sign 996746 - red and yellow zone
Be careful! High voltage. Disconnect power supply
before opening control cabinet.
Warning sign 996763 - red zone
Be careful! Crushing hazard that may cause serious
injury or death! Keep distance when machine is
running.
Warning sign 996766 - red zone
Be careful! All covers must be closed when machine
is running. Fingers and limbs can be damaged if they
are in contact with rotating parts.
Warning sign 7996765 - red and yellow zone
Be careful! Keep distance to running equipment. Do
not stand in hazard area during startup or operation.
Objects may be thrown out of machine during
operation.
Warning sign 996760 - red and yellow zone
Be careful! Make sure you read and understand the
instruction manual before startup, maintenance and
adjustments are made.
DIMENSIONS
8

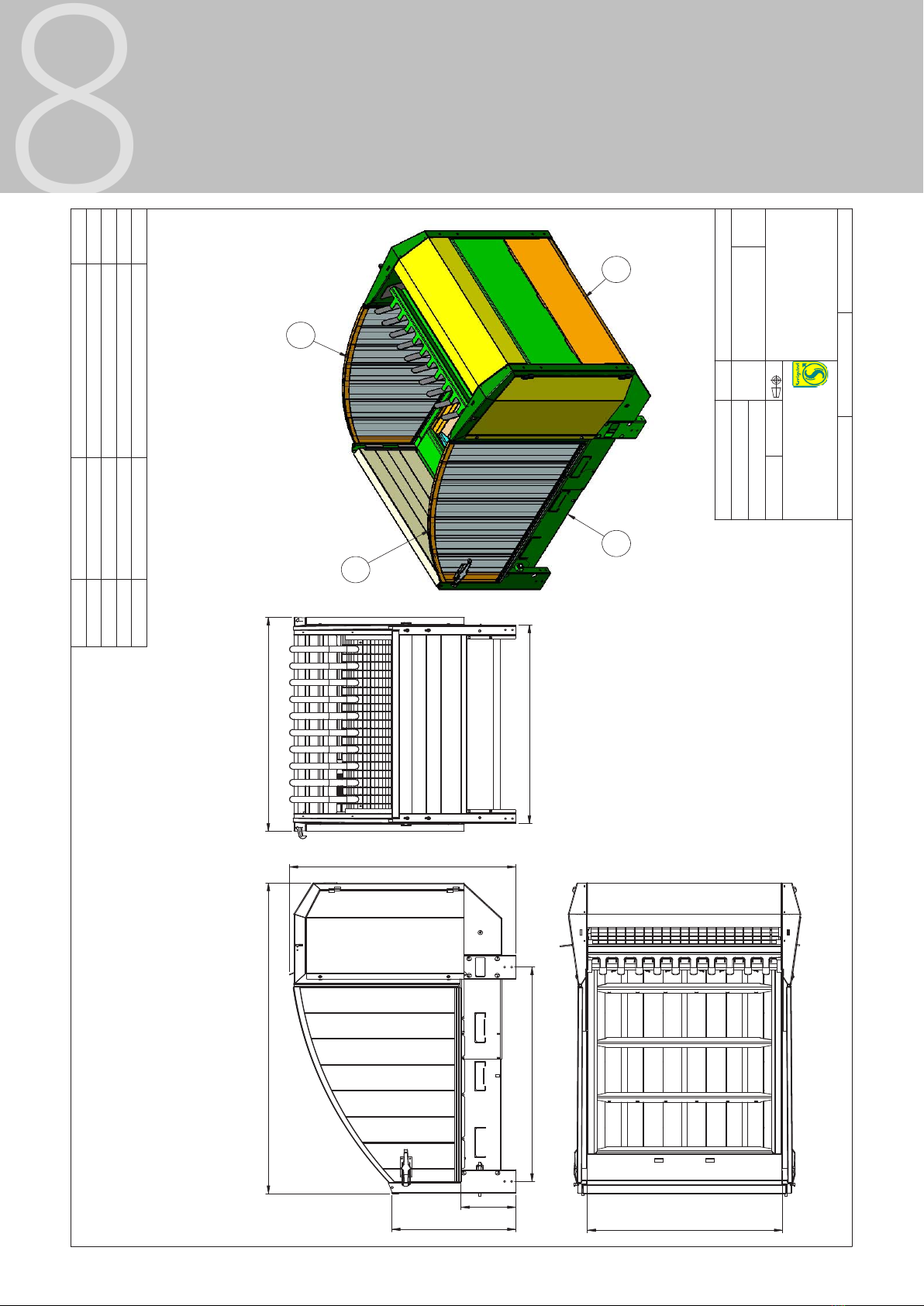

Figur 2 Dimensional sketch of FlexiFeed
2 1
4
3
1386,0
1649
1529,0
T1
16.10.2012
RBK Flexifeed
Weight
Material: Thickness: Surface treatment:
Sheet scale: Drawing number. Revisjon:
Serigstad Agri AS
Helge
Projection:
Content in: Replaced by:
A3
Designed by:
Project:
RBK Flexifeed
1:1
Helge
7104682
NS-1430:
Tolerance not specified according to:
390
1606
881
2392
1652
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 17036 Montert frontseksjon 1
2 17035 Bunnramme 1
3 17058 Høyre sidedør 1
4 17059 Venstre sidedør 1

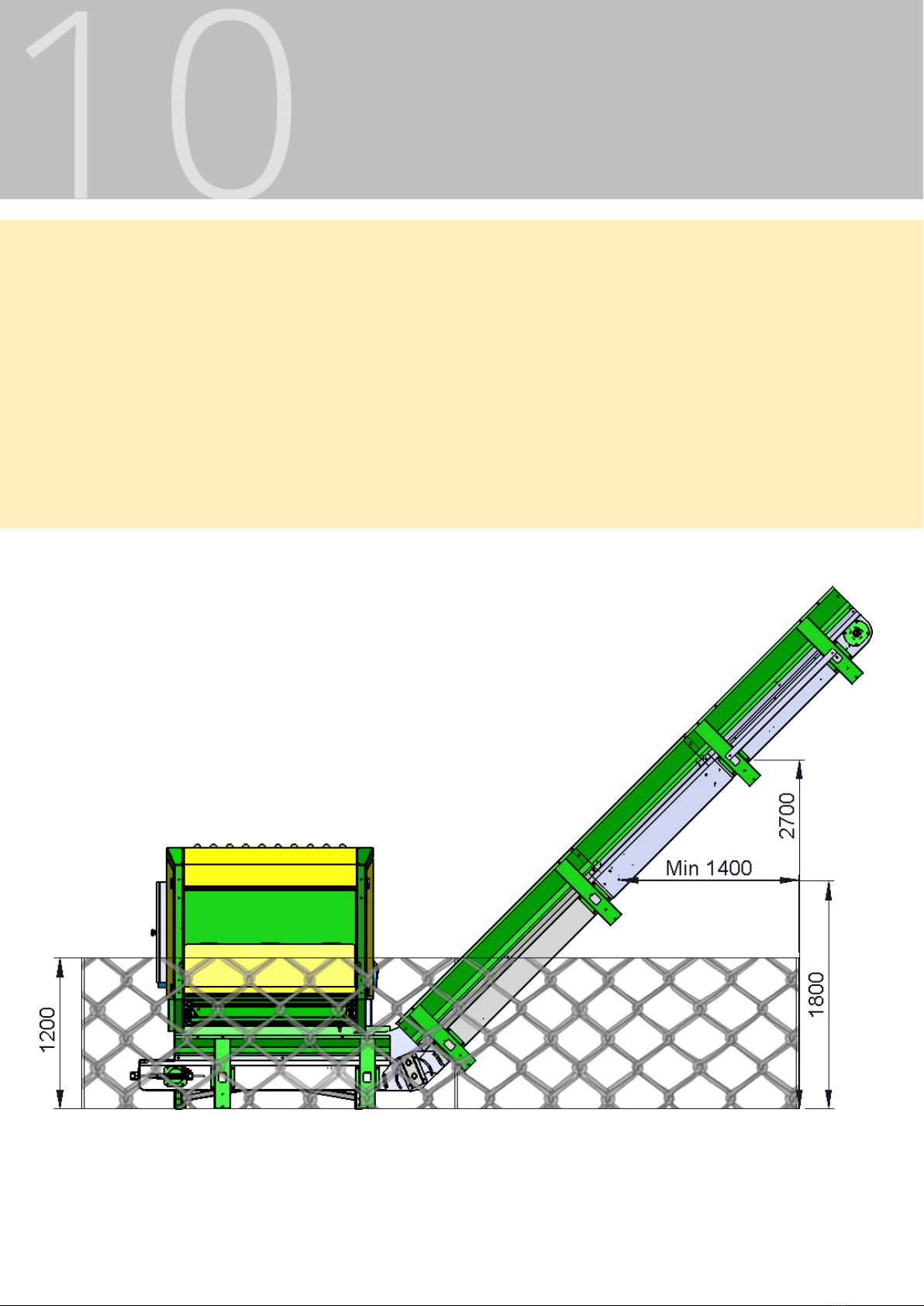

HAZARD AREAS
HIGH RISK AREA
LOW RISK AREA
MEDIUM RISK
LOW RISK AREA
HIGH RISK AREA
Outside safety barrier = low risk zone
Inside safety barrier = high risk zone
Safety zones around the equipment with
minimum distances must be followed to
prevent damage to humans and animals.
Before entering high risk areas for
maintenance, adjustments or repairs,
always turn o and lock the main power
switch.
Represents hazard area which may cause serious injury during operation
Represents potential hazard area which may cause accidents and injuries
during operation.
Represents low risk of accidents and injuries during operation
Red area
Yellow area
Green area

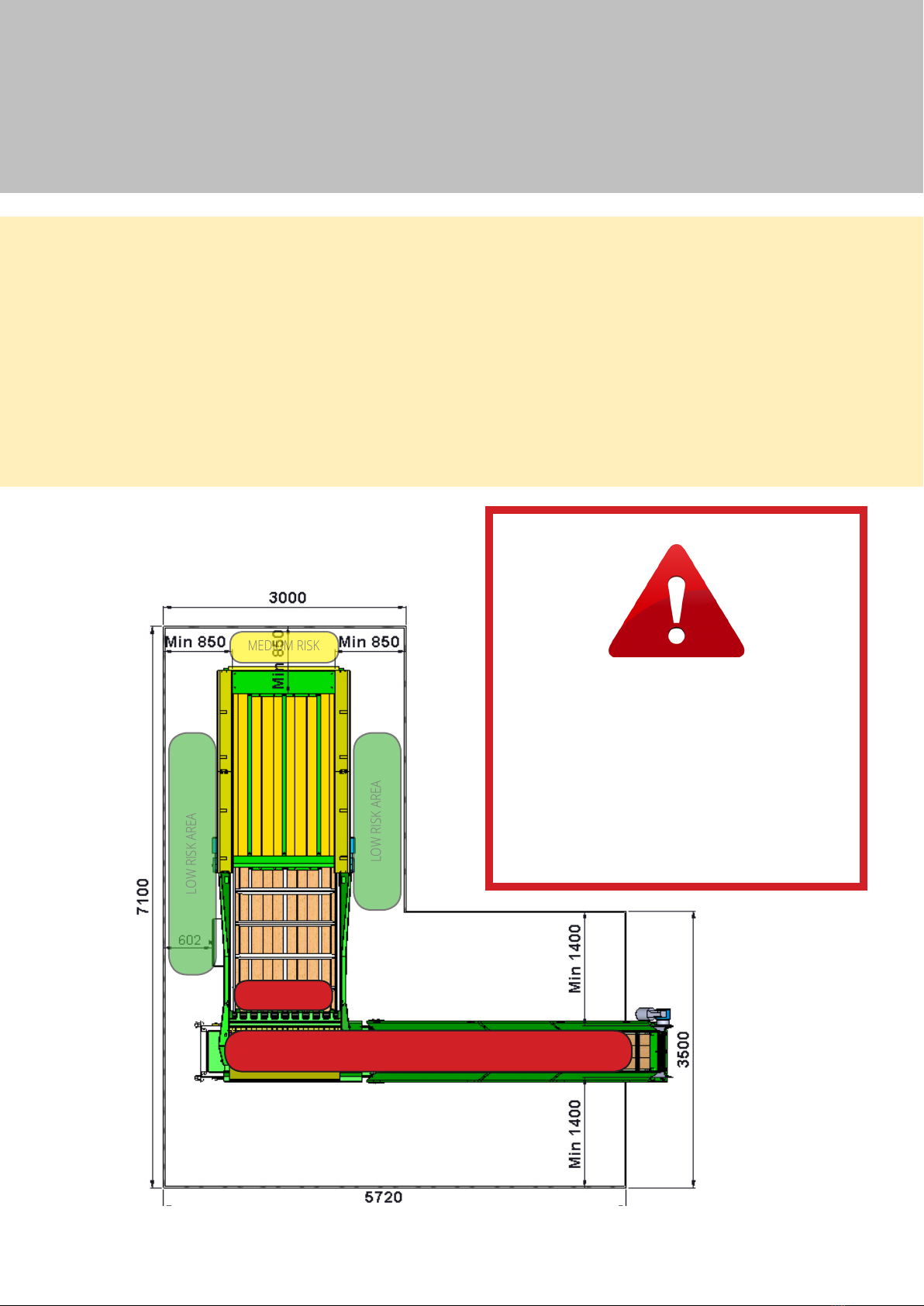

Figure 3 Hazard areas around FlexiFeed
10
HAZARD AREAS
SAFETY FUNCTIONS
• Emergency stop button is placed on front of control cabinet.
• Lockable main power switch is placed on left side of control cabinet.
Figure 4 FlexiFeed with chained conveyor and safety fence.
