ServComp 10 Manuale utente

IP Phone

User manual

June 25, 2005

IP Phone User manual

- 1 -

Dear customer:

First thank you to select and purchase our company's network telephone,In order to

make it work at the optimum condition, please carefully read this user manual.

Attention:

1. The product specification and the information mentioned in this user manual supply

the reference merely. so if has any renewal information or change, we will no longer

inform you in advance ! We retains the product performance finally explanation

2. Although this network telephone already pass the most senior safety precaution

test( We passed the CE and the FCC authentication), The safety is your responsibility

too!

Therefore,

Please use the power adapter which we provides;

Don t open the product without any correct instruction and our permission;

Please don t remove the power adaptor during the configuration and updating the

ip phone!

IP Phone User manual

- 2 -

Catalogue

Introduction 3

Suitable Users of IP Phone 4

Spec and Install 5

Appearance··················································································································································· 5

Performance and Features ····························································································································· 7

Installation···················································································································································· 8

Setting and configuration 10

Configured by keypad

································································································································· 10

Configured by WEB···································································································································· 15

Network Setting ····················································································································································· 17

Audio settings························································································································································ 18

Dial Plan settings ··················································································································································· 20

Protocol Setting······················································································································································ 21

Other settings························································································································································· 26

Configured by PalmTool····························································································································· 27

Usage of the phone 28

FAQ 30

IP Phone User manual

- 3 -

Introduction

IP is abbreviation of Internet Protocol. An IP Phone is a telephone transporting voice using

grouping data package of IP protocol. It can be used widely for audio communication in the broad

band IP Network environment which accord with TCP/IP protocol, such as in the LAN or WAN of

Enterprises and Institutions Telecom IP Phone services provider s network and broad band

INTERENT user, who log on internet through LAN Cable Modem or XDSL and so on.

The mostly significant features of IP Phone is transporting voice message over data

communication network at an extremely low price with excellent sound quality. Using IP Phone,

you will save dramatically on international calls and long distance calls.

IP Phone uses unique generalized outline and inner line modes. It functions much like an ordinary

telephone switching between inner line and out line, so it supplies great conveniences to the users.

When IP Phone is in generalized inner line mode, it can call another IP Phone worldwide for free.

When IP Phone is in generalized out line mode, it can places calls to ordinary telephones worldwide at

a dramatically low price, because IP Phone supports using prepaid card supplied by ISP such as

Net2phone or eTalk. Moreover, it possesses excellent sound quality just like ordinary phone.

IP Phone User manual

- 4 -

Suitable Users of IP Phone

IP Phone is the ideal choice for those who always place international or long distance calls. If two

parties both use IP Phone, they can communicate with each other even free.

●Telecom Service Provider and Internet Phone Service Provider;

●Foreign capital or joint venture companies; offices, representative offices or

agencies of foreign companies in China;

●Abroad hotel（Can be arranged at guest rooms or commercial central）；

●Large enterprises, multinational enterprise (Used for international call and long

distance call)

●Middle and small enterprise with import or export business, abroad travel

agencies; study abroad or immigrant mid-agencies;

●Departments relating with international affairs, such as foreign trade department, association

for friendship with foreign countries, turnvereins, athenaeums, foreign experts bureau and other

departments involving foreign affairs

●Colleges and study institutions, such as dorm for abroad students, professors

with close connection with foreign countries;

●Families or persons with close connection with foreign countries, such as

foreigners in China and those who prepare the study abroad.

IP Phone User manual

- 5 -

Spec and Install

Appearance

1. 10Model: Front Panel

Fig. 1 10 Model Front Panel

2. 100 Model: Front Panel

Fig. 2 100 Model Front Panel

IP Phone User manual

- 6 -

3. 200 Model: Front Panel

Fig. 3 200 Model Front Panel

4. 500Model: Front Panel

Fig. 4 500 Model Front Panel

1. LCD 2. Handset 3. Curve 4. Light 5. Number 6. Speaker 7. Redial 8. Vol/+

9. Vol/- 10. Local num 11. Local IP Redial 12 Missed 13. Answered 14. Dialed

15. Back Space 16.Phone Book 17.Transfer 18. Hold 19. Flash 20.Service IP

IP Phone User manual

- 7 -

21. Speed dial 22. Call

Backside jack

1, SWITCH Power On-off；2, POWER OR DC9V Power Adaptor jack；3, RJ45 LAN

Interface；4, PC PC Interface；5,LINE PSTN Telephone Line Interface

Performance and Features

Features

Hardware

●Main chip—50MHz

●Data Memory—2MB SDRAM

●Program Memory—1 MB Flash memory

●Ethernet Port—10/100M Connectors

●AC/DC adapter—Input AC 110V or 220V OR 110--- 240V，Output 9V DC, 500mA

Software

●DHCP support for LAN or Cable modem

●PPPoE support for ADSL or Cable modem

●Set phone by HTTP web browser or Telnet

●Upgrade by FTP(TFTP optional)

●Support major G.7XX ,GSM610,iLBC audio codec

●VAD(Voice active detect)

●CNG (Comfort noise generation)

●Dynamic voice jitter buffer

●G..167/165 compliant 16ms echo cancellation

●Tone generation and Local DTMF re-generation according with ITU-T

●Support the Inband audio; the H245 String; the Q931 Keypad etc DTMF transmission method

●E.164 dial plan and customized dial rules

●100 entries for speed dial

●80 entries each for missed calls, answered calls and dialed calls

●Adjustable volume for both handset and speaker

●Voice prompt

●Hotline

●Support adjustable user password and super password

IP Phone User manual

- 8 -

●Support PoE ( only for 500 Model)

Standard and Protocol

●IEEE 802.3 /802.3 u 10 Base T / 100Base TX

●Major G.7XX,GSM610,iLBC audio codec

●H.323 V4, MGCP RFC2705, SIP RFC3261, IAX2 Protocol, Net2phone private protocol

●TCP/IP: Internet transfer and control protocol

●RTP: Real-time Transport Protocol

●RTCP：Real-time Control Protocol

●VAD/CNG save bandwidth

●DHCP：Dynamic Host Configuration Protocol

●PPPoE：PPP Protocol over Ethernet

●DNS：Domain Name Server

●Telnet：Internet's remote login protocol

●FTP：File Transfer protocol

●TFTP：File Transfer protocol (optional)

●HTTP：Hyper Text Transfer protocol

●Build in H.323 proxy

Operating requirements:

●Operation temperature: 0 to 50°C (32°to 122°F)

●Storage temperature: -30°to 65°C (-22°to 149°F)

●Humidity: 10 to 90% no dew

Electric requirements:

●Voltage: 9V DC

●Power: 9W (max.)

●Power adapter: Input AC 110V or 220V OR 110--- 240V，Output 9V DC, 500mA

●Network interface: RJ-45 Ethernet Connectors

Size

10Model：202 x 149x 75 mm (L x W x H)

100Model：188 x 215 x 75 mm (L x W x H)

200 Model：195 x 175 x 85 mm (L x W x H)

500 Model：190 x 235 x 90 mm (L x W x H)

Installation

1. Connect Handset and Phone

IP Phone User manual

- 9 -

Insert Handset cord into handset cord jack of the base.

2. Connect Phone and Power

Place the phone nearby of Power socket, Plug the power cord adapter into the Power or DC9V

Jack. Then plug the other end of the power cord adapter into the appropriate power socket.

3. Connect the phone into the network

LAN users: Plug one end of the direct-connecting cable into RJ45 jack, which is located in the

back of phone, and connect the other end of cable to hub.

ADSL/Cable Modem users：Plug the RJ-45 Ethernet crossing-over cable into the RJ45 Ethernet

Jack. Plug the other end of the cable into an ADSL/Cable modem router port. Please see Fig. 5.

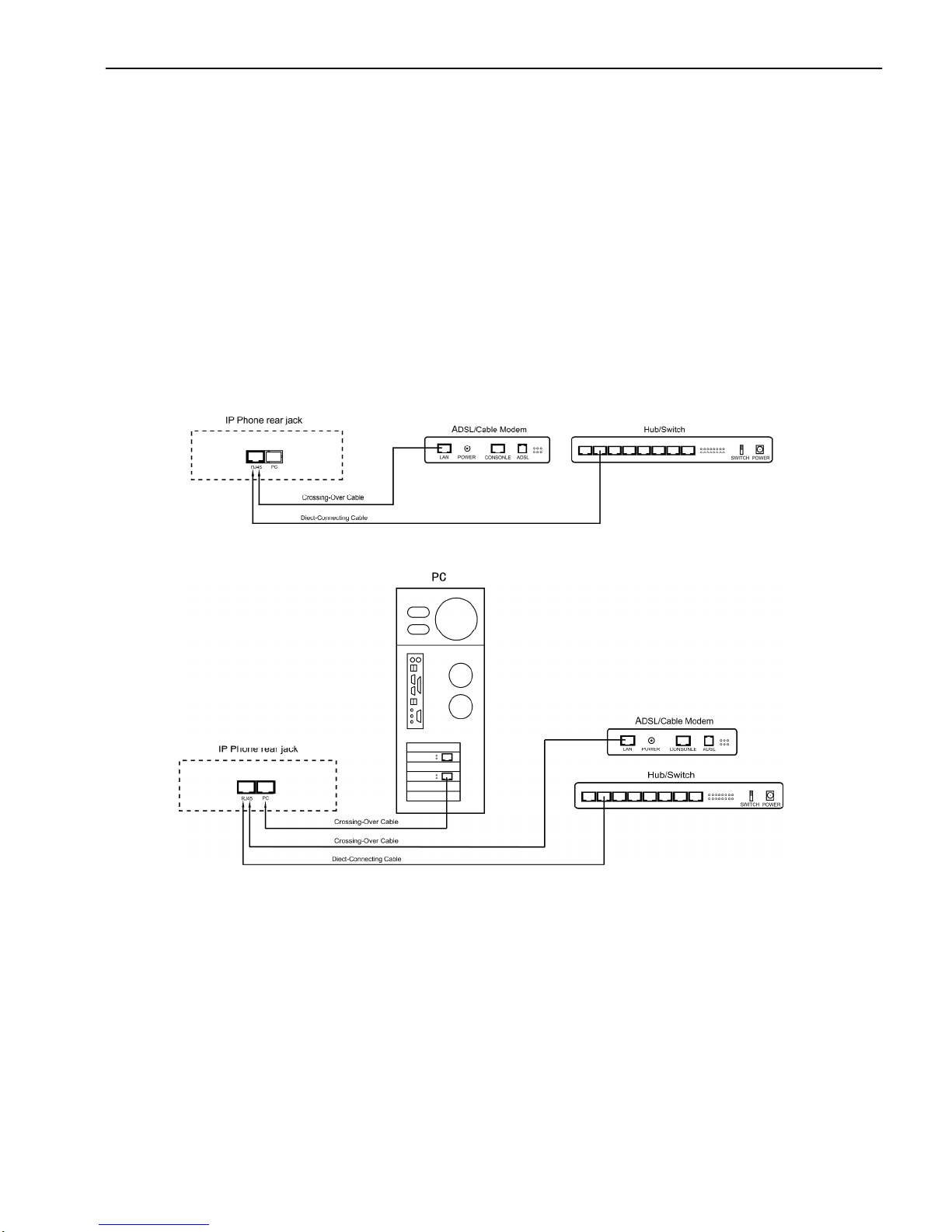

Fig. 5 IP Phone connected into network (for 1-RJ45)

Fig. 6 IP Phone connected into network(for 2-RJ45)

4. Start Phone

Turn on the phone by pulling the switch to ON. Verify that yellow ,green and red lights are on

together, and then red light is off; green light blinks or is off ; yellow light blinks or is on. which

behalf the success of starting phone and phone enter into normal standby. (only for200 Model and 500

Model)
