SECUSTOS SQ80 SERIES

Multi-frequency access control readers

USER MANUAL

TABLE OF CONTENTS

1INTRODUCTION............................................................................................................................................................ 3

1.1 ABOUT THIS MANUAL ..........................................................................................................................................3

1.2 SCOPE OF DELIVERY ..........................................................................................................................................3

1.2.1 COMPONENTS ..............................................................................................................................................3

1.2.2 ACCESSORIES ..............................................................................................................................................4

1.3 SESAMSEC SUPPORT .........................................................................................................................................4

2INTENDED USE............................................................................................................................................................. 5

3SAFETY INFORMATION ............................................................................................................................................ 6

4TECHNICAL DATA ....................................................................................................................................................... 9

4.1 TECHNICAL SPECIFICATIONS .........................................................................................................................9

4.2 FIRMWARE ................................................................................................................................................................9

4.3 ANTENNAS ..............................................................................................................................................................10

5INSTALLATION ............................................................................................................................................................ 11

5.1 GETTING STARTED.............................................................................................................................................11

5.2 INSTALLATION OVERVIEW ..............................................................................................................................12

5.3 ELECTRICAL CONNECTION ............................................................................................................................13

5.3.1 CONNECTOR ASSIGNMENT .................................................................................................................13

5.3.2 ADDITIONAL CABLE INFORMATION..................................................................................................13

5.4 MECHANICAL INSTALLATION.........................................................................................................................14

5.4.1 INSTALLATION DIRECTLY ON THE WALL.......................................................................................14

5.4.2 INSTALLATION WIT FLUSH-MOUNTED BOX..................................................................................15

6SETTINGS ..................................................................................................................................................................... 16

6.1 GENERAL SETTINGS..........................................................................................................................................16

6.2 CONFIGURATION WITH SECUSTOS SECO APP....................................................................................16

6.3 CONFIGURATION WITH USB CABLE...........................................................................................................16

6.4 CONNECTION TO AN ACCESS CONTROLLER .......................................................................................17

6.4.1 LINE TOPOLOGY ........................................................................................................................................17

6.4.2 STAR TOPOLOGY ......................................................................................................................................17

7COMPLIANCE STATEMENTS................................................................................................................................ 19

7.1 EU................................................................................................................................................................................19

7.2 RF EXPOSURE COMPLIANCE ........................................................................................................................19

7.3 UNITED KINGDOM ...............................................................................................................................................19

APPENDIX.................................................................................................................................................................................. 20

A – RELEVANT DOCUMENTATION............................................................................................................................20

B – TERMS AND ABBREVIATIONS ............................................................................................................................20

C – REVISION HISTORY.................................................................................................................................................21

1 INTRODUCTION

1.1 ABOUT THIS MANUAL

This manual is intended for users and installers. It enables a safe and appropriate handling of the product and

it gives a general overview, as well as important technical data and safety information about the product. Before

installing and using the product, the users and installers should read and understand the content of this manual.

For the sake of better understanding and readability, this manual might contain exemplary pictures, drawings

and other illustrations. Depending on your product configuration, these pictures might differ from the actual

design of your product.

The original version of this manual has been written in English. Wherever the manual is available in another

language, it is considered as a translation of the original document for information purposes only. In case of

discrepancy, the original version in English will prevail.

1.2 SCOPE OF DELIVERY

1.2.1 COMPONENTS

Your Secustos SQ80 access control reader is delivered as a kit with the following components:

Secustos SQ80 reader

All Secustos SQ80 readers are equipped ex-works

with one 4-pin (X1) and one 6-pin (X2) connector.

Depending on the product configuration, access

control readers of the Secustos SQ80 series are

available with or without keypad, in a silver or gray

housing.

4-pin connector (X1)

6-pin connector (X2)

Mounting plate

The mounting plate delivered with the kit enables to

fix the Secustos SQ80 reader on a wall.

It must be fixed directly to the wall or on a flush-

mounted box with 2 to 4 screws*

*Not part of the delivery

(screws are generally

available on site)

Fixing screw

(countersunk screw with

cross recess, M2x5)

The fixing screw delivered with the kit is intended to

fix the Secustos SQ80 reader on the mounting plate.

Due to its small size and inconspicuousness,

particular attention should be given to the screw

when unpacking the kit, as the screw might easily fall

down from the support and get lost.

Installation guide

(exemplary illustration)

The installation guide

delivered with the product

gives a short description of the installation options.

Please note that the installation guide does not

replace the user manual!

1.2.2 ACCESSORIES

Depending on your product configuration, the product can be delivered with the following accessories:

Mounting frame

Additional frame required for on-wall installation.

The mounting frame is delivered with 4 fixing screws

and 2 rubber seals on each side of the frame.

Part no.:

T4SA-QWF1SL (mounting frame, silver)

T4SA-QWF1GY (mounting frame, gray)

USB maintenance and

configuration cable

Specific USB cable intended for maintenance and

configuration purposes only.

Particular attention should be given when plugging

the USB cable in and out of the Secustos SQ80

reader.

Part no.: CAB-J4MSBAMSB150

1.3 SESAMSEC SUPPORT

In case of any technical questions, refer to the sesamsec website (www.seamsec.com) or contact sesamsec

technical support at

support@sesamsec.com

In case of questions regarding your product order, contact your Sales representative or sesamsec customer

service at

info@sesamsec.com

2 INTENDED USE

Secustos SQ80 is a product family of access control readers based on RFID technology. The readers give the

user the possibility to read simultaneously more than 60 RFID technologies from low (125 kHz) and high

(13.56 MHz) frequency bands. Many mobile use cases can be facilitated with their NFC and, optionally, BLE

functions, like authentication and data communication.

All readers are for both indoor and outdoor use in environmental conditions according to the respective product

data sheets and installation instructions given in this manual.

Any use other than the intended use described in this section, as well as any failure to comply with

the safety information given in this document, is considered improper use. sesamsec excludes any

liability in case of improper use or faulty product installation.

3 SAFETY INFORMATION

Transport and storage

•Observe carefully the transport and storage conditions described on the product packaging or other relevant

product documents (e.g. data sheet).

Unpacking and installation

•Before unpacking and installing the product, this user manual and all relevant installation instructions must

be read carefully and understood.

•After unpacking the product, check that all components have been delivered according to your order and

delivery note.

Contact sesamsec if your kit is not complete.

•The following measures must be checked prior to any product installation:

oMake sure that the mounting location and tools used for the installation are appropriate and safe.

In addition, make sure that the cables intended to be used for the installation are appropriate. Refer

to Chapter “Installation” for more information.

oIn case the product is installed outside, check if any further installation steps are required (e.g.

sealing of cables or housing). Refer to Chapter “Installation” for more information.

oThe product is an electrical device made of sensitive materials (e.g. glass housing). Check all

product components and accessories for any damage.

A damaged product or component may not be used for the installation.

oLife-threatening hazard in the event of fire

A faulty or improper installation of the product might cause a fire and lead to death or severe

injuries.

Check that the mounting location is equipped with appropriate safety installations and devices, like

a smoke alarm or fire extinguisher.

oLife-threatening hazard due to electrical shock

Make sure that there is no voltage on the wires before starting with the electrical wiring of the

product and check that power is turned off by testing the power supply of each wire.

Power to the reader supply should be applied only after the installation has been completed.

oMake sure that the product is installed in accordance with local electrical standards and regulations

and observe general safety measures.

oRisk of property damage due to transient overvoltages (surges)

Transient overvoltages imply short-duration voltage peaks that might result in system breakdown

or significant damages of electrical installations and devices.

sesamsec recommends the installation of appropriate Surge Protection Devices (SPD) by a

qualified and authorized personnel.

osesamsec also recommends the installers to follow general ESD protective measures during the

installation of the product.

Please also refer to the safety information in Chapter “Installation”.

•The product might show sharp edges or corners and requires a particular attention during the unpacking

and installation.

Unpack the product carefully and do not touch any sharp edges or corners, or any sensitive

components on the product. If necessary, wear safety gloves.

•In case the product is equipped with a cable, do not twist or pull the cable.

•In case of an on-wall or in-wall installation, the product must be installed in conformity with applicable local

regulations.

Observe the minimum installation height and other regulations applicable in the region in which

the product is installed.

•The product is an electronic product whose installation requires specific skills and expertise.

The installation of the product should be done by a trained and qualified personnel only.

Handling

•Depending on your product configuration, the product might be equipped with one or more light-emitting

diodes (LED).

Avoid direct eye contact with the blinking or steady light of the light-emitting diodes.

•The product has been designed for a use under specific conditions, e.g. in a specific temperature range

(refer to the product data sheet).

Any use of the product under different conditions might damage the product or alter its reading performance.

•The use of other RFID readers or reader modules in direct vicinity to the product, or in combination with the

product might damage the product or alter its reading performance. In case of doubts, contact sesamsec

for more information.

•The user is liable for the use of spare parts or accessories other than the ones sold or recommended by

sesamsec.

sesamsec excludes any liability for damages or injuries resulting from the use of spare parts or accessories

other than the ones sold or recommended by sesamsec.

•In case the product is equipped with a cable, the cable may not be replaced or extended.

sesamsec excludes any liability for damages or injuries resulting from a use of the product with a cable

extension or a replaced cable.

•Like most electronic devices, RFID systems generate electromagnetic waves that can vary in amplitude

and frequency. It is generally known and accepted that some RFID devices might potentially interfere with

personal medical devices, like pacemakers or hearing aids.

The access control readers of the Secustos SQ80 series fulfill general radio and EMC requirements.

However, users with a pacemaker or any other medical device should use the Secustos SQ80

readers carefully and refer to the information given by the manufacturer of their medical devices

before using the readers.

Maintenance and cleaning

•Any repair or maintenance work should be done by a trained and qualified personnel only.

Do not allow any repair or maintenance work on the product by an unqualified or unauthorized third

party.

•Life-threatening hazard due to electrical shock

Before any repair or maintenance work, turn the power off.

•Check the installation and electrical connection of the product in regular intervals for any signs of damage

or wear. Should any damage or wear be noticed, contact sesamsec or a trained and qualified personnel for

repair or maintenance work.

•The product does not need any special cleaning. However, the housing may be carefully cleaned up with

a soft, dry cloth and a non-aggressive or non-halogenated cleaning agent on the outer surface only.

Make sure that the used cloth and cleaning agent do not damage the product or its components

(e.g. label(s)).

Disposal

•The product must be disposed of in accordance with the EU directive on waste electrical and electronic

equipment (WEEE) or any applicable local regulations.

Product modifications

•The product has been designed, manufactured and certified as defined by sesamsec.

Any product modification without prior written approval from sesamsec is prohibited and

considered improper use of the product. Unauthorized product modifications may also result in the

loss of product certifications.

If you are unsure about any part of the safety information above, contact sesamsec support.

Any failure to comply with the safety information given in this document is considered improper use.

sesamsec excludes any liability in case of improper use or faulty product installation.

4 TECHNICAL DATA

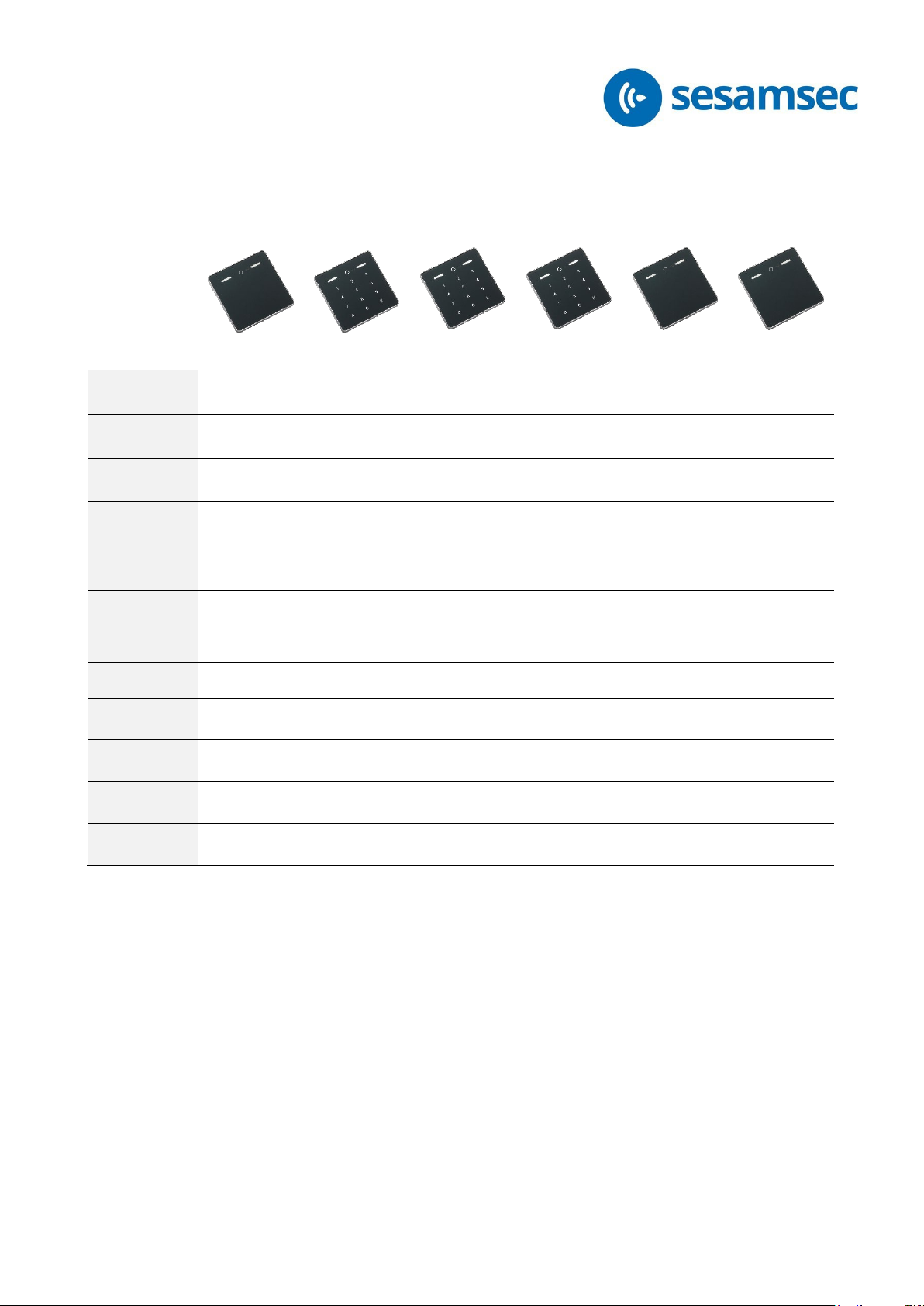

4.1 TECHNICAL SPECIFICATIONS

Secustos

SQ80

Secustos

SQ80 K

Secustos

SQ80 K LEGIC

Secustos

SQ80 K LF HF

Secustos

SQ80 LEGIC

Secustos

SQ80 LF HF

transponders ●●●●●●

NFC ●●●●●●

BLE ●●●●

Keypad ●●●

Dimensions

(L x W x H)

Reader frame only (mounted): approx. 86 x 86 x 8.25 mm / 3.38 x 3.38 x 0.33 inch

Rear connector height: approx. 8 mm / 0.31 inch

Reader with rear connector: approx. 86 x 86 x 15.9 mm / 3.38 x 3.38 x 0.62 inch

Optional mounting frame: approx. 86 x 86 x 9.75 mm / 3.38 x 3.38 x 0.38 inch

Weight

Reader, potted, with connectors

and mounting plate: approx. 113 g / 3.99 oz

Power

6.0 V - 28 V via connector X1

PS2 classified power source according to IEC 62368-1, short-circuit current < 8 A

Current

consumption Max. 300 mA @ 6.0 V

Temperature

range

Operating: -20 °C up to +60 °C (-4 °F up to +140 °F)

Storage: -20 °C up to +70 °C (-4 °F up to +158 °F)

Relative

Humidity

Mounted front: IP65 protected housing

Transport/Storage: 5% to 95% non-condensing

4.2 FIRMWARE

Your product is delivered ex-works with a specific firmware version. Refer to the label attached to the product

to find the firmware version installed ex-works.

A/B1.50/NCD4.70/STD2.02/B/BT1.07EL

(exemplary firmware)

Questo manuale è adatto per i seguenti modelli

Indice

Manuali Controllori di accesso IP popolari di altre marche

ZKTeco

ZKTeco SpeedFace-V5L Manuale utente

Jantar

Jantar REX A-1-9 Manuale utente

2N Access Unit Foglio di istruzioni

Kedacom

Kedacom KSCA120 Series Manuale utente

H3C

H3C WX2880X Manuale utente

G4S

G4S S870-EX Guida

PRASTEL

PRASTEL M2000PE Manuale utente

Allegion

Allegion interflex IF-281 Cylinder Manuale utente

TECOM

TECOM TS1067E Manuale utente

Fermax

Fermax Memokey 100C Guida utente

Fermax

Fermax CITYLINE MEMOKEY Manuale di istruzioni

Software House

Software House iSTAR Pro 2U RM Manuale di istruzioni

AKCP

AKCP SP+ Manuale utente

Bpt

Bpt HNA/102 Manuale utente

Civintec

Civintec CV9601T-T-1F Manuale utente

BioMax

BioMax N-X90W Manuale utente

ZKTeco

ZKTeco OP-200 Manuale utente

FingerTec

FingerTec s-Kadex Manuale utente

sesamsec SECUSTOS SQ80 Series Manuale utente

Manuali Controllori di accesso IP popolari di altre marche
