SFA Sanicom FF03-P95 Manuale utente

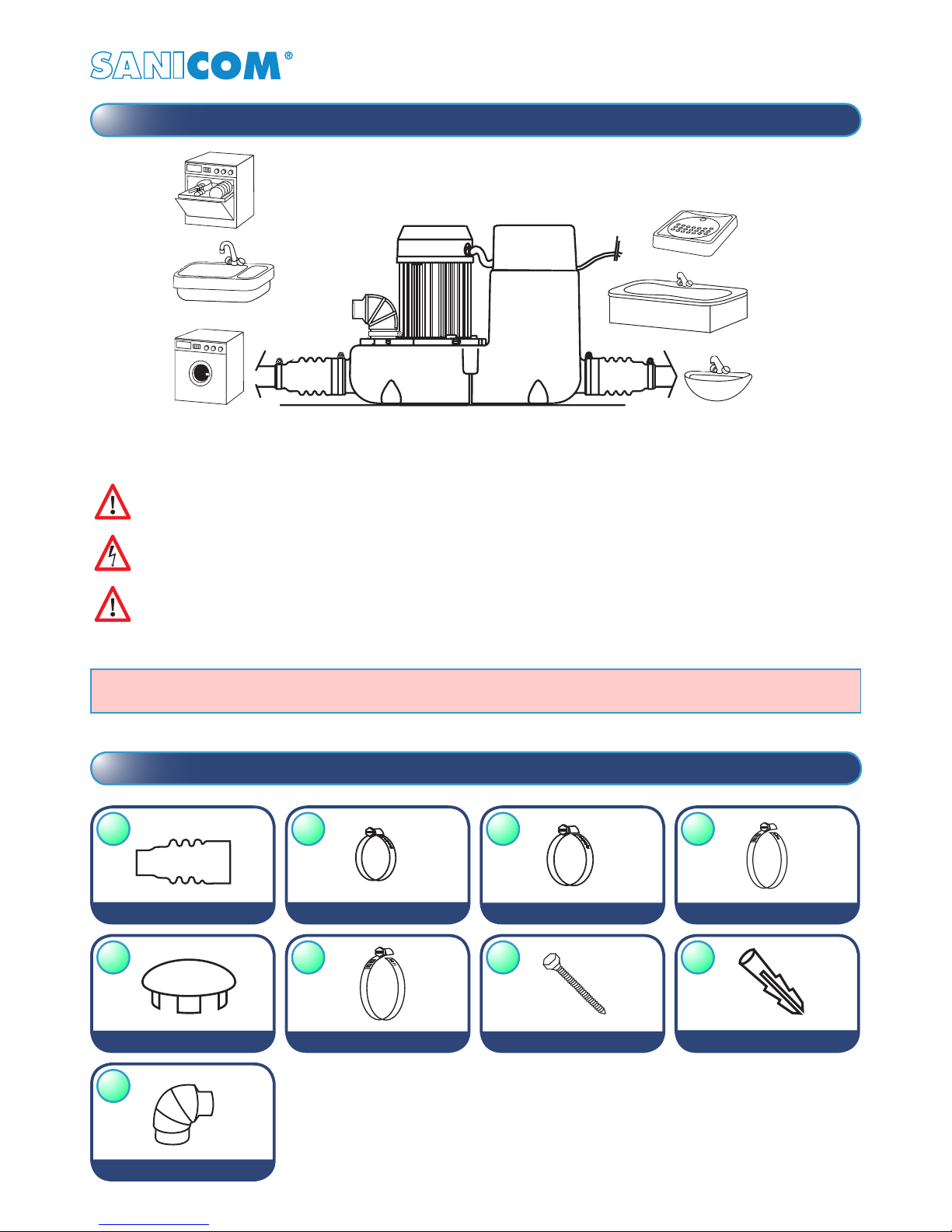

1. Description

Sanicom is a lifting pump for wastewater used in commercial applications (restaurants, hairdressing salons, the catering industry etc.). The unit

operates automatically, has a high performance level, and is safe and reliable, provided all the rules for installation and maintenance in this

notice are strictly followed. Especially those indicated by:

Failure to comply with this instruction could endanger the safety of persons

Indication that a risk of electrical origin exists

Electrical installation must be carried out by a professional electrician.

“Attention” Failure to comply with this instruction could endanger the safe functioning of the apparatus.

2. List of Accessories included

25 x 40

A B C D

E F G H

x2 x1 x2 x2

x1 x1 x2 x2

Hose clip Hose clip

Inlet Cover Hose clip Screw Plug

Elbow

Hose clip

Flexible inlet connector

For any additional information, please contact our customer service department.

32 x 50 50 x 70

40 x 60

Please also see “10 golden rules” for correct Saniﬂo installation on www.saniﬂo.co.uk

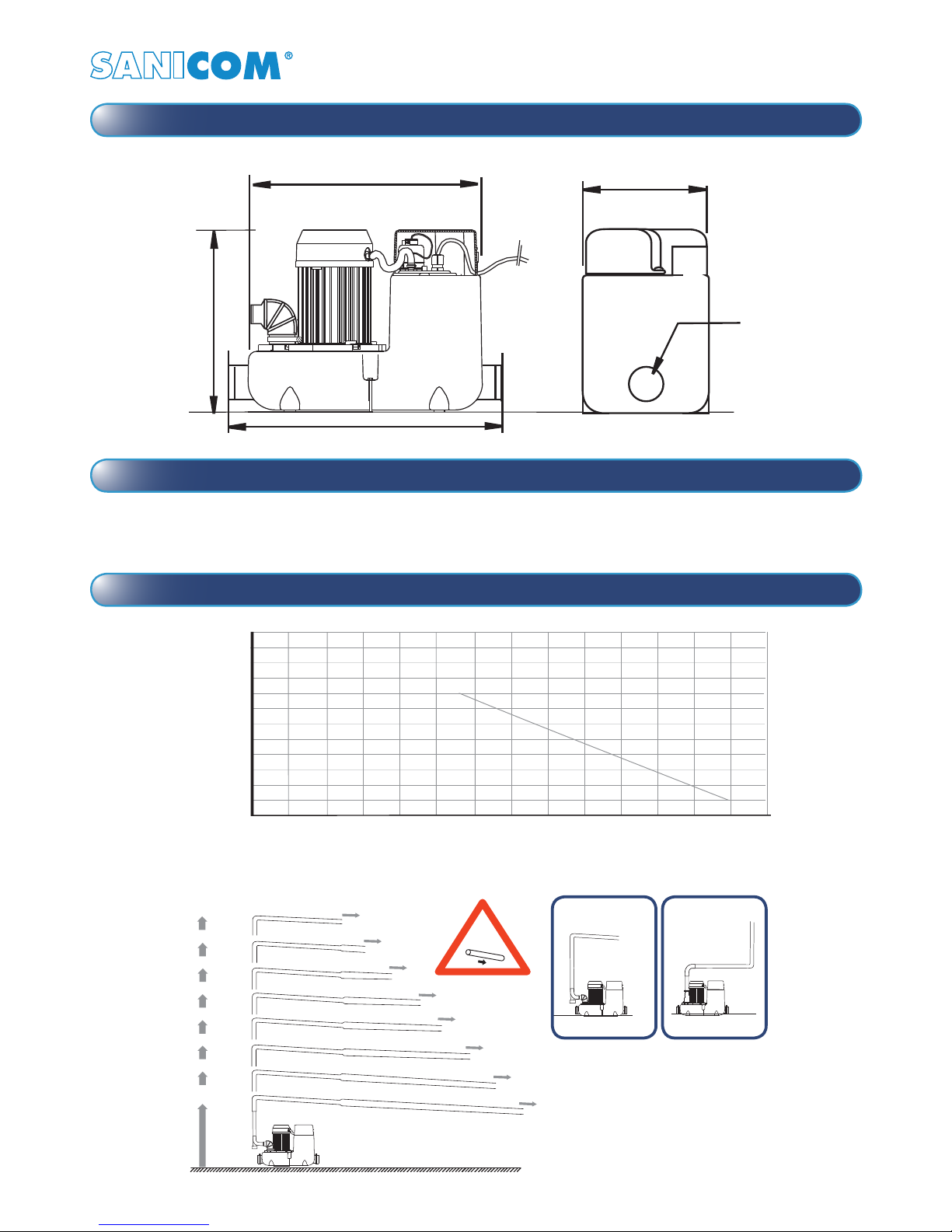

3. Dimensions and overall measurements

4. How it works

The Sanicom contains 1 pump. The tank is equipped with a sensor tube which controls the automatic activation of the motor when waste enters

the unit. As soon as the waste enters the tank, the pump starts.

5. Performance Curve & Height and Length of the discharge pipe

Flow Rate - litre/min

Vertical Height - Metres

0 10 20 30 40 50 60 70 80 90 100 110 120 130 140

max 10m 37

7m 1%

Max 8m

max 20m

max 30m

max 40m

max 50m

max 60m

max 70m

max 80m

420mm

330mm

490mm

ø 60

230mm

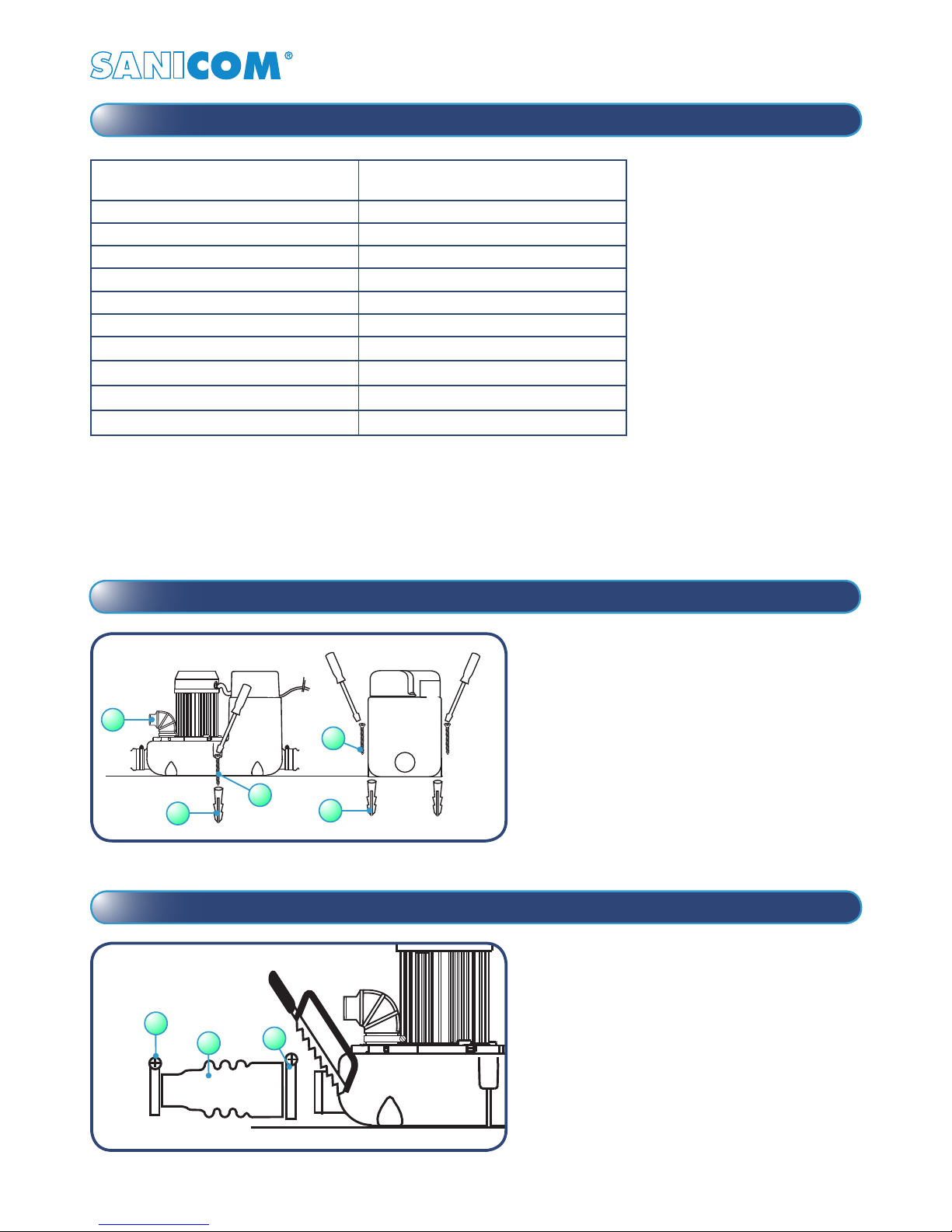

6. Technical Data & Application

7. Installation

FITTING

The Sanicom can be ﬁxed to the ﬂoor, preventing it from

turning or moving.

1. Warning: The space in which the Sanicom is installed

must be large enough to leave at least 600mm around

the unit for easy maintenance. This space must be

well lit, ventilated, and must never be immersed in

water and must be protected from frost.

2. Isolation valves should be ﬁtted to the inlet pipework

and discharge pipework to isolate the unit in case of

the need for service.

Application Commercial sink, washing machine,

dishwasher or shower* or bath*

Type FF03-P95

Maximum vertical pumping height 8m

Voltage 220 – 240 V

Frequency 50 Hz

Maximum power consumption 750 W

Maximum current consumption 3.3 A

Electrical class I

Protection index IP44

Max temp with intermittent functioning 80°

Net weight 10 kg

* In the case of bath or shower tray, make sure the waste traps are raised 15cm above ﬂoor level.

CAUTION: 1. All applications other than those described in this notice are prohibited.

2. Do not exceed an incoming ﬂow rate greater than 80% of the ﬂow rate stated on the design curve in any of the apparatus.

8. Connection to side inlets

Use the ﬂexible inlet connector (A) for side inlet

connections. Using a metalwork saw, saw off the desired

inlet point, remove any burrs and then ﬁx the ﬂexible

inlet connector with the hose clip (D).

We recommend the installation of a grease trap for

installations with a high grease inﬂow.

Connection to the inlet can be made using a 40mm or

50mm pipe. To make a 50mm connection, cut off the

end of sleeve (A) beforehand.

To connect a bathtub (or shower), make sure the waste

trap height is raised by at least 15cm above ﬂoor level.

Connection must be made using 40mm or 50mm

diameter pipework, with minimum slope of 1%.

The disposal of waste from the Sanicom can discharged through a 32mm diameter copper or plastic pipes (or PVC, ABS, etc.).

This discharge pipe must be designed so as to prevent back-ﬂow from the sewers. See diagram above.

Horizontal discharge pipework should maintain a 1% fall (1cm/M) to the soil and vent pipe. If a vertical rise is required, this must be installed at

the start of the run, before the horizontal section. The horizontal section should then have a minimum 1% fall to the ﬁnal drain point.

Take care that the discharge valve ﬂap faces the direction of ﬂow.

If the end of the discharge pipework is much lower than the unit, install a riser pipe about 80mm long from the highest point of the discharge

run and ﬁt an air admittance pipe on top (capable of withstanding at least 15psi pressure.) to break the syphon.

The discharge should be connected to a 100mm discharge stack via a strap boss connector.

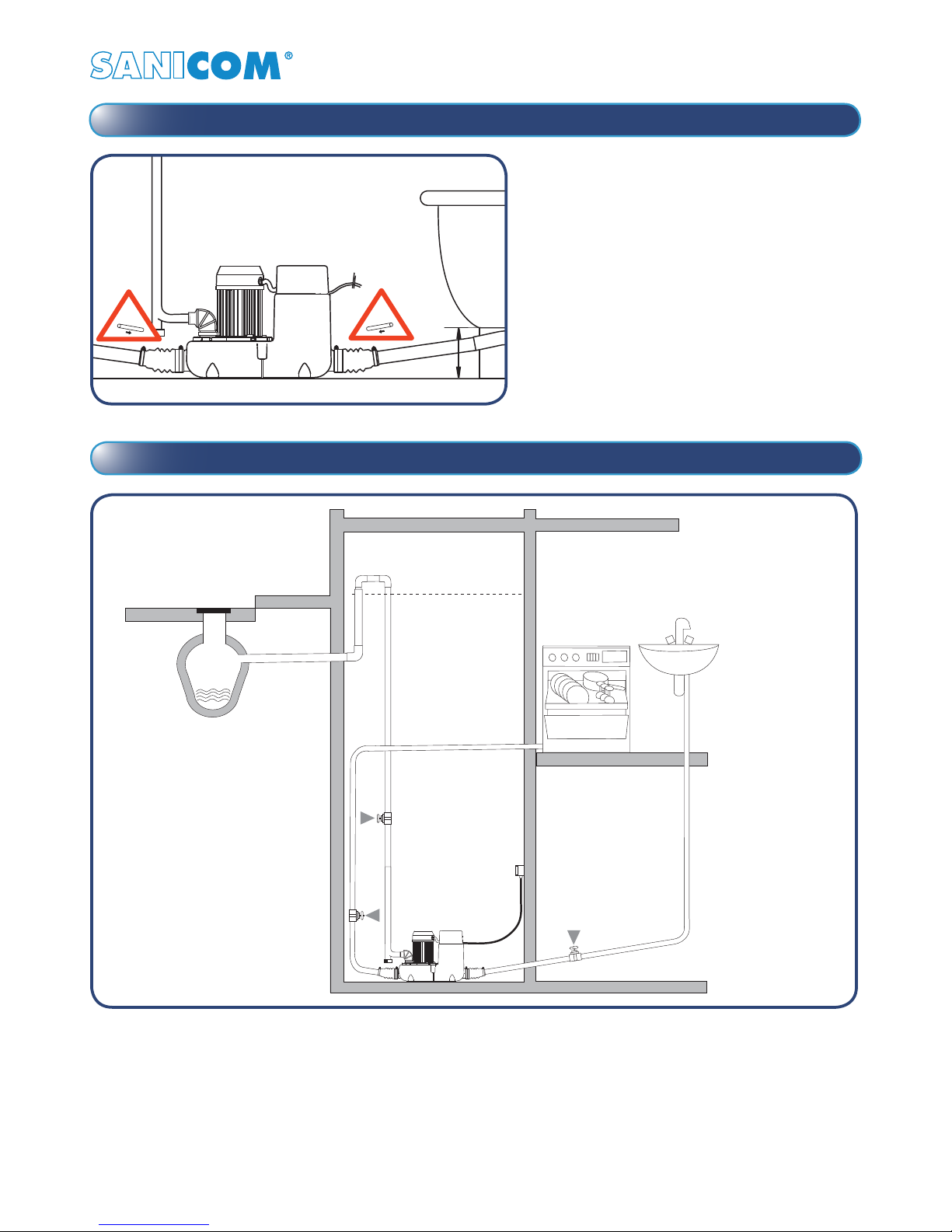

9. Connection to sanitary ware

10. Connection to soil and vent pipe or drain

150mm min

40mm

32mm

2.5%

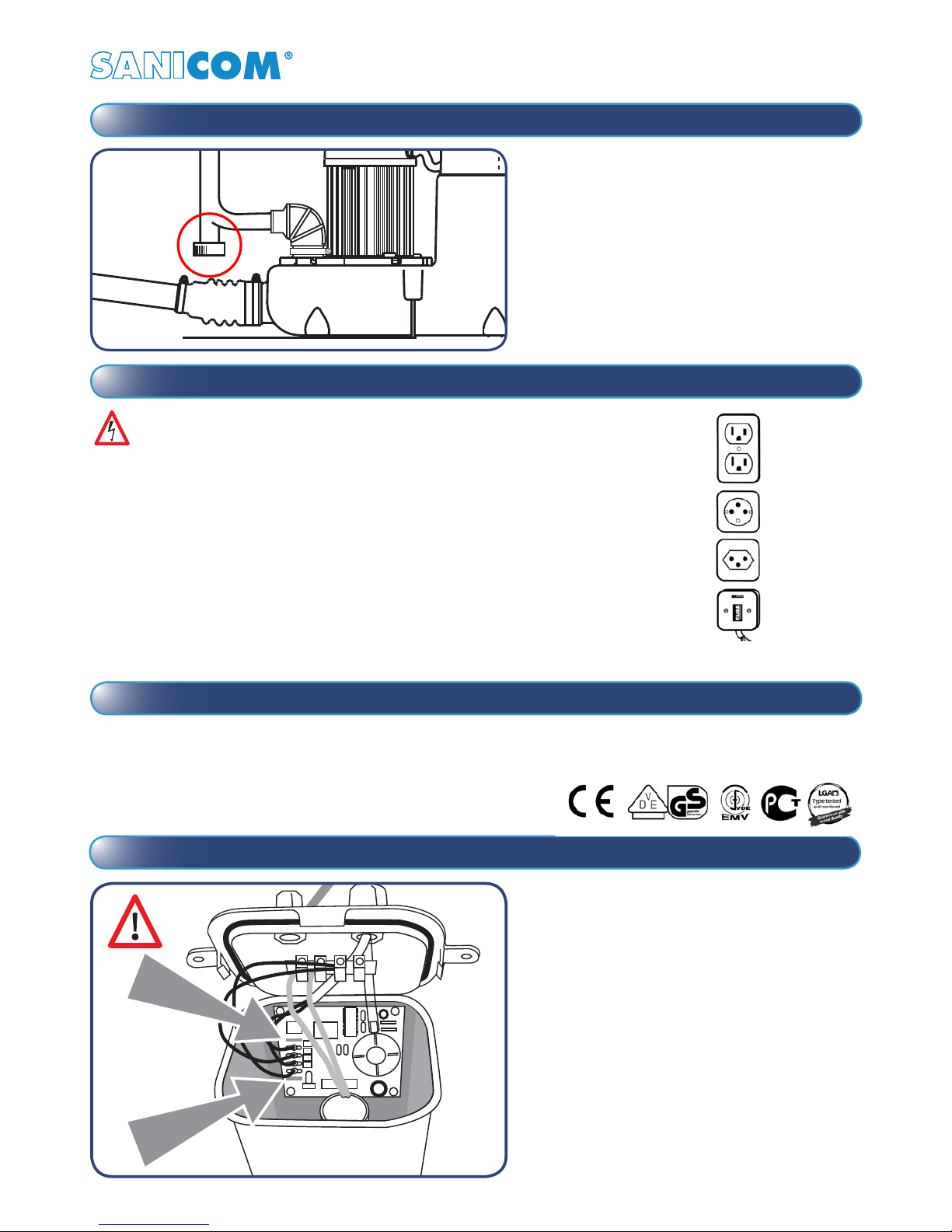

11. In case a service is needed

Allow for a drain-off point at the bottom of the rising

discharge pipe. Ensure that the unit is easily accessible

for possible maintenance.

13. Standard

Sanicom conforms to Standard EN 12050-2. Lifting station for waste products not containing faecal matter.

SANICOM®

Société Française d’Assainissement

EN 12050-2/03

FF03-P95

220 - 240 V - 50 Hz - 750 W - IP44

12. Electrical connection

14. Alarm

There is the option of connecting an alarm (light, bell)

on to the electronic circuit board (2 terminals fed

with 220V). If the motor is run continuously (more than

5 minutes), the contact will be made. This enables the

user to carry out a check if he wishes.

Connection of the alarm

Two 6.35 push on connection points are available on the

electronic circuit board (arrowed) for creating an alarm

circuit. (These connectors have a 220V, 0.5A maximum

current passing through them). To access them after

turning the power off, remove the cover then unscrew

and unclip the upper casing of the electronic box, to

expose the electronic circuit board. On this card use the

point marked E.V. and the unused neutral connection

point marked N. Use a round 2 x 0.75mm 2 wire, which

must pass across the lid of the upper casing, through the

cable gland, before being connected to the chosen alarm

system.

The electrical installation should be carried out by a qualiﬁed person.

All wiring must conform to BS7671, 1992 requirements for electrical installations. The Sanicom requires a

220/240V single phase AC 50 Hz supply (UK speciﬁcation). Do not connect the Sanicom to a conventional plug and

socket. It must be wired into a fused, unswitched, ﬁxed wiring connector ﬁtted with a 5 amp fuse. The Sanicom

has an earth wire. The wires in the mains lead are coloured in accordance with the following code:

Brown – Live Blue – Neutral Green/Yellow – Earth

Warning: Ensure the electricity is turned OFF at the main switchboard before wiring to connector.

All work on cable, pressure chamber and motor should only be carried out by a qualiﬁed Saniﬂo servicing agent,

as special tools are required.

UK – 230/240V 50Hz.

The unit should be installed so it is easily accessible/removable for possible maintenance.

The unit should not be exposed to splashing in normal use.

CANADA

USA

EUR

15. Commissioning

Once the hydraulic and electrical connections have been made, check that the connections are tight by allowing water to ﬂow through each

entry point used. Ensure that the pump is working properly.

16. Use

Sanicom is designed for disposing of wastewater originating from a commercial sink, washing machine, dishwasher, shower or bath and basin.

Sanicom can pump out hot water upto 85°C for short periods only (eg. glass washer cycle etc.)

CAUTION:

1. Do not dispose of chemical products (acids, solvents, oils, etc.) into the items connected to the Sanicom.

2. In the event of power failure, stop all water ﬂow to the appliances connected to the Sanicom.

17. Troubleshooting

ELECTRICAL INSTALLATION MUST BE CARRIED OUT BY A PROFESSIONAL ELECTRICIAN

SYMPTOMS PROBABLE CAUSES REMEDIES

• Motor does not start • The appliance is not switched on

• The cable is defective • Check the electrical installation

• The alarm sounds

• Pump is blocked

• Pump Jammed

• To much water ﬂowing through

• Call a service engineer

• Reduce water inﬂow

ELECTRICAL INSTALLATION MUST BE CARRIED OUT BY A PROFESSIONAL ELECTRICIAN

Before carrying out any service work always disconnect power supply.

SYMPTOMS PROBABLE CAUSES REMEDIES

• Motor does not start • Pressure reader tube kinked or out of position

• Electronic card defective

• Check the electrical installation

• Call a service engineer

• Pumps working constantly • Vertical discharge too high

• Electronic card defective • Check Installation

• Call a service engineer

• Alarm Sounding

• Pump blocked

• Pump jammed

• Electrical problems with motor

• Too much water ﬂowing through

• Electronic card defective

• Call a service engineer

• If the pump revolves but does not

pump, call a service engineer

• Intermittent start-up of pumps • The non-return valve broken or leaking • Clean or change the valve or call a

service engineer

FIRST LEVEL TROUBLESHOOTING

SECONDARY LEVEL TROUBLESHOOTING

18. Warranty

Sanicom SFA is guaranteed for 2 years for labour and parts, subject to correct installation and use of the apparatus.

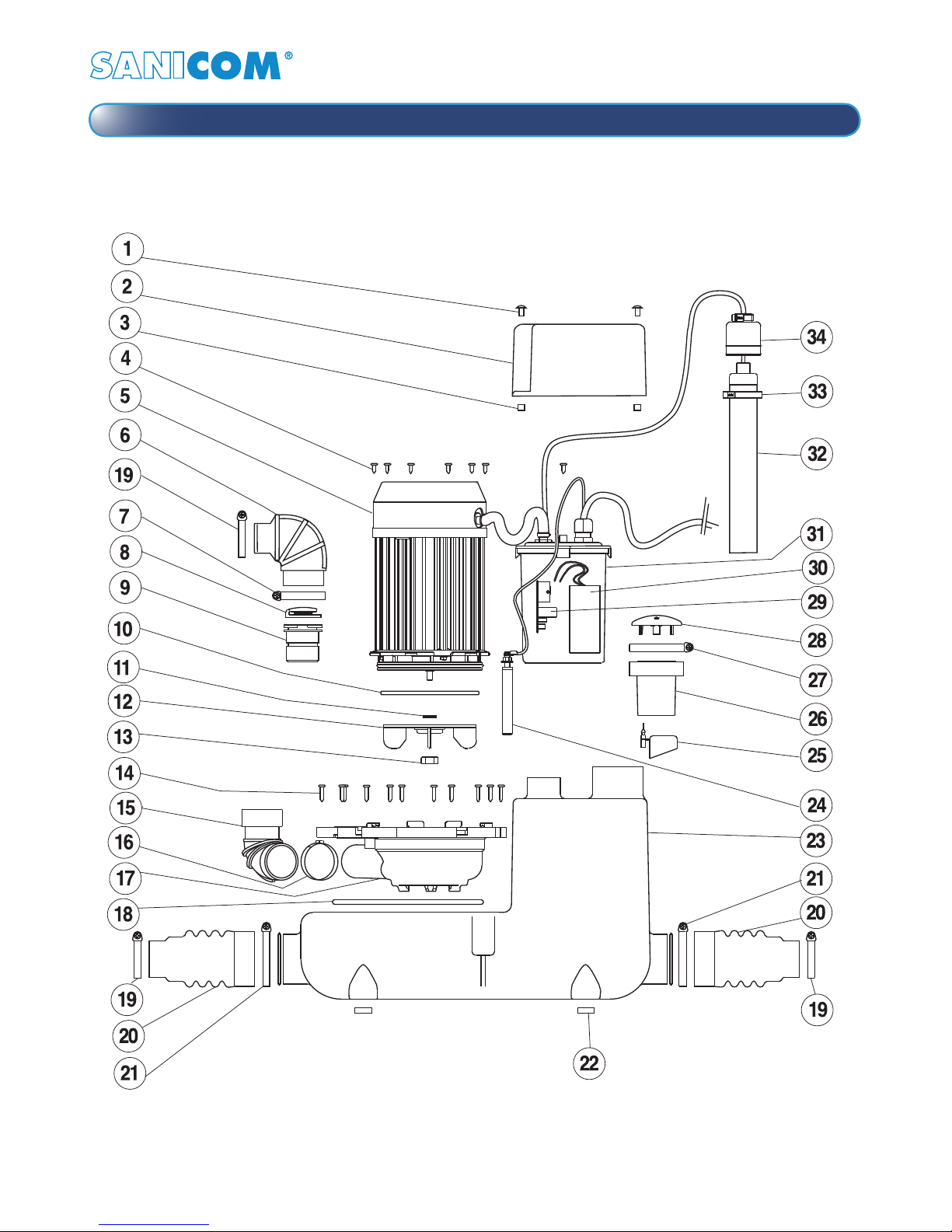

19. Parts
