P60/P120 USER MANUAL
•Color Temp 2700K~6000K
•±Magenta / Green Mode
•HIS Mode
•Preset mode
•Short circuit mode
•Fire mode
•Cop Light mode
•Rainbow mode
•Paparazzi mode
Removable
battery cover
Removable battery
pack
OLED screen &
button
DMX & USB & power port
•DC 24V power
•Power display
•DMX512 wired &2.4G wireless connect
•Removable rechargeable battery pack
•Bluetooth mobile app
•USB software update
1

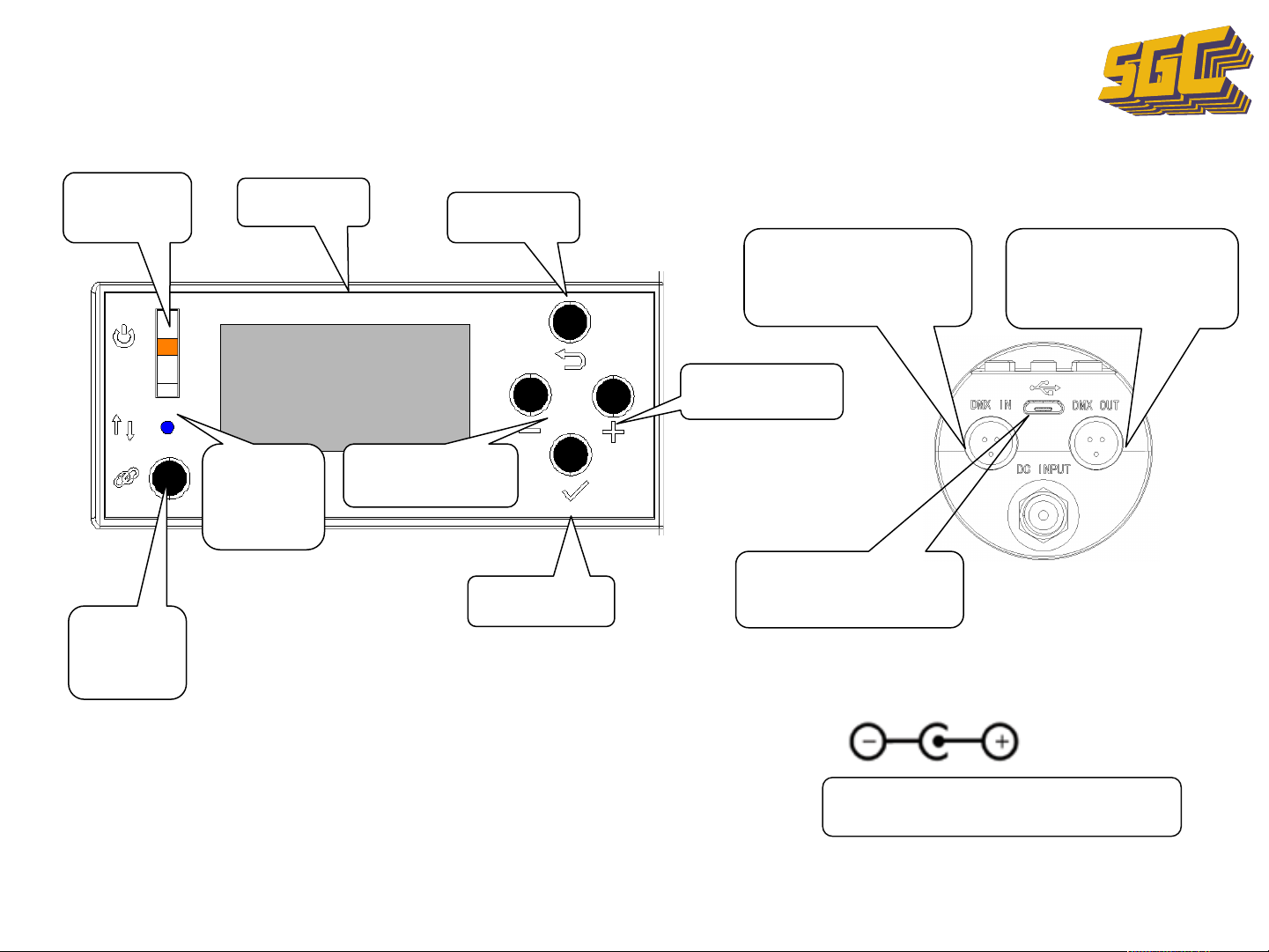

BUTTONS & CONNECTORS
Confirm
Go Back
On/off
switch
Soft
on/off
button
Right / plus
key
Display
Left /minus
key
Pairing
Status
Light
DMX input 3pin
MINI SLR
connectors
DMX output 3pin
MINI SLR
connectors
Software update
Micro USB port
DC Power port 2.5*5.5mm
2

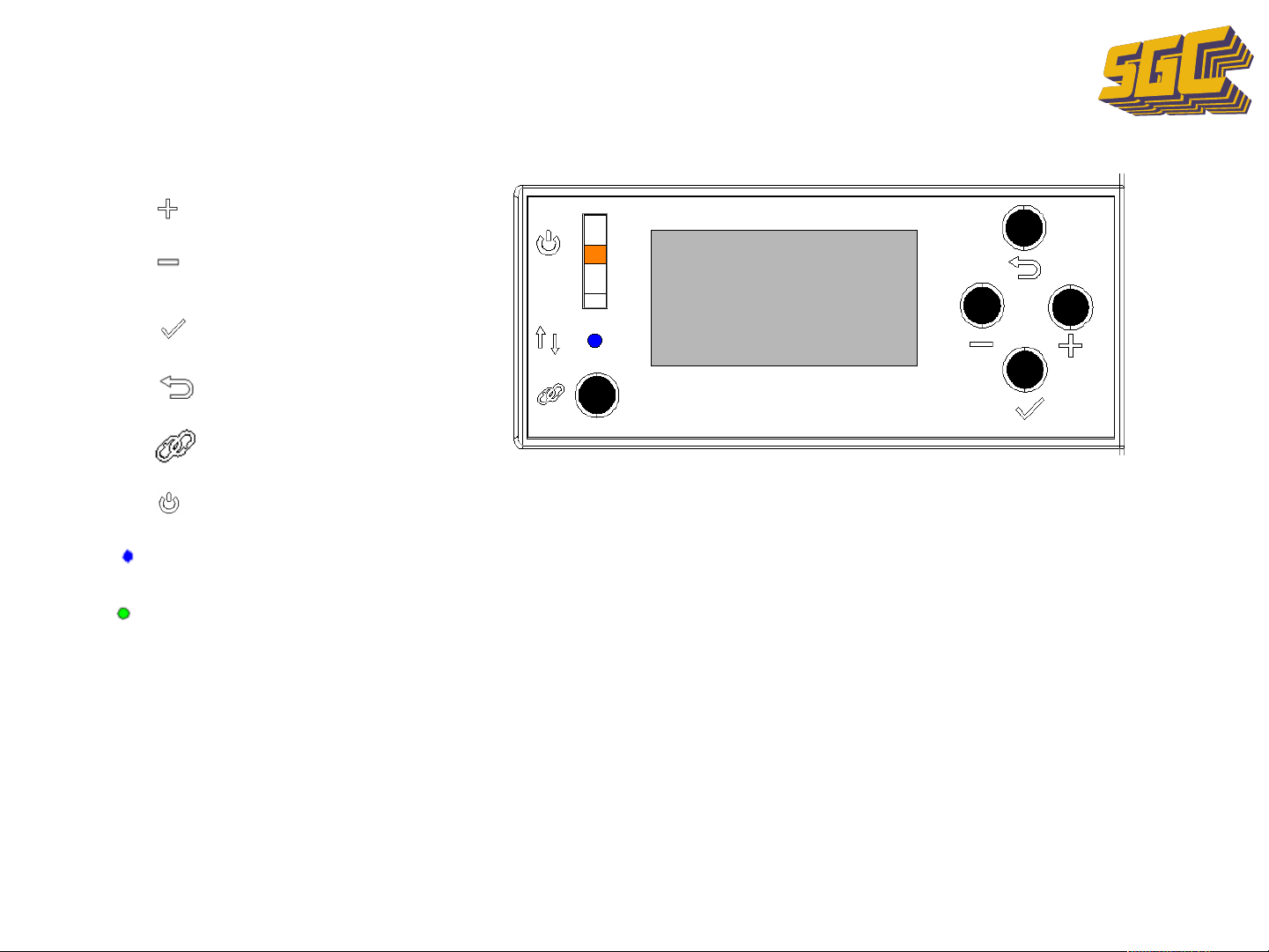

press“ ” right or increase
press“ ” left或minus
press“ ” Enter；
press“ ”Back；
Press“ ”Pair and unpair buttons ；
Press“ ”on/off Switch；
“ ”Lead status light
“ ” Follow status light
Getting started
3
This package includes the following items, please check carefully

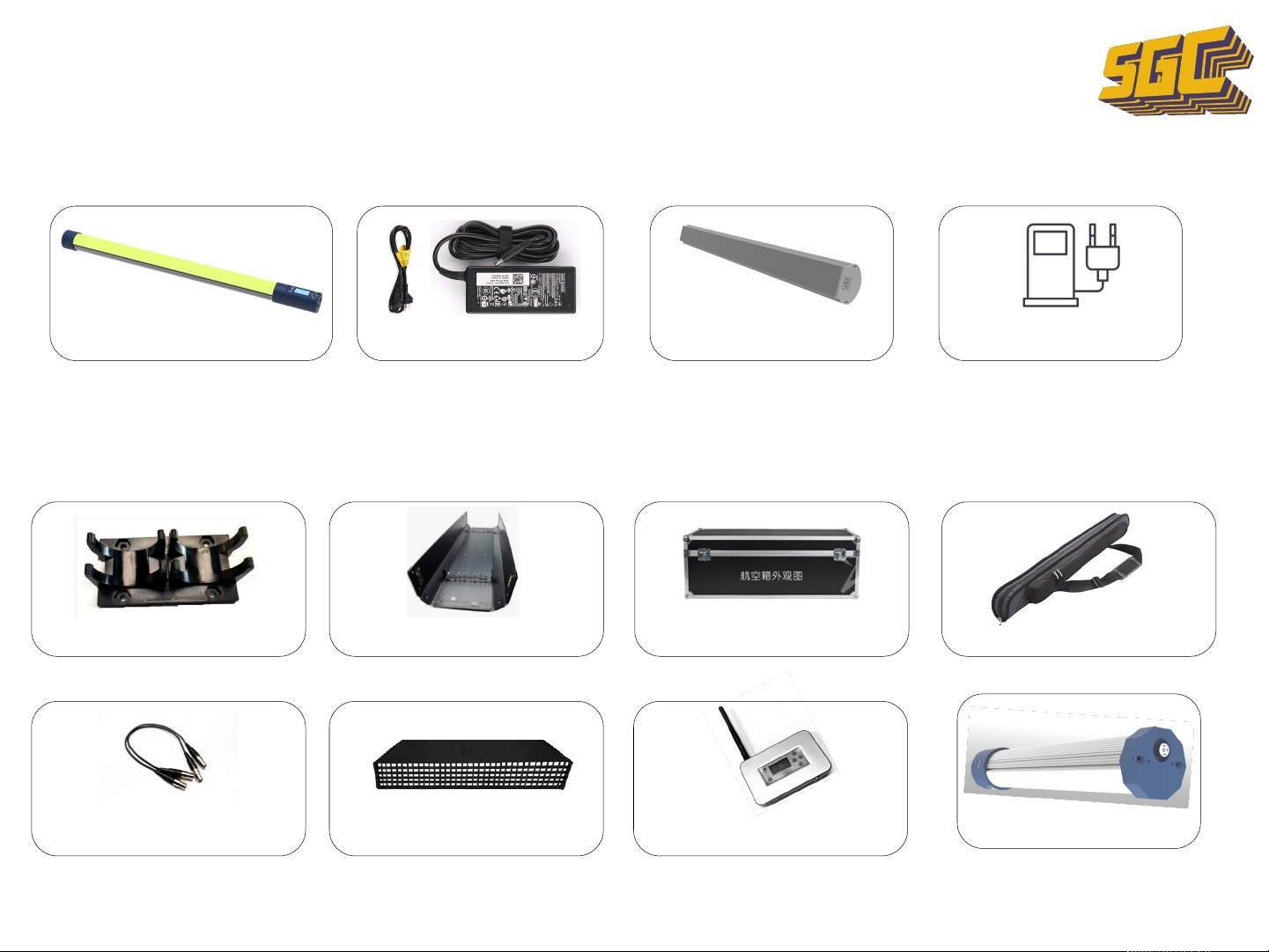

PRODUCT COMPLETE PACKAGE
P60 or P120 Power Adapter Portable battery
module
Welcome to choose SGC accessories
Block
Diffuser
Road Case Carrying bag
2 or 4 bank poly shell
DMX512 data cable
4
Charger
Controller Battery charger
Single Use
MORE APPLICATIONS
Used with clamps 4pcs + Poly shell Soft diffuser
pCan be used in individual fixing with clamp
pLamp can be fixed on light stand with clamp
pSupport DMX512 console protocol to adjust color temperature and
brightness
5
Portable battery module usage
specifications
①
Counterclockwise to
unlock
②
Open cover
③
Remove the battery
④
Charging accessories
Battery Spec：
p
Battery compacity18.5V/16000mAh 59.2WH
pSupport charging in lamp, support separate charging
pTheoretical charging time 2H
pH60 100% Brightness discharge duration 2.5H
pH120 100% Brightness discharge duration1.5H
pH60&H120 share the same battery
Note:
ØDo not open the battery module without
permission.
ØAmbient temperature for lamps and batteries-
20-40℃
ØRemove the battery when not used for a long
time
ØFire, sun and rain proof 6
7
Main Interface
Brightness
Color Temp
Green
Brightness
Hue
Saturation
Brightness
Preset
Brightness
Effect
rate
Lead/Follow
Wired
Wireless
Status
Reset
Language
Battery level
Version
Reset
Main interface options
亮度范围0~100%
色温范围2700K~6000K
品红/绿色100M~100G
亮度范围0~100%
色域范围0º~359º
饱和度0%~100%
主从机 开/关
有线状态（点击进入）
无线状态（点击进入）
亮度范围0~100%
速率范围0~200%
特效：彩虹，坏灯泡
狗仔队，警灯，演示
状态 开/关
复位：是/否
8
亮度范围0~100%
预设3200K,4000K,5600K，
6000K,Red,Green,Blue,Ma
genta,Yellow ,Orange
Brightness
Color Temp.
Green
Brightness
Hue
Saturation
Brightness
Preset
Brightness
Effect
Rate
Lead/Follow
Wired
Wireless
Status
Reset
Main interface options
语言 汉语/Eng 复位 是/否
复位参数：
亮度100%，色温3200K
±G 0G，HUE 0°，SAT100%
主从（从机）DMX有线设置（状
态关，地址1，配置P1）DMX无
线设置（状态关，地址1 信道 自
动）
蓝牙设置：关
9
次界面选项Secondary interface options
按确认键 进入
有线状态 开/关
有线地址 001~512
配置 P1~P7
无线状态 开/关
无线地址 001~1000
信道Auto/0~13
Language
Battery level
Version
Reset
Lead/Follow
Wired
Wireless
Wired Status
Wired Address
Config
Lead/Follow
DMX Wired
DMX Wireless
Press Check to enter
Wireless Status
Wireless Address
Channel
按右移 进入
按返回键 退
Press right to enter

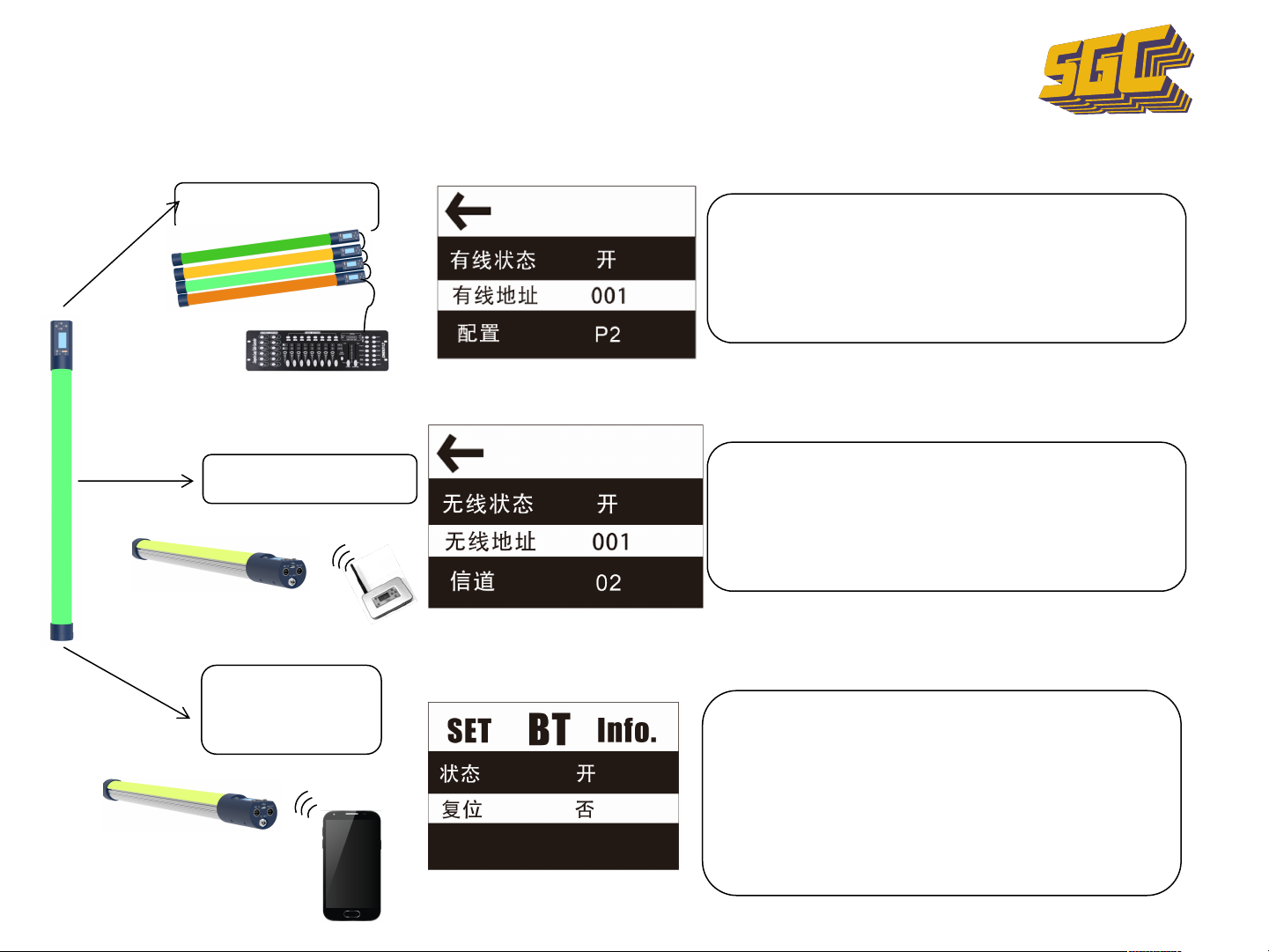

CONNECTION MEATHODS
Wired connect
Wireless connect
Bluetooth
mobile
connect
DMX wired address setting: wired factory
setting is 1, 1 ~ 512DMX channel
address code
Profile: See pages 15 to 20
Wireless address setting: The factory
setting of wireless address is 1, 1 ~
100DMX channel address code
Channel setting: 0 switch, 1 ~ 100
channels
Status: On / Off
Reset: Yes / No. After resetting,
Bluetooth clears the paired connection.
If the Bluetooth status is on, it searches
for the connection again. If the
Bluetooth status is off, it clears the old
connection data.
u
Default connection method: Bluetooth connection
u
Enabled any connection method, the other two connection methods will be
automatically off
