Shadow-Caster SCM-SNLC Manuale utente
Standard Layout
SCM-SNLC & SCM-PD-RELAY-4 with
SCR-24-CC Underwater Lights
REVISED
March 19th 2021
Battery
24V or 12V DC
SCM-PD-RELAY-4
(Includes 4 X 10A Fuses)
SCR-24-CC Underwater Lights
SCM-SWITCH-O/O/
MOMENTARY
To
SCM-PD-RELAY-4
To Power
Source
(Back side of switch)
To
SCM-SNLC
Shadow-NET®output
to sync with other
Shadow-NET®devices
Breaker
Optional RGB Lighting
Supports up 30A of
RGB lighting
Green PWM controller wires
are not connected and should
be cut and capped when only
using a switch
SCM-SNLC
(Includes 10A Fuse)
HOW TO OPERATE
1. Toggle power to change color or color
rotation.
2. Press button to change mode from solid
color to single color fade / multi-color
change /
multi-color fade.
3. Press and hold button to change
brightness.
SCM-SNLC-LC DIP SWITCH SETTINGS
(from left to right counting up)
Not Used
1234
Color Master
(Normal Operation with
a Switch)
RGB
Not Used Blue/White only Listen only RGBW
Indicates recommended settings for this installation

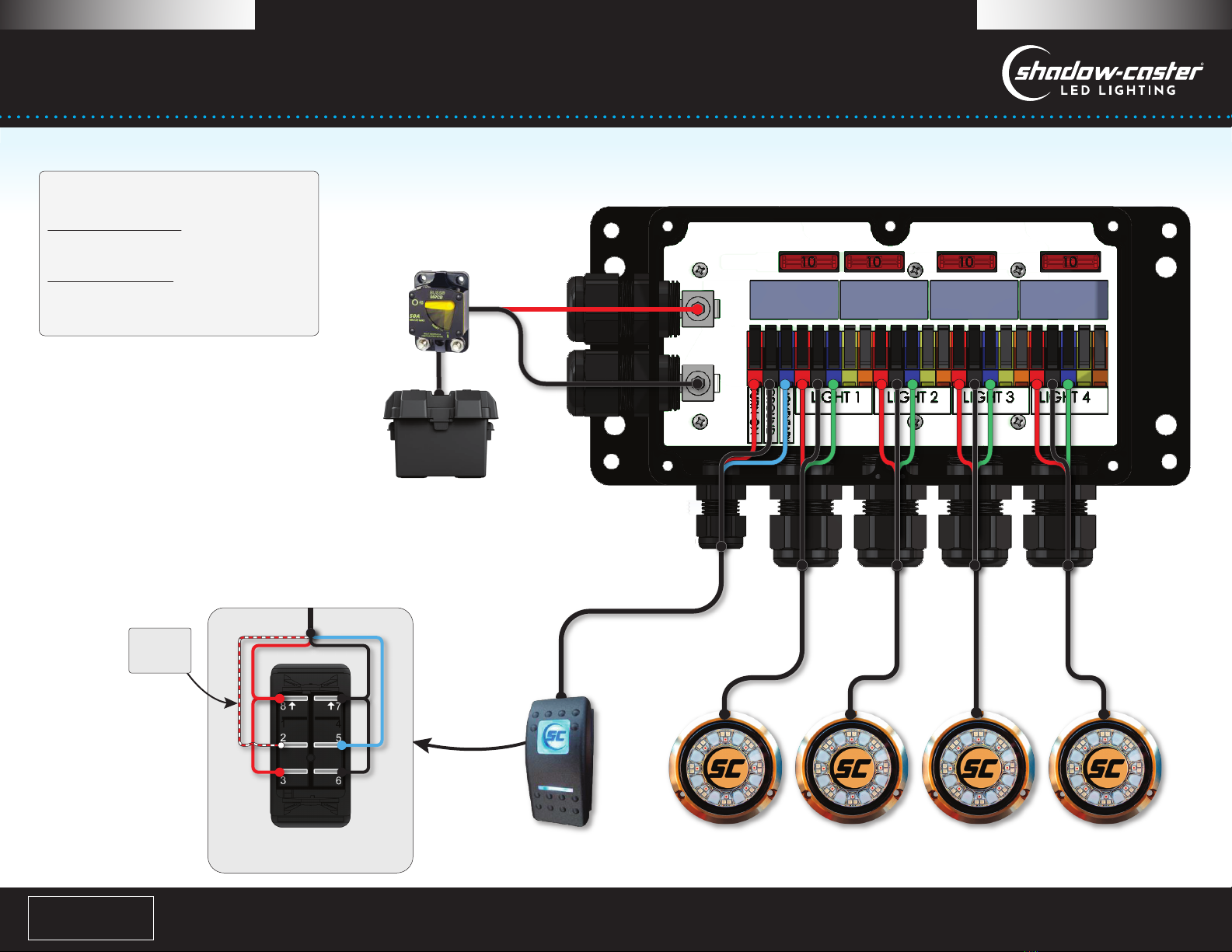

Standard Layout
SCM Switch with SCM-PD-RELAY-4 and
4 X SCR-24 Underwater Lights
REVISED
Feb 3rd 2021
SCR-24 Underwater Lights
SCM-SWITCH-O/O/
MOMENTARY
To
SCM-PD-RELAY4
(Back side of switch)
Battery
24V or 12V DC
Breaker
HOW TO OPERATE
Step to the next color or brightness level.
Power Toggle Control
Press button to access light ‘Modes’
such as fade and strobe.
Push Button Control
+12V for
Turn On
SCM-PD-RELAY-4
(Includes 4 X 10A Fuses)
Learn more about boat underwater lights we have.
