Shandong LiFePO4 Manuale utente
Shandong Goldencell Electronics Technology Co., Ltd.
LiFePO4 Battery Module
51.2V9.6/20/30/40/50/100Ah
Product Manual
TABLE OF CONTENTS
1 Product Specification…………………………………………….1-6
2 Product Curve...........................................................................7
3 Extra Tips...................................................................................9
4 Tests......................................................................................... 10
5Cautions ................................................................................. 11
6 Other Technical Indicators .................................................. 14
7 Products Liability................................................................... 14
山东精工电子科技有限公司
Shandong Goldencell Electronics Technology Co., Ltd. 1

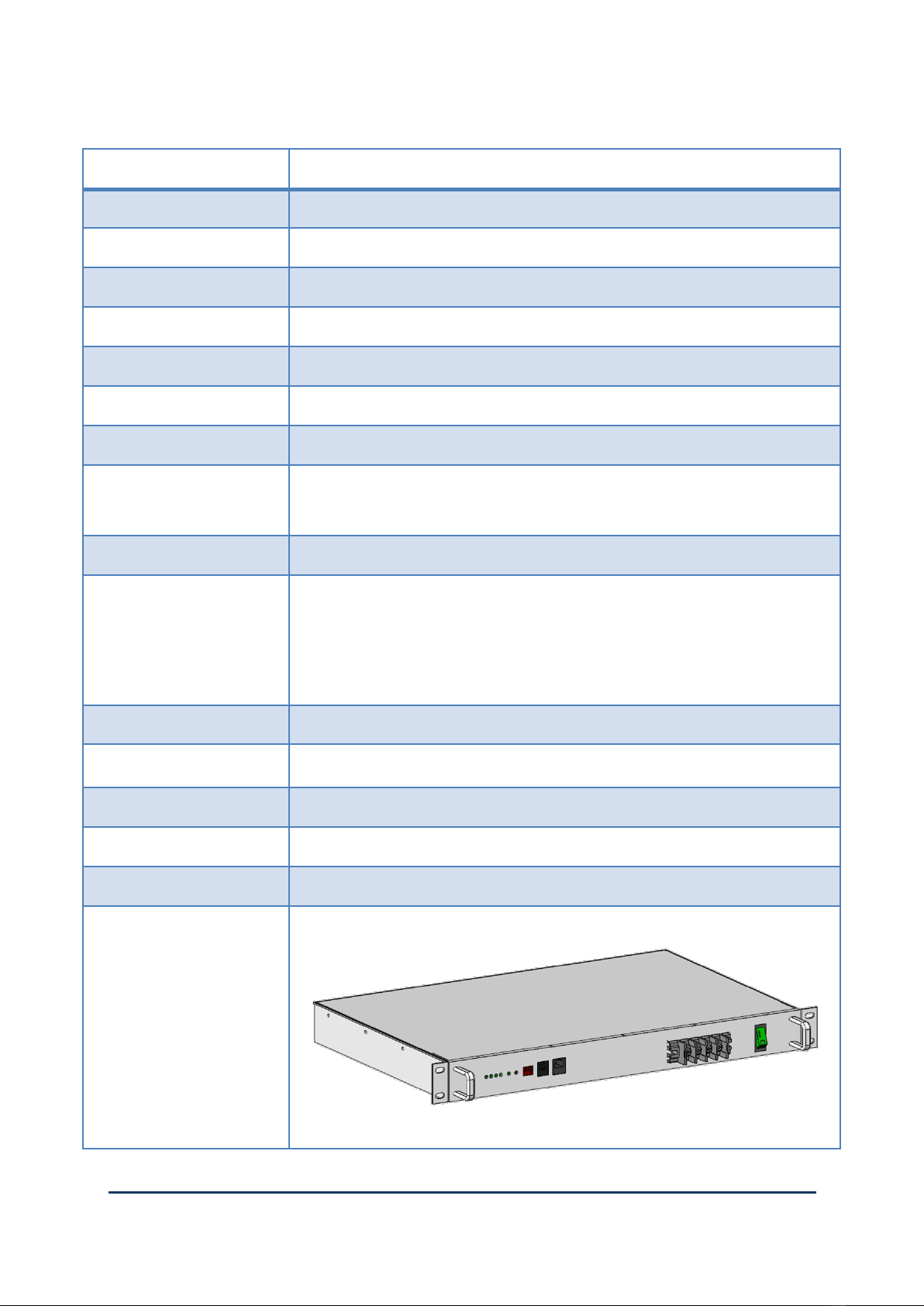

1 Product Specification
Product Name
LiFePO4 battery
Product Model
51.2V9.6Ah
Specifications
JG-16IFR51.2-9.6-Y
Composition
26650-3.2V-16S3P
Nominal Voltage
51.2V
Rated Capacity
9.6±0.5Ah（C5）
Energy
491Wh
Internal Resistance
≤180mΩ
Size
437*290*44.5mm（1U）
Weight
About 8.5Kg
Voltage
Charge voltage：57.6±0.2V；
Floating charge voltage：54.4±0.2V；
Standard cutoff voltage is about 2.50V 40V
Charger Current
≤10A
Discharge Current
≤20A
Terminal
Terminal row
Communication function
RS232/RS485
Other functions
And machine
3-D Figure
山东精工电子科技有限公司

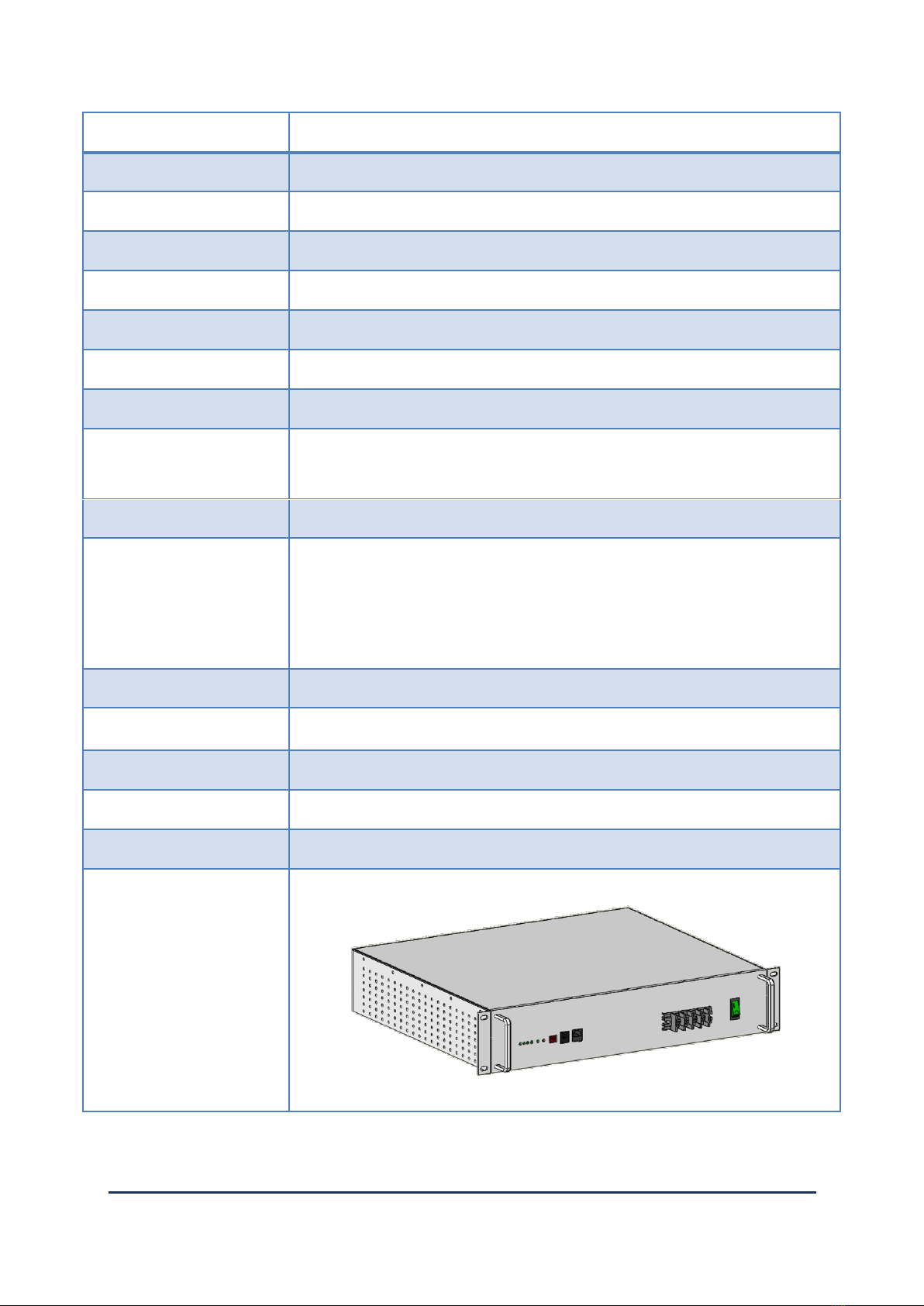

Shandong Goldencell Electronics Technology Co., Ltd. 2
Product Name
LiFePO4 battery
Product Model
51.2V20Ah
Specifications
JG-16IFR51.2-20-Y
Composition
26650-3.2V-16S7P
Nominal Voltage
51.2V
Rated Capacity
20±1Ah（C5）
Energy
1024Wh
Internal Resistance
≤100mΩ
Size
437*380*88.5mm（2U）
Weight
About 15.1kg
Voltage
Charge voltage：57.6±0.2V；
Floating charge voltage：54.4±0.2V；
Standard cutoff voltage is about 2.50V 40V
Charger Current
≤20A
Discharge Current
≤30A
Terminal
Terminal row
Communication function
RS232/RS485
Other functions
And machine
3-D Figure
山东精工电子科技有限公司
Shandong Goldencell Electronics Technology Co., Ltd. 3
Product Name
LiFePO4 battery
Product Model
51.2V30Ah
Specifications
JG-16IFR51.2-30-Y
Composition
26650-3.2V-16S10P
Nominal Voltage
51.2V
Rated Capacity
30±1Ah（C5）
Energy
1536Wh
Internal Resistance
≤80mΩ
Size
437*480*88.5mm（2U）
Weight
About 20.3Kg
Voltage
Charge voltage：57.6±0.2V；
Floating charge voltage：54.4±0.2V；
Standard cutoff voltage is about 40V
Charger Current
≤30A
Discharge Current
≤50A
Terminal
Terminal row
Communication function
RS232/RS485
Other functions
And machine
3-D Figure
山东精工电子科技有限公司
Shandong Goldencell Electronics Technology Co., Ltd. 4
Product Name
LiFePO4 battery
Product Model
51.2V40Ah
Specifications
JG-16IFR51.2-40-Y
Composition
26650-3.2V-16S13P
Nominal Voltage
51.2V
Rated Capacity
40±2Ah（C5）
Energy
2048Wh
Internal Resistance
≤60mΩ
Size
437*630*88.5mm（2U）
Weight
About 24.6Kg
Voltage
Charge voltage：57.6±0.2V；
Floating charge voltage：54.4±0.2V；
Standard cutoff voltage is about 40V
Charger Current
≤40A
Discharge Current
≤50A
Terminal
Terminal row
Communication function
RS232/RS485
Other functions
And machine
3-D Figure
山东精工电子科技有限公司

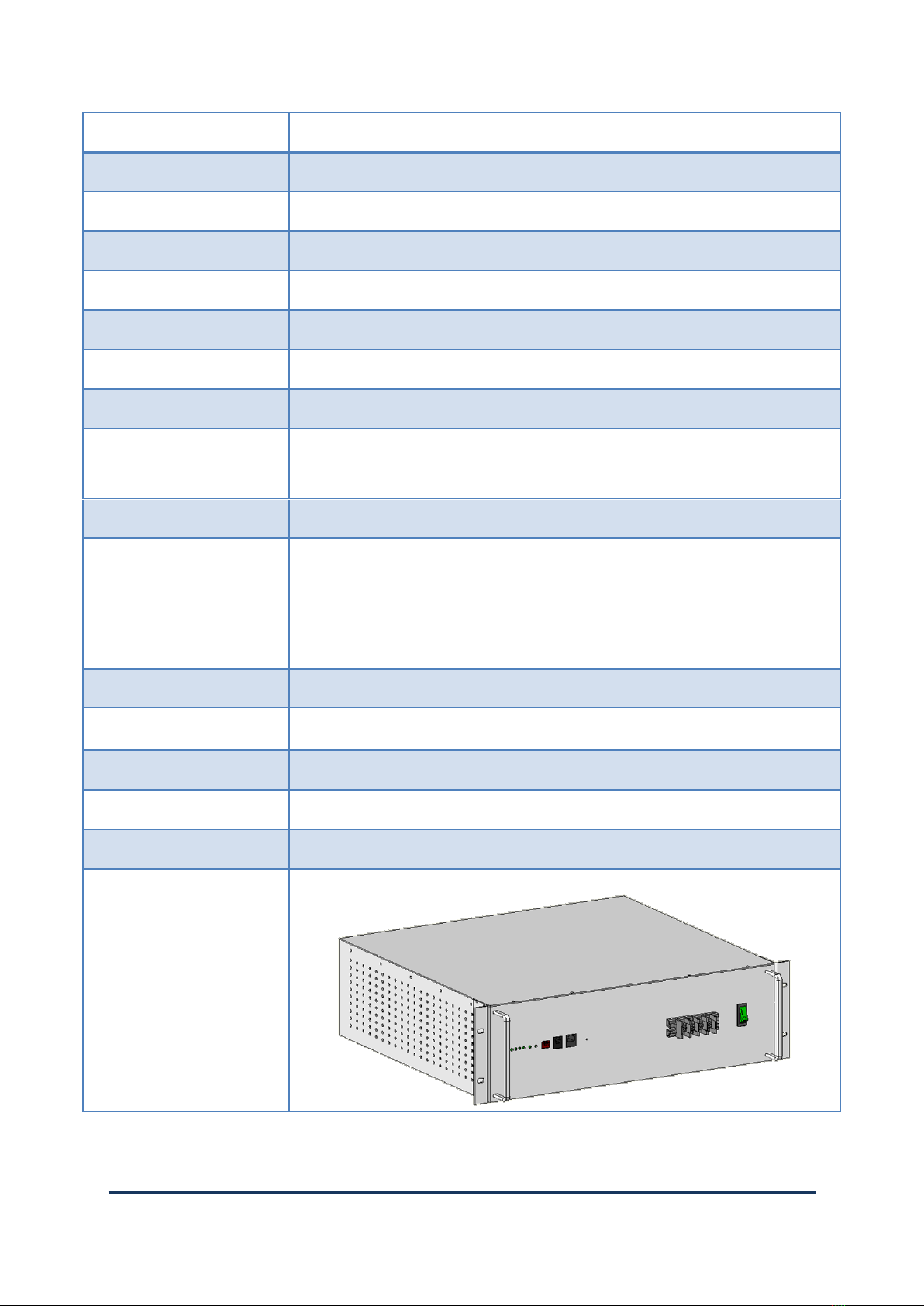

Shandong Goldencell Electronics Technology Co., Ltd. 5
Product Name
LiFePO4 battery
Product Model
51.2V50Ah
Specifications
JG-16IFR51.2-50-Y
Composition
26650-3.2V-16S16P
Nominal Voltage
51.2V
Rated Capacity
50±2Ah（C5）
Energy
2560Wh
Internal Resistance
≤50mΩ
Size
437*430*133mm（3U）
Weight
About 30.5Kg
Voltage
Charge voltage：57.6±0.2V；
Floating charge voltage：54.4±0.2V；
Standard cutoff voltage is about 40V
Charger Current
≤20A
Discharge Current
≤50A
Terminal
Terminal row
Communication function
RS232/RS485
Other functions
And machine
3-D Figure
山东精工电子科技有限公司

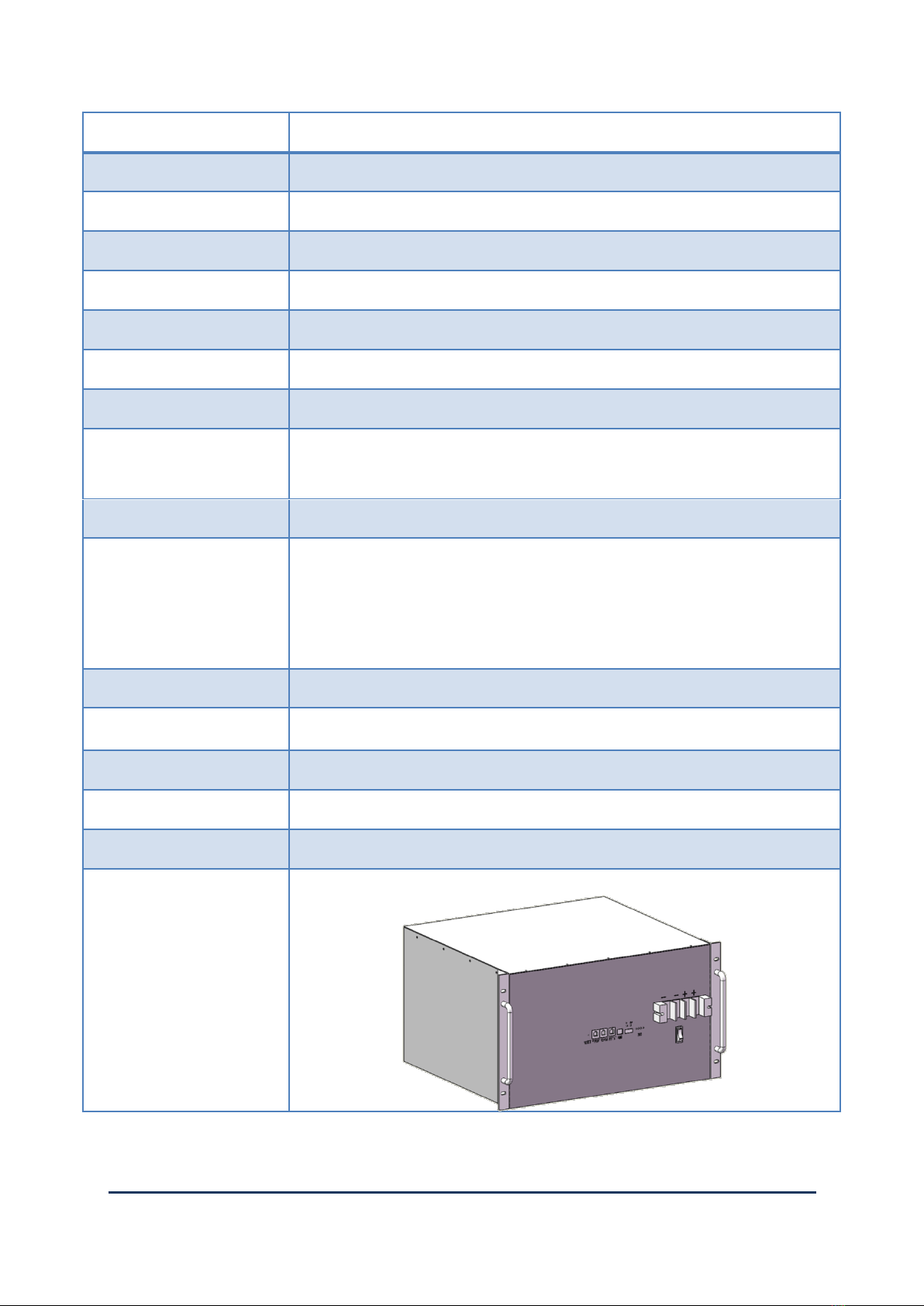

Shandong Goldencell Electronics Technology Co., Ltd. 6
Product Name
LiFePO4 battery
Product Model
51.2V100Ah
Specifications
JG-16IFR51.2-100-Y
Composition
26650-3.2V-16S32P
Nominal Voltage
51.2V
Rated Capacity
100±3Ah（C5）
Energy
5120Wh
Internal Resistance
≤40mΩ
Size
437*430*266mm（6U）
Weight
About 56.8kg
Voltage
Charge voltage：57.6±0.2V；
Floating charge voltage：54.4±0.2V；
Standard cutoff voltage is about 40V
Charger Current
≤50A
Discharge Current
≤50A
Terminal
Terminal row
Communication function
RS232/RS485
Other functions
And machine
3-D Figure
山东精工电子科技有限公司
Shandong Goldencell Electronics Technology Co., Ltd. 7
2 Product Curve
2.1 Single Cell Specification and Curve
(Appearance of single cell is subject to the object in kind, please read single
cell specification for details.)
Item
Dimension (mm)
Diameter(Ф)
26.15±0.1
Height(H)
65.6±0.3
山东精工电子科技有限公司
Shandong Goldencell Electronics Technology Co., Ltd. 8

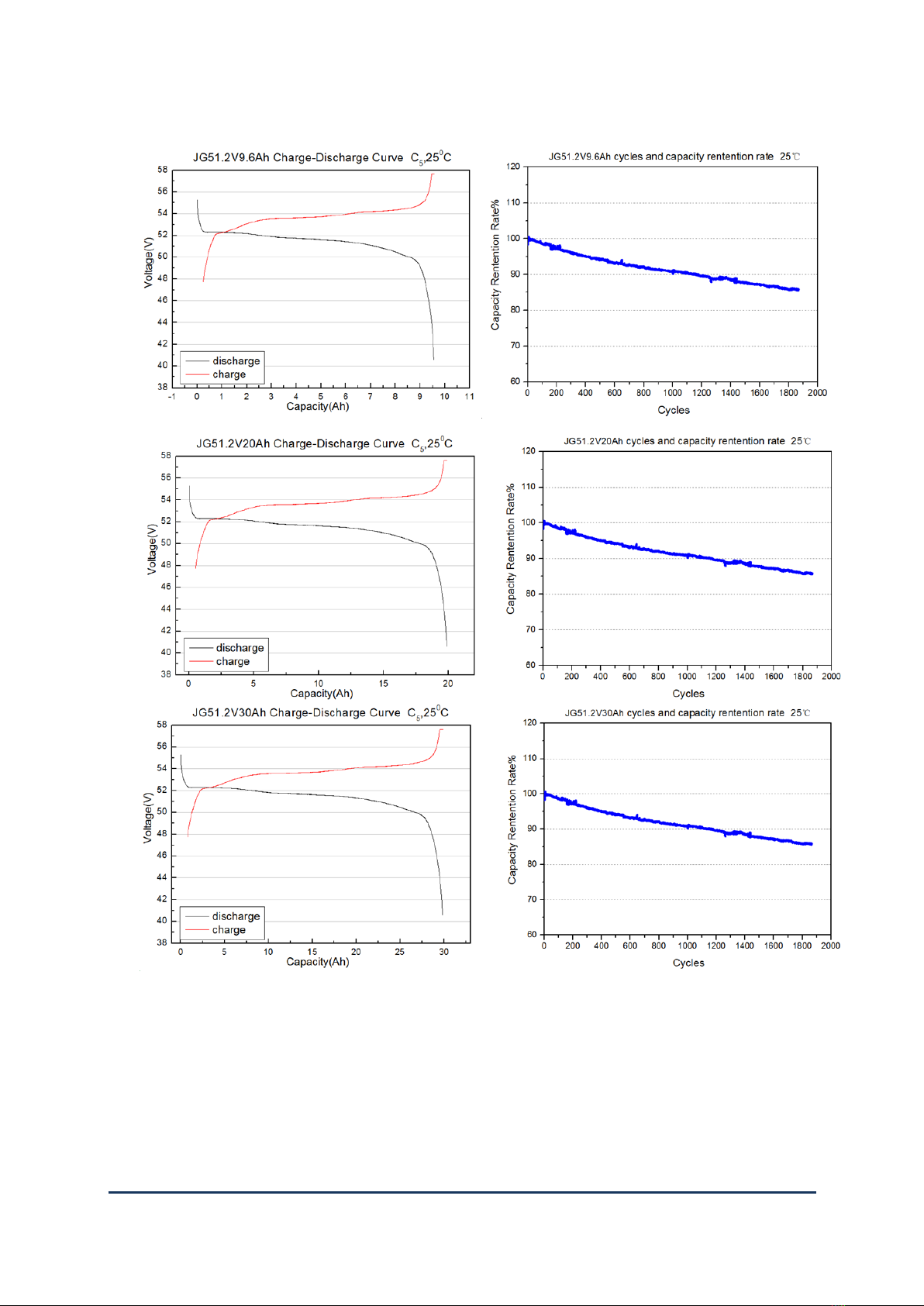

2.2 Battery Pack Curve
Indice
