SHANY MZC-81XX SERIES Manuale utente

Speed Dome

MZC-81XX SERIES

MZC-82XX SERIES

MZC-91XX SERIES

WD Speed Dome

MZC-WD81XX SERIES

MZC-WD82XX SERIES

MZC-WD91XX SERIES

Installation / User’s Guide

INDEX

I. Notes on Safety 2

II. Introduction 3

III. Technical Data 3

1. Technical Parameters of the Intelligent High-speed Dome 3

2. Camera Parameter for High-speed Dome: (Built in Zoom Camera module). 4

IV. Installation 7

1. Installation Note 7

2. Wall mount installation guide 15

3. Ceiling mount installation guide 17

4. Surface mount installation guide 20

V. Settings 23

1. Dome Address, Transmission Speed, Protocol Setting 23

2. Speed Dome Camera Address Setting 24

3. Speed Dome Camera Communication Protocol Setting 25

4. Speed Dome Camera Transmission Speed Setting (Baud Rate Setting) 25

5. Restore the factory default 26

6. Daisy chain connection setting 26

7. RS-485 Bus Matching Resistance 27

8. AC/DC power supply 28

VI. User’s Operation 30

1. Locate a Speed Dome in a system 30

2. PTZ Operation & Control 30

3. PRESET Function 31

4. PATTERN Function 32

5. HOME function 32

6. SYSTEM MEMORY Function 32

7. SCANNING Function (between 2 positions) 32

8. Camera Menu (OSD Menu) Setting 33

9. 18x Camera Menu 34

10. 36x Camera Menu 36

Appendix 37

Installation / User’s Guide

I. Notes on Safety

◎Please read the instructions thoroughly before installing or operating the unit.

◎Please do not mount the machine on an unstable surface or bracket.

◎Please prevent all liquids or other material from entering the dome housing.

◎When connecting the power source, please follow all electric safety standards and

only use the power supply designated for this device. The speed dome’s RS-485

and video signal uses TVS technology to protect it from strong electrical surges.

This technology prevents damage to the device resulting from impulse signals

such as lightning strikes or surges of power. Allow for enough distance between

the RS-485 and video signals and high-voltage equipment or cables during the

transmission process. Please do not power the unit until all connections are

secure and installation is complete.

◎Avoid shooting very bright objects directly into the camera’s CCD (such as the sun

or light fittings).

◎When the machine is not operating properly, please refer to the instructions for

information about how to service or repair your speed dome.

◎Please protect the unit against extremes of vibration, pressure or dampness while

transporting unit. Damage can occur from improperly packaging the unit while

shipping.

◎The outdoor dome camera system is designed to be installed in outdoor

environments only.

Installation / User’s Guide

II. Introduction

Congratulations on purchasing the speed dome, an intelligent, high-speed dome with a

high-performance DSP camera and sophisticated zoom lens. It is an advanced surveillance

product combining an all-direction variable speed motor mechanism and digital decoder all

in one unit. It is aim to quickly scan continuously, as well as making omni-directional and

non-blind-spot monitoring into reality. The advanced stepping motor technologies enable the

dome to rotate smoothly, respond sensitively and aim precisely. The speed dome camera

has a memory function; when the power is back after blackout, it can auto restore to its

previous working status.

All of the features make the intelligent high-speed dome camera fit for a wide range of

applications such as intelligent building, bank, street of city, airport, station etc.

Use the high-performance speed dome “Where it Counts.”

III. Technical Data

1. Technical Parameters of the Intelligent High-speed Dome

Model Speed Dome

Power Supply AC24V±15%

Operating temperature Outdoor : - 20℃~+50℃

Operating moisture ≤95%(at non-condensing)

Power consumption 25W ~ 45W(max)

Communication RS485 bus

Communication transmission speed 1200/2400/4800/9600bps

Horizontal rotation speed 1° - 240°(1-64 grade shift gears)

Horizontal rotation range 360° unlimited rotation

Tilt rotation range 90°

Auto flip Rotates 180° when camera tilts to the vertical position

Auto zoom speed control Control speed auto-adjusted according to zoom length

changing

2 points scan Can set freely

Preset Positions 128 preset positions

Cruise Tour: Run Presets (1 ~ 10)

Cruise Points Qty group 10 preset positions

Heater ( option ) 24VAC

Installation / User’s Guide

2. Camera Parameter for High-speed Dome: (Built in Zoom Camera module).

18x Camera

TV System PAL NTSC

Image Sensor 1/4”SONY Super-HAD CCD

Number of Total Pixels 470,000 Pixels 410,000 Pixels

Resolution Color:540TVL, B/W:560TVL

Minimum Illumination Color:[email protected] (30IRE) ;

B/W:[email protected] (30IRE)

Video Output CVBS 1.0Vp-p, 75Ω

Signal to Noise Ratio More than 50dB

Gamma Correction 0.45

Mechanical IR Cut Filter (ICR) ICR Removable, Lux Level Adjustable, 15 steps

Menu OSD

Language English, Traditional/Simplified Chinese, Japanese

Automatic Electronic Shutter 1/50~10000sec 9steps 1/60~10000sec 9steps

Automatic Gain Control Automatic

Automatic White Balance Automatic

Back Light Compensation ON / OFF

Flickerless ON / OFF

Automatic IRIS, Focus Automatic

Digital Zoom NA

Lens 36x zoom f=3.4~122.4mm/57.8 o ~1.7 o

Communication ; Controls RS-485 ; PAN / TILT, LENS

Auto Pan Yes

Tour Pattern 1 Group (accommodates preset #1~#10)

Home Function Yes

System Memory Yes

Panning Range ; Panning

Speed

360 o Continuous ; 0.2 o ~240 o /sec.

Tilt Range ; Tilt Speed 0 o ~90 o ; 0.2 o ~120 o /sec.

Pan, Tilt Accuracy ±0.02o

Preset Positions 128 Positions

Alarm-In ; Alarm-Out 4 In, 1 Out

Water Resistance NA

Power Supply ; Consumption 24Vdc/24Vac ; 25W

Operation ; Storage Temp. 0 o C~50 o C ; -10 o C~60 o C

Operation ; Storage Humidity Maximum:RH80% ; RH90%

Dimensions 200(DIA)x134(H)mm

Net Weight 2,800g

Installation / User’s Guide 5

36x Camera

TV System PAL NTSC

Image Sensor 1/4”SONY Super-HAD CCD

Number of Total Pixels 470,000 Pixels 410,000 Pixels

Resolution Color:540TVL, B/W:560TVL

Minimum Illumination Color:[email protected] (30IRE) ;

B/W:[email protected] (30IRE)

Video Output CVBS 1.0Vp-p, 75Ω

Signal to Noise Ratio More than 50dB

Gamma Correction 0.45

Mechanical IR Cut Filter (ICR) ICR Removable, Lux Level Adjustable, 15 steps

Menu OSD

Language English, Traditional/Simplified Chinese, Japanese

Automatic Electronic Shutter 1/50~10000sec 9steps 1/60~10000sec 9steps

Automatic Gain Control Automatic

Automatic White Balance Automatic

Back Light Compensation ON / OFF

Flickerless ON / OFF

Automatic IRIS, Focus Automatic

Digital Zoom NA

Lens 36x zoom f=3.4~122.4mm/57.8 o ~1.7 o

Communication ; Controls RS-485 ; PAN / TILT, LENS

Auto Pan Yes

Tour Pattern 1 Group (accommodates preset #1~#10)

Home Function Yes

System Memory Yes

Panning Range ; Panning

Speed

360oContinuous ; 0.2 o ~240 o /sec.

Tilt Range ; Tilt Speed 0 o ~90 o ; 0.2 o ~120 o /sec.

Pan, Tilt Accuracy ±0.02 o

Preset Positions 128 Positions

Alarm-In ; Alarm-Out 4 In, 1 Out

Water Resistance IP66

Power Supply ; Consumption 24Vdc/24Vac ; 25W (45W, when the Optional Heater is on)

Operation ; Storage Temp. -10 o C~50 o C ; -20 o C~60 o C

Operation ; Storage Humidity Maximum:RH80% ; RH90%

Dimensions 290(DIA)x293(H)mm

Net Weight 4,050g

Installation / User’s Guide 6

WD 36x Camera

TV System PAL NTSC

Image Sensor 1/4" Sony Exview-HAD CCD

Number of Total Pixels 440,000 Pixels 380,000 Pixels

Resolution 530TVL

Minimum Illumination [email protected], Slow Shutter Mode:[email protected],

B/W: 0.01 [email protected]

Video Output CVBS 1.0Vp-p, 75Ω

Wide Dynamic Range ON (128X) / OFF

Signal to Noise Ratio More than 50dB

Mechanical IR Cut Filter (ICR) IR Cut Filter Removable

Menu OSD

Language English

Automatic Electronic Shutter 1/3(4)~10000sec 20steps

Automatic Gain Control Automatic

Automatic White Balance Automatic / ATW / INDOOR / OUTDOOR / MANUAL

Back Light Compensation ON / OFF

Flickerless N/A

Automatic IRIS, Focus Automatic

Digital Zoom 12X

Lens 36x zoom f=3.4~122.4mm/57.8o~1.7o

Communication ; Controls RS-485 ; PAN / TILT, LENS

Auto Pan Yes

Tour Pattern 1 Group (accommodates preset #1~#10)

Home Function Yes

System Memory Yes

Panning Range ; Panning

Speed

360o Continuous ; 0.2o~240o /sec.

Tilt Range ; Tilt Speed 0o~90o ; 0.2o~120o/sec.

Pan, Tilt Accuracy 0.02o

Preset Positions 128 Positions

Alarm-In ; Alarm-Out 4 In, 1 Out

Water Resistance IP66

Power Supply ; Consumption 24Vdc/24Vac ; 25W (45W, when the Optional Heater is on)

Operation ; Storage Temp. -10oC~50oC ; -20oC~60oC

Operation ; Storage Humidity Maximum:RH80% ; RH90%

Dimensions 290(DIA)x293(H)mm

Net Weight 4,050g

Installation / User’s Guide 7

IV. Installation

1. Installation Note

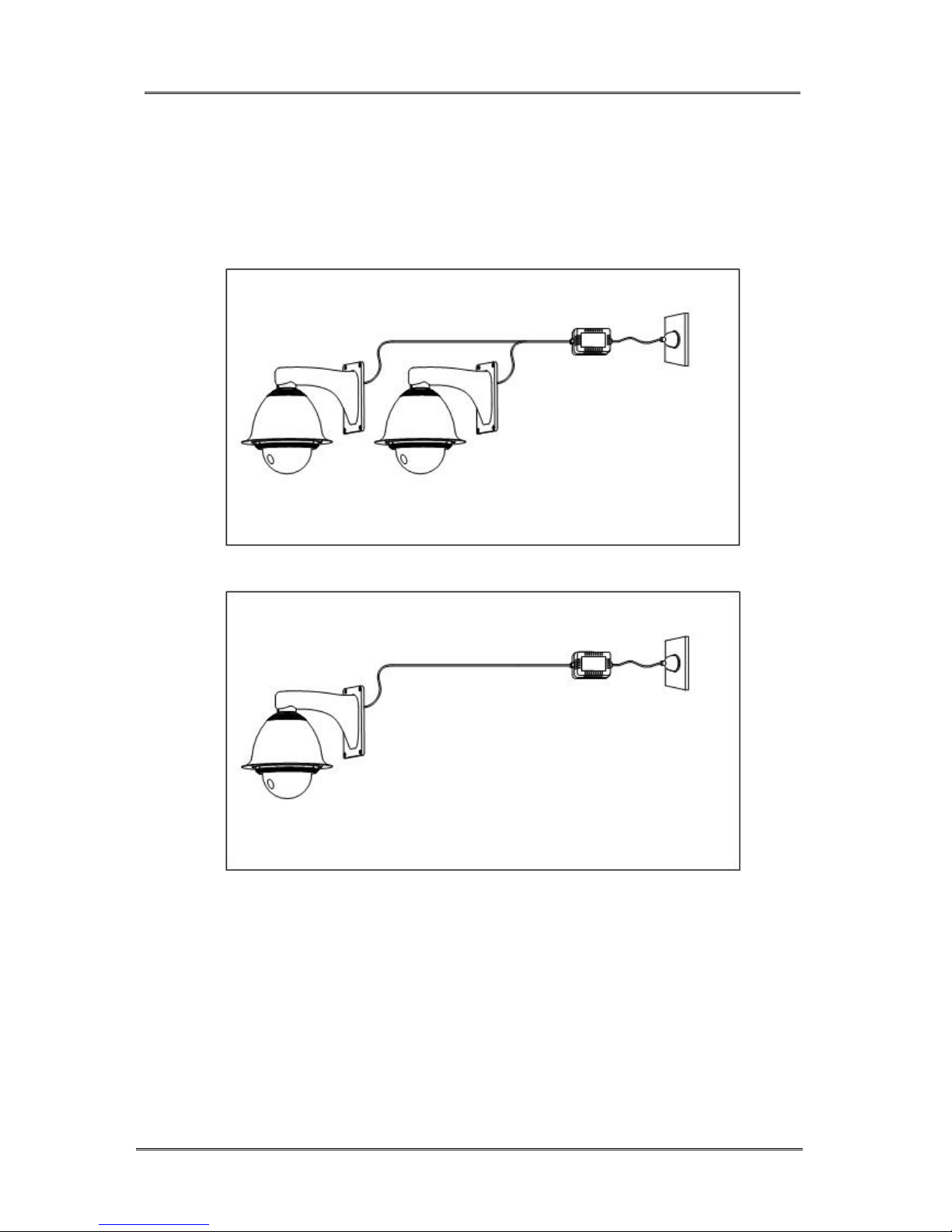

● Power supply note

Wrong

Right

NoteMust use the electric adapter that supply with the product to supply the power

to each speed dome. One adapter (AC 24V±3V current 3A) can not support

more than one dome camera to avoid image disturbance. Please check if

the voltage in your city is in the scope of supplied power adaptor.

Don’t use uncertified power supply.

Don’t use one adapter to supply

more than one speed dome in order

to avoiding signal disturbance.

One adapter for one speed dome only.

Input voltage should be in AC24±3V current 3A.

Installation / User’s Guide

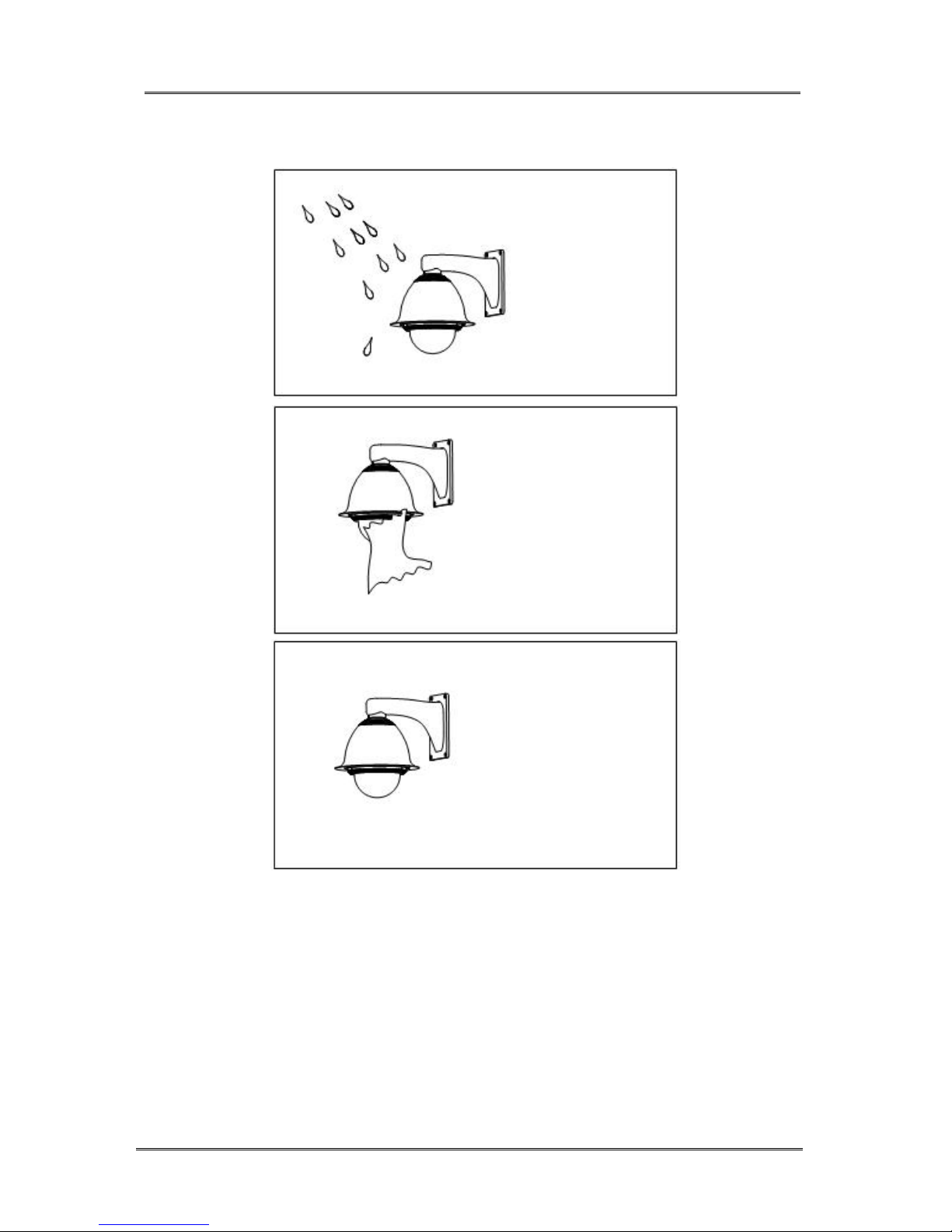

● Maintenance note

Wrong

No submerged

No high-pressure-water

No installation in

erosive place

Installation / User’s Guide 9

Right

Note It is capable to water resistance, but no submerged. Don’t use

high-pressure-water upward to the dome. Installation place should avoid

erosive water (e.g. air-condition water) dropped to the dome.

Water resistance

Use soft waterish

cloth to clean cover

No erosive objects in

installation place
