Sharp AR-122E N Manuale utente

CONTENTS

Parts marked with “ ” are important for maintaining the safety of the machine. Be sure to replace these parts

with the replacement parts specified to maintain the safety and performance of the machine.

SHARP CORPORATION This document has been published to be used

for after sales service only.

The contents are subject to change without notice.

SERVICE MANUAL

CODE : 00ZAR157ENA1E

DIGITAL LASER COPIER/

PRINTER

AR-122E N

AR-123E

AR-152E N

AR-153E N

MODEL AR-157E N

(AR-157E N)

The AR-122E N/AR-123E/AR-152E N/AR-153E N/AR-157E N Service Manual describes

only changed from AR-122E/AR-152E/AR-153E/AR-157E Service Manual.

For the common contents, please refer to the AR-122E/AR-152E/AR-153E/AR-157E

Service Manual (Code: 00ZAR157E/A1E)

[ 1 ] GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1

•Parts Guide

MODEL Reference MODEL

1 AR-122E N AR-122E

2 AR-123E AR-153E

3 AR-152E N AR-152E

4 AR-153E N AR-153E

5 AR-157E N AR-157E

AR-122E N/AR-123E/AR-153E N/AR-157E N GENERAL 1 - 2

[1] GENERAL

1. Major functions

Configurations

Descriptions of items

CPM: Copy speed (Copies Per Minute)

SB/MB: SB = Manual feed single bypass, MB = Manual feed multi bypass

2 tray: Second cassette unit.

SPF: Original feed unit

R-SPF: Duplex original feed unit

Color scanner: Color scanner function

GDI printer: GDI printer function with USB.

PCL printer: PCL printer function with USB.

SOPM: Scan Once Print Many function (Many copies are made by one scan.)

Duplex: Auto duplex copy function

Memory: Standard page memory

FAX: FAX function.

Descriptions of table

: Standard provision

: No function or no option available

Opt: Option

∗1: AL-12PK/M

∗2: AR-PG2

Item

CPM SB/MB 2 Tray SPF R-SPF Color

Scanner

GDI

printer

PCL

printer SOPM Duplex Memory FAX

Model

AR-122E N 12CPM SB Opt ∗1Opt

∗18M

AR-123E 12CPM SB Opt Opt Opt ∗1Opt

∗18M

AR-152E N 15CPM SB Opt ∗1Opt

∗18M

AR-153E N 15CPM MB Opt Opt Opt ∗2Opt

∗28M

AR-157E N 15CPM MB Opt ∗2Opt

∗2 16M

AR-122E N/123E/152E N/153E N AR-157E N

AR-SP5

AR-D16

(Options)

AR-PG2AL-12PK/M

AR-122E N/AR-123E/AR-153E N/AR-157E N GENERAL 1 - 3

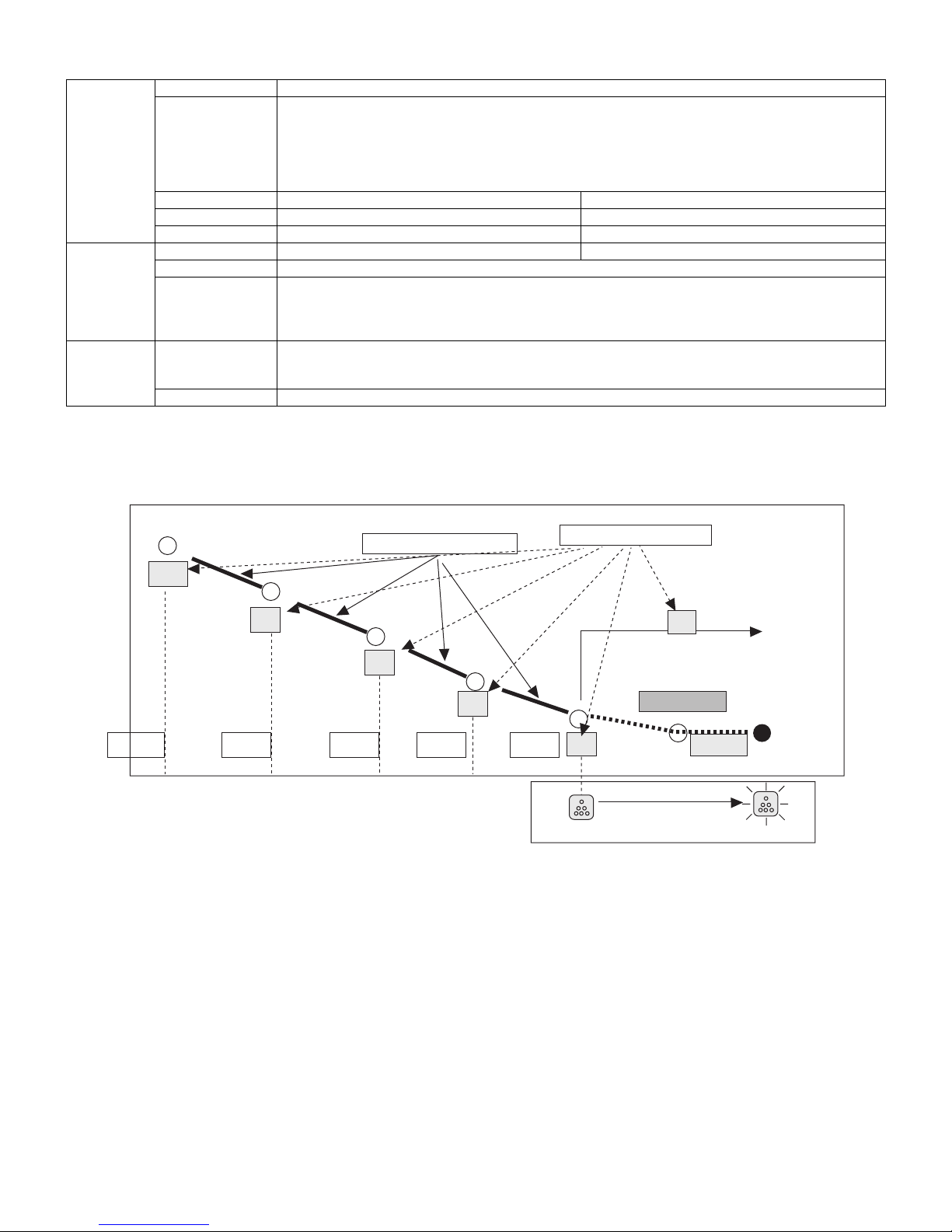

2. Maintenance display system

*1: Installation of a new toner cartridge allows to display the remaining quantity.

The remaining toner indication is based on the number of revolutions of the toner motor.

3. Remaining toner indication

• The remaining toner indication is based on the number of revolutions of the toner motor.

• The toner END indication appears when the END is detected by the toner sensor, or when the number of revolutions of the toner motor reaches a

given number (equivalent to 8K), whichever comes first.

Toner

Life 8K

Remaining quantity

check *1

a. Press and hold the density adjustment LIGHT key for more than 5 sec, and the machine will enter the user

program mode.

b. Press and hold the "%" key for more than 5 sec, and the remaining quantity will be displayed on the copy

quantity display in one of the following levels: (Remaining quantity display levels: 100%, 75%, 50%, 25%,

10%, LO)

c. Press the density adjustment LIGHT key to cancel.

Remaining quantity NEAR EMPTYAbout 10% EMPTY

LED ON Flash

Machine Operation allowed Stop

Developer

Life 25K

LED ON at 25K of the developer count.

Machine

Selection is available between Not Stop and Stop by Service Simulation (SIM 26-37) Setup.

(If Stop is selected, the LED will flash and stop at 25K.)

* Default: Not Stop

* Clear: SIM 24-06

Maintenance LED

Selection is available among 25K, 13K, 9K, 6K, 3K, and free (no lighting) with SIM 21-1.

* Default: 25K

* Clear: SIM 20-1

Machine Not stop.

TONER FULL

Remaining toner indication Display for users

Indicator

100%

75%

50%

25%

LOW LEVEL

100-90% 89-75% 74-50% 49-25% 24-10% 10% 10 sheets

NEAR END END

AR-122E N/AR-123E/AR-153E N/AR-157E N GENERAL 1 - 4

4. Additional simulation and trouble code

•Simulation

•Trouble codes

Main

code

Sub

code Content

26 55 CRUM Destination Indication

When the simulation is executed, the CRUM destination currently set (saved) in the CRUM chip is displayed.

Main code Sub code Trouble content

F2 04 Toner cartridge error

U2 40 Main IC chip read error

Code number Setup

00 No set

01 BTA-A

02 BTA-B

03 BTA-C

99 Conversion

qPARTS GUIDE

CONTENTS

Because parts marked with "!" is indispensable for the machine safety maintenance and poeration, it must

Be replaced with the parts specific to the product specification.

SHARP CORPORATION

This document has been published to be used for

after sales service only.

The contents are subject to change without notice.

CODE:00ZAR157EN/P1

DIGITAL LASER COPIER /

PRINTER

AR-122E N

AR-123E

AR-152E N

AR-153E N

MODEL AR-157E N

1Exteriors

3RSPF exteriors (AR-157E N)

4RSPF transport unit (AR-157E N)

6Operation panel

7Side door unit

8Optical frame

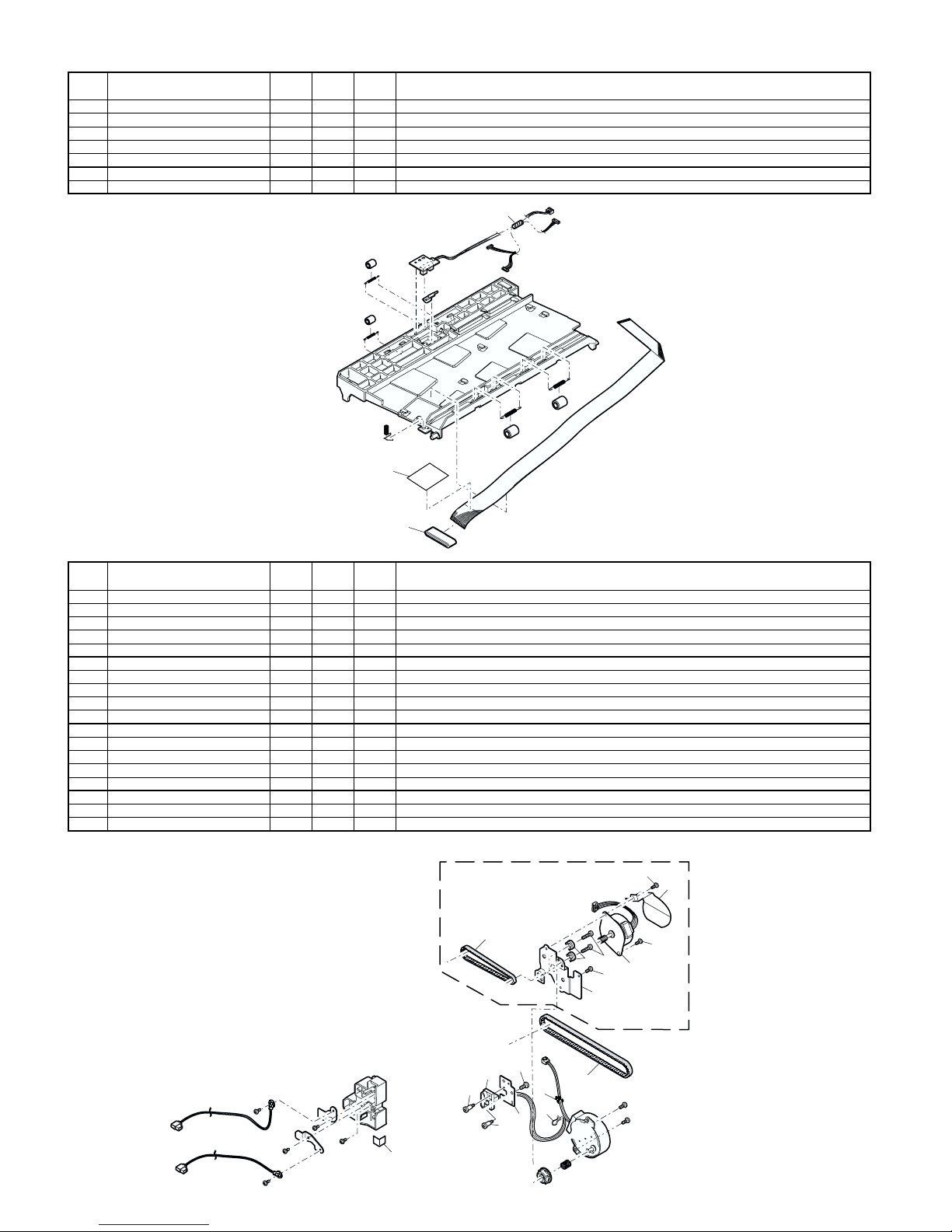

FDelivery paper guide unit

GMiddle frame

HBase plate unit 1

IBase plate unit 2

JFusing unit

KDrive unit

NSingle manual paper feeding unit

(AR-122E N/123E/152E N)

R250 sheets tray

SHarness

VPacking material & accessories

XMCU PWB

■Index

The AR-122E N/AR-123E/AR-152E N/AR-153E N/AR-157E N Parts Guide describes only changed from

AR-122E/AR-152E/AR-153E/AR-157E Parts Guide.

For the common parts, please refer to the AR-122E/AR-152E/AR-153E/AR-157E Parts Guide

(Code: 00ZAR157E//P1)

[Note]

MODEL Reference MODEL

AR-122E N

AR-123E

AR-152E N

AR-153E N

AR-157E N

AR-122E

AR-153E

AR-152E

AR-153E

AR-157E

(AR-157E N)

– 1 –

DEFINITION

The definition of each Rank is as follows and also noted in the list

A: Parts necessary to be stocked as High usage parts.

B: Parts necessary to be stocked as Standard usage parts.

C: Low usage parts.

D: Parts necessary for refurbish.

E: Unit parts recommended to be stocked for efficient after sales service.

Please note that the lead time for the said parts may be longer than normal parts.

S: Consumable parts.

Please note that the following parts used in Copier under the same description are classified into A or B Rank depending upon

the place used.

Example: Gear made of Metal, Sprocket, Bearing, Belt made of Rubber, Spring clutch mechanism.

ARank : The parts which may be with the revolution or loading.

BRank : Parts similar to A Rank parts, but are not included in Rank A.

Because parts marked with "!" is indispensable for the machine safety maintenance and operation, it must be replaced with

the parts specific to the product specification.

FOther than this Parts Guide, please refer to documents Service Manual(including Circuit Diagram)of this model.

FPlease use the 13 digit code described in the right hand corner of front cover of the document, when you place an order.

FFor U.S. only-Use order codes provided in advertising literature. Do not order from parts department.

1Exteriors

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

1CCAB-0003QS23 AS D Front cover (AR-122E N/123E/152E N)

CCAB-0003QS26 AS D Front cover (AR-153E N/157E N)

12 GCOV-0045QSZZ AG D Rear cover SPF (AR-157E N)

GCOV-0045QSZ1 AG D Rear cover OC (AR-122E N/123E/152E N/153E N)

16 PCOVP0035QSJZ AL D Rear exterior cover JAG (AR-122E N/152E N)

PCOVP0040QSJZ AL D Rear exterior cover SPF (AR-123E/153E N/157E N)

17 GCAB-0062QSZ1 AL D Right exterior OC (AR-122E N/152E N)

GCAB-0062QSZZ AL D Right exterior (AR-123E/153E N/157E N)

18 GCAB-0021QSJ1 AY D Rear exterior (AR-122E N/152E N)

GCAB-0026QSJ2 AZ D Rear exterior SPF (AR-123E/153E N/157E N)

22 PTPE-0044QSZZ AC C Slit glass tape (AR-123E/153E N/157E N)

23 PGLSP0008QSZZ AH B SPF glass (AR-123E/153E N/157E N)

24 PSHEZ0181QSJZ AC C Rear cabinet maylar (AR-123E/153E N/157E N)

25 PTPE-0010QSZZ AC C Slit glass tape (AR-123E/153E N/157E N)

26 TLABZ0058QSZZ AD D Class 1 label (Except U.S.A,Soudi arabia)

27 PMLT-0069QSZZ AA C Ground malt (AR-123E)

28 PSHEZ0404QSZZ AF C Right cabinet ground sheet (AR-123E)

29 PTPE-0047QSZZ AC C Ground tape F (AR-123E)

30 PTPE-0048QSZZ AA C Ground tape R (AR-123E)

31 PTPE-0049QSZZ AC C Right cabinet ground tape (AR-123E)

– 2 –

1Exteriors

3RSPF exteriors (AR-157E N)

4RSPF transport unit (AR-157E)

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

56 PCUSS0025QSZ1 AQ D OC mat

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

11 DHAI-0304QSZZ AP C R-SPF interface harness

PRP01131

AR-122E N

AR-152E N

AR-122E

AR-152E

25 17

24 26

AR-123E

AR-153E N

AR-157E N

AR-123E

AR-153E N

AR-157E N

PRP01132

PRP01133

– 3 –

6Operation panel

7Side door unit

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

CPNLH0023QS26 AT N D Panel (AR-122E N Other Countries)

CPNLH0023QS27 AT N D Panel (AR-122E N Philippines)

CPNLH0023QS28 AT N D Panel (AR-152E N)

CPNLH0023QS29 AT N D Panel (AR-153E N)

CPNLH0023QS30 AT N D Panel (AR-157E N)

CPNLH0023QS33 AT N D Panel (AR-123E STCL)

CPNLH0023QS43 AT N D Panel (AR-123E Philippines)

CPWBF0113QSE8 BB E Operation PWB (AR-122E N/152E N)

CPWBF0113QSE9 BB E Operation PWB (AR-123E/153E N)

CPWBF0113QSF0 BB E Operation PWB (AR-157E N)

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

5LPLTM0043QSZZ AD C Earth plate (AR-122E N/123E/152E N/153E N)

LPLTM0132QSZZ AH C Earth plate (AR-157E N)

21 XEPSD30P08X00 AA C Screw(3×8) (AR-157E N)

22 NGERH0048QSZZ AE C DUP drive gear (AR-157E N)

23 NGERH0051QSZZ AE C DUP drive gear A (AR-157E N)

24 NROLP0025QSZZ AM C DUP drive roller (AR-157E N)

25 MSPRC0050QSZZ AB C DUP pressupe spring (AR-157E N)

26 NROLP1122FCZZ AF C PS upper roller (AR-157E N)

PRP01134

PRP01135

22 23

Except

AR-157E N

– 4 –

8Optical frame

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

6DUNT-0276QSZZ BT E Carriage unit (Other Countries)

DUNT-0276QS11 BT E Carriage unit (Europe,AR-123E)

17 PBRSR0002QSZ1 AH B Discharger brush (Other Countries)

PBRSR0002QSZ2 AG B Discharger brush (U.S.A,Soudi arabia,AR-123E)

29 PGIDM0059QSJZ AG C OC hinge guide L (AR-123E/153E N)

PGIDM0019QSJZ AH C SPF hinge guide L (AR-157E N)

30 PGIDM0060QSJZ AF C OC hinge guide R (AR-123E/153E N)

PGIDM0020QSJZ AH C SPF hinge guide R (AR-157E N)

33 LPLTP0131QSZZ AD C Book sensor attachment plate (AR-157E N)

34 MLEVP0047QSE1 AD C Book sensor ACT (AR-157E N)

35 MSPRC0153QSZZ AB C Book sensor spring (AR-157E N)

36 VHPGP1A71A1-1 AG B Photo transistor(GP1A71A1) (AR-157E N)

37 DHAI-0303QSZZ AD C Harness (AR-157E N)

39 PSHEZ0389QSZZ AH C Scanner sheet (Other Countries)

PSHEZ0389QSZ1 AK C Scanner sheet (Europe,AR-123E)

40 DHAI-0268QSZZ AZ C CCD-MCU harness (Other Countries)

DHAI-0268QSZ1 AH C CCD-MCU harness (Europe,AR-123E)

44 PSHEZ0403QSZZ AG C Noise sheet (Europe,AR-123E)

45 PSHEZ0401QSZZ AG C Scanner core sheet (Europe,AR-123E)

46 PTPE-0046QSZZ AB C Core double-sided tape (Europe,AR-123E)

47 PMLT-0068QSZZ AC C Core holder malt (Europe,AR-123E)

48 PSHEZ0400QSZZ AG C PWB core miler (Europe,AR-123E)

PRP01136

– 5 –

FDelivery paper guide unit

GMiddle frame

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

13 PTUBP0005QSZZ AC C Tube (AR-157E N)

15 RCORF0018QSZZ AR C FFC core (Europe,AR-123E)

16 PSHEZ0402QSZZ AG C Panel core sheet (Europe,AR-123E)

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

5NBLT-0005QSZZ AH B Delivery roller drive belt (AR-122E N/123E/152E N/153E N)

31 LPLTM0133QSZ1 AE C DUP motor sink (AR-157E N)

32 PSPAZ0017QSZZ AK C DUP spacer (AR-157E N)

33 XEBSD30P10000 AA C Screw(3×10) (AR-157E N)

34 XHBSE30P06000 AA C Screw(3×6) (AR-157E N)

35 RMOTP0012QSZZ AW B DUP transport motor (AR-157E N)

36 PSHEZ0156QSZZ AE C Harness protection sheet (AR-157E N)

37 NBLTT0004QSZZ AH B Belt (AR-157E N)

38 PSHEZ0155QSZZ AD C Sheet (AR-157E N)

40 DHAI-0307QSZZ AT N C DVS harness CRUM2

41 LPLTM0149QSZZ AD C Plate fixing connector

42 LX-BZ0020QSZZ AB C Screw

43 LHLDW1334FCZZ AA C Holder

44 XEBSD30P08000 AA C Screw(3×10)

PRP01137

PRP01138

AR-157E N

Altri manuali per AR-122E N

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sharp Stampante tutto in uno

Sharp

Sharp AJ-6010 Manuale utente

Sharp

Sharp AR-C360P Manuale di programmazione

Sharp

Sharp AL-841 Manuale utente

Sharp

Sharp AR-208S Guida all'installazione

Sharp

Sharp BP-50C26 Manuale utente

Sharp

Sharp MX-C381 Manuale di installazione e funzionamento

Sharp

Sharp AR-M256 Manuale utente

Sharp

Sharp MX-C301W Manuale utente

Sharp

Sharp MX-6201N Series Manuale utente

Sharp

Sharp MX-3500N Manuale utente

Sharp

Sharp AL-1045 Manuale utente

Sharp

Sharp MX-7001N Series Manuale di installazione e funzionamento

Sharp

Sharp MX-M264N Manuale utente

Sharp

Sharp MX-4501N Manuale utente

Sharp

Sharp AR-C360P Manuale utente

Sharp

Sharp AR-C172M Manuale utente

Sharp

Sharp AR-M236 Manuale utente

Sharp

Sharp MX-M503 Manuale utente

Sharp

Sharp MX 5500N - Color Laser - Copier Manuale utente

Sharp

Sharp AR 168D - Digital Imager B/W Laser Manuale utente

Sharp

Sharp MX-2314N Manuale utente

Sharp

Sharp SF-2040 Manuale utente

Sharp

Sharp AL-1551 Manuale utente

Sharp

Sharp MX-2010U Manuale utente

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Brother

Brother MFC-J430w Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Brother

Brother MFC-9760 Manuale utente

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Brother

Brother Business Smart MFC-J4510dw Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente

Oce

Oce VarioLink 5022 Manuale utente
