Quick Reference Guide: AR-M207, M165, M162

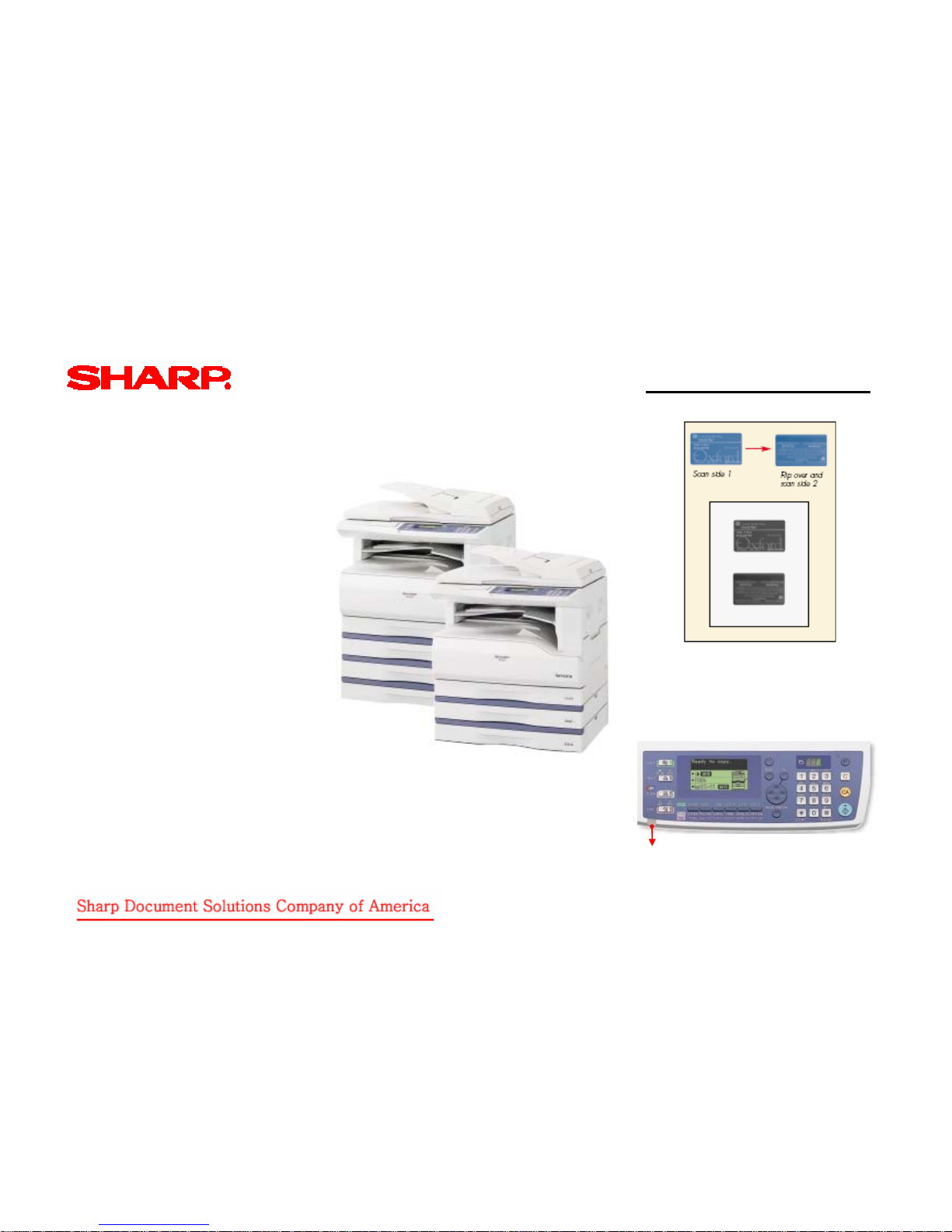

Description: Features & Options

Why the AR-M207, M165, M162

The AR-M162 and AR-M207 Digital IMAGERs™

Document Systems deliver advanced performance

for today’s small office—all in a value-driven,

multifunction copier. With a 500-sheet paper

capacity, (250 sheets on AR-M162), 100-sheet

bypass tray, standard 600 dpi host-based printing,

and auto duplexing (AR-M207), these compact

performers keep pace with even the most

demanding offices.

The AR-M162 and AR-M207 Digital IMAGERs can

support full-color ledger-size PC scanning that

enables users to share or archive documents with

just a few keystrokes. With optional electronic

sorting and a speed-enhanced printing system, the

Sharp AR-M162 and AR-M207 IMAGERs can

easily help grow clients’ businesses.

The AR-M162/M207 Digital IMAGERs™

AR-M207

AR-M162

Flexible Functionality and

Advanced Versatility

The Card Shot feature conveniently copies

both sides of an ID or insurance card onto a

single sheet of paper.

¾Integrated Color PC Scanning

¾Advanced Network Connectivity

¾High-Quality Digital Copying

¾Super Fast, Super G3 Faxing

• 5-line LCD display

• Versatile paper handling

• Optional electronic sorting

• Offset stacking

•AR-M162: 16-288 MB memory

•AR-M207: 32-304 MB memory

• 600 dpi host-based PC printing system

• Full color 600 x 600 dpi PC scanning

• Sharpdesk integrated Desktop Document

Management Software

• Button Manager Utility

• Standard IEEE 1284 parallel and USB 1.1

• Optional Super G3 Facsimile

Features

Fax Reception Light flashes to

alert you when a new fax has

arrived.

The user-friendly control panel

makes the AR-M162/M207

IMAGERs simple to operate.

Quick Reference Guide: AR-M207, M165, M162

Toolbox Basics

Mechanical

• Screwdriver, Phillips #2

• Screwdriver, Flat #1

• Wrench, 1.5mm Hex head

• Feeler gauges

Electrical

• Voltmeter

• ESD wrist or ankle strap

• Approved surge suppressor

• 30x lighted viewing device

Miscellaneous

• Clean, soft, lint-free cloths

• Alcohol

Pre-Setup: Tools, MSDSs, & Admonitions

Material Safety Data Sheets

(MSDSs)*

* Download MSDSs at http://www.sharp-service.com

Laser Admonition

For your protection, do

not remove protective

covers or bypass safety

interlocks.

Electrical/Electronic Component

Admonitions

WARNING: Electrical hazard.

Employ proper precautions when

working with high-voltage electrical

equipment.

CAUTION: Improper handling of

electronic components can damage

the equipment.

Properly ground and wear an

electro-static device (ESD) on your

wrist or ankle when working with

electronic modules. Similarly, use

anti-static bags to protect electronic

components during storage or

shipping.

F-31211DeveloperAR-202MD

F-01211Toner Cartridge

(Black)

AR-202MT

MSDS No.DescriptionProduct Code

SM-AR-SP6N

Code: 00ZARSP6N/A1E

*AR-SP6N, RP6N Service Manual

Single Pass Feeder (SPF)

Reverse Single Pass Feeder (RSPF)

SM-AR-NB3

Code: 00ZARNB3//A1E

*AR-NB3 Service Manual

Digital Copier/Printer/Multifunctional System Option

SM-AR-FX11

Code: 00ZARFX11/A1E

AR-FX11 Service Manual

Fax Expansion Kit

SM-AR-EB9

Code: 00ZAREB9//A1E

*AR-EB9 Service Manual

Digital Laser Copier Printer Option

Dual Function Board

PG-AR-M207

Code: 00ZARM207/P1E

AR-M207, M165, M162 Parts Guide

CD-AR-M2007

Code: 00ZARM207/C1/

AR-M207, M165, M162 Circuit Diagram

SM-AR-M207

Code: 00ZARM207/A1E

AR-M207, M165, M162 Service Manual

Part NumberDescription

Equipment & Service Documentation

* Optional equipment

Quick Reference Guide: AR-M207, M165, M162

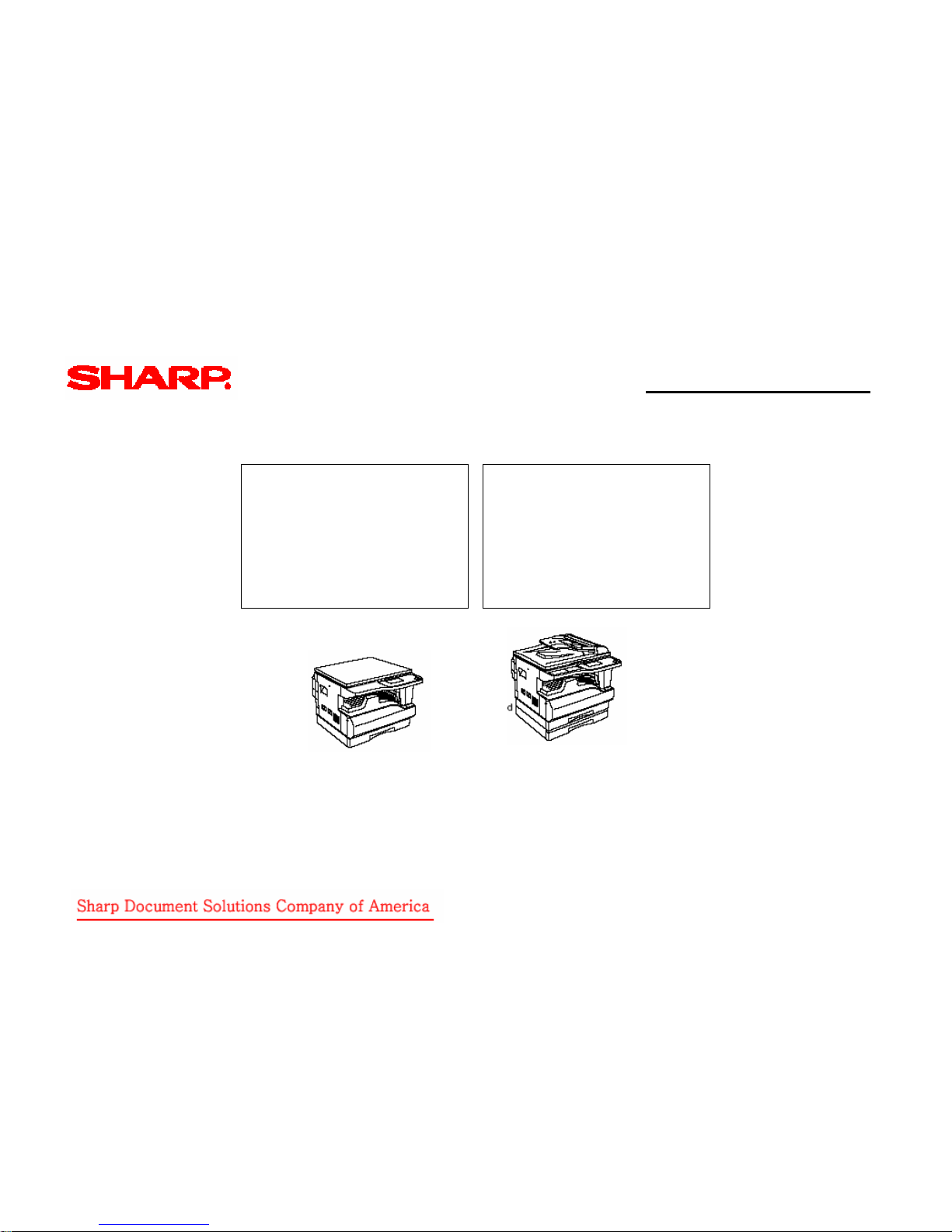

Configuration

AR-M162/AR-M165 AR-M207

Configuration

AR-M162, M165

(Copier/Printer/Scanner Model)

16 PPM Black & White

Configuration

AR-M207

(with the RSPF installed)

20 PPM Black & White

Quick Reference Guide: AR-M207, M165, M162

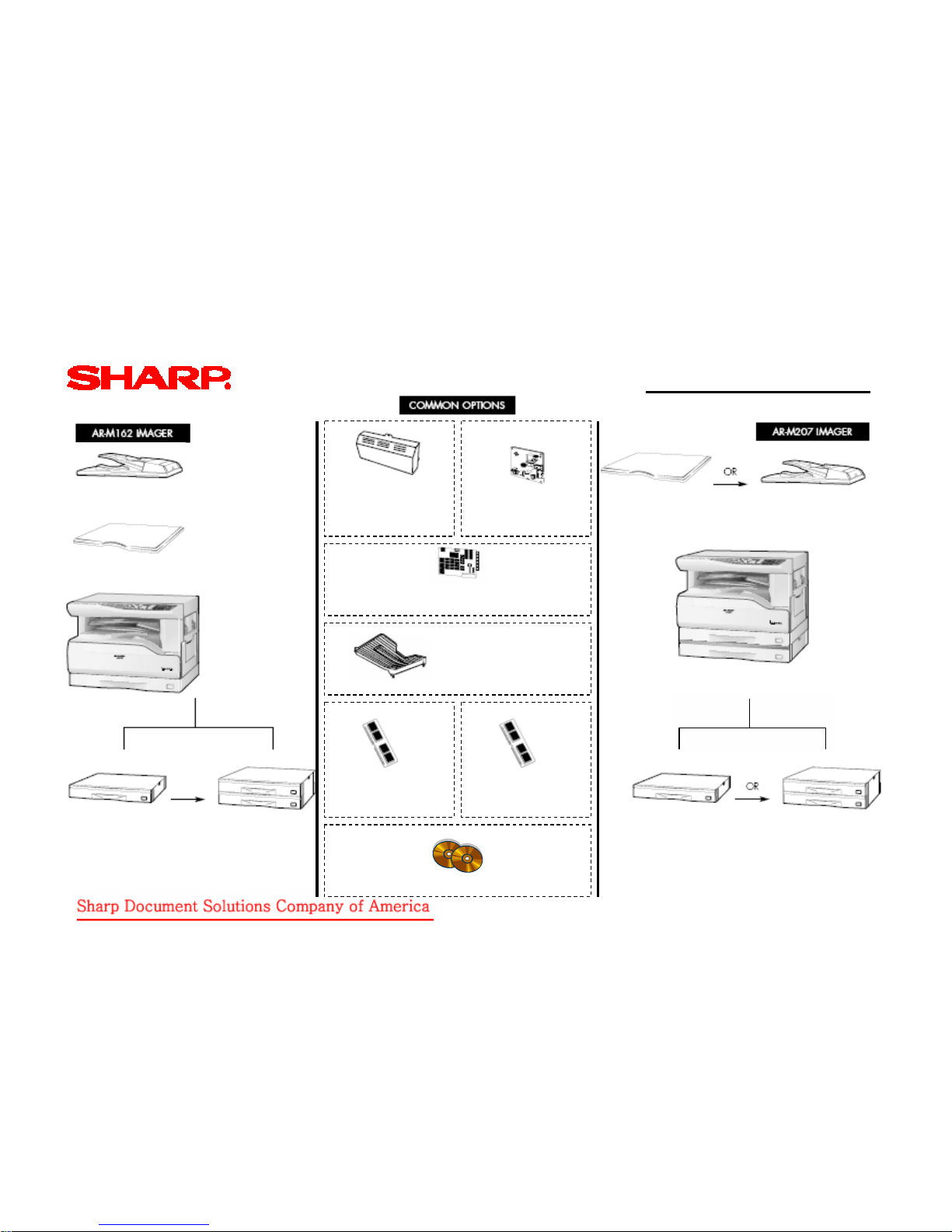

Configuration with Common Options

AR-SP6N

40-Sheet Single Pass Feeder

AR-VR5 Document Cover

(Standard on AR-M162 only)

AR-D24 250-Sheet

Paper Feed Unit

AR-D25 250-Sheet x 2

Paper Feed Unit

AR-M167 IMAGER

AR-VR5 Document Cover

(Standard on AR-M162 only)

AR-RP6N 40-Sheet Reversing

Single Pass Feeder

AR-D25 250-Sheet x 2

Paper Feed Unit

AR-M207 IMAGER

AR-D24 250-Sheet

Paper Feed Unit

AR-NB3 Network Expansion

Kit with PCL Network Printing

and Network Scanning

(requires AR-EB9)

AR-FX11 Fax

Expansion Kit

AR-EB9 Electronic Sorting Kit (includes

Card Shot and USB 2.0)

AR-TR4 Job

Separator Tray

AR-SM5 256 MB

Memory Expansion for

AR-EB9

AR-MM9 8 MB

Memory Expansion for

AR-FX11

AR-PK1N Postscript PS3 Expansion Kit

Quick Reference Guide: AR-M207, M165, M162

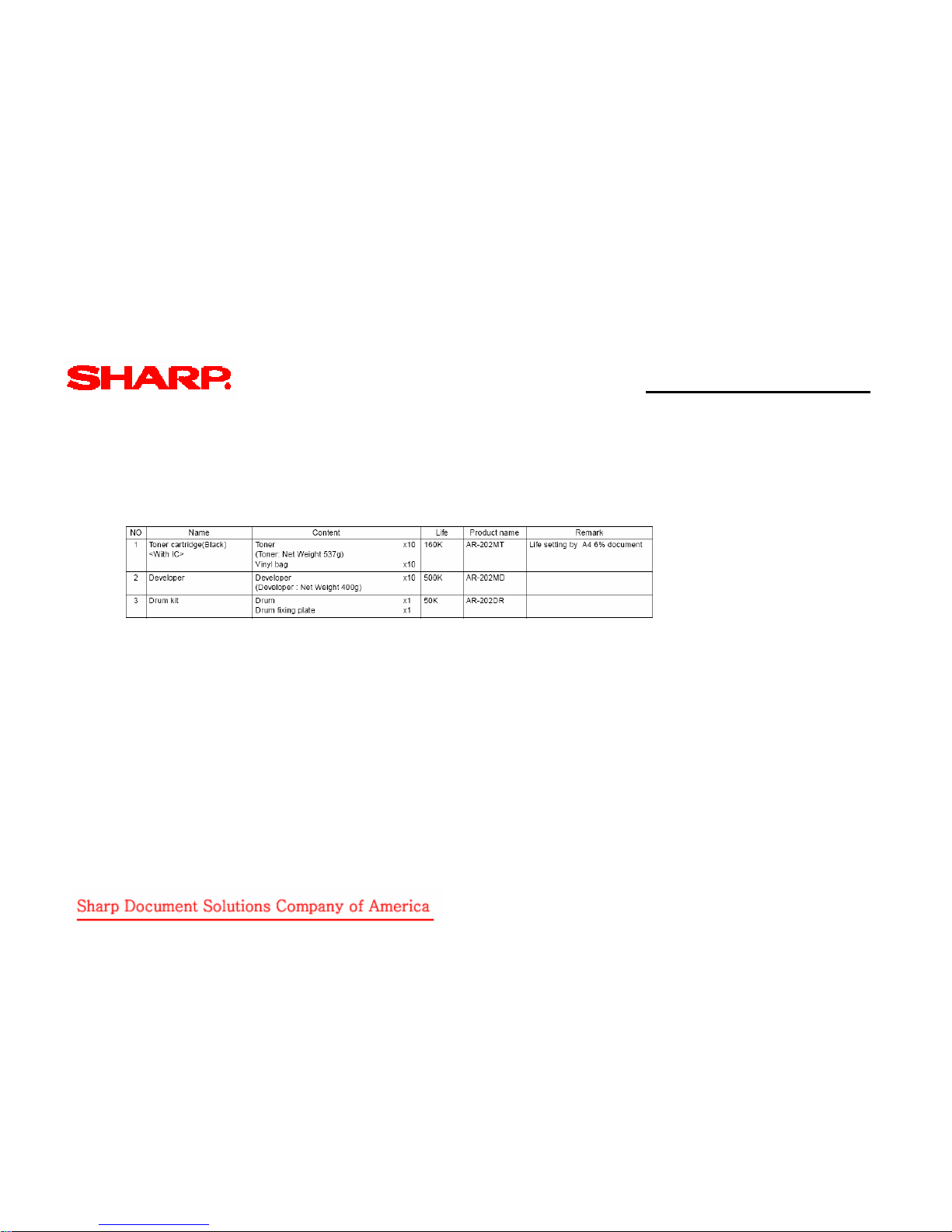

Consumables

Consumable Items

Supply System Table

(USA/Canada)

Quick Reference Guide: AR-M207, M165, M162

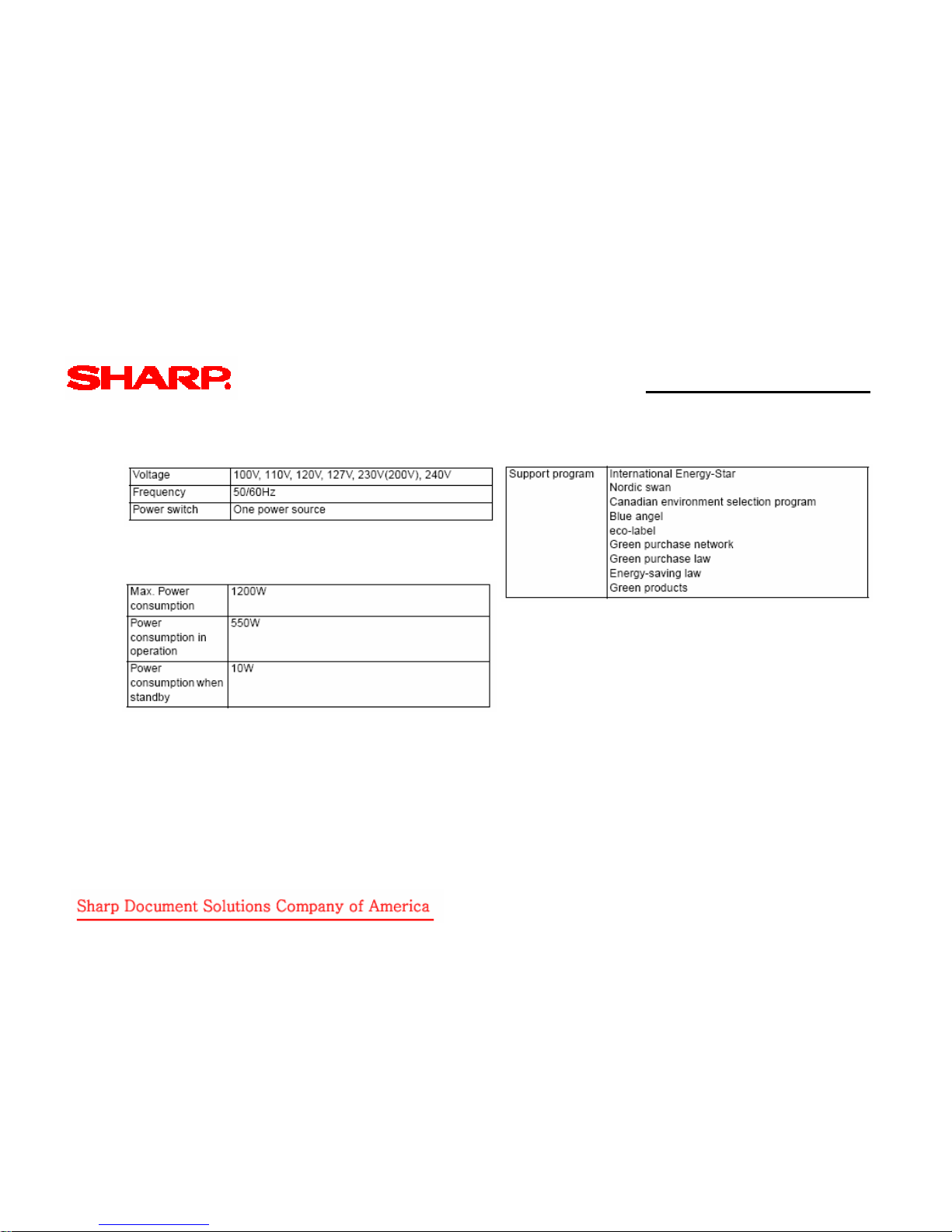

Power Source/Consumption and Environment Support

Power Source

Power Consumption

*Must conform to energy saving laws, international

standards, and company regulations.

Environment Support

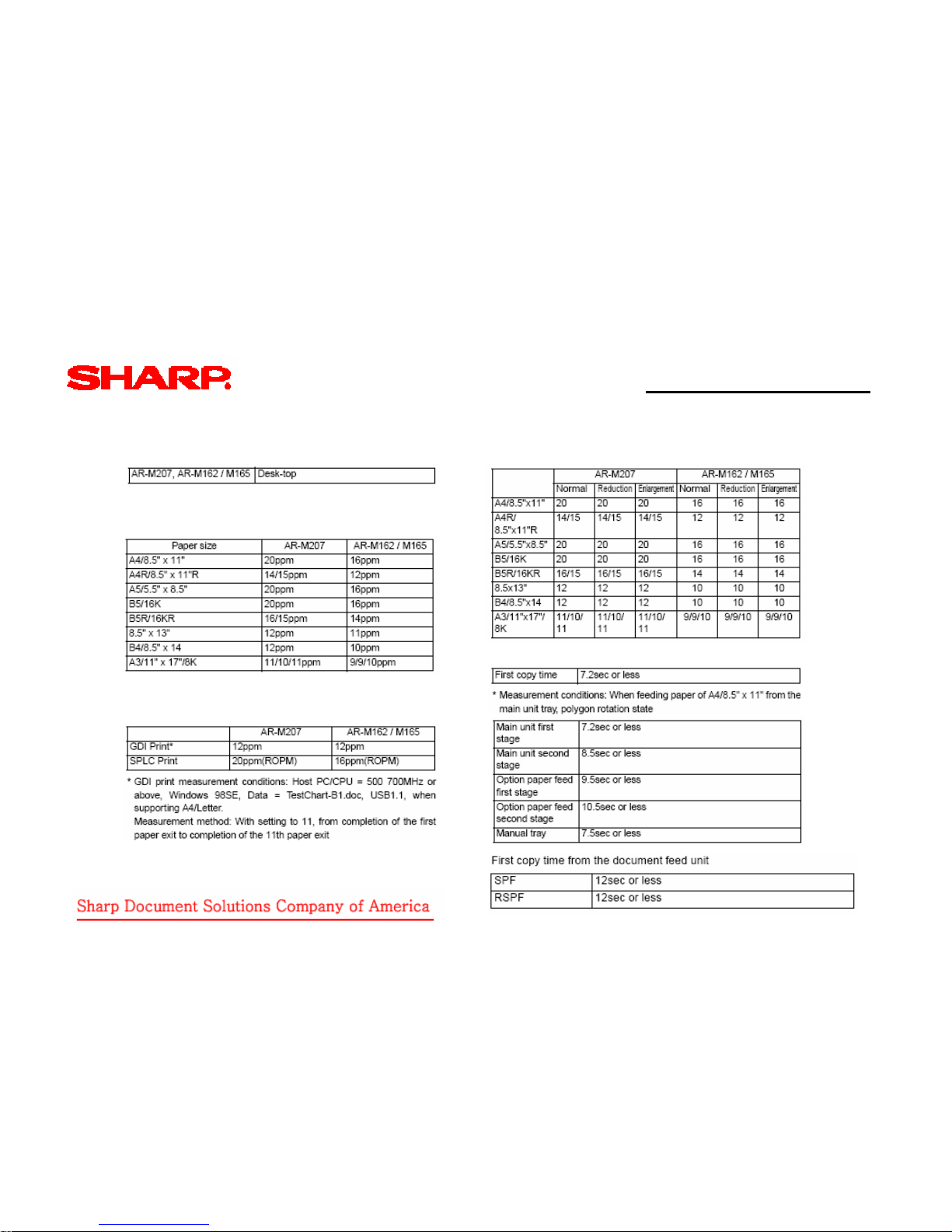

Quick Reference Guide: AR-M207, M165, M162

Specifications

Base Engine

Print Performance

Copy Speed (CPM)

First Copy Time

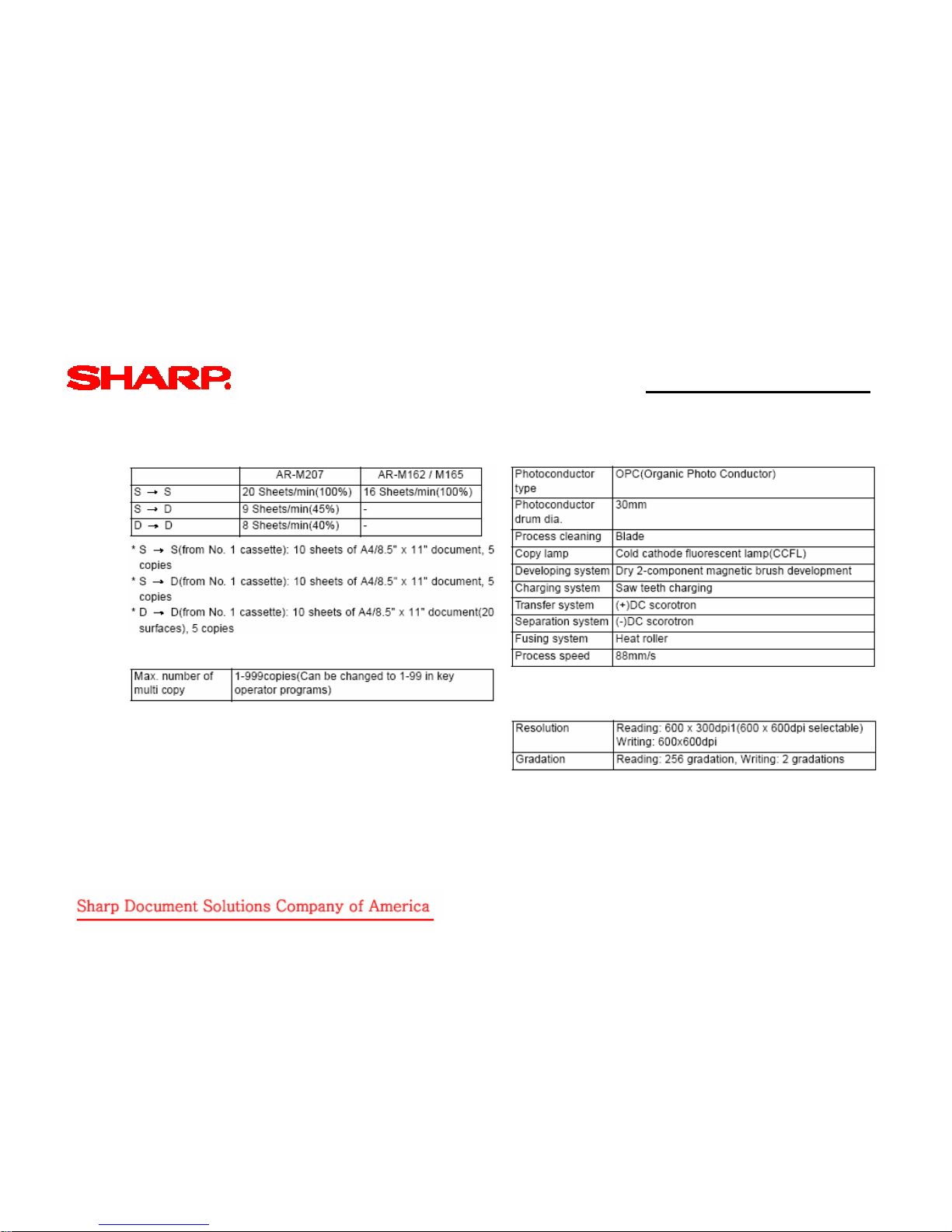

Quick Reference Guide: AR-M207, M165, M162

Specifications (cont’d)

Job Speed

Continuous Copying

Base Engine (cont’d)

Engine Composition

Engine Resolution

Quick Reference Guide: AR-M207, M165, M162

Specifications (cont’d)

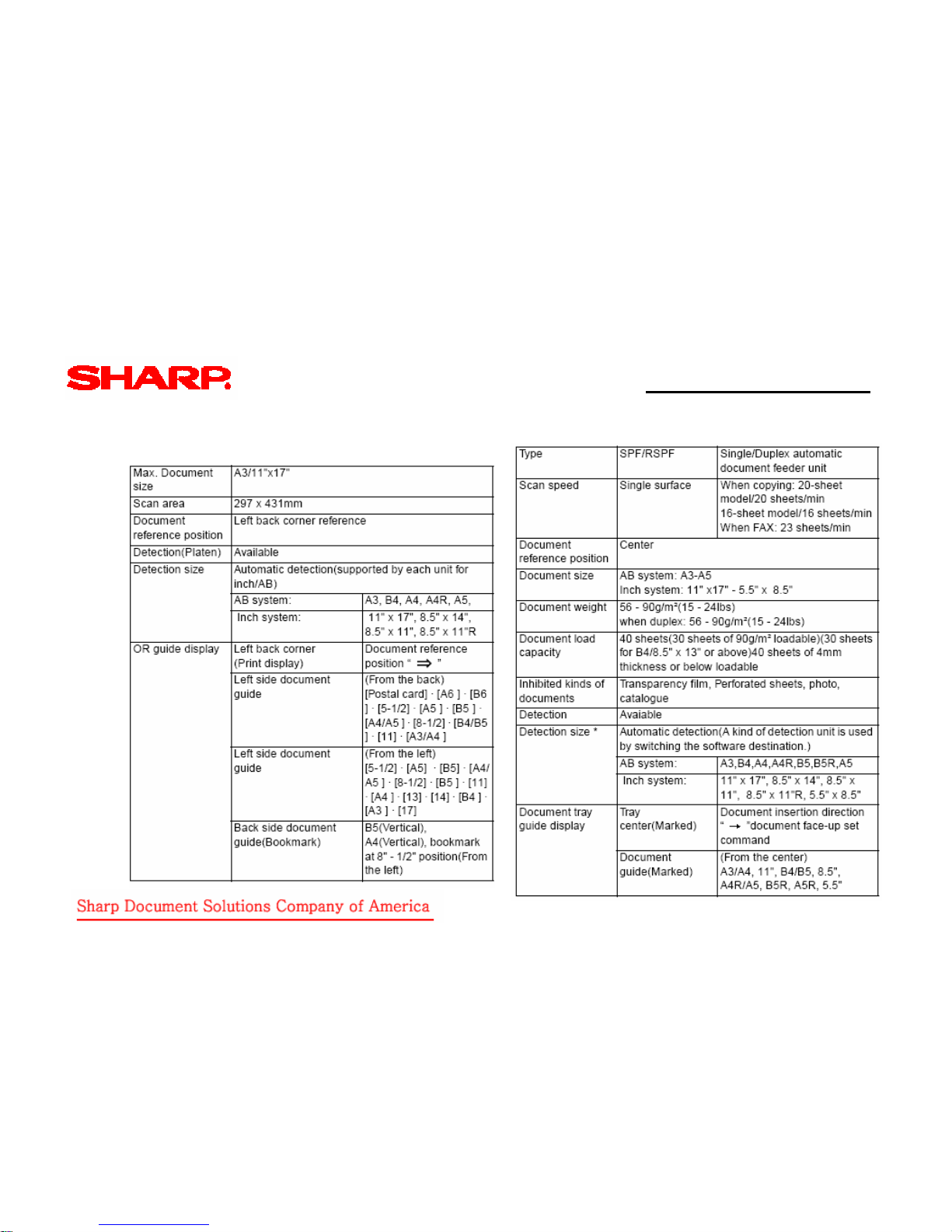

Scanner Section

Document Table

AB and inch can be switched to each other by SIM.

SPF/RSPF

Quick Reference Guide: AR-M207, M165, M162

Specifications (cont’d)

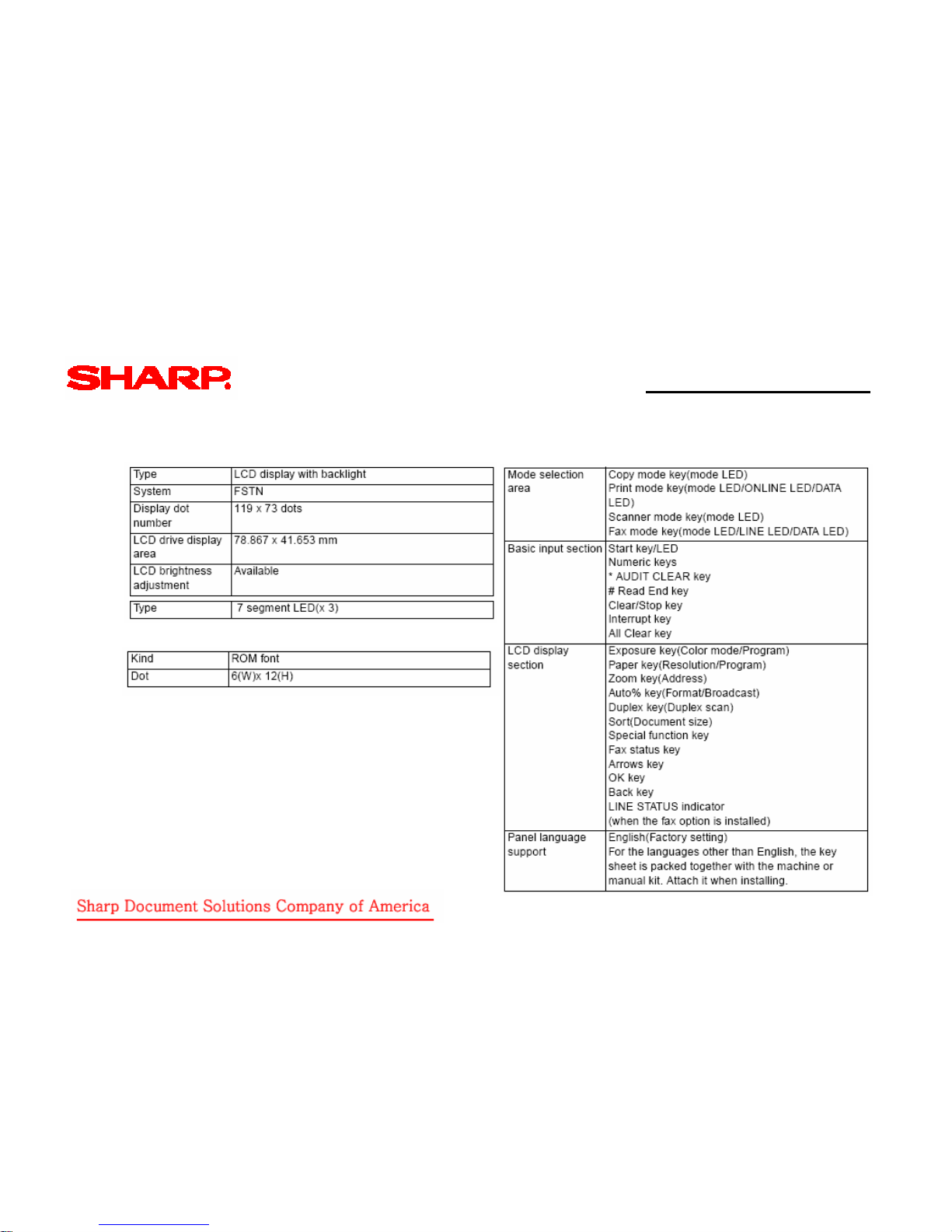

Operation Panel

Display Device Key

Characters used in LCD
