Thank you for your purchase of the SHARP electronic printing

calculator, model EL-1611P.

To insure trouble-free operation of your SHARP calculator, we

recommend the following:

1. The calculator should be kept in areas free from extreme

temperature changes, moisture, and dust.

2. A soft, dry cloth should be used to clean the calculator. Do

not use solvents or a wet cloth.

3. Since this product is not waterproof, do not use it or store it

where fluids, for example water, can splash onto it.

Raindrops, water spray, juice, coffee, steam, perspiration,

etc. will also cause malfunction.

4. If service should be required, use only a SHARP servicing

dealer, a SHARP approved service facility or SHARP repair

service.

5. If you pull out the power cord to cut electricity completely or

replace the batteries, the presently stored tax rate will be

cleared.

ENGLISH

OPERATIONAL NOTES CONTENTS

OPERATING CONTROLS



POWER ON KEY / CLEAR / CLEAR ENTRY KEY:

Clear – This key also serves as a clear key for the

calculation register and resets an error condition.

Clear entry – When pressed after a number and before a

function, clear the number.

POWER OFF KEY:

When this key is pressed, the power is turned off.

PRINT KEY:

To save paper you can only print what is displayed, even

in non-print mode.

Pressing after the entry of a number will print the entry

with the symbol “#” even in non-print mode.

Pressing will insert a separator into a number entry

such as a code, date, etc. Separators are displayed as a

period and dashes but printed as periods.

MEMORY + KEY / PRINT ON / OFF KEY:

Pressing selects print mode or non-print mode.

Cause the calculator to operate in a display / print or

display only mode, depending upon the calculator’s

present state.

“P” on the display: Print mode.

“NP” on the display: Non-print mode.

MEMORY – KEY / DECIMAL SELECTION KEY:

Pressing sets the number of decimal places in

the result.

“F” on the display:

The answer is displayed in the floating decimal system.

“3, 2, 1, 0” on the display:

Presets the number of decimal places in the answer.

“A” on the display (Add mode):

The decimal point in addition and subtraction entries is

automatically positioned to the 2nd digit from the lowest

digit of entry number. Use of the add mode permits

addition and subtraction of numbers without entry of

the decimal point. Use of , and will

automatically override the add mode and decimally

correct answers will be printed.

PRE-TAX KEY

TAX-INCLUDING KEY / TAX RATE SET KEY:

You can set the tax rate by pressing . (A

maximum of 4 digits excluding the decimal point can be

stored as the tax rate.)

2nd FUNCTION KEY:

To use the functions shown above the keys, such as

“DEC”, press the key first. (When the key is

pressed, “2nd” will appear at the top of the display.)

Example: To change decimal place setting from F to 2

PAPER FEED KEY:

When pressed, the paper tape advances.

DISPLAY:

F: Floating decimal mode TAX+: Incl. tax

3, 2, 1, 0: Preset decimal mode TAX–: Pre-tax

A: Add mode TAX : Tax rate

P: Print mode M: Memory

NP: Non-print mode –: Minus

2nd: functions are available E: Error

•For illustration purposes, all the relevant symbols are visible

in the display above. However, in actual use, this would never

happen.

If printing is blurry even when the ink roller is in the proper

position, replace the roller.

Ink roller: Type EA-732R

WARNING

APPLYING INK TO WORN INK ROLLER OR USE OF

UNAPPROVED INK ROLLER MAY CAUSE SERIOUS

DAMAGE TO PRINTER.

1) Turn the power off.

2) Remove the printer cover. (Fig. 1)

3) Remove the ink roller by turning it counterclockwise and

pulling it upward. (Fig. 2)

4) Install the new ink roller and press it in the correct position.

Make sure that the ink roller is securely in place. (Fig. 3)

5) Put back the printer cover.

INK ROLLER REPLACEMENT

Fig. 1 Fig. 2 Fig. 3

Cleaning the printing mechanism

If the print becomes dull after long time usage, clean the

printing wheel according to the following procedures:

1) Remove the printer cover and the ink roller.

2) Install the paper roll and feed it until it comes out of the front

of the printing mechanism.

3) Put a small brush (like a tooth brush) lightly to the printing

wheel and clean it by pressing .

4) Put back the ink roller and the printer cover.

Notes: •Never attempt to turn the printing belt or restrict its

movement while printing. This may cause incorrect

printing.

•Do not rotate the printing mechanism manually, this

may damage the printer.

PAPER ROLL REPLACEMENT

Never insert paper roll if torn. Doing so will cause paper to jam. Always cut leading edge with scissors first.

♦When using the paper roll that is less than or equals to 25 mm (31/32") in outside diameter:

Paper roll : Type EA-7100P

STEP 1 STEP 2 STEP 3

STEP 4

leading edge

Paper

cutter

Note: Paper tape replacement rolls are available where the EL-1611P calculator is sold.

♦When using the paper roll that is 12mm (15/32") in inside diameter and up to 80mm (3-5/32") in outside diameter:

Caution: •Never use the supplied paper (25 mm (31/32") in

outside diameter) in the holder.

•When replacing the paper, touching the inside of the

printer may damage it.

•The calculator has a free-paper mechanism. When

drawing out the paper tape, pull it straight forward on

the paper cutter side.

STEP 1 STEP 2 STEP 3 STEP 4

Paper holder

STEP 5 STEP 6

This calculator operates on dry batteries.

The calculator can also be operated on AC power through use

of an AC adaptor.

BATTERY OPERATION

If the display becomes dim or the printer stops before or during

printing, the batteries should be replaced.

Battery: Heavy-duty manganese battery, size AA (or R6) ×4

1. Turn off power by pressing .

2. Remove the battery cover by sliding it in the direction of the

arrow on the cover.

3. Replace the batteries. Be sure that the “+” and “–” marks on

the battery correspond to the “+” and “–” marks in the

calculator. Always put back the 4 batteries at the same time.

4. Put back the battery cover.

POWER SUPPLY 5. After the replacement, press and in this order to

clear the calculator.

When the batteries are correctly installed “0.” will be

displayed. (If the display is blank, displays any other symbol

or the keys become inoperative, remove the batteries and

install them again. Press and in this order and

check the display again.)

Note: Due to solvent leakage of the battery, keeping a used

battery in the battery compartment may result in damage

to the calculator. Remove a used battery promptly.

Battery cover

AC POWER OPERATION (OPTION)

AC adaptor: Model EA-28A

When the AC adaptor is connected to the calculator, the power

source is automatically switched over from dry batteries to AC

power source.

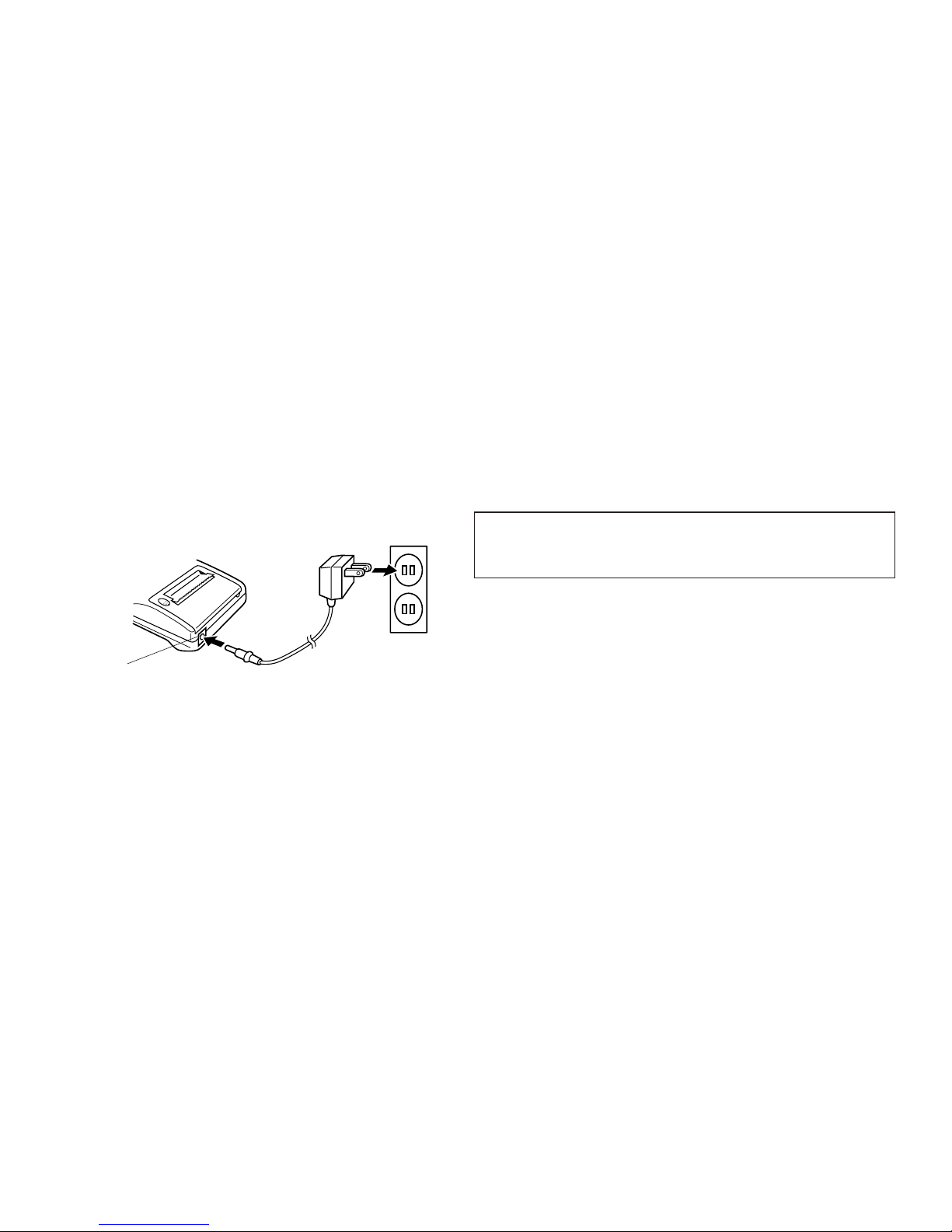

HOW TO CONNECT THE AC ADAPTOR

Make sure that you turn the calculator’s power off when

connecting or disconnecting the AC adaptor.

To connect the AC adaptor, follow steps ➀and ➁.

To disconnect the AC adaptor, simply reverse the procedure.

➀

➁

AC adaptor

connecting

terminal

Notes: •When the calculator is not in use, be sure to remove

the adaptor from the calculator and the wall outlet.

•Never use any other AC adaptor except EA-28A.

CAUTION

Use of other than the AC adaptor EA-28A may apply

improper voltage to your SHARP calculator and will cause

damage.

Altri manuali per EL1611P - 12 Digit Hand Held Calculator AC/DC...

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Sharp Calcolatrice

Sharp

Sharp CS-2194H Manuale utente

Sharp

Sharp EL-506H Manuale utente

Sharp

Sharp EL9600C - Graphing Calculator Manuale utente

Sharp

Sharp EL-5230 Manuale utente

Sharp

Sharp Elsimate EL-334F Manuale utente

Sharp

Sharp EL-9900 Manuale utente

Sharp

Sharp EL-240SAB Manuale utente

Sharp

Sharp EL-2910R Manuale utente

Sharp

Sharp EL-2630P II Manuale utente

Sharp

Sharp EL-9900 Manuale utente

Sharp

Sharp ELSI MATE EL-M332 Manuale utente

Sharp

Sharp PC-E220 Manuale utente

Sharp

Sharp ELSI MATE EL-244M Manuale utente

Sharp

Sharp EL-2125C Manuale utente

Sharp

Sharp EL-8130 Manuale utente

Sharp

Sharp EL9900C - Graphing Calc With 2 Sided Keypad Lrg 22 CHAR/8 Line Display... Manuale utente

Sharp

Sharp Elsi Mate EL-W211G Manuale utente

Sharp

Sharp Esi Mate EL-240SA Manuale utente

Sharp

Sharp EL-364 BBK - El364bbk 12 Digit Slim Design Manuale utente

Sharp

Sharp EL9900C - Graphing Calc With 2 Sided Keypad Lrg 22 CHAR/8 Line Display... Manuale utente

Sharp

Sharp EL-2607PC Manuale utente

Sharp

Sharp Compet VX-792C Manuale utente

Sharp

Sharp EL-509E Manuale utente

Sharp

Sharp EL-9450 Manuale del proprietario

Manuali Calcolatrice popolari di altre marche

HP 35s Manuale

Casio

Casio CFX-9970G Manuale utente

LEXIBOOK

LEXIBOOK EL350 Manuale utente

HP HP-97 Manuale utente

Citizen

Citizen SDC-414N Manuale utente

Casio

Casio fx-3800P Manuale utente

Canon

Canon P26-DHIII Manuale utente

Citizen

Citizen 520DPA Manuale utente

Casio

Casio FX-9860GII - SOFTWARE VERSION 2-00 Manuale utente

Casio

Casio MS-7UC Manuale utente

Casio

Casio FC-200 Manuale utente

Casio

Casio fx-CG50 Manuale utente

HP HP-67 Guida utente

Royal

Royal CBC2000 Manuale utente

Heathkit

Heathkit IC-2009 Manuale utente

Universal

Universal UNV-15907 Manuale utente

Casio

Casio ALGEBRA FX 2.0 Manuale utente

Casio

Casio CLASSPad300 - ClassPad 300 Touch-Screen Graphing Scientific... Manuale utente
