Operation Manual
Heat Pump Dryer
Please read this manual carefully before operating the machine.
KD-HT9JP-G
KD-HT10JP-G
Contents
Safety precautions
Installing Clothes Dryer
Pre-installation considerations
Change the direction of the door
Adjust horizontal foot
Connecting drain hose
08
02
Specification
Troubleshooting 22
21
09
09
10
10
Use a clothes dryer
Name of each part
Pre-use confirmation
Use steps
Instructions for use
12
12
13
14
15
Maintenance of clothes dryer
Cleaning of clothes dryer
Empty Water Container
Clean the filter
Clean heat exchanger
Cooling air inlet cleaning
Humidity sensor
Door Cleaning
Freezing treatment in winter
17
17
18
18
19
20
20
20
21
Error code
Troubleshooting
22
23
01
Don't try. Do not remove. Don't touch it.
Make sure the dryer is grounded effectively to prevent electric shock.
grounding
When installing, maintaining and using the dryer, please read these instructions
carefully and operate with caution so as to make full use of the functions of the dryer
and prolong the service life of the dryer. The Company shall not be liable for any loss
caused by improper use.
Important Safety Symbols and Precautions:
Warning:Dangerous or unsafe
behaviour may result in serious
bodily injury, death or property
damage.
Be careful:Dangerous or unsafe
conduct that may result in
personal injury or loss of proper-
ty.
Keep the dryer away from heat sources,
open fires (e.g. Mosquito coils, candles,
cigarettes, hairdryers, etc.).
• May cause fire or product distortion.
Do not place this product against the
wall.
• It can damage power plugs or power
cords, causing hazards such as fire or
electric shock.
Please install the product in a place
where the plug can be easily plugged in,
remove the power supply when cleaning
the product or shelving the product for a
long time.
• Failure to do so may result in fire or
electric shock.
This product is only applicable to
220V-240V~. To ensure your safety, you
must use a three-core socket and be
careful to check that your socket is
properly and reliably grounded.
• Electric shock can result from product
failure or leakage.
Safety precautions
02
Do not leave the dryer in a damp place
such as the bathroom or in a windblown
or rainy place.
• May cause fire or electric shock.
Do not install flammable goods, such as
curtains or carpets.
• Hot gas emitted from the product may
cause damage to the object or cause
hazards such as fire.
Please protect the power cord. Do not
place the power cord arbitrarily so as not
to be trampled on or pressed or clamped
by other objects.
• Possible fire or electric shock.
Connect the power cord of the power
plug connection downwards.
• If the power supply is connected in the
reverse direction, the power supply cable
may be disconnected internally, causing
a fire or electric shock.
Power cord, power plug damaged, or
power socket hole loose, please immedi-
ately stop using and contact profession-
als to replace.
• Poor contact can lead to hazards such
as electric shock, leakage or fire.
Please grab the plug board by hand and
pull the plug.
• If the power cord is forced, it may result
in fire or electric shock caused by a
broken power cord.
03
Safety precautions
Subzero
Do not install the product below zero
degrees Celsius.
• The freezing of parts may cause the
product to malfunction or damage.
Do not use an expansion socket, use a
dedicated socket to connect the power
supply.
• Possible fire or electric shock.
If dirt is attached to the power plug,
please wipe it clean before using it.
• Possible fire or electric shock.
Do not alter the power cord without
authorization.
• Can cause fire or electric shock.
Do not plug in or unplug the power supply
with a wet hand.
• Risk of electric shock.
Please be careful not to allow pets or
children to enter in the machine.
• May cause suffocation or other injury.
Do not sprinkle water directly on the
product during cleaning.
• May result in short circuits or electric
shocks.
Do not put clothes that have not been
dehydrated by the washing machine into
the product.
• May cause fire or electric shock.
04
Safety precautions
Do not attempt to repair the dryer
yourself or allow inexperienced and
unqualified personnel to do so.
• May cause serious damage to the dryer
and personal injury.
If there is a gas leak, ventilate immedi-
ately and do not touch the power plug.
• Possible sparks leading to explosions
or fires.
05

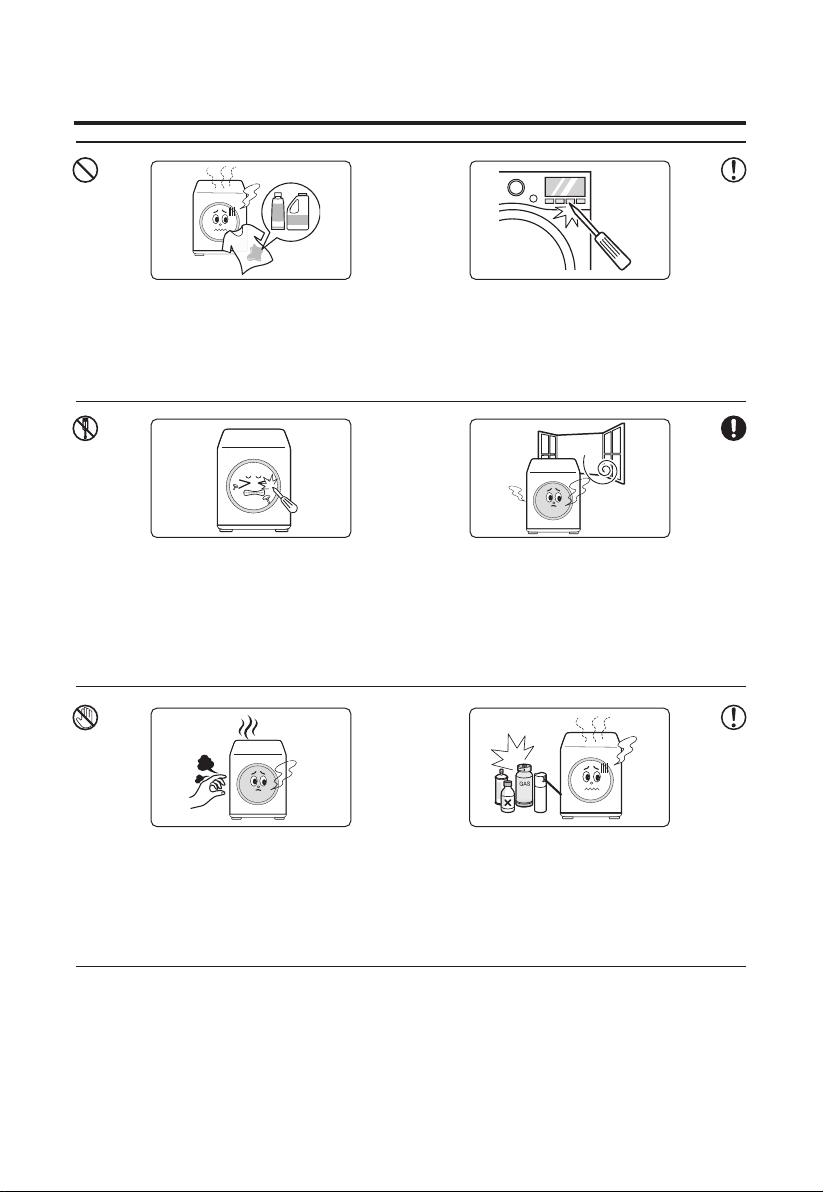

Do not touch the dryer door or the upper
part of the product with your hands while
the product is running.
• May cause burns.
Do not use flammable gases or
substances (benzene, gasoline, petro-
leum, alcohol, etc.) near the product.
• There may be explosions or fires.
Do not dry clothes stained with
kerosene, gasoline, alcohol and other
combustible substances.
• Could lead to an explosion or fire.
Do not press the touch key on the panel
with a cone or other sharp object.
• Possible electric shock.
Safety precautions
telephone
Bleach
漂白
Please manage your surroundings to
prevent pets, rats, insects, etc. from
entering the product.
• Risk of damage to power cords or fires.
Please be careful not to allow children
access to this product.
• Possible harm.
roducts have abnormal sound, taste,
smoke and other phenomena, please
contact after-sales.
• May cause fire or electric shock.
Please make sure that the clothes can
be dried with a dryer.
• May cause damage to the product or
dry goods.
Do not wipe the product with liquid deter-
gent, bleach (bleach, etc.).
• Bleach spatter on product surfaces can
cause paint to fall off or surface discolor-
ation.
Do not put detergent or bleach in the
Water container and drying drum.
• Can cause product malfunctions or
electric shocks.
06
When the product is flooded, be sure to
contact after-sales processing.
• May cause fire or electric shock.
Please be careful not to get caught in the
door of the dryer, Water container, etc
• Possible harm.
Safety precautions
Do not place objects on top of the
product because of the high temperature
on the top and door when the product is
running.
• Please do not place objects on them,
which may cause deterioration or distor-
tion of the product.
• Falling objects can cause bodily harm.
This product is only used for drying.
• For purposes other than clothing,
abnormal vibrations may result in
damage and injury to products, floors,
walls, etc.
07

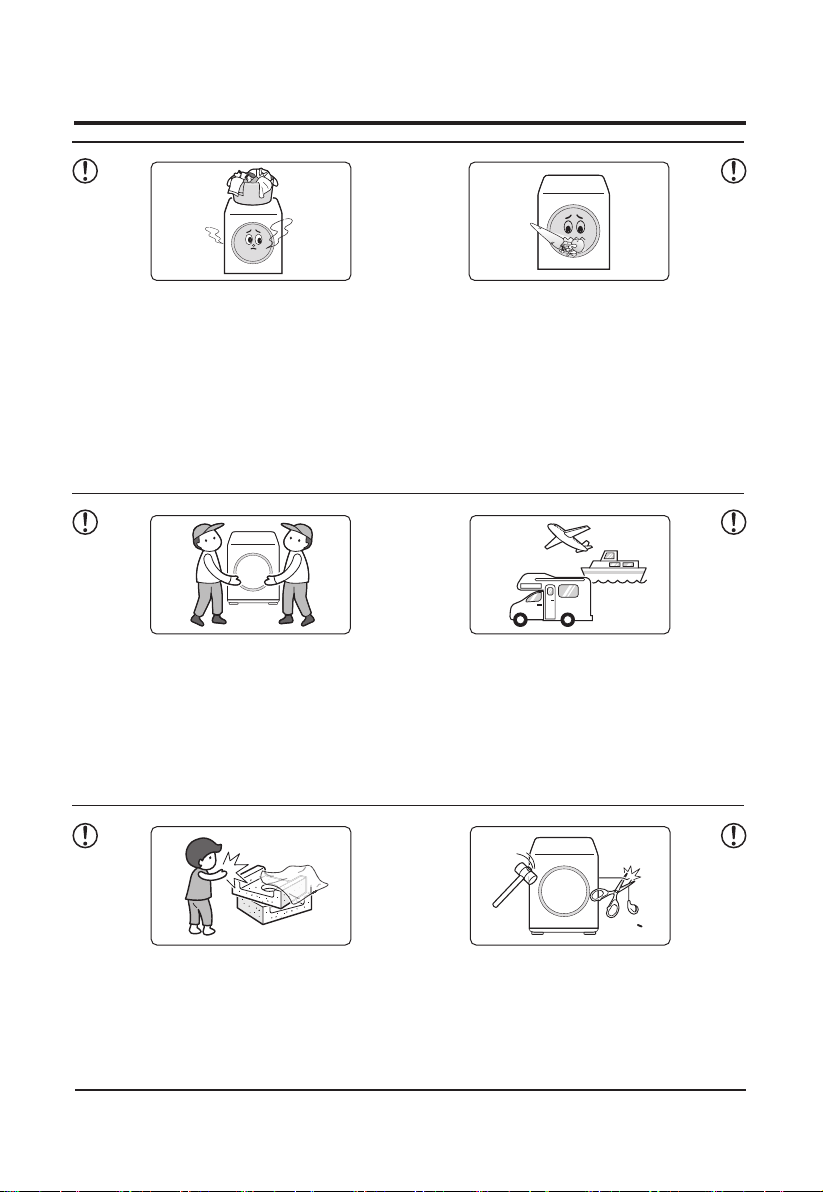

Please dispose of the packaging materi-
als (plastic, foam, etc.) in time to avoid
children touching them.
• Packaging materials can cause
asphyxiation.
Cut the power cord when you scrap the
product, and destroy the control panel.
• Reuse can lead to fire or electric shock.
When the product is installed or moved, it
must be handled by more than 2 people.
• Product drop or product impact may
result in personal injury or product
damage.
Do not install the product inside a moving
vehicle (RV), ship or aircraft, etc.
• Please make sure to consult the
nearest after-sales service store if you
can install it in a special place.
Safety precautions
08
Pre-installation considerations
In order to avoid unnecessary fire, electric shock or personal injury hazards, all electri-
cal wiring and grounding must be set in accordance with national electrical standards.
When preparing for installation, ensure that your power supply is:Fuses or circuit
breakers for 220V-240V~, 50Hz, 15A.
To ensure your safety, you must use a three-core socket and ensure that your socket
is properly and reliably grounded.

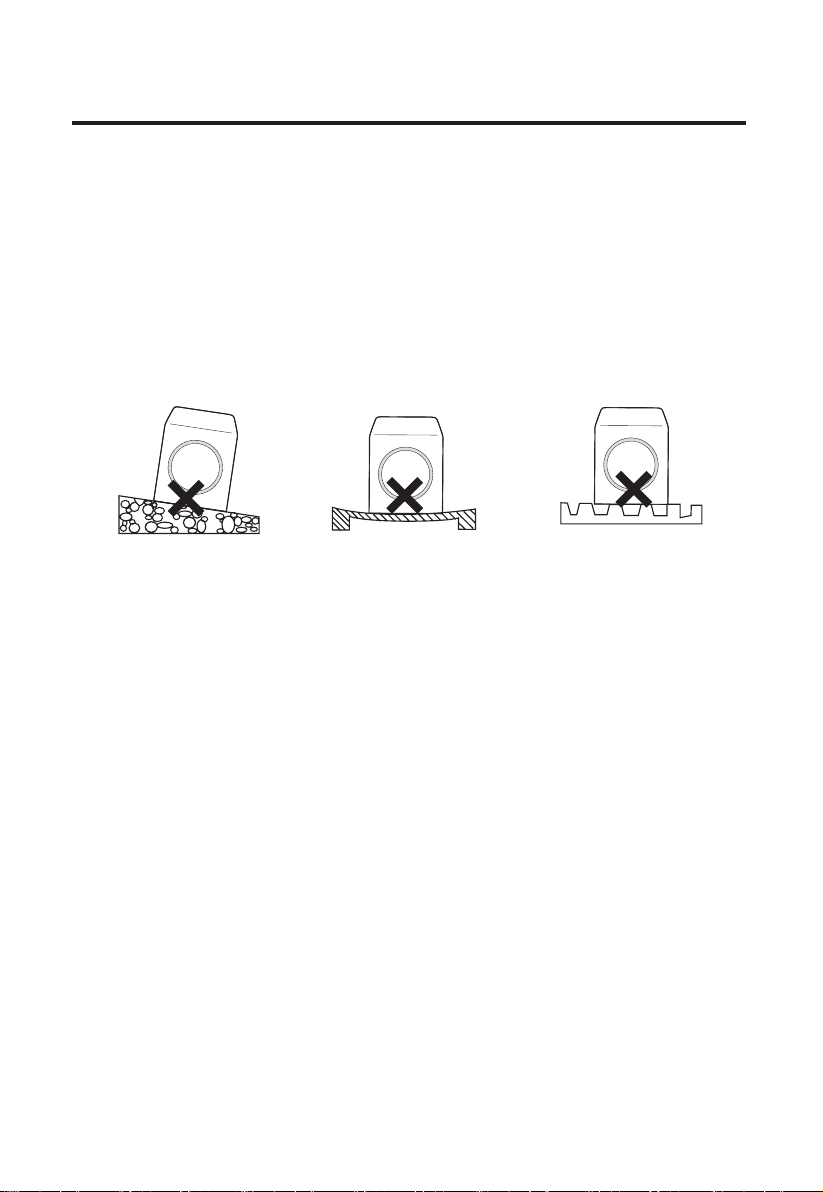

• Please install on a hard, flat, level floor. (otherwise, abnormal vibration and noise, or
even malfunction, may result.)
• After installing the equipment in the desired position, adjust the horizontal foot of the
dryer if the ground is uneven (do not insert wood chips or any other items under the
foot).
• Avoid direct sunlight and good ventilation.
• Model products with ventilation openings at the bottom should not be placed on floor
materials such as carpets that can block ventilation openings.
• Cotton chips are not allowed to pile up around the drum dryer.
• Please install at 5 ~ 35 °C.
• In an environment where the temperature is too high or too low, the product perfor-
mance may be degraded or damaged.
• Distance between product and wall
Upper end of product : 25mm
Product side : 25mm
Rear of product/wall : 50mm
If the door is on the left.
If the door is on the right.
HingeHinge
Hinge Hinge
Change the direction of the door
Installing Clothes Dryer
09
1. Remove the door by unscrewing the 2
screws with a cross screwdriver.
2. Unscrew 5 screws with a crosshead
screwdriver and separate the mounting
brackets (A) and (B) at the left and right of
the clothes dryer door.
3. Switch door hinge, part (B) and part (A)
and tighten 5 screws with a cross screw-
driver.
4. Remove the four screws in the door
lock position, remove the door lock and
install to the other side.
5. Fit door on the other side and screw
down with 2 screws.
