Sharp LC-LE831E Series Guida all'installazione

LC-xxLE831E

Training Notes

Issued by:

CE After Sales Service

July 2011

Training Notes

MODEL

LC-40/46/52/60LE831E

Issued by:

CE After Sales Service

July 2011

Note –Please use the ZOOM feature to view the presentation.

Speech bubbles are training notes. Click to access the notes

Contents

1. Model introduction

2. Block Diagram

3. Schematic Diagrams

4. New Technologies

5. Software Updating

6. Service Mode

7. IP Control

8. USB Clone

9. Adjusting Process

Issued by:

CE After Sales Service

July 2011

Model Introduction

Based on LE925 with MEDIATEK Video Processor (MT5395).

RGBY Panel.

Sizes: 40”, 46”, 52” and 60”.

Type of cabinet:

-Front cabinet: Light metallic

-Slim Full-Flat and seamless design

-Stand: Plastic

-Bottom speakers

-Subwoofer

-Touch-sensor keys

Models:

LC-40/46/52/60LE631E → Northern Europe & UK Market

Issued by:

CE After Sales Service

July 2011

Issued by:

CE After Sales Service

July 2011

Model Introduction

Important Specification Notes:

•Models use 2nd generation Quattron panels

•Only HDMI 1 supports the ARC feature

•You can only use USB 1 for the SKYPE camera.

When connected to other USB ports, the unit will

crash and reset

•You can only use USB 2 for devices that require

consistent power such as an external HDD

•You can only use USB 3 for the Wireless LAN.

This port ONLY contains the wireless drivers

Issued by:

CE After Sales Service

July 2011

Model Introduction

• X-GEN TFT LCD 100Hz (double frame driving) (UV2 A).

• New ASV mode Low reflective Black TFT panel.

• Quattron: 4 colour technology.

• LED backlight system (Edge type).

• Full-HD LCD Panel (1920xRGBYx1080) with 4ms response.

• Wide angle vision (H/V: 176º).

• High brightness (418cd/m2) and dynamic contrast (5000:1).

• 200Hz scanning backlight.

• Built-in DVB-T/DVB-T2 / DVB-C Tuner (MPEG2/MPEG4

H.264).

• Dolby Digital Plus (DD+) decoder (E-AC3) and HE-AAC

compatible.

• Optical Digital Audio Output (SPDIF).

• Multi-standard AV.

• OSD multi-language.

• 4 x HDMI 1.4a (1080p 24/50/60Hz) with InstaPort™ feature.

• ARC in HDMI1.

• SD sct for On-demand via Aquos NET+.

• Common Interface Plus (CI+).

• PC input (analog RGB / digital HDMI).

• RGB in EXT1.

• LAN connector (Net-TV).

• RS-232C terminal.

• IP control (B2B, enable <PC or Ctrol panel to control

basic TV functions)

• USB 2.0: JPEG (Photo), MP3 (Music), Movie (avi, mkv,

wmv, asf, mp4, mpg,

mov, DivX + HD) & SERVICE (soft. update).

• AQUOS LINK.

• 8 ECO (Environment Friendly).

• Advance EPG Mode.

• Pyramid Icon: with light-up illumination.

• DLNA

• TimeShift -USB Port Only.

• Digital audio amplifi er 20W (10W+10W)-Subwoofer

(15W).

• AQUOS Net+

• Skype function

• 3D ready model

• Wi-Fi.

• MHP (only LE833)

• FRED technology (Frame Rate Enhanced Driving)

• 3 USB ports

-USB 1: USB memory or Skype camera

-USB 2: HDD port

-USB 3: Wireless LAN

• E-manual (supplied USB memory)

• New 3D glasses AN-3DG20 (rechargeables)

Issued by:

CE After Sales Service

July 2011

Model Introduction

Issued by:

CE After Sales Service

July 2011

Model Introduction

Issued by:

CE After Sales Service

July 2011

Model Introduction

Issued by:

CE After Sales Service

July 2011

Model Introduction

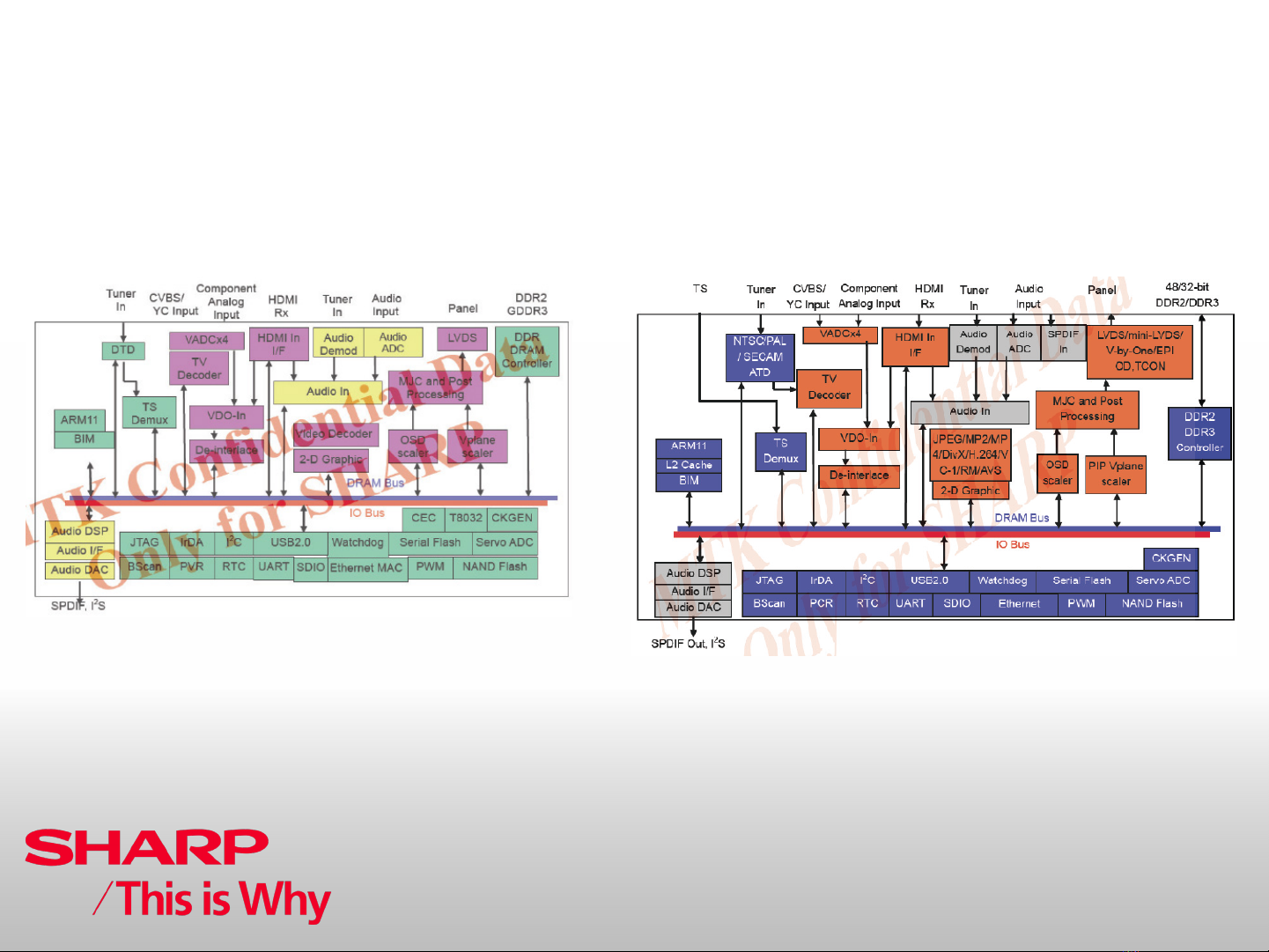

MT5391 MT5395

CPU Comparison
