READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.
MODEL
SMC2242DS
MICROWAVE OVEN
OPERATION MANUAL
※Keep the waveguide cover clean at all times.
Wipe the oven interior wth a soft damp cloth after each use.
If you leave grease or fat anywhere in the cavity it may overheat, smoke or even catch
fire when next using the oven.
CONTENTS
• For Customer Assistance ..... 2
• Precautions to Avoid Possible
Exposure to Excessive
Microwave Energy .................... 2
• Consumer Limited Warranty....................... 3
• Important Safety Instructions ..................... 4
• Federal Communication Commission Radio
Frequency Interference Statement ............ 5
• Grounding Instructions .............................. 5
• Installation Guide ........................................ 6
• Specications.............................................. 8
• Features Diagram ........................................ 9-10
• Operation Procedure .................................. 11
• Controls ....................................................... 12-21
• Care of Your Microwave Oven ................... 22-23
• Questions and Answers ............................. 24
• Cooking Instructions .................................. 25-35
2
IMPORTANT! Register within 10 days of purchase.
Register ONLINE at www.sharpusa.com/productregistration
To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial
number located on the unit. We also suggest you record all the information listed and retain for future reference.
MODEL NUMBER _______________________ SERIAL NUMBER _____________
DATE OF PURCHASE _____________________
DEALER ___________________________ TELEPHONE ________________
SERVICER __________________________ TELEPHONE ________________
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can
result in harmful exposure to microwave energy. It is important not to defeat or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door
close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches
(broken or loosened), (3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service
personnel.
TO PHONE:
DIAL 1-800-BE-SHARP ( 237-4277 ) for :
SERVICE (for your nearest Sharp Authorized Servicer)
PARTS (for your authorized parts distributor)
ADDITIONAL CUSTOMER INFORMATION
TO WRITE:
Sharp Electronics Corporation
Attn: Customer Assistance Center
Sharp Plaza Blvd
Memphis, Tennessee 38193
TO ACCESS INTERNET:
www.sharpusa.com
Please provide the following information when you write or call: model number, serial number, date of purchase,
your complete mailing address (including zip code), e-mail address, your daytime telephone number (including
area code) and description of the problem.
FOR CUSTOMER ASSISTANCE
3
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand
product (the “Product”), when shipped in its original container, will be free from defective workmanship
and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product
or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor
for the period(s) set forth below.
This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s)
set forth below nor to any Product the exterior of which has been damaged or defaced, which has been
subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered
or modified in design or construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth
below and provide proof of purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be granted to
purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH
BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other
than those described herein, or to extend the duration of any warranties beyond the time period described
herein on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be
the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the
period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of
Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether
based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way
responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs
performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible
for any incidental or consequential economic or property damage. Some states do not allow the exclusion
of incidental or consequential damages, so the above exclusion may not apply to you.
THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF
COLUMBIA AND PUERTO RICO.
Your Product Model Number &
Description: SMC2242DS Home Use Carousel Microwave Oven. (Be sure to have
this information available when you need service for your Product.)
Warranty Period for this Product: One (1) year parts and labor. The warranty period continues for an
additional four (4) years, for a total of five (5) years, with respect to
the magnetron tube in the Product for parts only; labor and service
are not provided free of charge for this additional period.
Additional Item(s) Excluded from
Warranty Coverage (if any): Non-functional accessories, turntable and light bulb.
Where to Obtain Service: From a Sharp Authorized Servicer located in the United States.
To find the location of the nearest Sharp Authorized Servicer, call
Sharp toll free at 1-800-BE-SHARP (1-800-237-4277).
What to do to Obtain Service: Ship prepaid or carry in your Product to a Sharp Authorized Servicer.
Be sure to have Proof of Purchase available. If you ship the Product,
be sure it is insured and packaged securely.
TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP OR VISIT www.sharpusa.com.
SAVE THE PROOF OF PURCHASE AS IT IS NEEDED SHOULD YOUR OVEN EVER REQUIRE WARRANTY SERVICE.
CONSUMER LIMITED WARRANTY
4
When using electrical appliances, basic safety precautions should be followed, including the following:
WARNING-To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive
microwave energy:
11. Read all instructions before using the appliance.
12. Read and follow the specific “PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY” found on page 2.
13. This appliance must be grounded. Connect only to
properly grounded outlet. See “GROUNDING
INSTRUCTIONS” found on page 5.
14. Install or locate this appliance only in accordance with
the provided installation instructions.
15. Some products such as whole eggs and sealed
containers - for example, closed glass jars are able to
explode and should not be heated in this oven.
16. Use this appliance only for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in this appliance. This type of
oven is specifically designed to heat, cook, or dry food.
It is not designed for industrial or laboratory use.
17. As with any appliance, close supervision is necessary
when used by children.
18. Do not operate this appliance if it has a damaged cord
or plug, if it is not working properly, or if it has been
damaged or dropped.
19. This appliance should be serviced only by qualified
service personnel.
Contact nearest authorized service facility for
examination, repair or adjustment.
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors. Do not use this
product near water — for example, near a kitchen sink,
in a wet basement, near a swimming pool, or similar
locations.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. Do not let cord hang over edge of table or counter.
15. Either.
a) When cleaning surfaces of door and oven that
comes together on closing the door, use only mild,
non-abrasive soaps or detergents applied with a
sponge or soft cloth., or
b) See door surface cleaning instructions on page 22.
16. To reduce the risk of fire in the oven cavity:
a) Do not overcook food. Carefully attend appliance
when paper, plastic, or other combustible materials
are placed inside the oven to facilitate cooking.
b) Remove wire twist-ties from paper or plastic bags
before placing bag in oven.
c) If materials inside the oven ignite, keep oven door
closed, turn oven off, and disconnect the power
cord, or shut off power at the fuse or circuit breaker
panel.
d) Do not use the cavity for storage purposes. Do not
leave paper products, cooking utensils, or food in
the cavity when not in use.
17. Liquids, such as water, coffee, or tea are able to be
overheated beyond the boiling point without appearing
to be boiling due to surface tension of the liquid. Visible
bubbling or boiling when the container is removed from
the microwave oven is not always present. THIS
COULD RESULT IN VERY HOT LIQUIDS SUDDENLY
BOILING OVER WHEN A SPOON OR OTHER
UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
a) Do not overheat the liquid.
b) Stir the liquid both before and halfway through
heating it.
c) Do not use straight-sided containers with narrow
necks.
d) After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
e) Use extreme care when inserting a spoon or other
utensil into the container.
18. Do not use this microwave oven to heat corrosive
chemicals (for example, sulfides and chlorides). Vapors
from such corrosive chemicals may interact with the
contact and springs of the safety interlock switches
thereby rendering them inoperable.
19. Keep the waveguide cover clean at all times.
Wipe the oven interior with a soft damp cloth after
each use. If you leave grease or fat anywhere in the
cavity it may overheat, smoke or even catch fire when
next using the oven.
20. Never heat oil or fat for deep frying as you cannot
control the temperature and doing so may lead to
overheating and fire.
21. Do not operate the oven without the glass tray in place.
Be sure it is properly sitting on the rotating base.
22. Under-cabinet and wall-mounted appliances:
1) Do not mount over a sink.
2) Do not store anything directly on top of the
appliance surface when the appliance is in
operation.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
5
WARNING:
This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in
strict accordance with the manufacturer's instructions, may cause interference to radio and television
reception.
It has been type-tested and found to comply with limits for an ISM Equipment pursuant to part 18 of FCC
Rules, which are designed to provide reasonable protection against such interference in a residential
installation.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the followings.
• Reorient the receiving antenna of radio or television.
• Relocate the Microwave oven with respect to the receiver.
• Move the microwave oven away from the receiver.
• Plug the microwave oven into a different outlet so that microwave oven and receiver are on
different branch circuits.
THE MANUFACTURER is not responsible for any radio or TV interference caused by
UNAUTHORIZED MODIFICATION to this microwave oven. It is the responsibility of the user to correct
such interference.
This appliance must be grounded. In the event of an electrical short circuit, the grounding plug reduces the risk of
electric shock by providing an escape wire for electric current. This appliance is equipped with a cord having a
grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and
grounded.
WARNING:
Improper use of the grounding can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if
doubt exists as to whether the appliance is properly grounded, and if it is necessary to use an extension cord,
use only a 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot receptacle that will accept the
plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical
rating of the appliance.
WARNING:
Do not cut or remove the third (ground) prong from the power cord under any circumstances.
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
GROUNDING INSTRUCTIONS
6
1. Examine the oven after unpacking.
Check for damage such as a misaligned door, broken door or dent in the cavity.
If any damage is visible, DO NOT INSTALL, and notify your dealer immediately.
2. Level, flat location.
Install the microwave oven on a level, flat surface.
3. Ventilation.
Do not block air vents. If they are blocked during operation, the oven may overheat and eventually cause a failure.
For proper ventilation, allow 4 inches of space between oven top, sides, rear and adjacent surfaces.
4. Away from radio and TV sets.
Poor television reception and radio interference may result if the oven is located close to a TV, radio, antenna,
feeder, etc.
Place the oven as far from them as possible.
5. Away from heating appliances and water taps.
Keep the oven away from heat, steam or splashing liquids. These things can adversely affect oven wiring and
contacts.
6. Power supply.
• Check your local power source.
This microwave oven requires a current of approximately 14.5 amperes, 120Volts, 60Hz and a grounded outlet.
1. A short power-supply cord is provided to reduce the risks of the user becoming entangled in or tripping over a
longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised in their use.
3. If a long cord or extension cord is used:
• The marked electrical rating of the cord set or extension cord should be at least as great as the electrical
rating of the oven.
• The extension cord must be a grounding type 3-wire cord.
• The longer cord should be arranged so that it will not drape the table top or counter where it can be pulled on
by children or tripped over unintentionally.
7. The minimum height of free space necessary above the top surface of the oven is about 4 inches.
When use 3-pronged plug
3-prong Receptacle
Receptacle
Box cover
3-prong plug
When use grounding adaptor, make sure
the receptacle box is fully grounded.
Receptacle Box Cover
Receptacle
Grounding
Lead
Grounding
Adaptor
“THE CANADIAN ELECTRICAL CODE DOES NOT ALLOW THE USE OF THE GROUNDING ADAPTOR”
INSTALLATION GUIDE
7
8. Choosing a Location for Your Oven
You will use your oven frequently so plan its location for ease of use. Your microwave oven can be built into a
cabinet or wall by itself or above any electric wall oven or warming drawer using Sharp’s Built-in Kits listed below.
Please note: It cannot be built in above any gas wall oven.
Trim Kit # Description
RK56S27 SMC2242DS Trim Kit, 27" Stainless Steel
RK56S30 SMC2242DS Trim Kit, 30" Stainless Steel

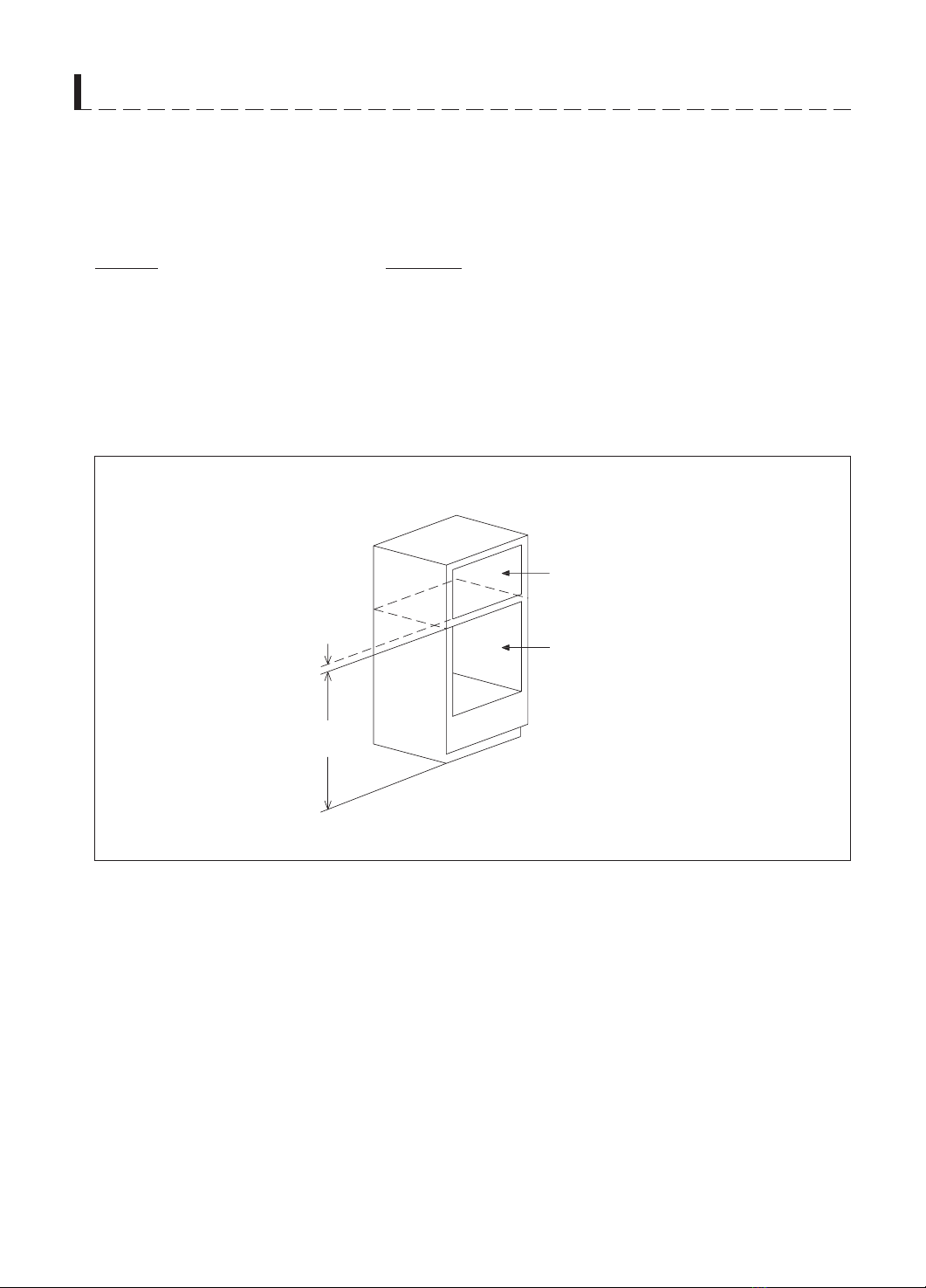

See Sketch-1 for proper location when building in above an electric wall oven or a warming drawer. Carefully
follow both the electric wall oven/warming drawer installation instructions and Sharp’s Built-in Kit instructions. Be
sure that the clearance of the floor between the electric wall oven/warming drawer and the microwave oven is a
minimum of 1-1/2 inches.
MICROWAVE CUTOUT
MIN.
1½"
MIN.
36"
ELECTRIC WALL
OVEN/WARMING
DRAWER CUTOUT
Sketch-1
INSTALLATION GUIDE
8
24.1 19.8
13.8
SPECIFICATIONS
POWER SUPPLY 120V AC, 60Hz SINGLE PHASE WITH
GROUNDING
MICROWAVE
INPUT POWER 1650 W
ENERGY OUTPUT 1200 W
FREQUENCY 2,450MHz
OUTSIDE DIMENSIONS (W x H x D) 24.1 x 13.8 x 19.8 in.
CAVITY DIMENSIONS (W x H x D) 17.1 x 11.5 x 18.9 in.
CAVITY VOLUME 2.2 cu.ft
NET WEIGHT APPROX. 44.8 lbs.
TIMER 59 min. 99 sec.
POWER SELECTIONS 10 Levels
* Specifications are subject to change without notice.
9
1Door latch - When the door is closed, it will
automatically shut off. If the door is opened
while the oven is operating, the magnetron
will automatically shut off.
2Door seal - The door seal surfaces prevent
microwaves escaping from the oven cavity.
3Oven cavity
4Oven lamp - Automatically turns on while
oven is operating and when oven door is
opened.
5Safety interlock system
6Control panel
7Door open button - To open the door push
the door open button.
8Waveguide cover - Protects the microwave
outlet from splashes of cooking foods.
9Roller guide - This must always be used for
cooking together with the glass cooking tray.
0Coupler - This fits over the shaft in the center
of the oven cavity floor.
This is to remain in the oven for all cooking.
qGlass cooking tray - Made of special heat
resistant glass. The tray must always be in
proper position before operating. Do not cook
food directly on the tray.
wViewing screen - Allows viewing of food.
The screen is designed so that light can pass
through, but not the microwave energy.
12 3
0
q
8 7
6
9
54
w
FEATURES DIAGRAM
10
1DISPLAY - Cooking time, power level,
indicators and current time are displayed.
2SENSOR COOK - Used to cook many of
favorite food.
3ONE TOUCH COOK - Used to cook or
reheat specific quantites of food.
4SENSOR REHEAT - Used to reheat food.
5TIME COOK - Microwave for a selected
amount of time.
6POWER LEVEL - Used to set power level.
7TIME DEFROST - Used to defrost foods for
time.
8AUTO DEFROST PAD - Press to select
DEFROST feature by weight.
9 +30 SEC - Used to extend heating time by
30 second increments or for an "instant on"
for 30 seconds.
0MELT/SOFTEN - Used to melt or soften
food
qTIME SET PAD - Used to set the cooking
time and the current time.
wEXPRESS COOK - Used to set 1-6 minutes
preset cooking time at 100% power level.
eKITCHEN TIMER - Used as a minute timer
rCLOCK - Used to set clock.
tSTOP / CLEAR - Used to stop the oven
operation or to delete the cooking data.
y START - Used to start the oven.
4
5
9
e
t
q
2
8
1
6
7
0
w
r
y
3
FEATURES DIAGRAM
Indice
Altri manuali Sharp Forno a microonde
Sharp
Sharp R-753M Manuale utente
Sharp
Sharp R-22JT Manuale utente
Sharp
Sharp R-74STD Manuale di istruzioni
Sharp
Sharp R-871 Manuale utente
Sharp
Sharp R-8000G Manuale utente
Sharp
Sharp R-1610 Manuale per l'uso e la cura
Sharp
Sharp R-777H Manuale utente
Sharp
Sharp R-210AM Manuale utente
Sharp
Sharp R-380A Manuale utente
Sharp
Sharp R-8771L Manuale utente
Sharp
Sharp R-33STD Manuale di istruzioni
Sharp
Sharp R-310BK Manuale utente
Sharp
Sharp R-8000G Manuale utente
Sharp
Sharp SMO1461GS Manuale utente
Sharp
Sharp Carousel R1874TY Manuale utente
Sharp
Sharp R-963M Manuale utente
Sharp
Sharp R-963S Manuale utente
Sharp
Sharp Carousel R-405D Manuale utente
Sharp
Sharp R-1900J Manuale utente
Sharp
Sharp R-642 Manuale utente
