Sharp Zaurus SL-5500 Manuale utente
Personal Mobile Tool SL-5500Personal Mobile Tool SL-5500
Personal Mobile Tool SL-5500Personal Mobile Tool SL-5500
Personal Mobile Tool SL-5500
USB DRIVER INSTALLATION GUIDE
Introduction
This guide explains the methods of installing the USB driver for the SL-5500's Docking
Station onto the PC, to enable communication between the two devices through the
USB port.
Read this guide thoroughly before setting up the hardware/software.
CONTENTS
page
USB driver Installation guide for Microsoft Windows 2000 ................. 1
USB driver Installation guide for Microsoft Windows Me .................... 6
USB driver Installation guide for Microsoft Windows XP .................... 8
USB driver Installation guide for Microsoft Windows 98/
98 Second Edition .. 11
-
1
-
USB driver Installation guide for Microsoft R
Windows R2000
First, log on as Administrator.
1Close all applications on your PC.
If you are using the anti virus or firewall software, close them (or disable their function).
2Place the SL-5500 on the Docking Station with SL-5500 turned on. Connect the AC adapter to
the Docking Station. Connect USB cable of the Docking Station to your Windows System. Windows
will find a new hardware, and the "Found New Hardware Wizard" will launch. To continue, click
"Next>".
• If the USB driver does not operate properly when you connect the device to your PC via the
USB hub, connect it directly to the USB port on your PC.
3Insert the CD-ROM, supplied in the SL-5500 package, into the PC's CD-ROM drive.
4Select "Search for the best driver for your device (Recommended)" and Click "Next>".
-
2
-
5Select "CD-ROM drive" and Click "Next>".
6The CD-ROM will be searched, and the suitable USB driver for the device will be found.
Click "Next>".
-
3
-

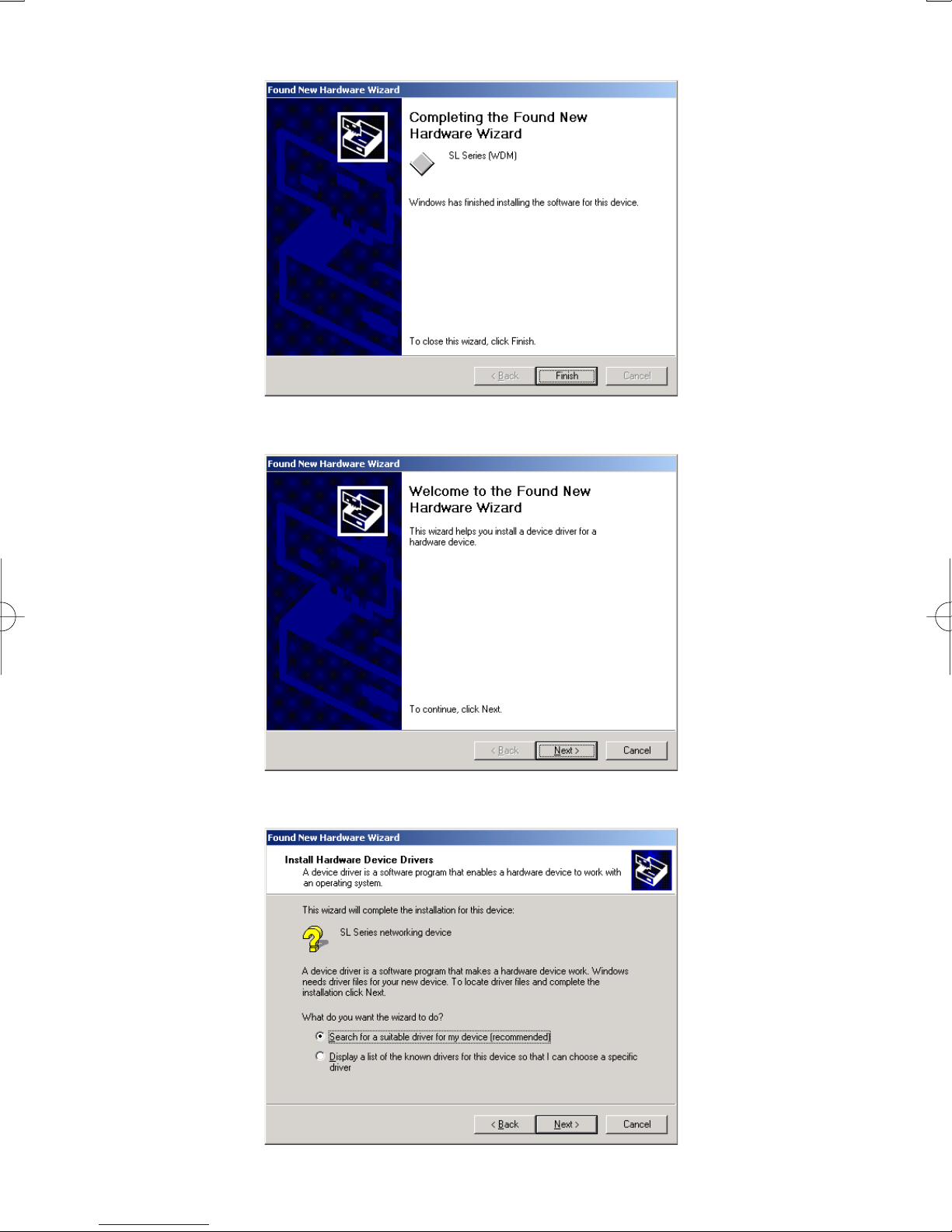

7WDM Driver will be installed. To continue, click "Finish".
8The Found New Hardware Wizard should appear sequentially. Click "Next>".
9Select "Search for the best driver for your device (Recommended)" and Click "Next>".
-
4
-
10 Select "CD-ROM drive" and Click "Next>".
11 The CD-ROM will be searched again, and the suitable USB driver will be found. Click "Next>".
12 To continue the installation, click "Yes".
-
5
-
13 After a few seconds, a finishing dialog should appear as below. To finish, click "Finish".
-
6
-
USB driver installation guide for Microsoft R
Windows RMe
1Close all applications on your PC.
If you are using the anti virus or firewall software, close them (or disable their function).
2Place the SL-5500 on the Docking Station with SL-5500 turned on. Connect the AC adapter to
the Docking Station. Connect USB cable of the Docking Station to your Windows System. Then

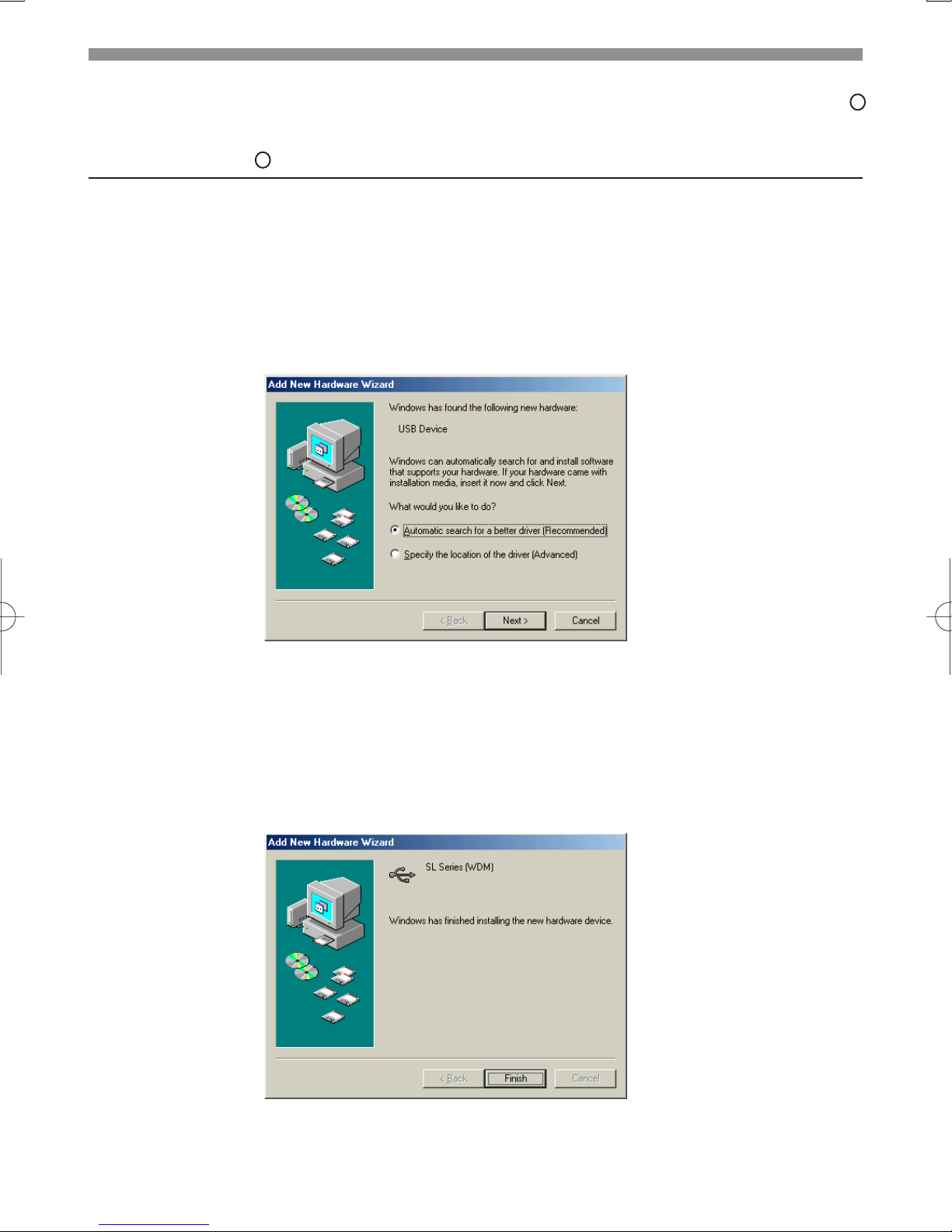

Windows will find a new hardware, and the "Add New Hardware Wizard" will launch. Select
"Automatic search for a better driver (Recommended)" and Click "Next>".
• If the USB driver does not operate properly when you connect the device to your PC via the
USB hub, connect it directly to the USB port on your PC.
3Insert the CD-ROM, supplied in the SL-5500 package, into the PC's CD-ROM drive.
4After a few seconds, Windows will find a suitable driver on the CD-ROM. To continue installation,
click "Finish".
-
7
-
5Windows will find a new hardware, and the "Add New Hardware Wizard" will launch. Select
"Automatic search for a better driver (Recommended)" and Click "Next>".
6After a few seconds, Windows will find a suitable driver on the CD-ROM. To continue installation,
click "Finish".
7After the installation, the System Settings Change dialog should appear. Click "Yes" to restart
your PC.
-
8
-
USB driver installation guide for Microsoft R
Windows RXP
First, log on as Administrator.
1Close all applications on your PC.
If you are using the anti virus or firewall software, close them (or disable their function).
2Place the SL-5500 on the Docking Station with SL-5500 turned on. Connect the AC adapter to
the Docking Station. Connect USB cable of the Docking Station to your Windows System. Then
Windows will find a new hardware, and the "Found New Hardware Wizard" will launch. Select
"Install the software automatically (Recommended)" and Click "Next>".
• If the USB driver does not operate properly when you connect the device to your PC via the
USB hub, connect it directly to the USB port on your PC.
3Insert the CD-ROM, supplied in the SL-5500 package, into the PC's CD-ROM drive.
4Confirm "SL Series (WDM)" as its target hardware, and click "Continue Anyway".
-
9
-
5After a few seconds, Windows will find the driver on the CD-ROM. To continue installation, click
"Finish".
6Windows will find a new hardware, and the "Found New Hardware Wizard" will launch. Select
"Install the software automatically (Recommended)" and Click "Next>".
7Confirm "SL Series (NDIS 5)" as its target hardware, and click "Continue Anyway".
