Sharp Au Speed Wi-Fi 5G X01 Manuale utente
QuickStartGuide
March2020,1stEdition
Soldby:KDDICORPORATION,
OKINAWACELLULARTELEPHONECOMPANY
Manufacturedby:SHARPCORPORATION
The company names and product names appearing in this manual are
trademarks or registered trademarks of their respective holders.
For exemptions, refer to “Notes on Usage” available on the au homepage.
Preface
Thank you for buying the “Speed Wi-Fi 5G X01” (simply called “the product”
from here on).
Before using the product, read the “Quick Start Guide” (this manual), and
“Notes on Usage”, carefully for proper use.
Packaged Items
Before using the product, make sure that you have all the following packaged
items with the product.
Main unit SIM eject pin (sample)
*
USB cable (sample)
The following items are not included.
•au Nano IC Card 04 LE
•AC adapter
•Please purchase the specified charger (sold separately). For details, refer to
“周辺機器” (Peripheral Devices) in the “取扱説明書 詳細版” (Full Instruction
Manual) (Japanese).
•無線LAN初期設定 (Wireless LAN
Initialization) sticker (Japanese)
•はじめてガイド (Quick Start Guide)
(Japanese)
•ご利用にあたっての注意事項(保証書)
(Notes on Usage (Warranty))
(Japanese)
* Used to insert/remove the au Nano IC
Card 04 LE.
1
◎The battery is built into the product.
◎Illustrations in this manual are shown as examples. They may differ from
the actual product.
About Descriptions
•Symbols representing keys in this manual are as below.
Power key
•The following operations are abbreviated in this manual.
Description Meaning
Swipe left on home screen
→[Settings] →[Display].
From the home screen, swipe left and tap “
Settings”. Then, tap “Display”.
f(hold down for at
least 2 seconds).
Hold fdown for at least 2 seconds.
* Tap refers to using your finger to lightly touch keys and icons displayed on the
screen to select.
◎In this manual, descriptions are based on the screen display and
operations of the product with au Nano IC Card 04 LE installed.
◎Illustrations and screens shown in this manual may look different from
those on the actual product. In some cases, minor details or a part of a
screen may be omitted.
◎Menu items, hierarchies, and icons used in this manual may differ
depending on the functions used and upon usage conditions.
2
◎In this manual, “au Nano IC Card 04 LE” is abbreviated to “au IC Card”.
◎Company names and product names described in this manual are
trademarks or registered trademarks of their respective companies. This
manual may also omit marks such as ™ and ®.
What You Can Do with This Product
The product can be connected to multiple wireless LAN (Wi-Fi®)-supported
devices such as PCs, smartphones, tablets, etc. via wireless LAN (Wi-Fi®) and
connect a PC etc. using a LAN cable (commercially available) or USB cable
(sample). Also, data communication using Internet access using 5G, LTE or
UMTS systems is available on devices connected to the product.
Connecting via Wireless LAN (Wi-Fi®)
You can connect wireless LAN (Wi-Fi®)-supported devices (such as PCs,
smartphones, tablets, etc.) to this product to carry out data communications.
•Up to 16 devices supporting wireless LAN (Wi-Fi®) can be connected to the
product at the same time.
Wi-Fi®
Wi-Fi®
Wi-Fi®
Wireless base
station
3

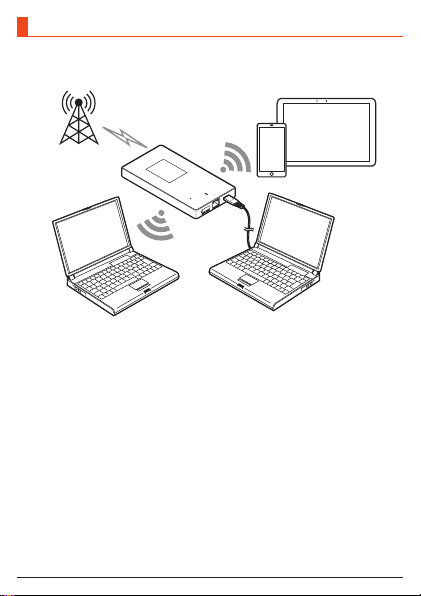

Connecting with USB Cable (sample)
You can connect this product to a PC with a USB cable (sample) for data
communication. Additionally, you can also use the USB connection at the
same time as Wi-Fi®connections.
Wi-Fi®
Wi-Fi®
Wi
reless base
station
4
Connecting with a LAN Cable (Commercially
Available)
You can perform data communication by connecting the product to a PC or
other device using a LAN cable (commercially available). You can also use the
wired LAN connection at the same time as wireless LAN (Wi-Fi®) connections.
Wi-Fi®LAN cable
(commercially
available)
Wi-Fi®Wireless base
station
◎Depending on radio wave reception, overloading of access points, or the
volume of the content, normal communications may not be possible.
Furthermore, depending on the connected devices, normal
communications may not be possible.
◎Connection to the network automatically determines and selects the most
suitable network at that time.
◎The product will automatically connect to the Internet when it is turned
on.
5
◎The wired LAN function of the product will be stopped if the
communication with connected devices using a LAN cable (commercially
available) is not be performed for a set period of time.
If you reconnect the product to the Internet after the wired LAN function
is stopped, press fto turn the screen on.
◎If a LAN cable (commercially available) is left connected to the product
while using, electric power may be consumed even though you do not
use the wired LAN function. Unplug the LAN cable (commercially
available) from the product to save the battery when not using the
function.
Support for au World Service
Using the au World Service, you can use your products that are used in Japan
overseas as well. This product can be used on either UMTS or LTE networks
depending on your destination.
•No special procedures for application or fixed monthly charges are required,
with usage charges being combined with fees for usage within Japan,
making payment easy.
* Customers with new accounts can use these overseas from the day following
purchase.
However, customers who have purchased this product from an online shop can
use it from 2 days after starting communications within Japan.
•Please check with the au website or Customer Center for details as to
countries in which this can be used, pricing, and other services.
■Covered areas and charges
(https://www.au.com/mobile/service/global/au-world-service/area-charge/)
(Japanese)
■How to use data communications overseas, and applicable data
communication charges
(https://www.au.com/mobile/service/global/au-world-service/check/)
(Japanese)
■Customers using this product overseas
*Please read before traveling
(https://www.au.com/information/notice_mobile/global/)(Japanese)
6
◎Various discount services as well as data communication charges/
discount services available within Japan cannot be used overseas.
◎Consumption tax is not added to usage fees for international services.
Setting Communication Mode/
Performance
Communication Mode
You can use the product to perform data communication with wireless base
station via 5G, LTE or UMTS systems. You can select from the following
communication modes to use.
5G LTE UMTS*
5G/LTE (Auto) ○○○
LTE -○ ○
* During international roaming
By default, the product is set to “5G/LTE (Auto)”. Note that additional charges
may be applied depending on your billing plan.
7
Performance Setting
You can make settings for the balance of the product's communication speed
and the electric power consumption.
A Swipe left on home screen →[Settings] →[Performance
Settings]
B Performance Set a performance to use.
4x4MIMO Setting If you set it to “ON”, the antenna setting is
changed and communication speed is
increased. However, more electric power than
usual is used.
•You cannot set it to “ON” in “ECO” mode.
In Charging Mode
Switch
If you set it to “ON”, Performance is
automatically changed to “High Performance”
while charging.
Useful Functionality of This Product
QR Codes and WPS Connection
You can easily connect your smartphone or other device to the product over
wireless LAN (Wi-Fi®) by displaying a QR code on the product screen, and
reading it with the camera on the smartphone or other device. WPS
connections are also supported to allow you to connect your smartphone to
the product via wireless LAN (Wi-Fi®), using a WPS key. If the wireless LAN
(Wi-Fi®)-supported device supports the WPS push button method, you can
easily set the SSID and security method required for the connection.
•For details on the connection method, refer to “Connecting by Using QR
Code” (zP.41) and “Connecting by Using WPS” (zP.36).
8
About the Manuals
■“Quick Start Guide” (this manual) and “Notes on Usage”
The “Quick Start Guide” (this manual) and “Notes on Usage” available on the au
homepage describe information and precautions required for the first time use.
(https://www.au.com/english/support/manual/)
■“Full Instruction Manual” (Japanese)
You can check “取扱説明書 詳細版”(Full Instruction Manual) (Japanese) that
describes detailed of various functions on the au homepage.
(https://www.au.com/support/service/mobile/guide/manual/)(Japanese)
Mobile Consideration
■Usage is prohibited in the following locations
•Since using the product on airplanes is restricted, follow the instructions
given by the respective airlines.
■Be very aware of people nearby
•When in town, do not use in locations that obstruct passers-by.
•Looking at your product screen while walking is very dangerous. Do not use
this product while walking, or suddenly stop to use it.
•When using this product on the bullet train or in hotel lobbies, move to a
location that will not bother other people.
•Crowded locations such as in full trains may have people using pacemakers
nearby. Please turn off the product before entering these areas.
•Abide by instructions regarding prohibitions on usage or restrictions on
bringing items in that have been put in place by hospitals and other medical
institutions.
9
