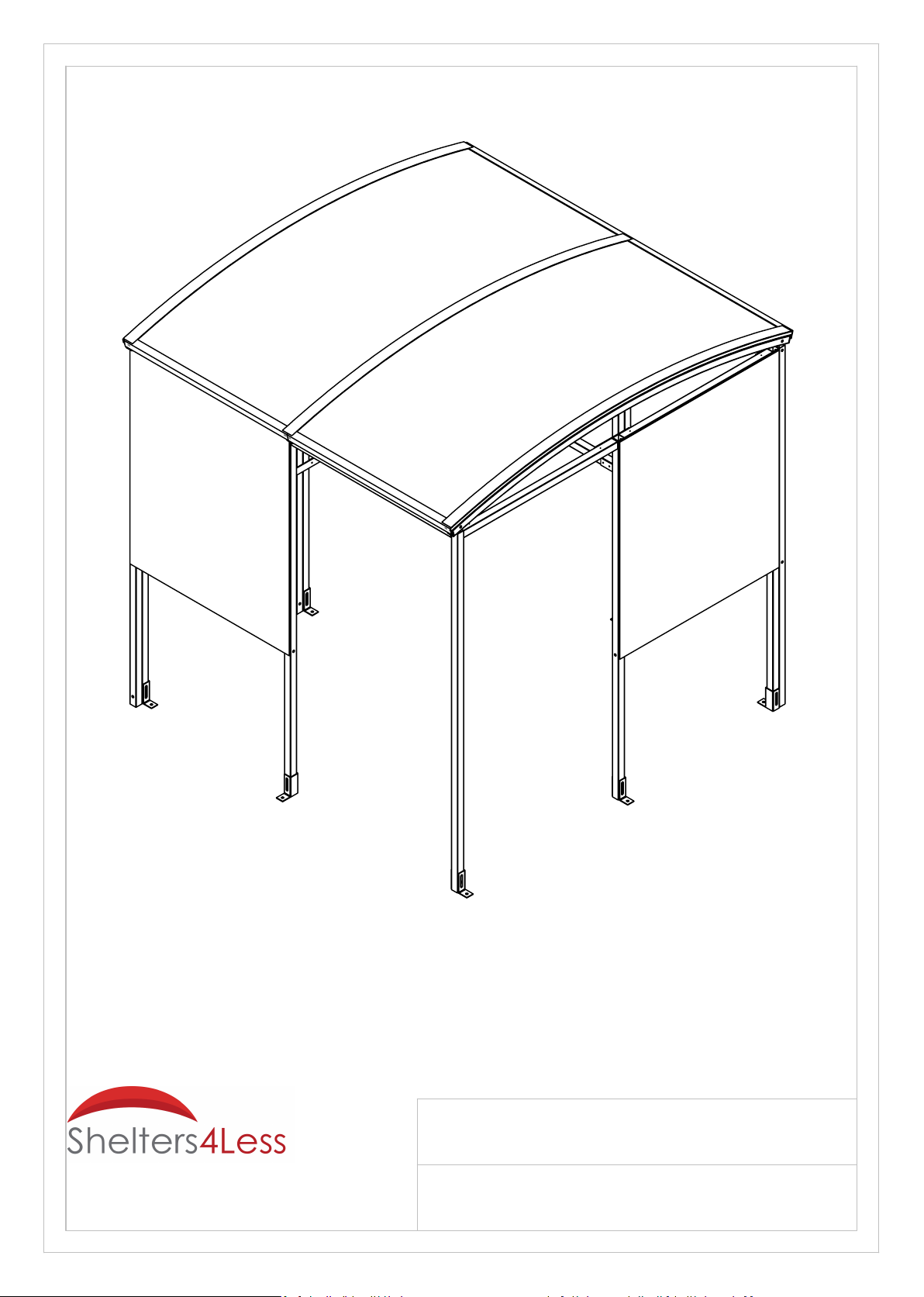

Shelters4Less SR1561 Manuale utente

Assembly Instructions

Shelter type: SR1561

SR1561-01-310717-UK

Email : [email protected]

Web : www.shelters4less.co.uk

Tel : 0800 160 1002

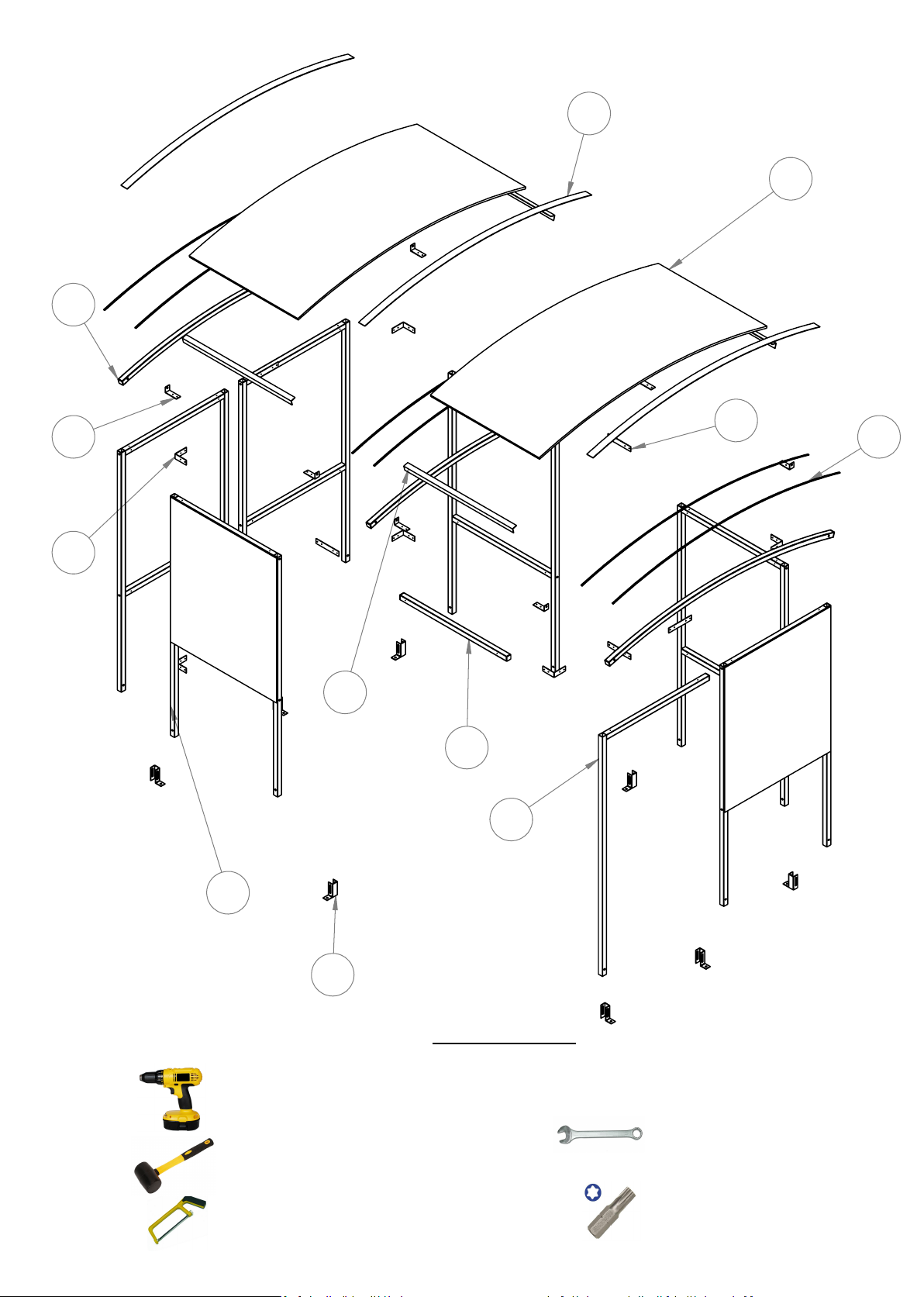

EXPLODED VIEW AND TOOLS

Tools required:

Drill/Screwdriver

Mallet

Hack saw

Spanner

Torx bit

ITEM

NO. PART NAME

DRG NUMBER

LENGTH

Default/QT

S1 Frame

Panel

outside

S1 Frame

Panel

inside

Post P1

Default

ST3 ST1

Default

Bracket

CB1

Default

Bracket

JF1

Default

Bracket

SR-RB2-01

Default

R2 Rafter

Default

sealing strip

2220 6

PCE2 Panel

Default

RC2 Strip

2220 3

Roof Angle

Default

Bracket

FT1

Default

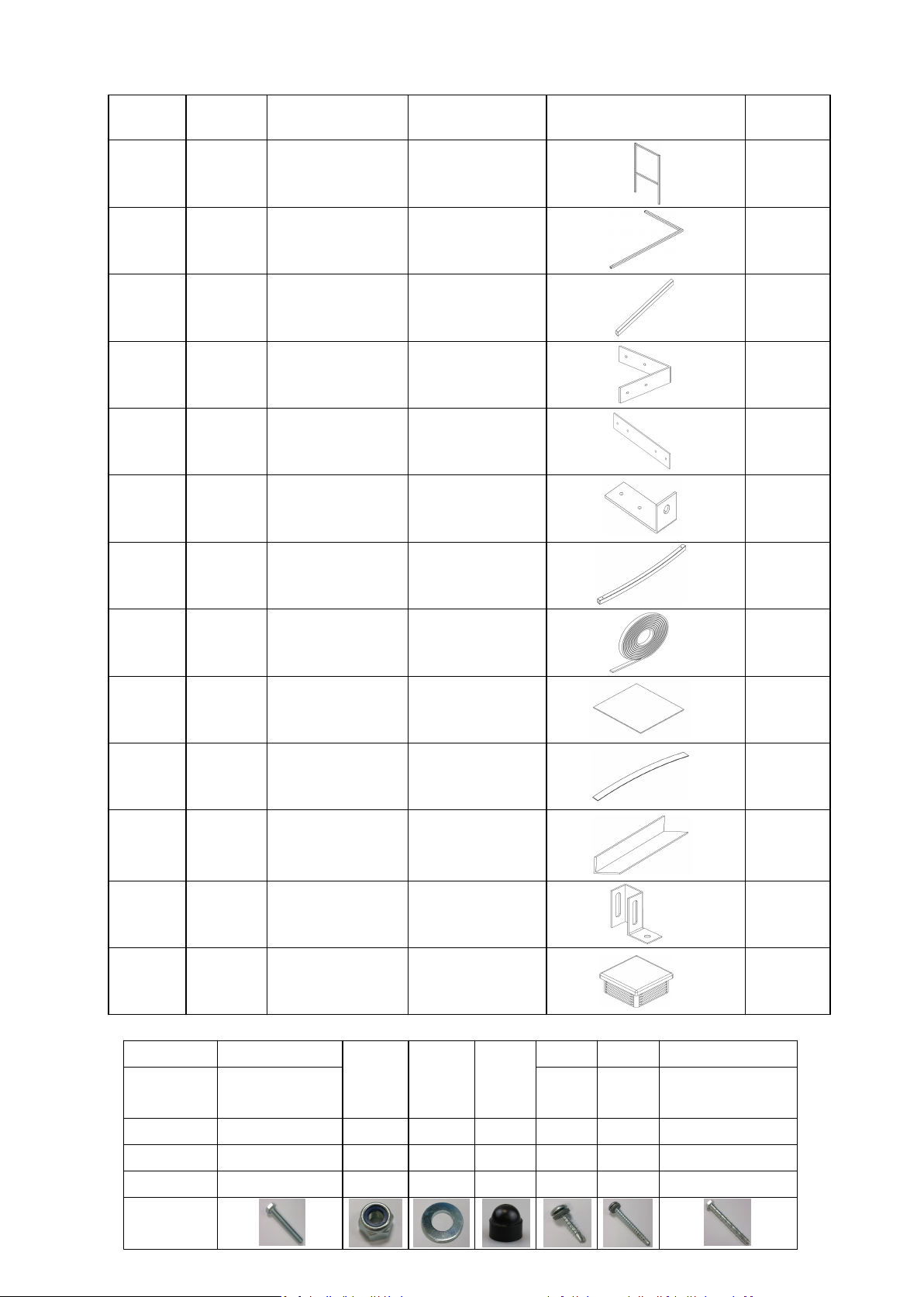

PARTS LIST

ITEM

NO.

PART

NO.

DESCRIPTION

DIMENSION


QTY.

Frame

2000 x 1035

Post

2000 1

ST1

Roof Tie

1025 1

CB1

Bracket

110 x 110 x 40

JF1

Bracket

220 x 40

RB2

Bracket

110 x 46

Rafter

2199 3

Sealing Strip

2220 6

ACE2

Roof Panel

2220 x 1050

RC2

Roof Strip

2180 3

Roof Angle

2100 2

FT1

Bracket

109 x 100

EC40

Plastic

End Cap

40 x 40

Fittings

Bolt set M10

Nut

Washer

Black

Cap

T25 T50 AB1210

M10 x 60mm

25 mm

Tech

screw

50 mm

Tech

screw

M10/12 x 10mm

Concrete Bolt

Pack A

30 30 60 60 72 30 8

Required

14 14 28 28 68 30 8

Spare

16 16 32 32 4 0 0


2110

CB1CB1

CB1

JF1 JF1

ST1

S1 S1

JF1

IMPORTANT:

Check overall dimensions

to ensure corrct alignment

ST1

CB1 CB1

CB1

JF1

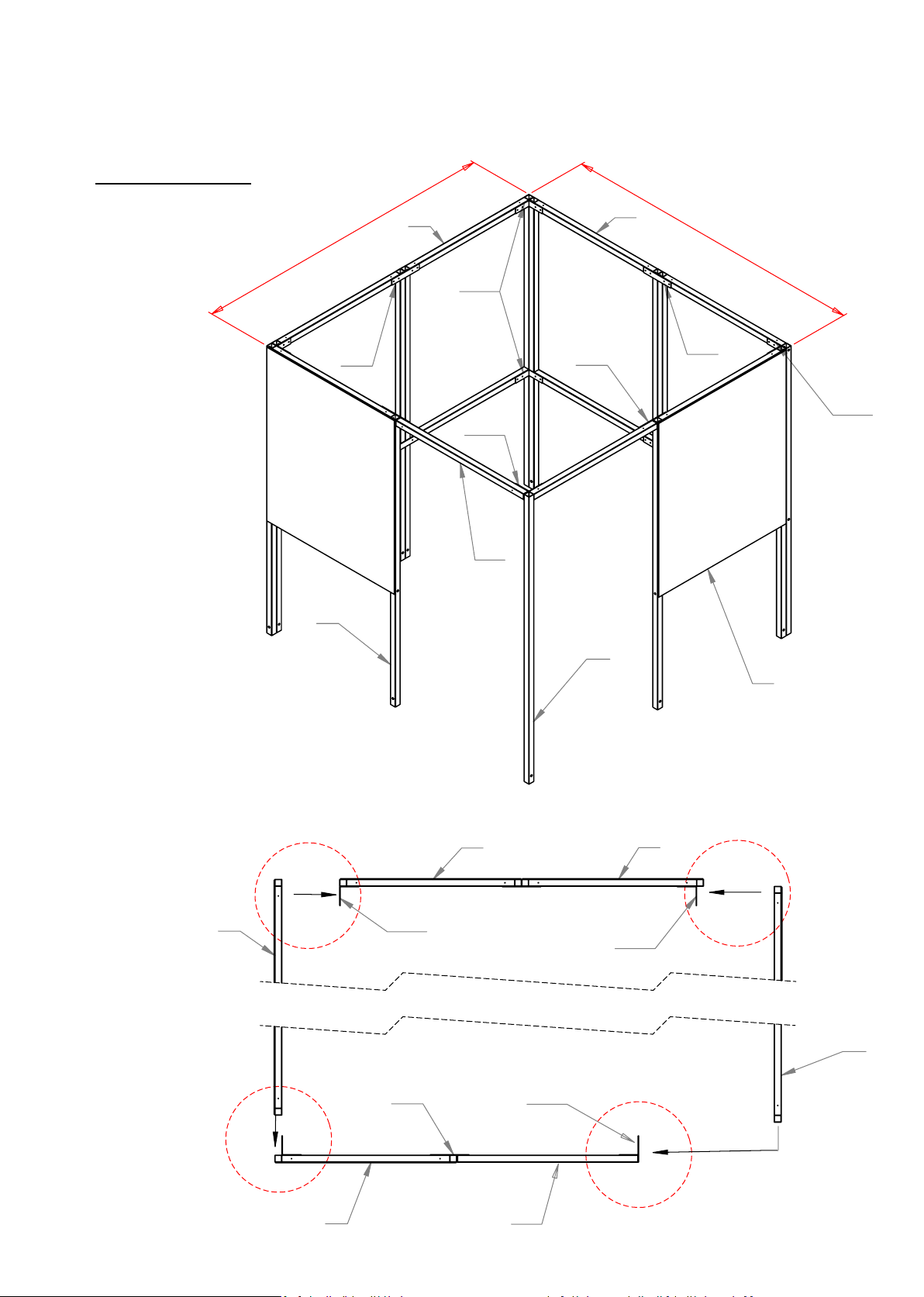

Step 1

Assemble

frames to make up the main structure using

CB1

brackets

in the corners and

JF1

brackets on straight joints. Then attach

Post using

one

JF1

bracket.

Then attach

ST1

Tie bar using a

JF1

bracket and one

CB1

bracket.

GENERAL NOTE:

THE 50 mm TECH

SCREWS ARE

FOR FIXING ROOF

STRIPS

(RC) ONLY

RB2

RB2RB2

RB2

RB2RB2

RB2

FT1

FT1 FT1

1035 1035

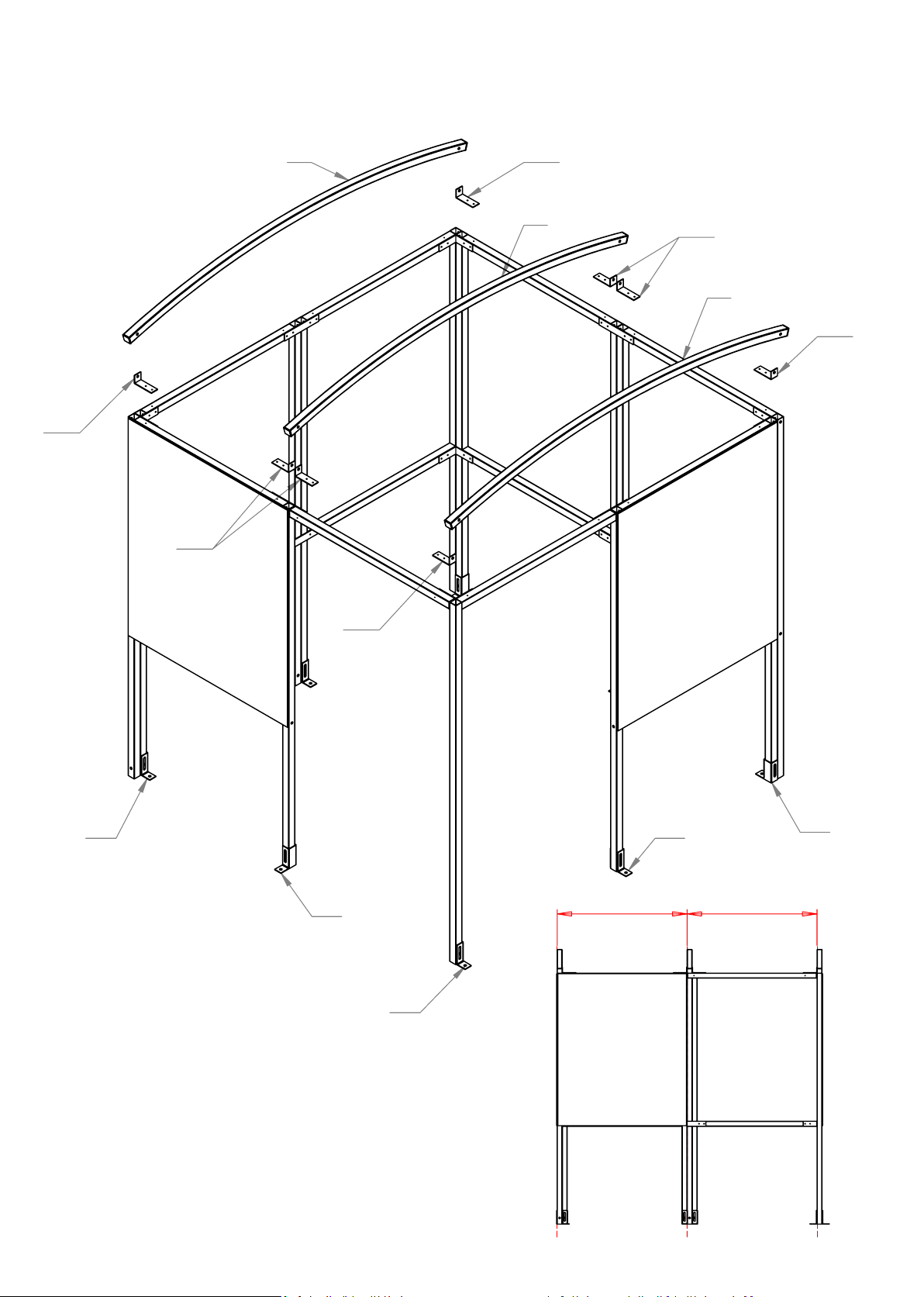

Step 2

Move shelter in to its final position, make sure everything is square and

secure to the floor using

FT1

foot brackets.

Attach

roof rafters using

RB2

brackets.

SSSS

ACE2ACE2

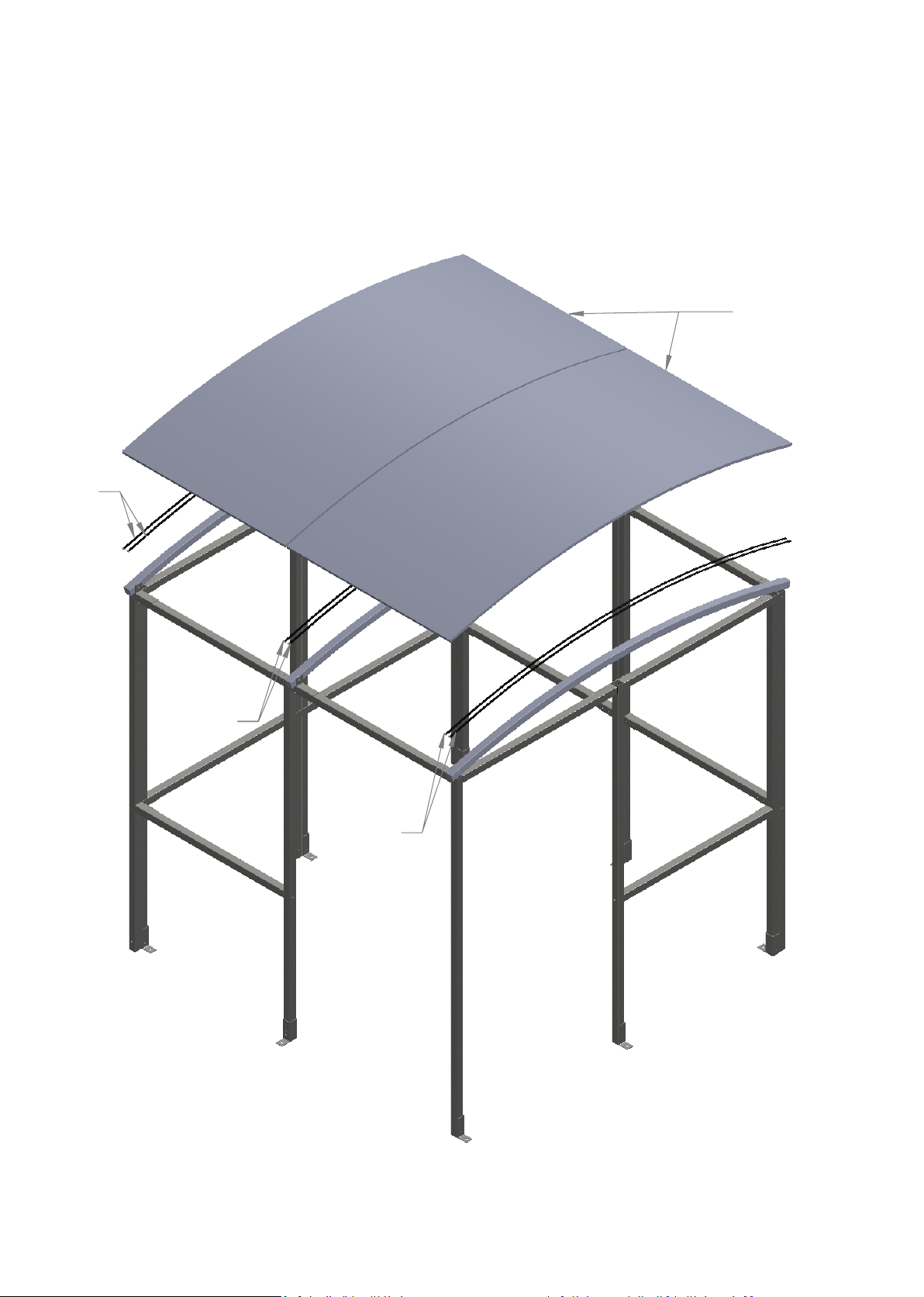

Step 3

Apply

sealing strips to the rafters (two per rafter) and line up the

ACE2

roof panels to the outside of the shelter, leaving a gap between them.

RC2

GENERAL NOTE:

THE 50 mm TECH SCREWS

ARE FOR FIXING ROOF STRIPS

(RC) ONLY

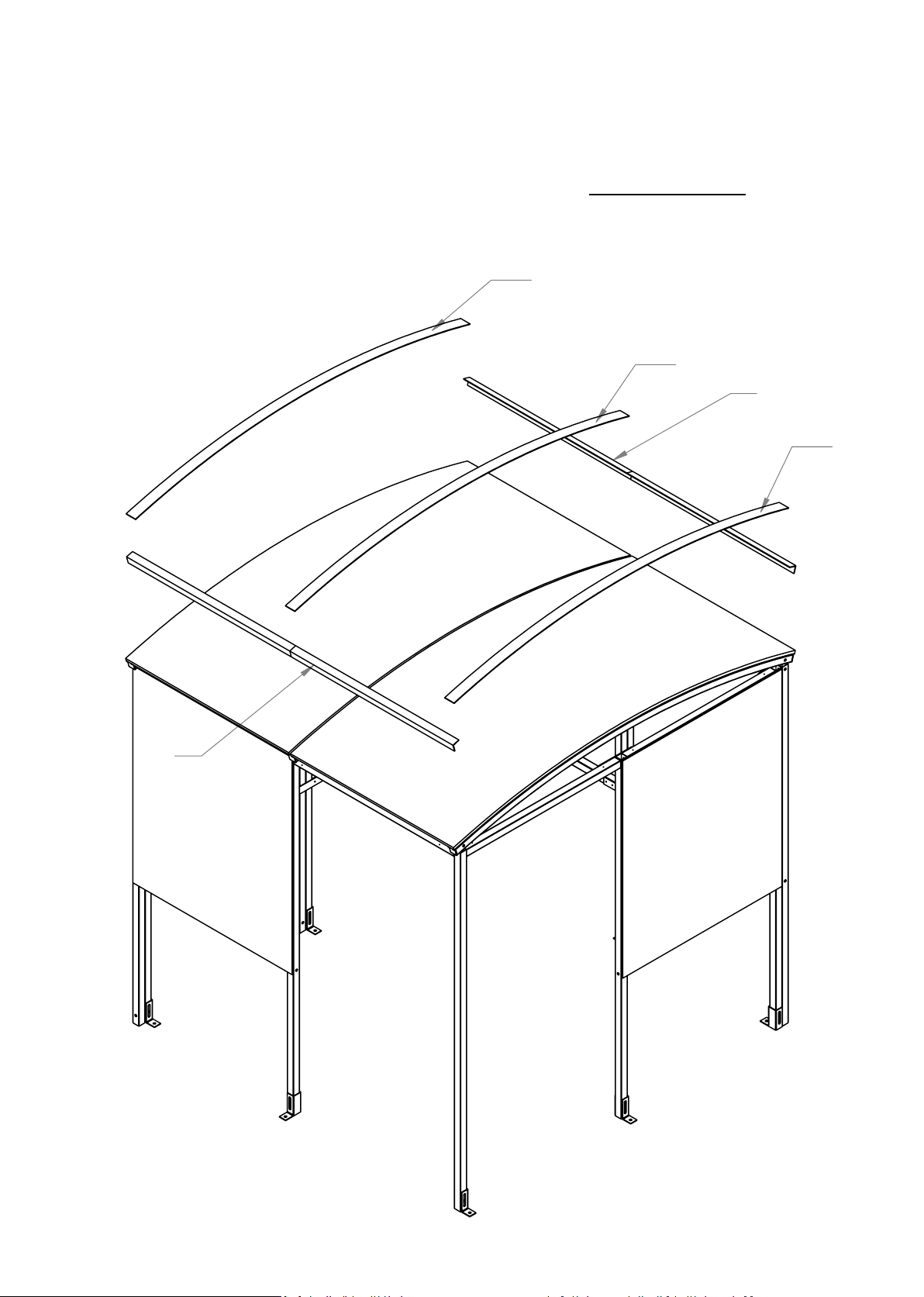

Step 4

Apply

RC2

strips on top of the panels and use screws to secure them in

place. Then clip on the

angle trim to the bottom of the roof panels.

Then fit the Black plastic caps on exposed nuts and bolts. Fit the

square plastic end caps to any open ends of box sections.

1035 935

1013 905

989 1035

941 1129

2110

112

2209

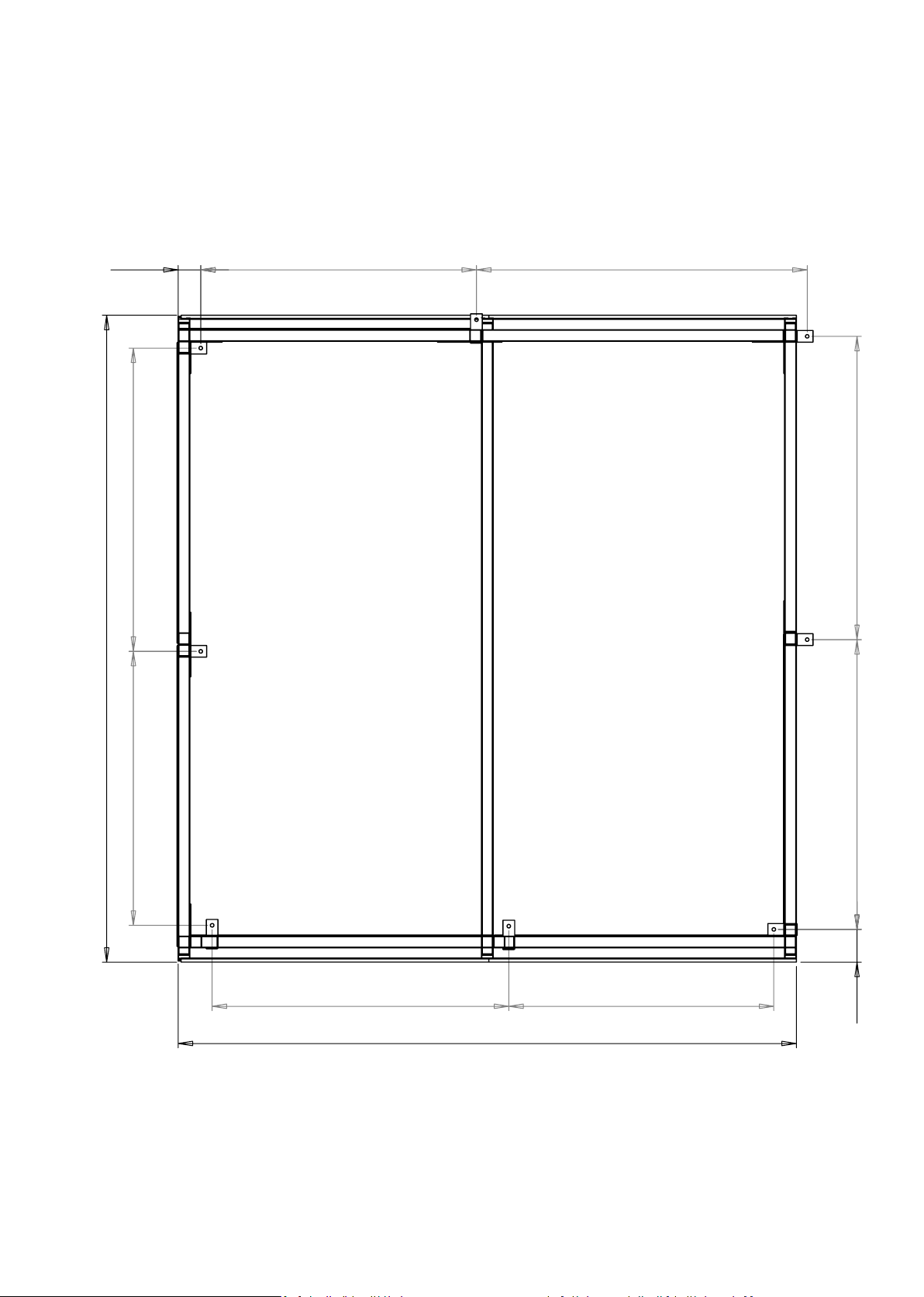

Ground anchor positions and overall size

Suggested concrete base size: 200mm oversized on all four sides

Scale 1:15

NOTES
