USER MANUAL
WELDING INVERTER
Sherman DIGITIG 206P AC/DC
WARNING!
Before installing and commissioning the device, you must read this instruction
1.
GENERAL NOTES
Launch and operation of the device can be made only after a thorough reading of this manual.
Due to continuous technical development unit, some of its features may be subject to modifications
and performance may differ in detail from the descriptions in this manual. This is not a device error,
but the result of progress and continuous work of modification of the device.
Damage to the appliance caused by improper handling causes the loss of warranty. Any alteration of
the charger are forbidden and result in loss of warranty.
2.
SECURITY
Equipment operators should possess the necessary qualifications entitling them to perform welding
work:
•
should be an electric welder welding electrodes coated and coated gas,
•
know the rules of SAFETY operation of power equipment such as welding machines and auxiliary
powered electricity,
•
know the rules of SAFETY when handling cylinders and installation of compressed gas (argon), • be
familiar with the content of this manual and operate in accordance with its intended purpose.
2
WARNING
Welding can endanger the operator and other people in the vicinity. Therefore, during welding
should keep special precautions. Prior to welding, you should be familiar with the
OCCUPATIONAL HEALTH and SAFETY regulations in force at the place of work.
At the time of the electric arc welding methods MMA WELDING and TIG WELDING, there are the
following:
• ELECTRIC SHOCK
• NEGATIVE EFFECTS OF THE ARC TO THE EYES AND SKIN MAN
• POISONING IN PAIRS AND GASES
• BURNS
• RISK OF EXPLOSION AND FIRE
• NOISE
To prevent electric shock:
• connect the device to the technically efficient electrical installation at the right protection and the
effectiveness of the reset (additional fire protection); check and correctly connected to other
network devices at the place of work the welder,
• current wires mounted on the unit is switched off,
• do not touch at the same time, non-insulated part of the electrode holder, electrode and work piece,
in this case,
• do not use the handles and current lines of the damaged insulation,
• in terms of specific risk electric shock (work in environments with high humidity and containers
closed) work with an Assistant supporting the work of the welder and for security, used clothing
and gloves with good insulation properties,
• if you notice any irregularities, please contact your competent people to remove them,
• Operation is prohibited with sacks, the guards.
Preventing the negative impact of the electric arc to the eyes and skin:
• Use protective clothing (gloves, apron, leather shoes),
• Use shields or protective helmets with properly selected filter
• Use protective curtains made from non-combustible materials and properly match the color scheme
of the walls absorbing the harmful radiation.
Preventing food poisoning in pairs and gases that react during welding with coating electrodes
and evaporation of metals:
• Use ventilation and extraction systems installed in positions with limited air exchange,
• Use compressed air to clean the air in a confined space (tanks), • Use masks and respirators.
Prevention of Burns:
• Use suitable protective clothing and footwear to protect from burns from radiation and spatter,
• Avoid dirt clothing grease and oils that may lead to inflammation. Explosion prevention and fire:
• It is prohibited to operate the unit and welding in explosive or fire,
• Welding position should be equipped with fire-fighting equipment,
• Welding position should be located at a safe distance from flammable materials.
Prevention of the negative effects of noise:
• Use earplugs or other protection against noise, • Warn about the danger of people nearby.
WARNING!
Do not use power source for defrosting frozen pipes.
Before starting the machine:
• Check the condition of the electrical and mechanical connections. It is prohibited to use handles and
wire current at the damaged insulation. Faulty insulation and cable handles current risk electric
shock,
• Ensure appropriate working conditions. Provide the right temperature, humidity and ventilation in the
workplace. In addition to enclosed spaces protected from rain,
3
• Put the charger in place for its ease of use.
People that support drop should:
• have the power to electric arc welding with coated electrodes and TIG
• know and comply with the occupational safety and health applicable when carrying out welding work,
• use proper protective equipment, specialized: gloves, apron, rubber boots, shield or helmet welding
stationary filter
• be familiar with the content of this manual and operate the place in accordance with its intended
purpose. Any repair of the device may be made only after disconnecting the plug from the
electrical outlet.
When the device is connected to the network it is not allowed to touch the bare hand or by damp
clothing no elements making up the welding current circuit.
It is forbidden to remove the guards outside at the device on the network.
Any alteration of the charger on its own is prohibited and may constitute a deterioration of security
conditions.
Any maintenance and repair may only be performed by qualified persons in compliance with the
conditions for safety of electrical equipment.
It is prohibited to the operation of welding in explosive or fire!
Welding position should be equipped with fire-fighting equipment.
After you complete the power cord, disconnect the device from the network.
These risks and the General principles of HEALTH and SAFETY at WORK do not cover all the issues
of safety at work the welder, because it does not take into account the specificities of the work
place. Important are complemented by on-the-job HEALTH and SAFETY instructions, training and
briefings provided by the supervisors.
3. GENERAL DESCRIPTION
DIGITIG 206 p AC/DC is used for manual welding with coated electrodes structural steels AC
and (MMA) and steel and non-ferrous metals established electrode in inert gas (TIG). In the design
and construction of the device uses the latest advances in technology, PWM (pulse width modulation)
and IGBT modules (with bipolar transistors insulated-gate), which resulted in that the welder is
characterized by small size and low weight.
DIGITIG 206 p AC/DC has a static arc. Has the functions of ARC FORCE, build-up and
downslope, pre flow and post flow gas and adjustable pulse parameters. The device is also equipped
with intelligent security overload, overvoltage and thermal. If you have previously described event
alarm LED indicator lights on the front panel and the disabled will be output. This leads to the self
security of the device and to extend its service life.
Function ARC FORCE
ARC FORCE function allows you to adjust the dynamic range of the welding arc. The shortening of
the length of the arc is accompanied by an increase in welding current, resulting in stabilizing the
arc. Decreasing the value will give you soft arc and less depth of penetration, while increasing the
value causes a deeper penetration and the possibility of submerged arc welding. With large values of
the ARC FORCE can be welded together by keeping the bow with a minimum length and high speed
melting electrode
MMA-welding coated electrode (Manual Metal Arc welding);
PWM-pulse width modulation (Pulse-Width Modulation);
IGBT — bipolar with insulated-gate (Insulation Gate Bipolar Transistor)
TIG-welding of tungsten electrode in argon (Tungsten Insert Gas welding)
4. TECHNICAL SPECIFICATIONS
4.1 Welder
4
Supply voltage AC 230V 50 Hz
The maximum power consumption MMA: 6.6 kVA, TIG: 4.2 kVA
Rated output/duty cycle MMA: 160 A/40% TIG 200 A/40%
Nominal voltage without load 60 V
Maximum current consumption MMA: 30 A, TIG, 30 A
Network security 16 A
The weight of the 14 kg
The dimensions of the 420 x 170 x 350 mm
Degree of protection IP21S
Class application
4.1.1 Ranges parameter adjustment
Pre flow gas 0.1-10 s
Post flow gas 0.5-15 s
The current build-up 0-10 s
Downslope 0 to 15 s
The starting current 5-160 A
Welding current MMA: 10-160 and TIG: 5-200 A
Electricity basics 5-200 A
Crater current 5-200 A
Pulse frequency 0.2-200 Hz
Pulse duration 10-90%
AC Frequency 20 – 250 Hz
AC Balance 15-85%
ARC FORCE 0-40 and
Spot time 0.5-10 s
4.2 Torch
The type of handle T-26
The maximum current capacity 200 and
Airflow 10-20 l/min
ARC Non-Contact Type (HF)
The length of the 4 m
Duty cycle
Duty cycle is based on a period of 10 minutes. 40% duty cycle means that after 4 minutes of
operation the device is required 4-minute break. The duty cycle of 100% means that the device can
work continuously, without interruption.
Please note! Heating test has been carried out at a temperature of ambient air. Duty cycle at 40 ° C
has been determined by simulation.
Degree of protection
IP specifies the extent to which the device is resistant to ingress inside the solids and water. IP21S
indicates that the device is suitable for working in confined spaces and is not suitable for use in the
rain.
Class application
Class application means that the device is suitable for use in areas with an increased danger of
electric shock.
5
5. DESIGN AND FUNCTION
The basis for the construction of processing system of electricity welding machines are electronic
circuits made in IGBT technology to work in the frequency range above 200 kHz.
The principle of operation is based on rectification voltage single phase mains to DC voltage,
converted the received voltage on the rectangular frequency, voltage transformation in the scope
required by the welding process and then restart after voltage on received voltage.
6. THE CONNECTION TO THE MAINS
1. The device should be used only in the single phase power, three wired, with a grounded
(earthed) neutral.
2. Inverter rectifiers DIGITIG 206 p AC/DC are designed to work with the network 230V 50 Hz 16A
fuse protected. The power supply should be stable, no voltage drops
3. The device is equipped with a power cord. Before connecting the power supply, make sure that
the power switch (6) is in the OFF position (off).
7. PREPARE YOUR MACHINE FOR
If you store or transport the device at low temperatures before starting to work to bring the
device to the right temperature!
7.1 method of MMA
Tips for welding cables must be connected to sockets (1) and (2) located on the front panel so that
the electrode holder was appropriate for a given electrode pole. The polarity of the connecting cables
depends on the type of the used electrodes and is given on the packaging of electrodes. Clamp return
line should be carefully stored on the puddle. Connect the mains plug to a wall socket 230V 50 Hz.
6
7.2 TIG
Current clamp holder should be connected to the socket for negative polarity (2), screw the handle
control plug into the socket (4), and the gas connection to the socket coupler (3). Gas hose with
regulator and must be attached to the gas nozzle (5) located on the back of the housing. The positive
pole (1) connect with the material welded using wire with tick-borne encephalitis. Connect the mains
plug to a wall socket 230V 50 Hz.
8. A DESCRIPTION OF THE FUNCTION PRZEŁACZNIKÓW AND KNOBS
8.1 Front and rear Panel
1. Positive polarity
socket
7
2. The socket the polarity negative
3. Protective gas port
4. Control socket handle
TIG WELDING
5. Protective gas connection
6. Main switch

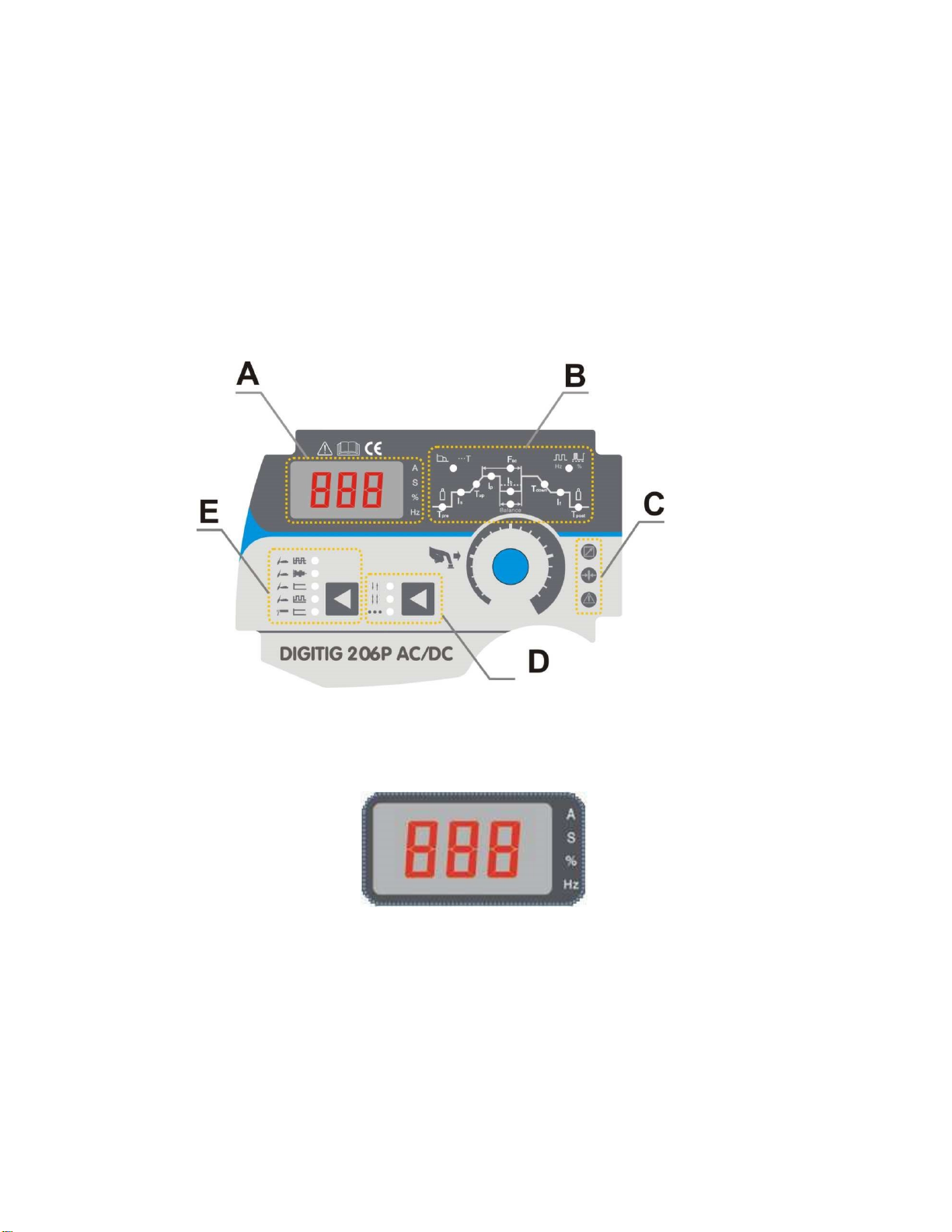

8.2 Control Panel
(A) -display of welding parameters
The display indicates the parameters during their set and during welding. When lit up, the
corresponding LEDs on the side of the display indicates the unit parameter.
(B) -Setting of welding parameters
8
Adjustment of welding parameters is made by using the multifunctional knob located on the front
panel. Pressing the knob moves between the adjustable parameters. Currently adjustable parameter
is lighted the corresponding led, and appears on the display the current value of the parameter. Turn
the knob to the left to decrease and turn right to increase the value of the parameter. Pressing the
knob or leaving the knob stationary. 5 seconds to remember the changed parameter values.
(C) -Other features
Remote led becomes active when you connect the handle with the possibility of remote control
(option)
Electrode diameter check function is available in all welding methods. When you select the diameter
of the electrode the device will have spoken to sub-optimal setting of welding parameters by
inflammation of LEDs Note!.
(D) -Operating mode selection button (2T/4T/spot welding)
The button active only while welding TIG. Mode selection is indicated a corresponding led.
In 2T mode, pressing the switch in the handle of the handle will turn on the Ionizer and the ignition of
the arc. Welding is carried out with the switch. Release the switch to stop welding. In 4T mode,
pressing the switch in the handle of the handle will turn on the Ionizer and the ignition of the arc then
release the switch and lead welding with slow motion switch. Pressing the switch to stop welding.
In spot mode, after pressing the button you will start the welding and automatically stops after the set
time.
E-selection of welding methods
2
T
4
T
Spawanie punktowe
Zdalne sterowanie
Ś
rednica elektrody
Uwaga!
ARC FORCE / czas
spawania punktowego
Prąd spawania
Częstotliwość AC
Częstotliwość pulsu /
czas trwania impulsu
Narastanie prądu
Przedwypływ gazu
Prąd podstawy
Balans
Powypływ gazu
Prąd krateru
Opadanie prądu
Prąd początkowy
9
Button
used to select welding method. The choice of method is indicated a corresponding led.
8.3 protection against overheating
The power source is equipped with a thermal overload switch in the compression. When the
temperature of the welding will be too high, disconnect the welding current, the code appears on the
display E1 will start beeping to signal overheating. After falling back temperature will automatic reset
circuit breaker.
9.
PARAMETER SETTINGS
9.1
MMA Method
After selecting the MMA welding current adjustment is possible and the ARC FORCE.
9.2
TIG
The check button welding select TIG DC, TIG DC with pulse, TIG AC or TIG with pulse. Source
control mode button select the 2T, 4T or spot welding.
Adjustment of the welding current is possible immediately after the power is turned on. Turning
the control dial to change the welding current. After you set the appropriate values, you must press
the knob to confirm the settings. Leave the knob without movement by the 5s will automatically
confirm a setting.
To set the other parameters you must press the control dial until the led lights up the appropriate
parameter by turning the control dial to set the desired value. Confirm the setting by pressing the
control dial or waiting for 5s (auto-confirm a setting).
-
ARC FORCE (MMA)/spot time
Adjustment range 0 – 40A/0.5-10s
Tpre is a time post flow gas
Control range: 0.1-10 s
2
T
4
T
Spawanie punktowe
10
The is-the starting current
Range 5-160A
Tup-rise time currents
Adjustment range 0 – 10 s
IP-welding current
Range 5-160A (MMA)/05-200A (TIG)
IB-current base (only in welding with pulse)
Range 5-200A
Tdown-downslope time
Adjustment range 0-15s
If direct current crater
Range 5-200A
Tpost-post flow gas
Control range: 0.5-15s
Balance-Balance AC-the ratio of the duration of the halves of the positive to the negative
halves of welding current
Adjustable 15-85%
-Pulse frequency/pulse duration (the time of welding current Ip to
time of the current base of Ib) (only in welding with pulse)
Adjustment range 0.2-200 Hz/10-90%
10. WELDING
10.1 Welding coated electrode (MMA)
10.1.1 Initiation of the arc
Initiation of the arc when welding coated electrode is touched the electrode to the work piece, short
non-safety and isolation. In the case of the initiation of the arc electrodes whose lagging after set
creates a non-conductive slag should be initially cleaned top of the electrodes by repeatedly hitting a
hard surface until the contact with metal welded material.
10.1.2 Carrying out welding process
The check button to select welding method MMA. In this mode, the welding current adjustment is
possible and the ARC FORCE.
Adjustment of the welding current is possible immediately after the power is turned on. Turning
the control dial to change the welding current. After you set the appropriate values, you must press
the knob to confirm the settings. Leave the knob without movement by the 5s will automatically
confirm a setting.
10.2 Gas shielded Welding (TIG).
10.2.1 The initiation and conduct of welding in TIG welding
Device DIGITIG 206 p AC/DC is fitted with Ionizer for non-contact arc.
To initiate the arc in dwutaktu mode, you must approach the electrode to the work piece at a distance
of 2 millimeters and press the button in the handle of the burner to turn on the Ionizer. After the
correct initialization of the arc welding lead control-button. Release the button at the handle starts the
downslope phase and the completion of the welding process.
/
Indice
Altri manuali Sherman Sistema di saldatura
Sherman
Sherman TIG 202P Manuale utente
Sherman
Sherman DIGIMIG 225GDS Manuale utente
Sherman
Sherman 40 Cutter Manuale utente
Sherman
Sherman DUALMIG 210 S3 Manuale utente
Sherman
Sherman TIG 210 AC / DC Pulse Manuale utente
Sherman
Sherman MIG 230/2 Manuale utente
Sherman
Sherman 50 Cutter Manuale utente
Sherman
Sherman DIGIMIG 200 PULSE Manuale utente
Sherman
Sherman DIGITIG 200GD Manuale utente
