Shimadzu ELB120 Manuale utente
UNIT
ON/OFF
BREAK
MODE
TARE
SHIMADZU ELECTRONIC BALANCE
ELB SERIES
ELB120, ELB200, ELB300, ELB600,
ELB1200, ELB2000, ELB3000, ELB12K,
ELB600S, ELB6000S
INSTRUCTION MANUAL
4500-10800-15ATD(374)
321-56849-21E
Oct. 2008
Read this manual thoroughly to ensure correct use of
the equipment. Save this for reference in use.
SHIMADZU ELECTRONIC BALANCE
ELB SERIES
ELB120, ELB200, ELB300, ELB600,
ELB1200, ELB2000, ELB3000, ELB12K,
ELB600S, ELB6000S
INSTRUCTION MANUAL
Safety Precautions
NOTICE
Precautions in this instruction manual are defined as follows.
CAUTION! Failing to observe this may result in light to medium levels of injury or physical
damage.
NOTICE Information for the correct use of the equipment.
Follow the cautions below for safe and proper use of the ELB balance.
CAUTION! Do not use the ELB balance in dangerous areas*.
Use only the AC adapter provided by the distributor authorized by Shimadzu if
using an AC adapter.
Use options and peripherals provided by Shimadzu. Use of inadequate attachments
and peripherals may cause malfunction of the balance.
The ELB balance is a precision instrument. Take enough care and precautions when
handling it to ensure proper operation over a long period of time.
* Places exposed to flammable gases, liquids or dust.
Introduction
Thank you for purchasing the Shimadzu ELB Series Electronic Balance. Before using the balance, read
this Instruction Manual carefully and store it for reference in use.
Declaration Of Conformity
Shimadzu Corporation declares that the following products:
ELB Series
Electronic Balance
conform to the following directives.
Directives
EMC directive 89/336/EEC amended by 92/31/EEC, 93/68/EEC
EN55022: 1994 /A1: 1995 /A2: 1997 (Class B)
EN55024: 1998
EN61000-3-2: 1995 /A1: 1998 /A2: 1998
EN61000-3-3: 1995
Low Voltage directive 73/23/EEC amended by 93/68/EEC
EN60950: 1992 /A1: 1993 /A2: 1993
Weighing Instruments Department
Analytical & Measuring Instruments Division
SHIMADZU CORPORATION
1, Nishinokyo-Kuwabaracho
Nakagyo-ku, Kyoto-shi
604-8511 JAPAN
Contents
1. LIST OF COMPONENTS AND NAMES OF UNITS .......................................................................................1
2. FITTING & REPLACING THE DRY BATTERIES...........................................................................................4
3. INSTALLATION...............................................................................................................................................5
4. CAUTIONS AND NOTICES............................................................................................................................6
5. MEASUREMENT PROCEDURE....................................................................................................................6
6. AUTO POWER OFF FUNCTION ...................................................................................................................8
6.1 SETTING THE AUTO POWER OFF FUNCTION .............................................................................................8
6.2 DISABLING THE AUTO POWER OFF FUNCTION ..........................................................................................9
7. MENU SELECTION......................................................................................................................................10
8. REGISTRATION OF UNITS .........................................................................................................................12
8.1 CONDITIONS FOR REGISTRATION ............................................................................................................12
8.2 REGISTRATION PROCEDURES ..................................................................................................................12
8.3 DELETING THE REGISTRATION................................................................................................................12
9. CALIBRATION ..............................................................................................................................................13
10. PIECE COUNTING.....................................................................................................................................14
11. PERCENTAGE CONVERSION ..................................................................................................................16
12. SPECIFIC GRAVITY MEASUREMENT .....................................................................................................17
13. SWITCHING UNITS ...................................................................................................................................19
14. PERFORMANCE INSPECTION.................................................................................................................20
15. MAINTENANCE..........................................................................................................................................21
16. MALFUNCTION?........................................................................................................................................22
17. SPECIFICATIONS ......................................................................................................................................23
18. PARTS LIST ...............................................................................................................................................25
19. SPECIAL ACCESSORIES (OPTIONS) ......................................................................................................26
19.1 BELOW-BALANCE-WEIGHING HOOK .....................................................................................................26
19.2 PERIPHERALS ........................................................................................................................................27
19.2.1 PRINTER EP-80 ..................................................................................................................................27
19.2.2 RS-232C INTERFACE IFB-102A ........................................................................................................27
19.2.3 INPUT/OUTPUT FORMAT ....................................................................................................................28
19.2.4 COMMAND CODES ..............................................................................................................................30
1
1. List of Components and Names of Units
List of components The following components (one for each) are contained in the package.
Balance main unit (Dry battery holder and dry battery cover are fitted
before shipment.)
In-use keypad protective cover Pan supporter Pan
Instruction manual Operating guide
(Drybatteriesarenotpacked.)
Names of units
①Balance main unit ②Dry
battery cover ③Pan
④Pan supporter ⑤Pan supporter shaft
⑥Level indicator ⑦Power jack
⑧Level screws (3 places) ⑨In-use keypad protective cover
⑩Dry
battery holder ⑪DATA I/O connector
Large-pan model
Small-pan model
2

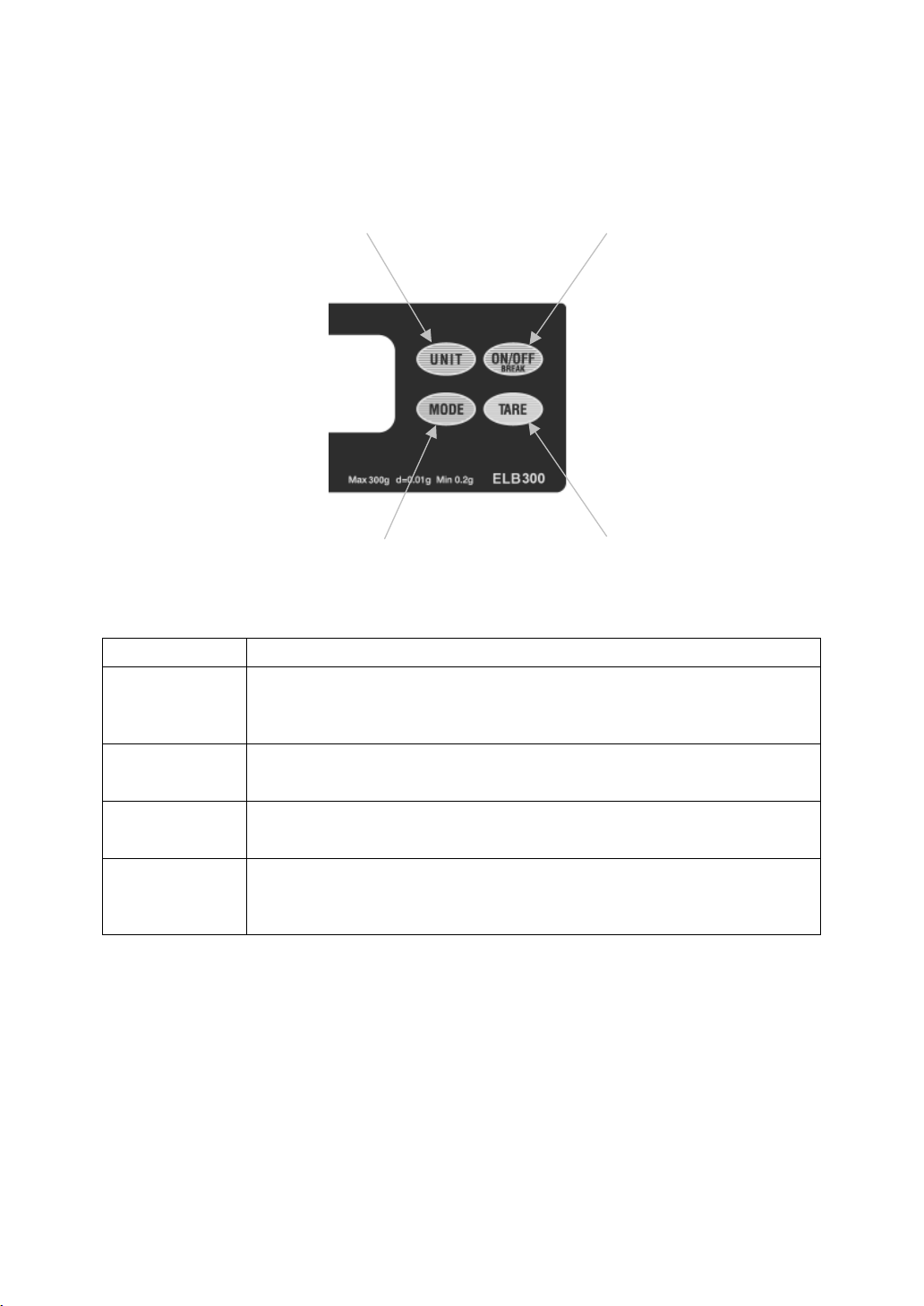

Key names and functons
UNITkey ON/OFF(BREAK)key
MODEkey TAREkey
Name of Key Function
ON/OFF(BREAK) 1) Turns the power on/ off.
2) Discontinues menu selection.
3) Cancels the Auto Print function.
4) Stops continuous data output to external instruments.
TARE 1) Subtracts the weight of the container.
2) Confirms menu selections.
3) Sets the reference values for piece counting and percentage conversion.
UNIT 1) Switches the units.
2) Cancels the Auto Print function.
3) Stops continuous data output to external instruments.
MODE 1) Selects different menu items.
2) Measures the weight in air during specific gravity measurement.
3) Cancels the Auto Print function.
4) Stops continuous data output to external instruments.
