Shimano FlightDeck SC-6500 Istruzioni operative

One Holland Irvine CA 92618 U.S.A. Phone 949-951-5003

Industrieweg 24 NL-8071 CT Nunspeet Holland Phone 31-3412-72222

Oimatsu-cho

-cho Sakai Osaka

590

8577

Japan Phone

0722

3243

SI-7AB0D

SERVICE INSTRUCTIONS

MONTAGE-INSTRUCTIES

EINBAUANLEITUNG

NSTRUCTIONS DE MONTAGE

INSTRUCCIONES DE SERVICIO

取扱い説明書

ISTRUZIONI per l'ASSISTENZA

MANUAL DE INSTRUÇÕES

Cycle Computer

SC-6500/SC-6500-M

SC-6500-MX/SC-6500-T

English

3–24

Dutch

25 – 46

German

47 – 68

French

69 – 90

Spanish

91 –

112

Japanese

113

–

13 4

Italian

13 5

–

15 6

Portuguese

15 7

–

17 8

English

Cycle Computer

SC - 6500 / SC - 6500 - M

SC - 6500 - MX / SC - 6500 -T

INDEX

1. External appearance • • • • • • • • • • •

2. Display Contents • • • • • • • • • • • • • • •

3. Display Modes • • • • • • • • • • • • • • • • •

•

Current speed (VEL)

• • • • • • • • • • • • • • • •

•

Gear indicator (bar)

•

Time display (CLK)

•

Trip distance group (TIM, DST, MAX, AVE)

• • •

•

ODO meter (ODO)

• • • • • • • • • • • • • • • • •

•

Stopwatch (STW)group

•

Cadence (rpm)

• • • • • • • • • • • • • • • • • • •

•

Main display cadence (VEL)

•

Lap counter (CNT)

•

Digital gear number F- R

• • • • • • • • • • • • •

•

Gear ratio

•

Pace Arrow

•

Low battery display (LO BAT)

•

Power saver function

• • • • • • • • • • • • • • •

4. Resetting • • • • • • • • • • • • • • • • • • • • •

Viewing data after removing the

• • • • • • •

computer from the bracket mount

6. Setting tolerances

7. Installation to the bicycle • • • • • • • •

8. Data input • • • • • • • • • • • • • • • • • • • •

Trouble Shooting • • • • • • • • • • • • • • • • •

Warning

Be careful not to pay excessive attention to

the computer data while riding, otherwise you

might have an accident.

NOTE;

* The all clear (AC) button is used to clear the main unit memory.

Never disassemble the main unit, as it cannot be reassembled.

The main unit is fully waterproofed to withstand wet weather

conditions; however, do not deliberately place it into water.

Avoid leaving the main unit exposed to extremely hot weather

conditions.

Handle the main unit carefully, and avoid subjecting it to any

shocks.

Do not use thinner or other solvents to clean parts such as the

main unit and sensor, as they may dissolve the part casings.

To clean these parts, wipe them with a cloth soaked in a weak

mixture of neutral detergent and water.

Model No.

SC-6500

SC-6500-

STI lever

ST-6501

ST-5500-C

ST-M951

ST-M950

SL-M951

SC-6500-T

ST-T400

ST-T300

SC-6500-M

ST-M952

ST-M750

SL-M570

SL-M952

SL-M750

SL-M570

Specifications

1. External appearance

Front

Main Display

Start stop button

1. Current speed

(VEL)

10. Cadence

15. Gear number

(digital) Sub Display

14, 16

17. Gear indicator

(bar)

Rear

Switch B

AC All clear

Switch

Battery cap

Switch A

Mode button

<SC-6500 >

Rear STI Brake Bracket

Start stop button

<SC-6500-M /SC-6500-MX /SC-6500-T >

Mode button

2. Display Contents

mode 1

1. Current

speed

(VEL)

2. Clock

(CLK)

3. Trip time

(TIM)

4. Trip distance

(DST)

5. ODO meter

(ODO)

7. Stop watch–

trip distance

(DST STW)

8. Stop watch–

average speed

(AVE STW)

9. Stop watch–

maximum speed

(MAX STW)

6. Stop watch

mode 2

10. Cadence

(rpm)

11.

Main display

cadence

12. Maximum

speed

13. Average

speed

15. Gear number

(digital)

16. Gear ratio

17. Gear indicator

(bar)

18. Pace Arrow

19. Low battery

display

14. Lap counter

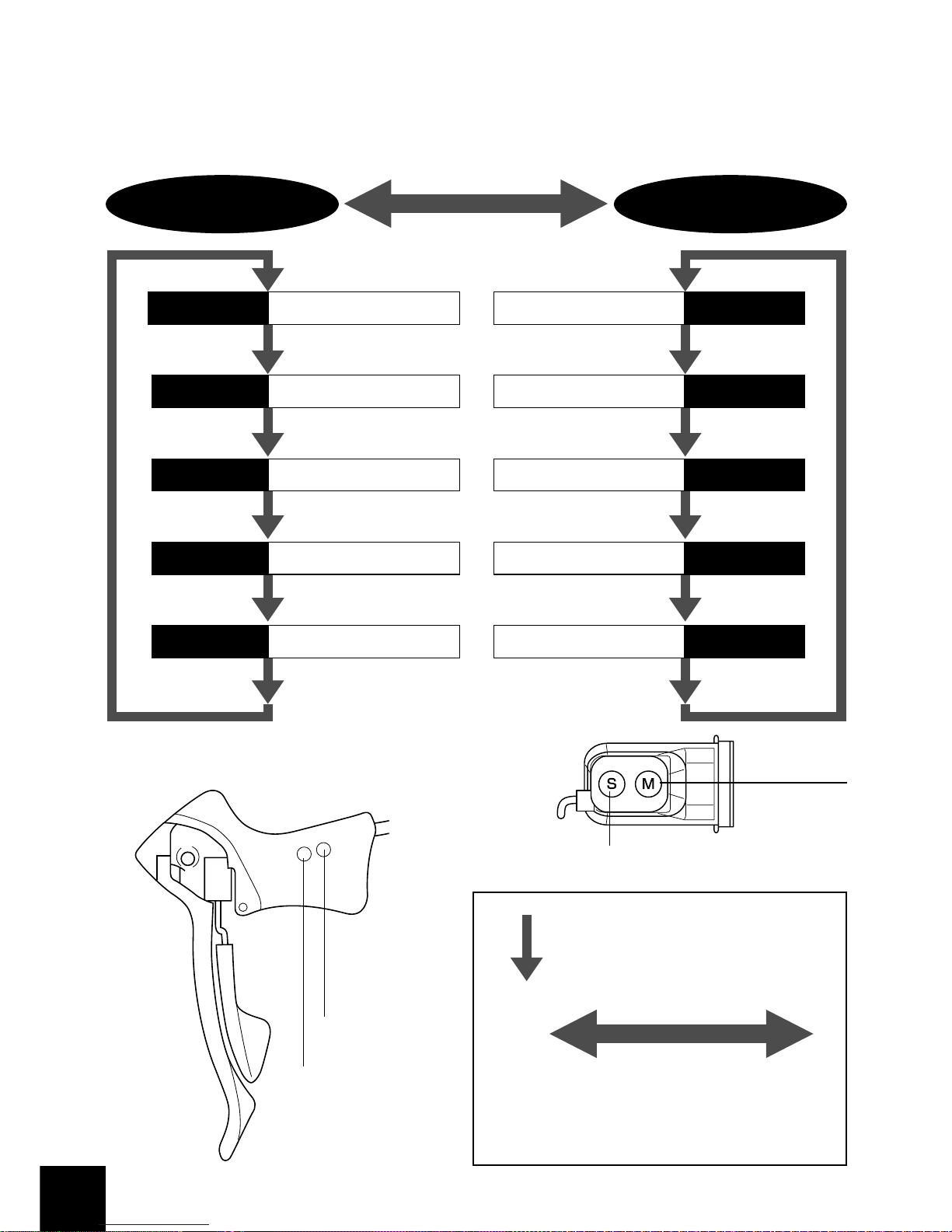

3. Display Modes

“Current speed” and “Gear indicator (bar)” are always displayed

mode 1 mode 2

TIM Trip time

DST Trip distance

ODO ODO meter

STW Stop watch

CLK Clock rpmCadence

VEL

Main display cadence

MAX

Maximum speed

AVEAverage speed

CNTLap counter

ST/SP Button

Mode Button

Press mode button

once

Press mode button

continuously for 2

seconds or more

SC-6500

SC-6500-M

SC-6500-MX

SC-6500-T

ST/SP Button

Mode Button
