SHINDAIWA GRASS TRIMMER TO BRUSHCUTTER

CONVERSION KIT FOR T282 GRASS TRIMMER

WARNING!

Minimize the risk of injury to yourself and others! Read the Owner's/Opera-

tor's manual originally supplied with the unit that is being upgraded and

familiarize yourself with the contents. Always wear eye and hearing protec-

tion when operating your unit.

X7672820300

12/10

MODEL: 89379

CAUTION!

A statement preceded by the word “CAUTION” contains

information that should be acted upon to prevent mechanical

damage.

IMPORTANT!

A statement preceded by the word “IMPORTANT” is one that

possesses special signicance.

NOTE:

A statement preceded by the word “NOTE” contains information

that is handy to know and may make your job easier.

Throughout this manual are special “attention statements”.

WARNING!

A statement preceded by the triangular attention symbol and the word “WARNING” contains information that should be

acted upon to prevent serious bodily injury.

Attention Statements

Introduction

PAGE

These are instructions to convert a grass trimmer to a blade capable unit. This is not an Owner's/Operator's manual. Infor-

mation on how to operate and maintain the unit can be found in the Owner's/Operator's manual for the unit you are con-

verting. Note this kit is supplied with a cutting attachment shield that has been redesigned to provide better visibility and a

larger cutting swath when used as a grass trimmer.

Attention Statements ........................2

Safety Labels....................................3

Contents

IMPORTANT!

The instructions described in this manual are intended to help

you get the most from your Shindaiwa power tool as well as

to protect you and others from harm. These procedures are

guidelines for safe operation under most conditions, and are

not intended to replace any safety rules and/or laws that may

be in force in your area. If you have questions regarding your

Shindaiwa power tool, or if you do not understand something in

these instructions, your Shindaiwa dealer will be glad to assist

you. You may also contact Shindaiwa at the address printed on

the back of this instructional manual.

General Safety Instructions ..............3

Kit Contents......................................3

Read and follow this

operators manual.

Failure to do so could

result in serious injury.

Wear eye and hearing

protection at all times

during the operation

of this unit.

Keep bystanders

at least 50 feet (15 m)

away during operation.

Beware of thrown or

ricocheted objects.

Do not operate this unit

with a blade unless the

unit is equipped with a

Shindaiwa-approved

handlebar or barrier.

Always wear a harness

when operating this unit

with a blade. A harness

is also recommended when

using trimmer line.

If unit is used as a

brushcutter, beware of

blade thrust. A jammed

blade can cause the unit

to jerk suddenly and may

cause the operator to

lose control of the unit.

Assembly..........................................4

Shoulder Strap................................10

Using a Brushcutter Blade.............. 11

PAGE PAGE

IMPORTANT!

The information contained in these instructions describes

the product available at the time of publication.

Echo, Inc. reserves the right to make changes to products

without prior notice, and without obligation to make altera-

tions to units previously manufactured.

IMPORTANT!

If the cutting attachment shield has been removed from

your unit or the unit was manufactured prior to October

2001, an additional clamp kit will be required to complete

this installation. The clamp kit required is Shindaiwa part

number 80293.

Safety and Operation Information Labels: Make sure

all information labels are undamaged and readable.

Immediately replace damaged or missing information

labels. A new label is provided in this kit and additional

labels are available from your local authorized Shin-

daiwa dealer. Prior to installing the new label, Remove

old label and clean the outer tube with rubbing alcohol

or similar cleaner.

IMPORTANT!

Safety Labels

When operating with a blade, make sure the handle■

is positioned to provide you with maximum protec-

tion from contacting the blade. Always make sure the

handlebar is installed in accordance with the manufac-

turers instruction.

NEVER

■use a cracked or warped blade: If a properly

installed blade vibrates, replace it with a new one and

re-check.

WARNING!

ALWAYS

■Shut off the engine immediately if a blade

binds in a cut. Push the branch or tree to ease the

bind and free the blade.

Beware of a coasting blade when brushcutting.

■

A coasting blade can injure while it continues to

spin after the throttle trigger is released or after the

engine is stopped.

Kit Contents

General Safety Instructions

# Description Qty

1 Handlebar Assembly 1

2 Caution Label 1

3 Screw, 5 mm x 16 mm 1

4 Harness Hanger 1

5 Hex Nut, 5 mm 1

6 Handlebar Mounting Bracket 1

7 Plastic Clamp 2

8 Shim 2

9 Hex Bolt, 8 mm 1

10 Bolt Guard 1

11 Upper Shield Clamp 1

12 Shim 2

13 Hex Bolt, 5 mm x 45 mm 4

14 Debris Shield 1

15 Debris Shield Extension 1

16 Shoulder Strap With Hip Cushion 1

17 Holder B 1

18 Holder A 1

Assembly Tool(s)

1213

17 18

Assembly

Removing the Existing Cutting Attachment Shield

Remove the four socket-head cap screws (A),1.

bracket (B) and two shims (C).

Remove the cutting attachment shield from the2.

gearcase. AB

Remove Handle Assembly

Turn the unit over so that the gearcase output shaft faces UP.1.

Align the hole in the holder (A) with the notch in the gearcase ange, and 2.

then temporarily lock the output shaft by inserting a hex wrench through

both holes.

While holding the hex wrench turn the trimmer head clockwise to remove.3.

Remove the hex wrench.4.

Remove Cutting Attachment

26107

Remove handle assembly. Retain all parts for1.

future use.

Remove Power Head

1. Loosen drive shaft clamping bolt (A).

2. Pull outer tube (B) and drive shaft out of power head (C).

Remove Throttle Control Handle Assembly

Loosen handle clamp screw (D), and remove throttle control assembly1.

and cushioned hand grip (F) from outer drive shaft tube.

C, D

Install Power Head

Slide outer drive shaft assembly into power head clamp, and align1.

power head with gear case.

Secure drive shaft assembly with clamping bolt.2.

Install Harness Hanger

Slide harness hanger (A) on to outer drive shaft tube (B)1.

and loosely attach with 5 mm x 12 mm screw (C) and nut

(D). Do not tighten screw securely until nal adjustments

are completed.

Disconnect Throttle Cable-Ignition Wires

1. Loosen air cleaner cover knob and remove air cleaner cover.

2. Remove wire end of throttle linkage cable (A) from carburetor throttle

swivel hole.

3. Disconnect 2 ignition stop switch leads:

a. Disconnect wire with ring terminal from grounding screw (B) on

engine.

b. Pull quick-connect connectors (C) apart to disconnect remaining stop

switch wire.

Units with plain throttle cable end (P):

4. Remove throttle linkage cable from adjustment xture (D).

5. Unscrew throttle cable adjustment xture (D) and lock nut from carburetor

throttle cable bracket, and discard.

Units with throttle cable adjustment xture attached to cable end (T):

6. Unscrew throttle linkage cable with attached cable adjustment xture and

nut (T) from carburetor throttle cable bracket (E).

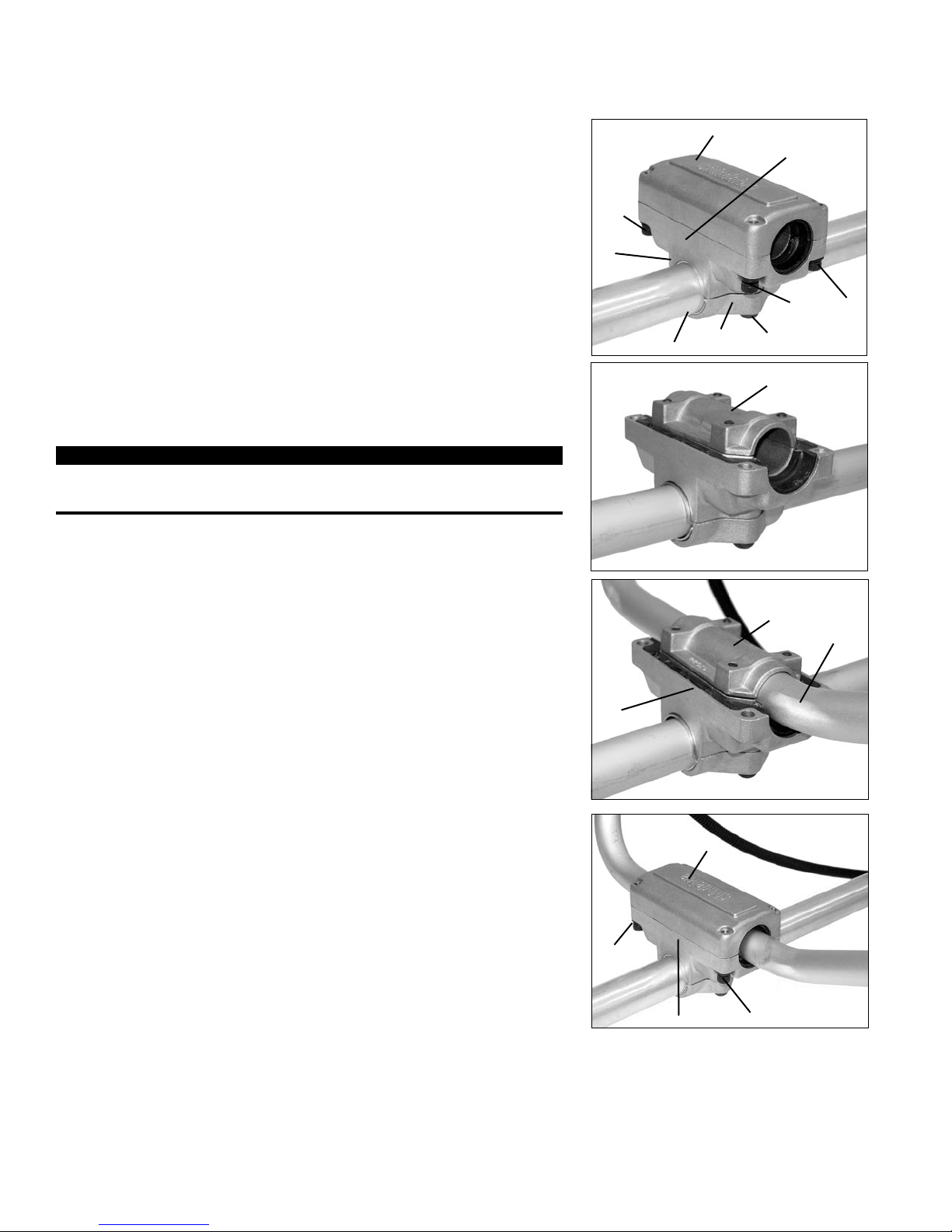

Install Handlebar Mounting Bracket and Handlebar

Assembly

Remove 2 lower cap screws (A), and remove lower cap (B).1.

Place the handlebar mounting bracket (C) and 2 spacers (D) on the outer2.

tube, and secure with lower cap and 2 screws.

Remove 4 upper cap screws (E) and remove upper cap (F).3.

Remove handlebar clamp (G) from mounting bracket, and unscrew 44.

screws to separate clamp.

Install handlebar clamp (G) on handlebar (H), and secure with 4 clamp5.

screws.

IMPORTANT!

Screw heads must face down to permit handlebar adjustments after upper

cap (F) is installed on handlebar mounting bracket (C).

Place handlebar clamp into mounting bracket, and seat clamp in rubber6.

anti-vibration cushion.

Place upper cap (F) on handlebar mounting bracket. Make sure anti-vibra-7.

tion cushions in upper cap t properly on top of handlebar clamp. Secure

with 4 screws (E).

Secure plastic ex tubing to outer driveshaft tube using plastic clamps (I) 8.

provided. Do not fully tighten plastic clamps until throttle cable and stop

switch wires are connected and all nal throttle cable and handlebar ad-

justments are completed.

Handlebar Adjustments:9.

a. Loosen 2 lower cap retaining screws (A) to adjust handlebar location

on outer drive shaft tube.

b. Loosen 4 handlebar clamp screws to adjust handgrip position.

Access handlebar clamp screws through 4 holes (J) in bottom of

handlebar mounting bracket.

c. Tighten all clamp and retaining screws securely after making nal

adjustments. (See page 10.)

Thread throttle cable adjuster (A) into throttle cable bracket (B), and install1.

wire end into large carburetor swivel hole (C). Check throttle for freedom

of movement and that wide open throttle/low idle extremes are adjusted

properly. Turn the cable adjuster in or out to make adjustments. After

adjusting, hold the cable adjuster (A), and tighten the cable adjuster nut (D)

against the cable bracket (B) to lock the setting.

Connect 2 ignition stop leads from throttle cable tubing to ignition leads on2.

engine (E) and grounding screw (F).

Reinstall the air cleaner cover.3.

Throttle Linkage and Ignition Leads

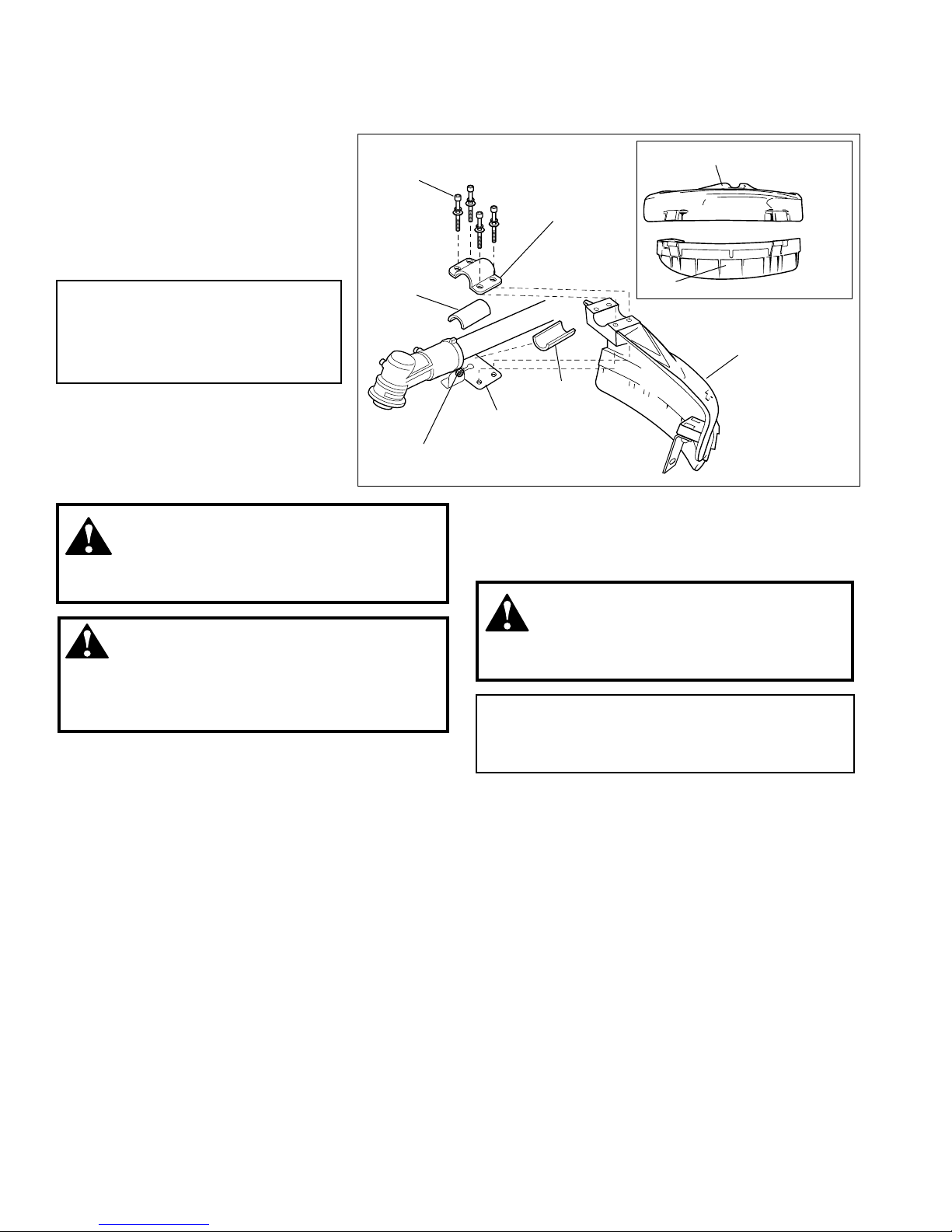

Install New Cutting Attachment Shield

Assemble the Cutting Attachment Shield to the Outer Tube.

Insert the cutting attachment shield1.

(A) between the outer tube and the

cutting attachment mounting plate (B).

Fit the two shims (C) and the upper2.

clamp (D) over the outer tube and in-

stall the four socket-head cap screws

(E) nger tight.

CAUTION!

Make sure the clamp screw and re-

taining nut (F) are securely tightened

before tightening the four socket head

screws.

Tighten the four socket-head cap3.

screws to secure the cutting attach-

ment shield.

Sub-Shield.

(when trimmer head is in use)

Attach the sub-shield (G) extension to the cutting attach-1.

ment shield (A).

WARNING!

NEVER use this machine without sub-shield when us-

ing a trimmer head.

CAUTION!

Make sure the sub-shield is completely hooked at the

hook receiver.

WARNING!

NEVER operate the unit without the cutting attachment

shield installed and tightly secured!

WARNING!

A cutting attachment shield or other protective device is

no guarantee of protection against ricochet. YOU MUST

ALWAYS GUARD AGAINST FLYING DEBRIS!

IMPORTANT!

Discard blades that are bent, warped,

cracked, broken or damaged in any way.Use

a sharp blade. A dull blade is more likely to

snag and thrust.

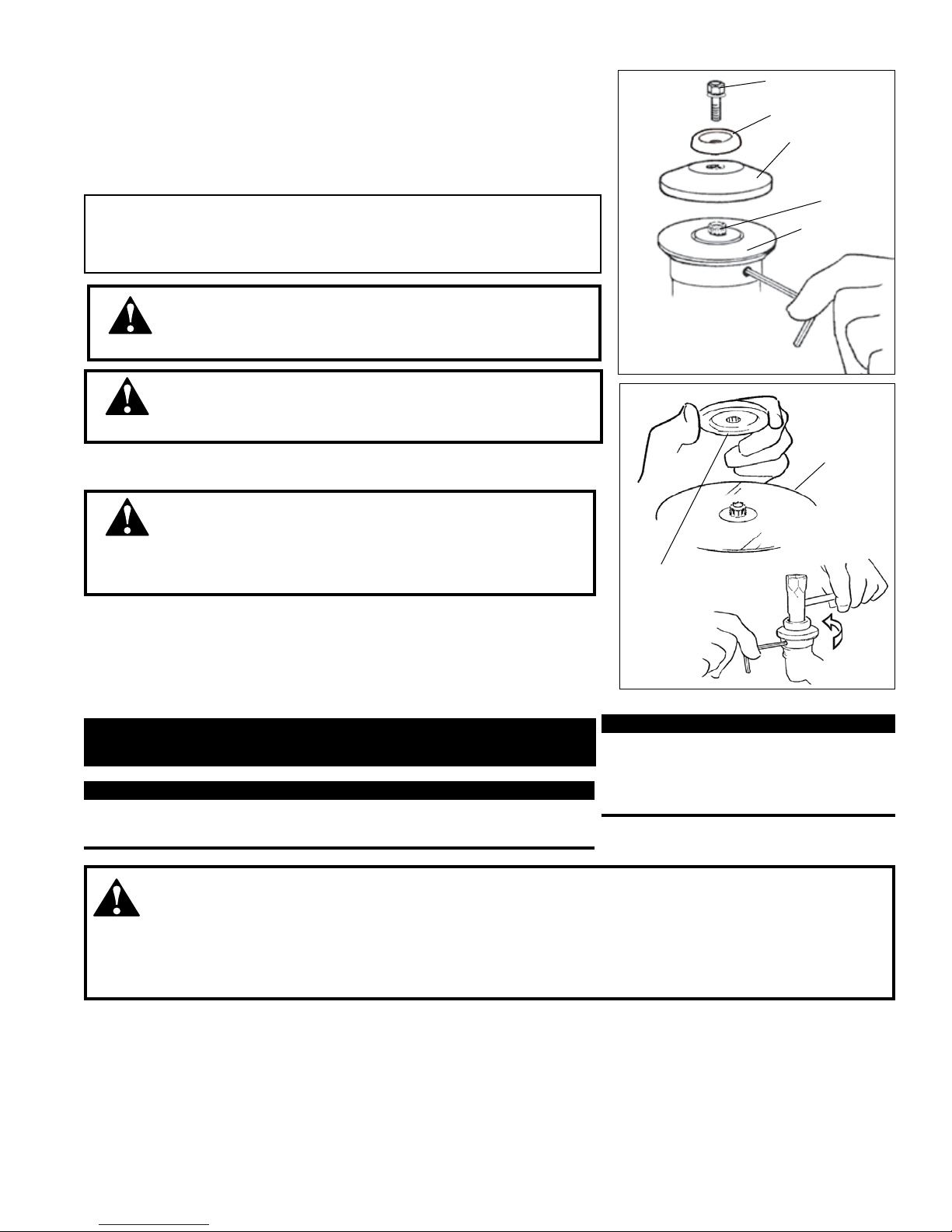

Installing Brushcutter Blade

Install blade holder (A) onto output shaft (G).1.

Align the hole in blade holder (A) with the matching hole in the gear case2.

ange and then temporarily lock the output shaft by inserting a hex wrench

through both holes.

Fit the blade over the ange on holder (A).3.

CAUTION!

Install the blade (E) so its printed surface is visible to the operator when the

brushcutter is in the normal operating position.

WARNING!

The blade must t at against the holder ange. The blade mounting

hole must be centered over the raised boss on blade Holder (A).

WARNING!

Holder (B) must t ush against the blade and the splines engaged

to the output shaft.

nstall blade holder (B) on the output shaft (G).4.

WARNING!

Do not attach any blade to a unit without proper installation of all required

parts. Failure to use the proper parts can cause the blade to y off and seri-

ously injure the operator and/or bystanders.

Install the bolt guard (C) and then the blade retaining bolt (D). Using the5.

combination spark plug wrench/screwdriver, tighten the bolt rmly in a

counter-clockwise direction.

Remove the hex wrench.6.

The unit should now be completely assembled and ready for use with a

blade.

IMPORTANT!

Units with adjustable carburetors must be readjusted for blade use, otherwise

serious engine damage can occur.

WARNING!

A standard grass trimmer unit with loop handle should NEVER be operated with blade-type attachments. For blade use,

the trimmer must be tted with a bicycle-type handlebar or barrier bar that is located in front of the operator to reduce the

risk of the operator coming in contact with the cutting attachment. (Per ANSI B175.3). When using a blade, the unit must

be equipped with a harness or strap.

Shoulder Strap

NOTE:

Although a shoulder strap accessory is not required for use with a grass

trimmer, a shoulder strap can increase operator comfort during extended

periods of operation.

WARNING!

Always wear a shoulder strap when operating this unit with a blade. A

shoulder strap is also recommended when using trimmer line.

NOTE:

Using a shoulder strap with a brush-cutter allows you to maintain proper

control of the unit and reduces fatigue during extended operation.

Adjust the shoulder strap so the shoulder pad rests comfortably on the off-side

shoulder and the cutting path of the cutting attachment is parallel to the

ground.

b a l a n c e a n d a d j u s t u n i t

Loosen harness clamp screw.1.

Put on harness and attach unit to harness.2.

Slide harness clamp up (A) or down until unit balances with head approxi-3.

mately 50-75 mm (2 -3 in.) from the ground.

Tighten harness clamp screw.4.

Loosen Handle bar clamp screws (B), and position Handle bar for comfort-5.

able operation. (See page 7.)

Tighten Handle bar clamp screws securely.6. A

Indice

Altri manuali Shindaiwa Tagliabordi

Shindaiwa

Shindaiwa 81601 Manuale del proprietario

Shindaiwa

Shindaiwa 89291B Manuale utente

Shindaiwa

Shindaiwa T230 Manuale del proprietario

Shindaiwa

Shindaiwa 82053 Manuale del proprietario

Shindaiwa

Shindaiwa T282 Manuale utente

Shindaiwa

Shindaiwa DH221 Manuale utente

Shindaiwa

Shindaiwa 80561 Guida rapida

Shindaiwa

Shindaiwa B450 Manuale del proprietario

Shindaiwa

Shindaiwa AHS231/EVC Manuale del proprietario

Shindaiwa

Shindaiwa BCK-11 Manuale utente

Shindaiwa

Shindaiwa T242/EVC Manuale del proprietario

Shindaiwa

Shindaiwa 81643 Manuale del proprietario

Shindaiwa

Shindaiwa 81646 Manuale del proprietario

Shindaiwa

Shindaiwa SBA-AH230 Manuale di istruzioni

Shindaiwa

Shindaiwa T300 Manuale del proprietario

Shindaiwa

Shindaiwa DH254 Manuale del proprietario

Shindaiwa

Shindaiwa M235 Manuale utente

Shindaiwa

Shindaiwa 22T Manuale del proprietario

Shindaiwa

Shindaiwa DH235 Manuale del proprietario

Shindaiwa

Shindaiwa T344 Manuale del proprietario

Shindaiwa

Shindaiwa 63848-94010 Manuale del proprietario

Shindaiwa

Shindaiwa T270 Manuale del proprietario

Shindaiwa

Shindaiwa BP420S Manuale utente

Shindaiwa

Shindaiwa T302 Manuale utente

Manuali Tagliabordi popolari di altre marche

MTD

MTD HT 51 E Manuale utente

McCulloch

McCulloch T22 LS Manuale utente

COCKRAFT

COCKRAFT PRO HL36-S Manuale utente

Grizzly

Grizzly CT 1800 Li Manuale utente

Peco

Peco Z Trimmer ZT-3000 Manuale utente

Solo

Solo 116 Manuale utente

Stiga

Stiga ST 1200 Manuale utente

Echo

Echo GT-225 - 10-09 Manuale utente

RedMax

RedMax BT17 Manuale utente

GreenWorks

GreenWorks STA806 Manuale utente

Parkside

Parkside PHSL 900 A3 Manuale utente

Gardeo

Gardeo PRO GPTHT2560 Manuale utente

Park

Park DT-810870 Manuale utente

Worx

Worx WG209 Manuale utente

Gardenline

Gardenline 43671/HTKS26 Manuale utente

Makita

Makita 3710 Manuale utente

Champion

Champion 100683 Manuale utente

Stihl

Stihl FS 311 Manuale utente
