Show Tec Single MKII Manuale utente

Single MKII

ORDERCODE 50396

www.liveline.be

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec Single MKII brings excitement to any venue. Whether you want simple plug-&-play action or a

sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: [email protected]

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

www.liveline.be

Showtec

Showtec Single MKII™Product Guide

Warning..…...................................................................................………………………………………….

Safety-instructions………………………………………………………………………………………….….

Operating Determinations…………………………………………………………………………………….

Description..…..............................................................................……….…………………………………

Features…….……………………………………………………………………………………….……...….

Overview………………………………………………………………………………………………………..

Installation...............................................................................…...…………………………………….…...

Set Up and Operation.....................................................................……..…………………………….……

DMX Address Mode……………………..……………………………………………..……….……..……...

Switch Pack Mode………………………………….……...…………….…….………………….…….....….

Dimmer Pack Mode………………………………….……...…………….…….………………….….…...…

HTP-Function……….………………………………….……...…………….…….…………………..…...….

End-Trim-Function…..……………………………….……...…………….…….………………….……...….

Maintenance...................................................................................………..………….…….………………

Changing the Fuse........................................................................…………………….………….………

Troubleshooting............................................................................………………….………………….…...

Product Specifications.................................................................……………….…….……………….…..

www.liveline.be

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow

the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Never leave any cables lying around.

•Do not insert objects into air vents.

•Do not open the device and do not modify the device.

•Do not connect this device to a dimmerpack.

•Do not shake the device. Avoid brute force when installing or operating the device.

•Do not switch the device on and off in short intervals, as this would reduce the system’s life.

•Only use device indoor, avoid contact with water or other liquids.

•Only operate the device after having familiarized with its functions.

•Avoid flames and do not put close to flammable liquids or gases.

•Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power-cord by the plug. Never pull out the plug by tugging the power-cord.

•Make sure that the device is not exposed to extreme heat, moisture or dust.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power-cord is never crimped or damaged. Check the device and the power-cord

from time to time.

CAUTION!

Keep this device away from rain and moisture!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dan

erous electric shock when touchin

the wires!

www.liveline.be

•If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•For adult use only. The device must be installed out of the reach of children. Never leave the unit

running unattended.

•For replacement use fuses of same type and rating only.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

You endanger your own safety and the safety of others!

Improper installation can cause serious damage to people and property !

www.liveline.be

Description of the device

Features

• 3-pin standard DMX IN/OUT ports providing dimmer information.

• Serves as a Switch Pack or Dimmer Pack, depending upon the current operating mode.

• Allows DMX Addressing, Dimmer Preset and Dimmer Limit.

• Power failure memory.

• 4 digits Segment Display shows current activity and function state.

NOTE: Knowledge of DMX is required to fully utilize this unit.

Overview

Fig. 2

Fig. 1

1) Dimming Slider Used to activate the HTP function.

2) MENU button Press this button to switch or adjust relevant options.

3) UP button Each tap will increase the value once.

Pressing and holding down will increase quickly.

4) DOWN button Each tap will decrease the value once.

Pressing and holding down will decrease quickly.

5) Segment Display Shows the current activity or function state.

6) OUTPUT 10A Max.

7) Fuse F 10A 250V 5°—20mm.

8) Power cord Plug in the appropriate power outlet.

9) DMX In 3-pin XLR male socket, used to receive DMX data.

10) DMX Out 3-pin XLR female socket, used to send DMX data.

www.liveline.be

Installation

Remove all packing materials from the Single MKII. Check that all foam and plastic padding is removed.

Connect all cables.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Plug in the appropriate power outlet, this unit recovers to the function state of last time automatically by

reasons of power failure memory. And the Segment Display shows the DMX address of last change.

The Single-MK2 serves as a dimmer pack or a switch pack, depending on the operating mode to be

selected.

DMX Address Mode

1. When the unit is powered on, the Segment Display will show the DMX address of last change. And for

example, if you have selected DMX address 123 for the last time, the Segment Display will read 123.

2. Each tap upon the UP or DOWN button will change the DMX address once.

Pressing and holding down each button will change the DMX address quickly. Once the DMX address

has been selected, it will be stored into memory automatically.

( Relevant DMX address can be adjusted within the range of 001~512 )

www.liveline.be

Switch Pack Mode

1. When the DMX address has been selected, press MENU button to enter the next item. And relevant

information will appear on the Segment Display.

2. Press UP or DOWN button to switch between “d---” and “s---” displays.

3. Press MENU button to enter the Switch Pack mode.

Switch Pack mode consists of Switch On (s-on) and Switch Off (s-off) patterns. In the “s-on” mode, output

is turned on and the fixture lights regardless of DMX signal. While in the “s-off” mode, the fixture will be

automatically controlled by the DMX signal. When DMX level is less than 40%, the fixture will go out. And

when the DMX level exceeds 40%, the fixture will light up.

4. Tap the UP or DOWN button to change between the Switch On (s-on) and Switch Off (s-off) modes.

www.liveline.be

5. Once the Switch Pack has been selected, press the MENU button to return to the DMX Address mode.

Dimmer Pack Mode

1. Press the MENU button to enter the next item and Tap the UP or DOWN button, the Segment Display will

show “d---”. (d=DIM)

2. Press the MENU button to enter the Dimmer Limit mode.

3. The “L” character on the LCD display means “LIMIT”. User can change the LIMIT level within the range

of 10~100(%) by using the UP / Down buttons. Press UP button to increase the LIMIT level, and press

DOWN button to decrease relevant LIMIT level. Each tap will change the relevant value once. Pressing

and holding down the UP or DOWN button will change the value quickly. And once the Dimmer Limit has

been selected, the relevant value will be stored automatically.

www.liveline.be

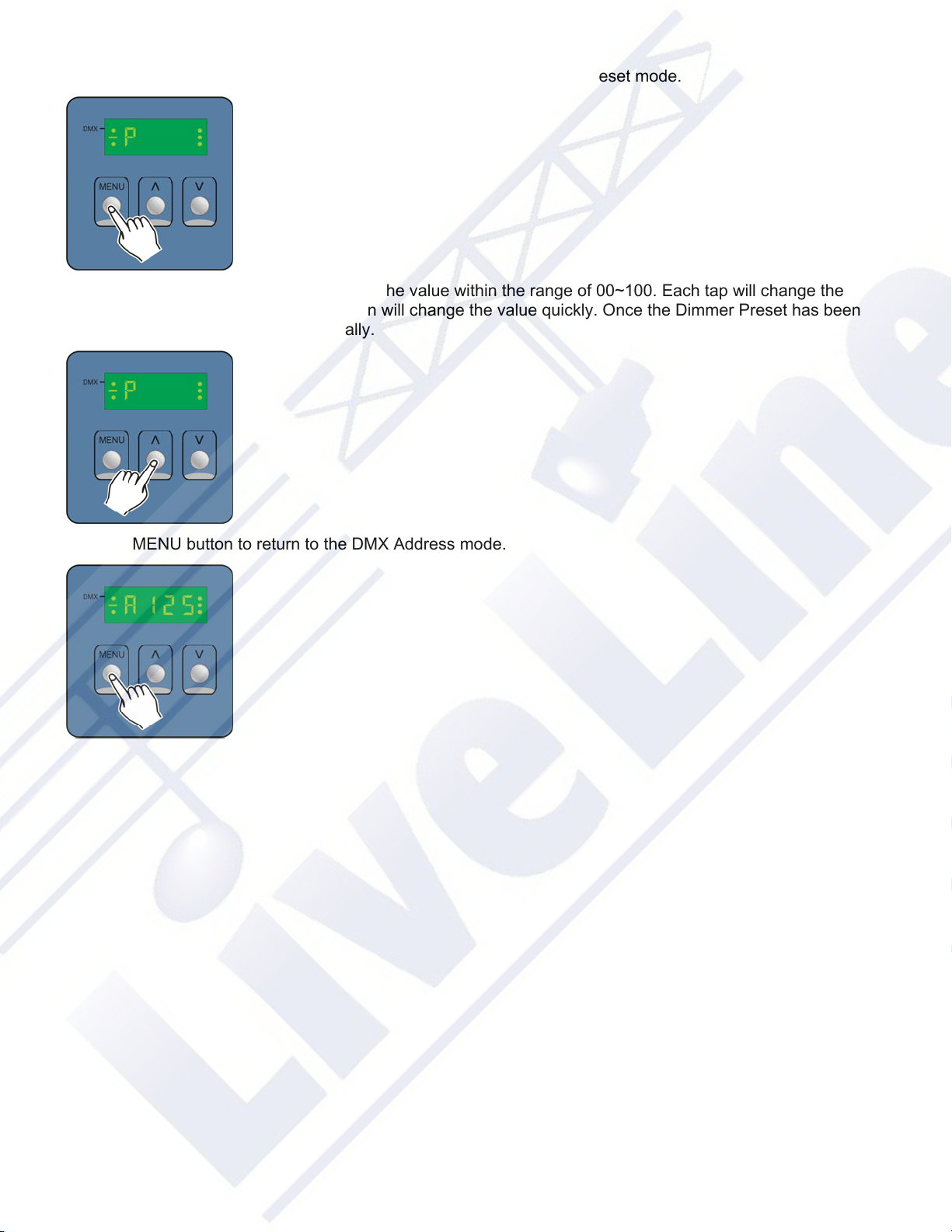

4. Give the MENU button a press, and the user will enter the Dimmer Preset mode.

5. Tap the UP or DOWN button to change the value within the range of 00~100. Each tap will change the

value once. Pressing and holding down will change the value quickly. Once the Dimmer Preset has been

selected, it will be stored automatically.

6. Press MENU button to return to the DMX Address mode.
