Shure A400SM Manuale utente

Models A400SM, A400XLR, A400SMXLR and

A99SMA User Guide

27C3022 (Rev. 5)

Printed in U.S.A.

GENERAL

The following accesories allow you to install a shock mount for

gooseneck microphones in permanent installations.

A400SM Shock Mount

. Employs Shure Shock-Stopper™ con-

struction, which reduces the transmission of impact or surface

noise by up to 20 dB. Fits a variety of gooseneck microphones.

A400SMXLR.

Adds the A400XLR insert and a 3-pin XLR-type (fe-

male) quick-release connector to the A400SM Shock Mount.

A400XLR.

Retrofits existing A400SM shock mounts for quick re-

lease. Includes the A400XLR connector and insert.

A99SMA

Adaptor.

Allows you to mount the A400SM Shock Mount

in holes drilled for use with the A99SM Shock Mount (up to a

2¼ inch diameter).

COMPONENTS OF THE A400SMXLR

FIGURE 1

INSTALLING THE A400SM

1. Drill a 44 mm (1 3/4 in.) hole through mounting surface.

2. Use the shock mount as a template to drill pilot holes.

3. Fasten shock mount to surface with supplied screws.

FIGURE 2

INSTALLING THE A400SMXLR

1. Thread cable through grommet, shock mount and insert.

2. Connect cable to A400XLR Connector using two-conductor

shielded microphone cable (Figure 3).

3. Snap connector into insert. Extend locking screw through hole

by turning screw clockwise, locking XLR connector in place

(Figure 4).

4. Insert connector/insert into shock mount. Stretch grommet

over lip at bottom of insert to secure insert to shock mount.

A400XLR

A400XLR CONNECTOR TERMINALS

FIGURE 3

A400XLR WITH LOCKING SCREW (A)

FIGURE 4

A400XLR

Connector

A400XLR

Insert

Cable

A400SM

Shock Mount

Rubber Grommet

SHIELD RED ( + )

BLACK ( – )

INSTALLING THE A99SMA ADAPTOR

1. Remove A99SM Shock Mount from mounting surface by

removing screws.

2. Attach A99SMA Shock Mount Adaptor to surface using exist-

ing screw holes and provided screws (Figure 5).

3. Insert A400SM Shock Mount into adaptor, aligning screw

holes in shock mount with those in adaptor. Attach using

provided screws (Figure 5).

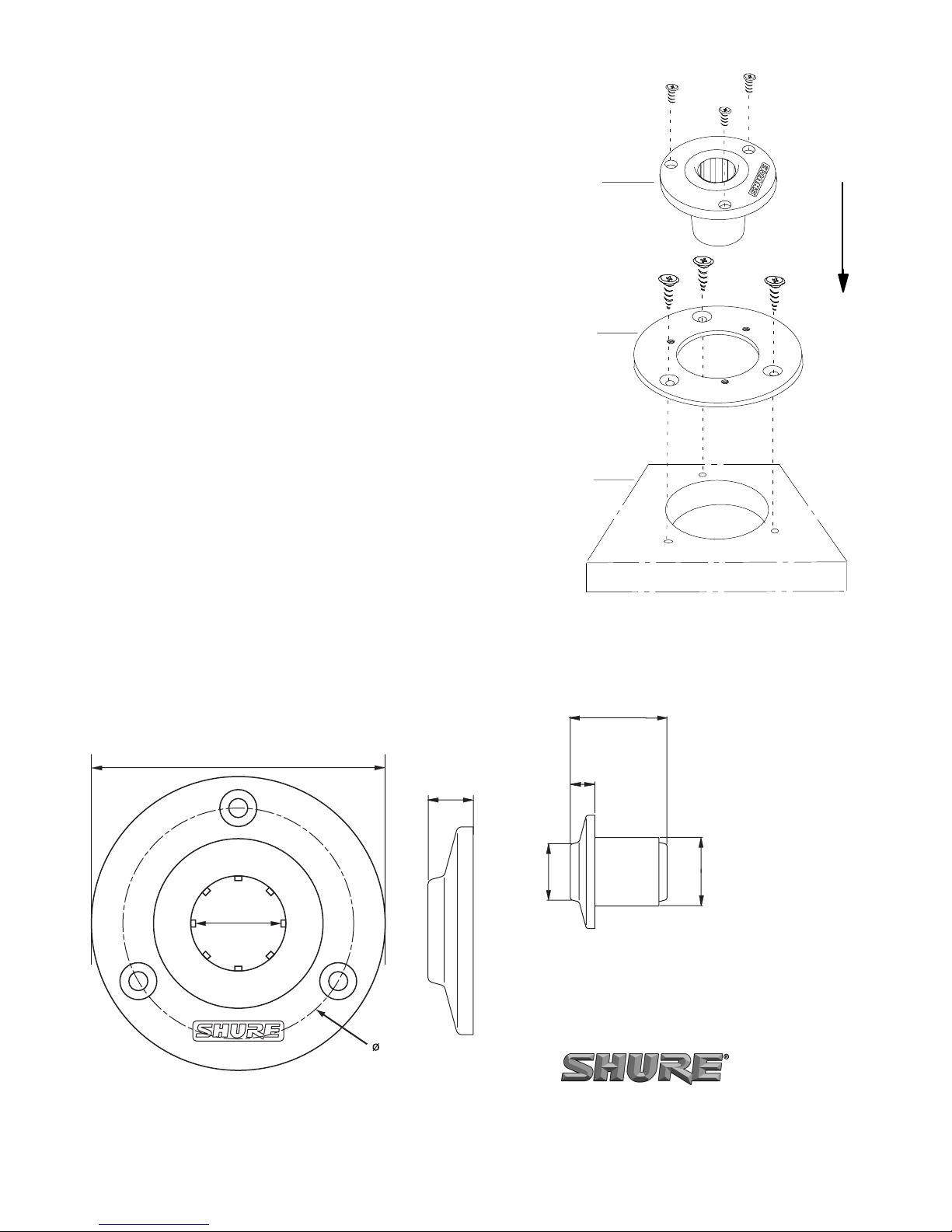

MOUNTING THE A400SM USING THE A99SMA

FIGURE 5

A400SM

Shock Mount

A99SMA

Adaptor

Mounting

Surface

(0.56 in.)

66.70 mm

19.4 mm

(0.765 in.)

52.4 mm

(2.062 in.)

(2.625 in.) 14.40 mm 14.40 mm

(0.56 in.)

(2.00 in.)

50.80 mm

(1.70 in.)

43.18 mm

BEFESTIGUNGSFLANSCH

BRIDA DE MONTAJE

MOUNTING FLANGE

BRIDE DE MONTAGE

FLANGIA DI MONTAGGIO

ASSEMBLAGE DE LA MONTURE SILENT–BLOC

SCHWINGDÄMPFER–BAUGRUPPE

SOPORTE AMORTIGUADO

SUPPORTO ANTIVIBRAZIONE

SHOCK MOUNT ASSEMBLY

38 mm

(1.5 in.)

(Actual Size)

SHURE Incorporated http://www.shure.com

United States, Canada, Latin America, Caribbean:

5800 W. Touhy Avenue, Niles, IL 60714-4608, U.S.A.

Phone: 847-600-2000 U.S. Fax: 847-600-1212 Intl Fax: 847-600-6446

Europe, Middle East, Africa:

Shure Europe GmbH, Phone: 49-7131-72140 Fax: 49-7131-721414

Asia, Pacific:

Shure Asia Limited, Phone: 852-2893-4290 Fax: 852-2893-4055
