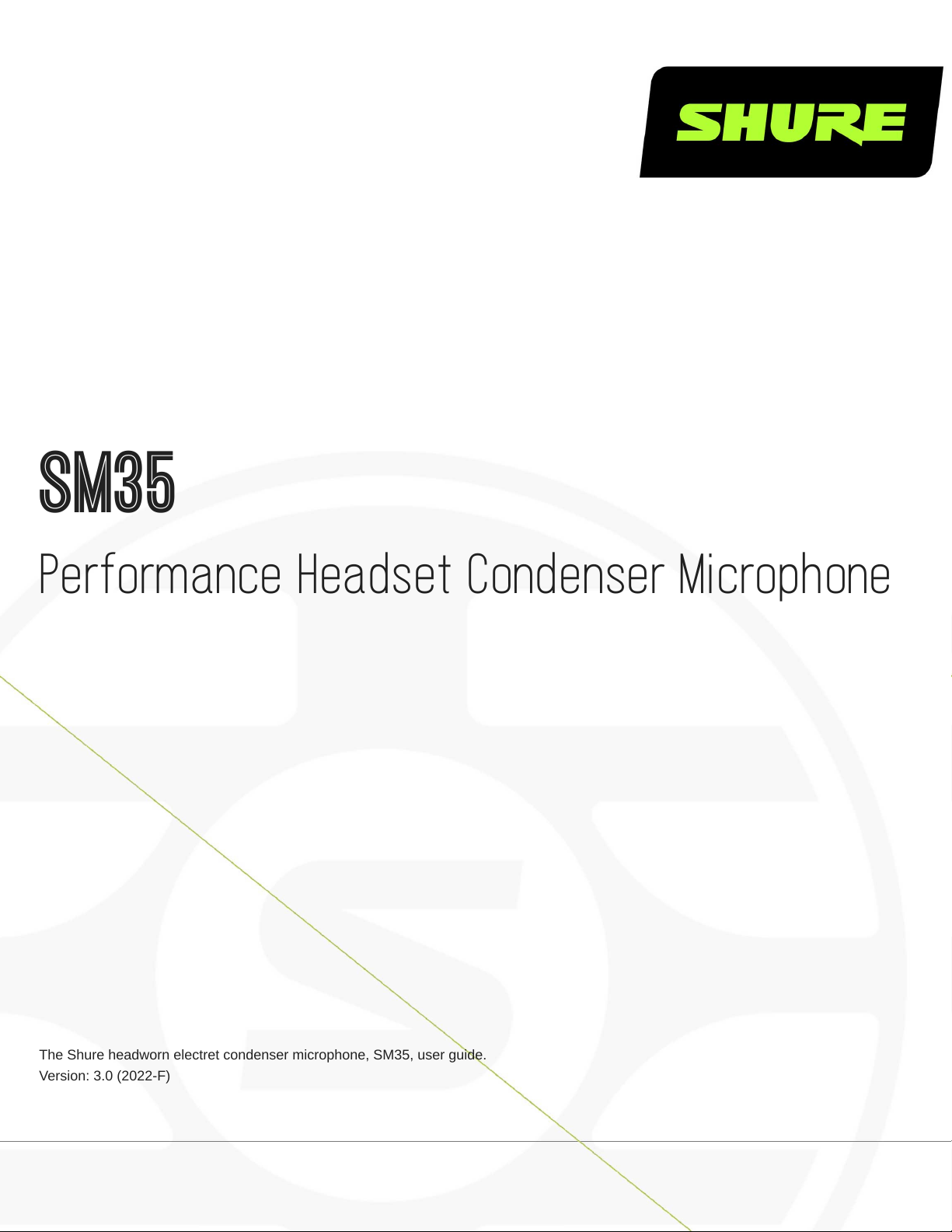

Shure SM35-TQG Manuale utente

SM35

Performance Headset Condenser Microphone

The Shure headworn electret condenser microphone, SM35, user guide.

Version: 3.0 (2022-F)

Shure Incorporated

2/6

Table of Contents

SM35 Performance Headset Condenser Microphone 3

SM35 Headworn Microphone 3

Wearing the Microphone 3

RPM400 Preamplifiers 4

Features 4

Certifications 4

Specifications 4

Accessories 6

Furnished Accessories 6

Replacement Parts 6

Shure Incorporated

3/6

SM35 

Performance Headset Condenser Microphone

SM35 Headworn Microphone

The Shure SM35 is a headworn electret condenser microphone, intended for use with a wireless bodypack transmitter in live

stage performances.

Wearing the Microphone

Install the windscreen on the microphone boom.

Place the headband around the back of the head, with the boom on the left side.

Place the microphone at the corner of the mouth. To decrease pops and plosives, avoid placing the microphone directly

in front of the mouth

Shure Incorporated

4/6

•

Note: Do not store the microphone in damp, enclosed spaces. Allow perspiration to dry completely before storing.

RPM400 Preamplifiers

The RPM400 preamplifiers offer exceptional dynamic range utilizing an active gain circuit in a concise and small package.

They are offered in two connector versions: TA4F and LEMO, which allows you to quickly take a wireless TL microphone and

make it a wired solution. These preamplifiers require phantom power and can efficiently operate across a wide range of supply

voltages from 12-48v.

Features

Active circuit design with neutral gain mimics wireless for consistent gain output across wired or wireless applications.

High RF immunity against unwanted interference.

Short, compact design.

Belt clip and table mounting kits for easy placement for a variety of applications.

Certifications

Note: Testingisbasedontheuseofsuppliedandrecommendedcabletypes.Theuseofotherthanshielded(screened)cabletypesmaydegradeEMCper

formance.

The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance

Authorized European representative:

Shure Europe GmbH

Global Compliance

Jakob-Dieffenbacher-Str. 12

75031 Eppingen, Germany

Phone: +49-7262-92 49 0

Email: [email protected]

www.shure.com

Specifications

Type

Electret Condenser

Frequency Response

40Hzto20,000Hz

Shure Incorporated

5/6

Polar Pattern

Unidirectional (Cardioid)

Output Impedance

100Ω,@1kHz

Sensitivity

57.8dBV/Pa,@1kHz,1000Ωload

Signal-To-Noise Ratio [1]

59.2dB,@1kHz,1000Ωload

Maximum SPL [1]

151.3dB,1000Ωload,@1kHz,1%THD

Dynamic Range [1]

116.5dB,@1kHz,1000Ωload

Self Noise [1]

34.8dBSPLA,1000Ωload

Power Requirements

TA4F +5VDC(nominal),10Vmaximum(DCbias)

XLR connector 12to52VDC,phantompower

Polarity

TA4F Positive pressure on diaphragm produces positive

voltage on pin 3 with respect to pin 1

XLR Positive pressure on diaphragm produces positive

voltage on pin 2 with respect to pin 3

Cable

1.1m (45in.)

Connector

TA4F or XLR

Weight

72g(2.53oz.)

[1] Measurements taken using RPM400 preamp

*All specifications measured with a 48 Vdc phantom power supply. The microphone operates at lower voltages, but with slightly

decreased headroom and sensitivity.

Shure Incorporated

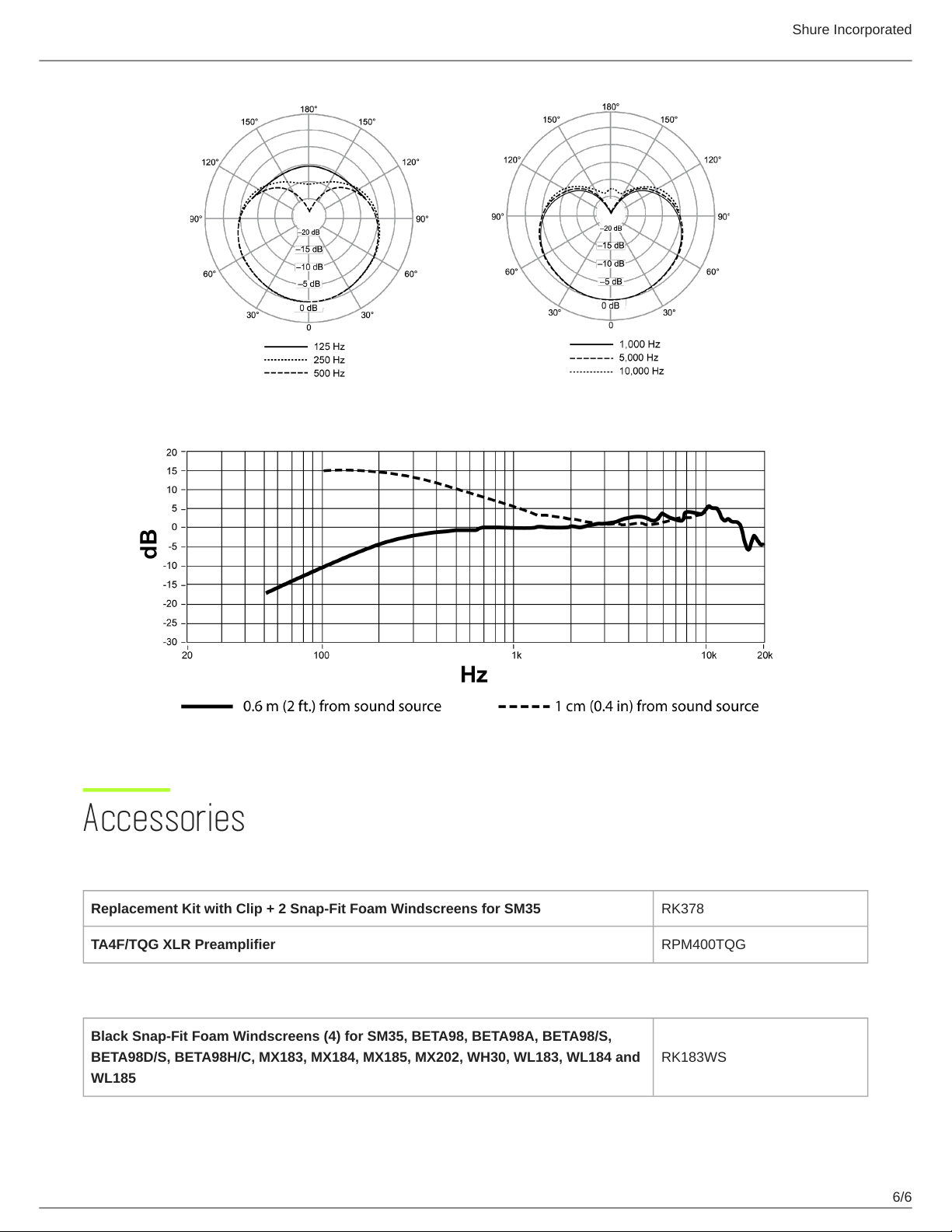

6/6

Accessories

Furnished Accessories

Replacement Kit with Clip + 2 Snap-Fit Foam Windscreens for SM35 RK378

TA4F/TQG XLR Preamplifier RPM400TQG

Replacement Parts

Black Snap-Fit Foam Windscreens (4) for SM35, BETA98, BETA98A, BETA98/S,

BETA98D/S, BETA98H/C, MX183, MX184, MX185, MX202, WH30, WL183, WL184 and

WL185

RK183WS
