Shure ANI22 Manuale utente

ANI22

Audio Network Interface

Complete user guide for the ANI22. Includes system diagrams, specifications, installation instructions, command strings, and more.

Version: 3.5 (2022-E)

Shure Incorporated
2/28
Table of Contents
ANI22   Audio Network Interface 3
Getting Started 3
Step 1: Connect to a Network 3
Step 2: Access the Web Application 3
Step 3: Connect Devices in Dante Controller Software 4
Step 4: Configure Audio 4
Get More Information 5
General Description 5
Hardware and Installation 5
Hardware 5
Power Over Ethernet (PoE) 8
Device Identification 8
Installation and Rack Mounting 8
Reset 11
Software Reset Options 11
Summing 11
Adjusting Input levels 12
Dante Sources 12
Analog Sources 12
Adjusting Output Levels 13
Dante Outputs 13
Analog Outputs 13
Audio Settings 13
Channel Utilities 13
Metering Options (Pre-gain and Post-gain) 14
Parametric Equalizer 14
Custom Presets 17
Mute Sync 17
Connections and Signal Flow 18
Logic Applications 19
Encryption 19
Networking and Dante 20
Dante Transmit Flows 20
Pushing Device Names to the Dante Network 20
Compatibility with Dante Domain Manager 20
QoS (Quality of Service) Settings 20
IP Ports and Protocols 21
Event Log 22
Using Command Strings 23
Specifications 23
Accessories 25
Furnished Accessories 25
Optional Accessories and Replacement Parts 26
Contact Customer Support 26
Safety Information 26
IMPORTANT SAFETY INSTRUCTIONS 26
Important Product Information 27
Information to the user 27
Certifications 28

Shure Incorporated

3/28

•

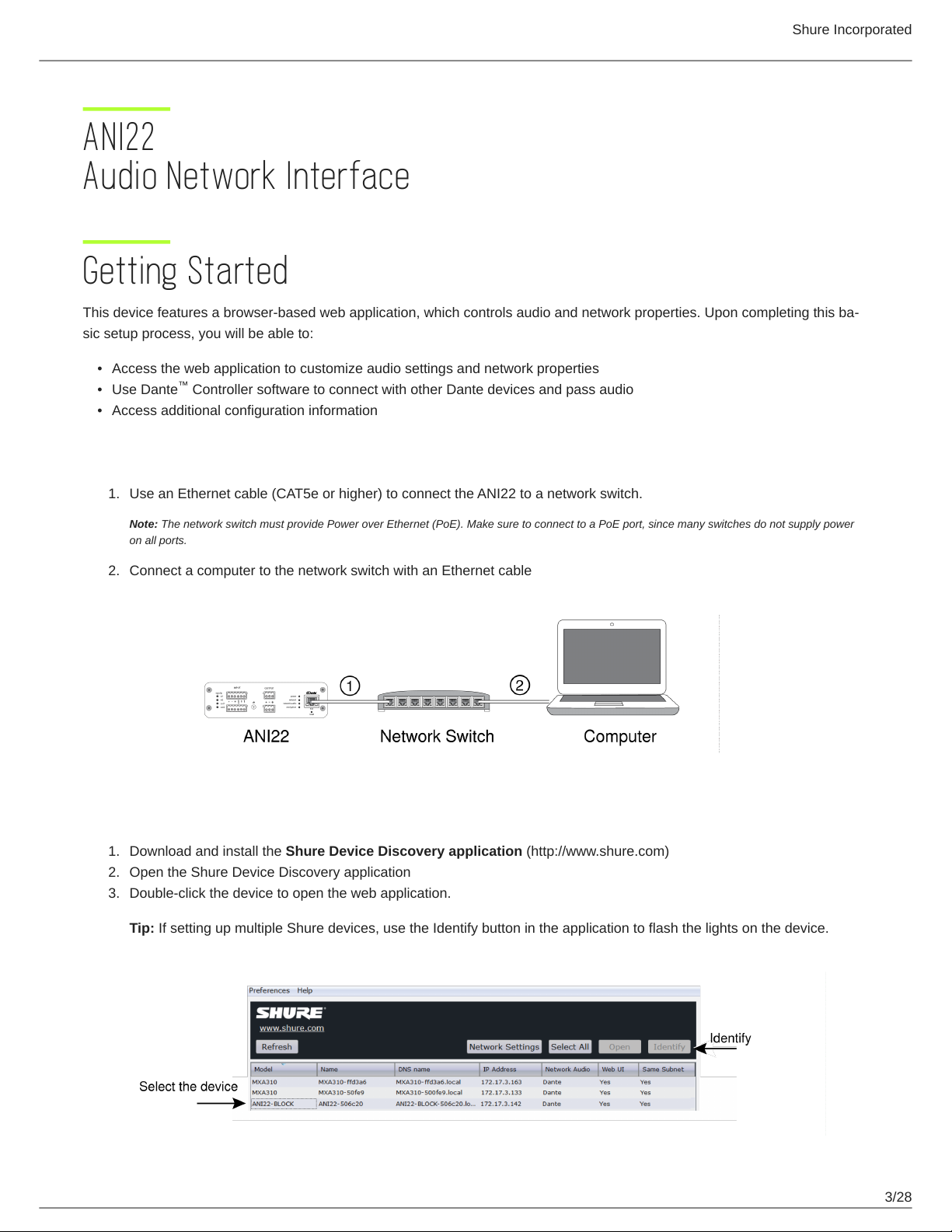

ANI22 

Audio Network Interface

Getting Started

This device features a browser-based web application,whichcontrolsaudioandnetworkproperties.Uponcompletingthisba

sic setup process, you will be able to:

Access the web application to customize audio settings and network properties

Use Dante Controller software to connect with other Dante devices and pass audio

Access additional configuration information

Step 1: Connect to a Network

Use an Ethernet cable (CAT5e or higher) to connect the ANI22 to a network switch.

Note: The network switch must provide Power over Ethernet (PoE). Make sure to connect to a PoE port, since many switches do not supply power

on all ports.

Connect a computer to the network switch with an Ethernet cable

Step 2: Access the Web Application

Download and install the Shure Device Discovery application (http://www.shure.com)

Open the Shure Device Discovery application

Double-click the device to open the web application.

Tip: If setting up multiple Shure devices, use the Identify button in the application to flash the lights on the device.

™

Shure Incorporated

4/28

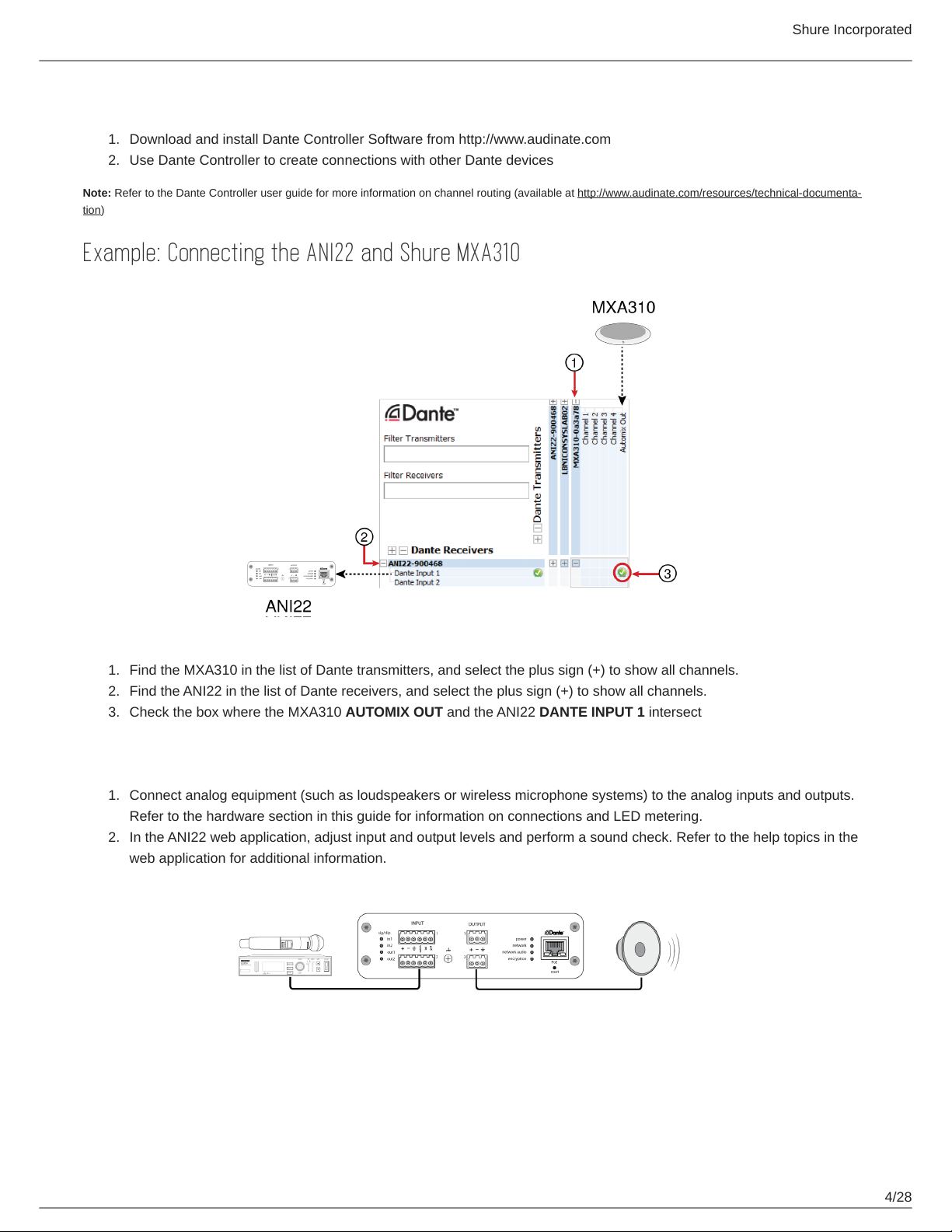

Step 3: Connect Devices in Dante Controller Software

Download and install Dante Controller Software from http://www.audinate.com

Use Dante Controller to create connections with other Dante devices

Note: Refer to the Dante Controller user guide for more information on channel routing (available at http://www.audinate.com/resources/technicaldocumenta

tion)

Example: Connecting the ANI22 and Shure MXA310

Find the MXA310 in the list of Dante transmitters, and select the plus sign (+) to show all channels.

Find the ANI22 in the list of Dante receivers, and select the plus sign (+) to show all channels.

Check the box where the MXA310 AUTOMIX OUT and the ANI22 DANTE INPUT 1 intersect

Step 4: Configure Audio

Connect analog equipment (such as loudspeakers or wireless microphone systems) to the analog inputs and outputs.

Refer to the hardware section in this guide for information on connections and LED metering.

In the ANI22 web application, adjust input and output levels and perform a sound check. Refer to the help topics in the

web application for additional information.

Shure Incorporated

5/28

•

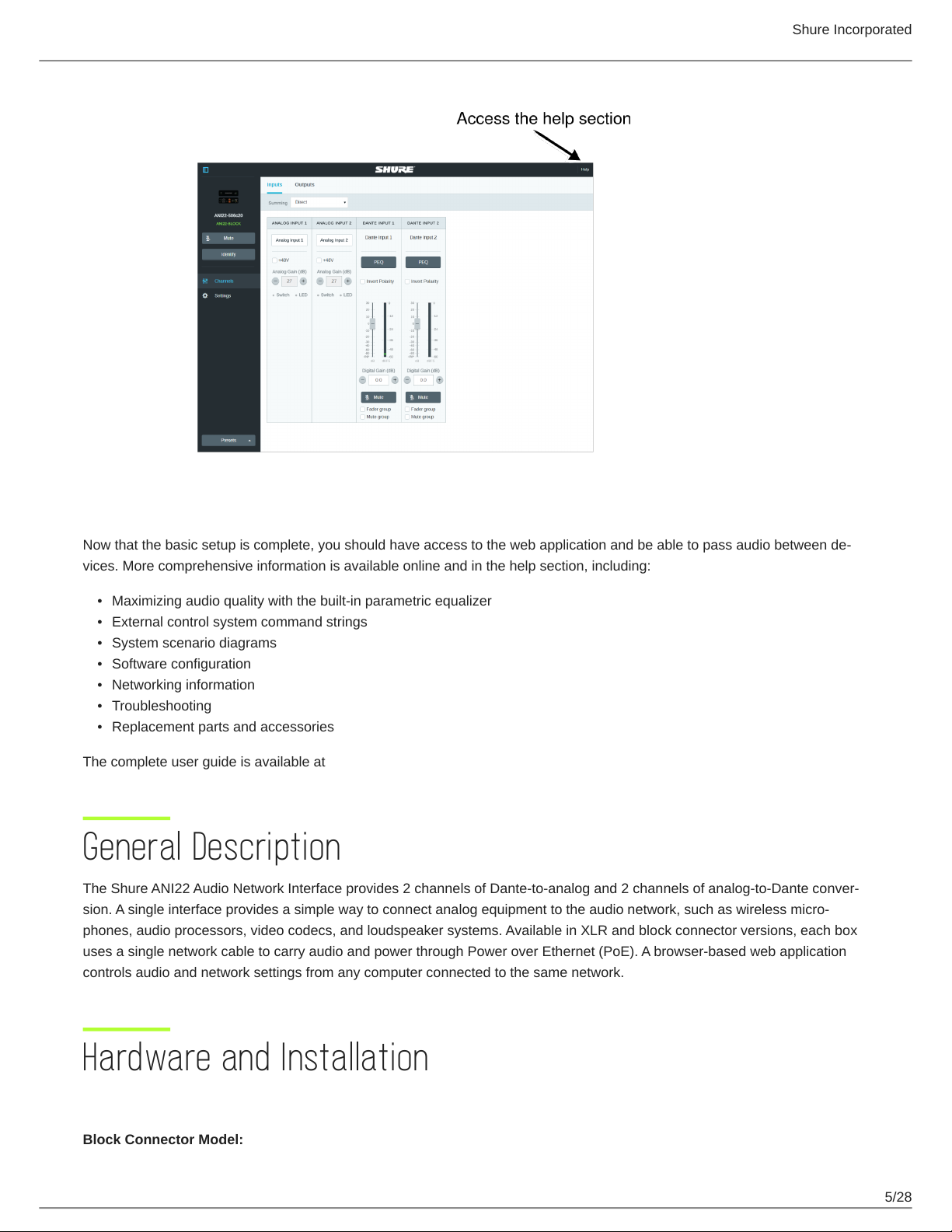

Get More Information

Nowthatthebasicsetupiscomplete,youshouldhaveaccesstothewebapplicationandbeabletopassaudiobetweende

vices. More comprehensive information is available online and in the help section, including:

Maximizing audio quality with the built-in parametric equalizer

External control system command strings

System scenario diagrams

Software configuration

Networking information

Troubleshooting

Replacement parts and accessories

The complete user guide is available at http://pubs.shure.com/guide/ANI22

General Description

TheShureANI22AudioNetworkInterfaceprovides2channelsofDantetoanalogand2channelsofanalogtoDanteconver

sion.Asingleinterfaceprovidesasimplewaytoconnectanalogequipmenttotheaudionetwork,suchaswirelessmicro

phones, audio processors, video codecs, and loudspeaker systems. Available in XLR and block connector versions, each box

uses a single network cable to carry audio and power through Power over Ethernet (PoE). A browser-based web application

controls audio and network settings from any computer connected to the same network.

Hardware and Installation

Hardware

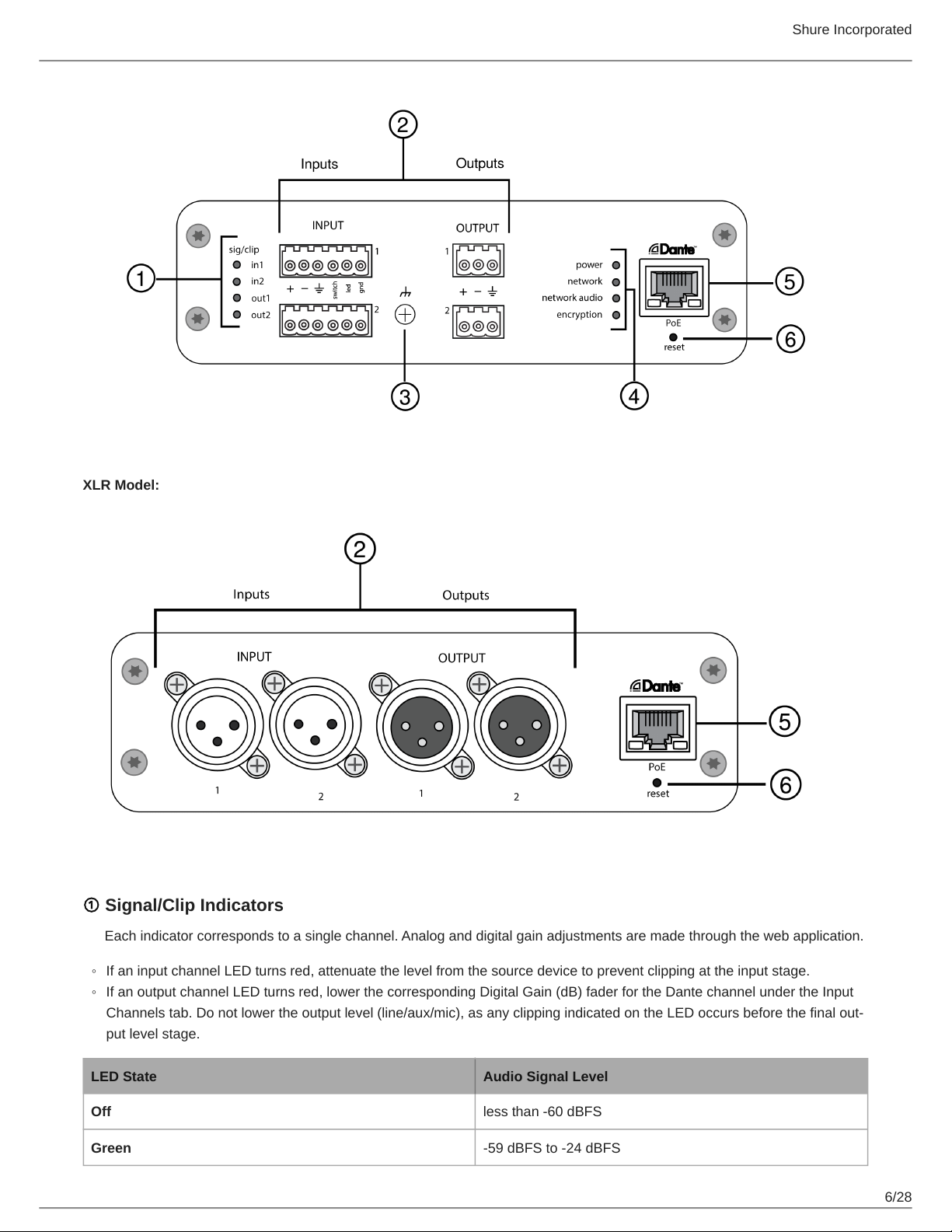

Block Connector Model:

Shure Incorporated

6/28

◦

XLR Model:

①Signal/Clip Indicators

Each indicator corresponds to a single channel. Analog and digital gain adjustments are made through the web application.

If an input channel LED turns red, attenuate the level from the source device to prevent clipping at the input stage.

If an output channel LED turns red, lower the corresponding Digital Gain (dB) fader for the Dante channel under the Input

Channelstab.Donotlowertheoutputlevel(line/aux/mic),asanyclippingindicatedontheLEDoccursbeforethefinalout

put level stage.

LED State Audio Signal Level

Off less than -60 dBFS

Green -59 dBFS to -24 dBFS

Shure Incorporated

7/28

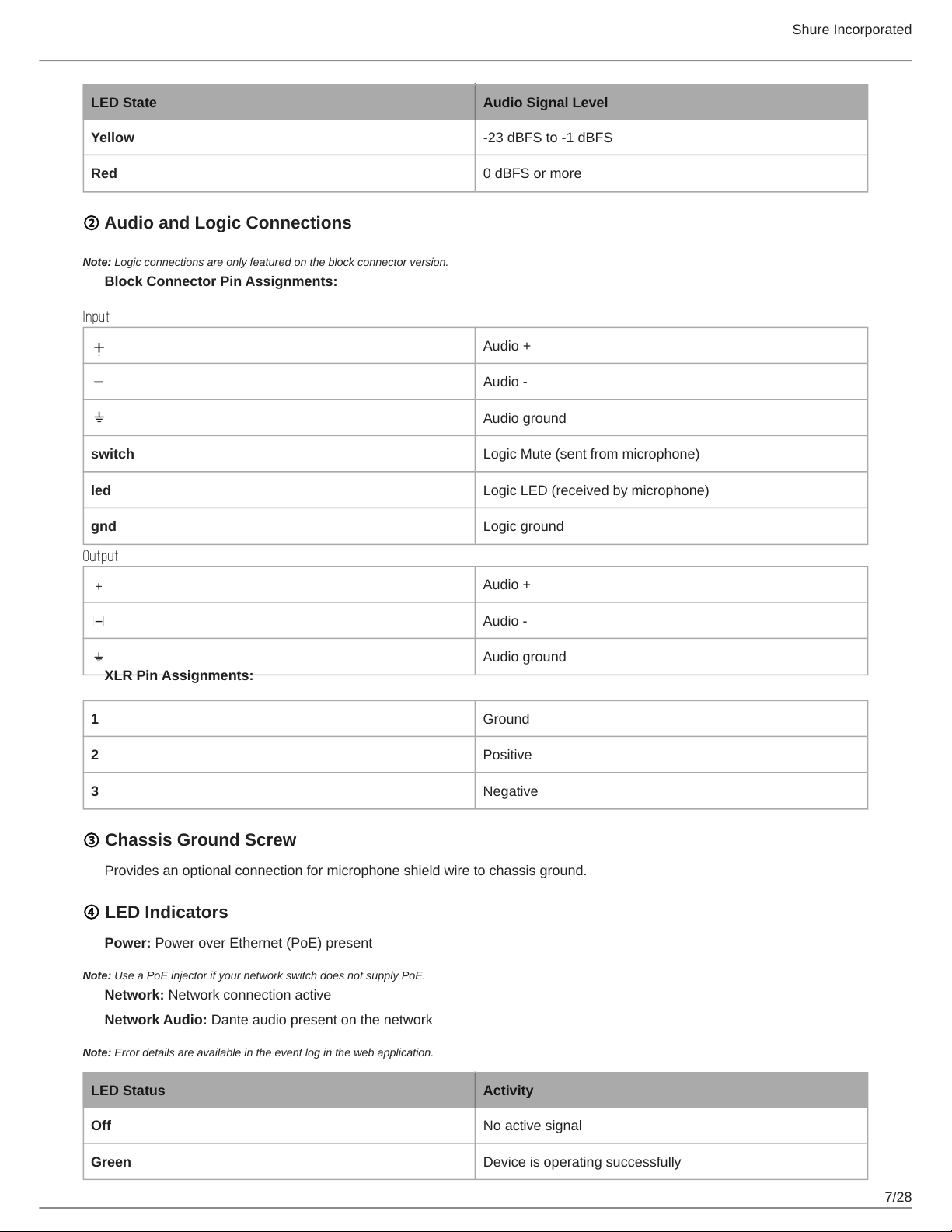

LED State Audio Signal Level

Yellow -23 dBFS to -1 dBFS

Red 0 dBFS or more

②Audio and Logic Connections

Note: Logic connections are only featured on the block connector version.

Block Connector Pin Assignments:

Input

Audio +

Audio -

Audio ground

switch Logic Mute (sent from microphone)

led Logic LED (received by microphone)

gnd Logic ground

Output

Audio +

Audio -

Audio ground

XLR Pin Assignments:

1Ground

2Positive

3Negative

③Chassis Ground Screw

Provides an optional connection for microphone shield wire to chassis ground.

④LED Indicators

Power: Power over Ethernet (PoE) present

Note: Use a PoE injector if your network switch does not supply PoE.

Network: Network connection active

Network Audio: Dante audio present on the network

Note: Error details are available in the event log in the web application.

LED Status Activity

Off No active signal

Green Device is operating successfully

Shure Incorporated

8/28

•

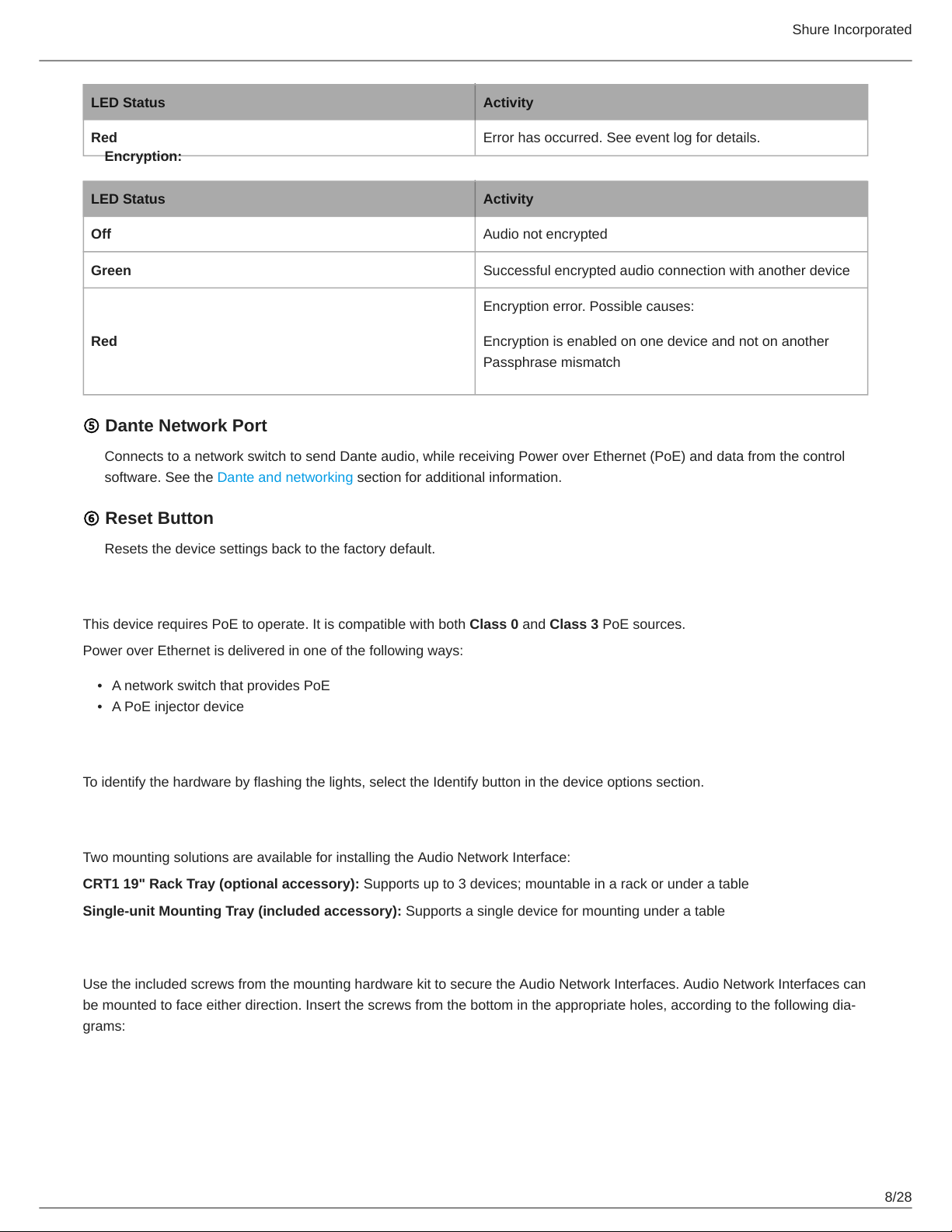

LED Status Activity

Red Error has occurred. See event log for details.

Encryption:

LED Status Activity

Off Audio not encrypted

Green Successful encrypted audio connection with another device

Red

Encryption error. Possible causes:

Encryption is enabled on one device and not on another

Passphrase mismatch

⑤Dante Network Port

Connects to a network switch to send Dante audio, while receiving Power over Ethernet (PoE) and data from the control

software. See the Dante and networking section for additional information.

⑥Reset Button

Resets the device settings back to the factory default.

Power Over Ethernet (PoE)

This device requires PoE to operate. It is compatible with both Class 0 and Class 3 PoE sources.

Power over Ethernet is delivered in one of the following ways:

A network switch that provides PoE

A PoE injector device

Device Identification

To identify the hardware by flashing the lights, select the Identify button in the device options section.

Installation and Rack Mounting

Two mounting solutions are available for installing the Audio Network Interface:

CRT1 19" Rack Tray (optional accessory): Supports up to 3 devices; mountable in a rack or under a table

Single-unit Mounting Tray (included accessory): Supports a single device for mounting under a table

Securing the Devices

Use the included screws from the mounting hardware kit to secure the Audio Network Interfaces. Audio Network Interfaces can

bemountedtofaceeitherdirection.Insertthescrewsfromthebottomintheappropriateholes,accordingtothefollowingdia

grams:

Shure Incorporated

9/28

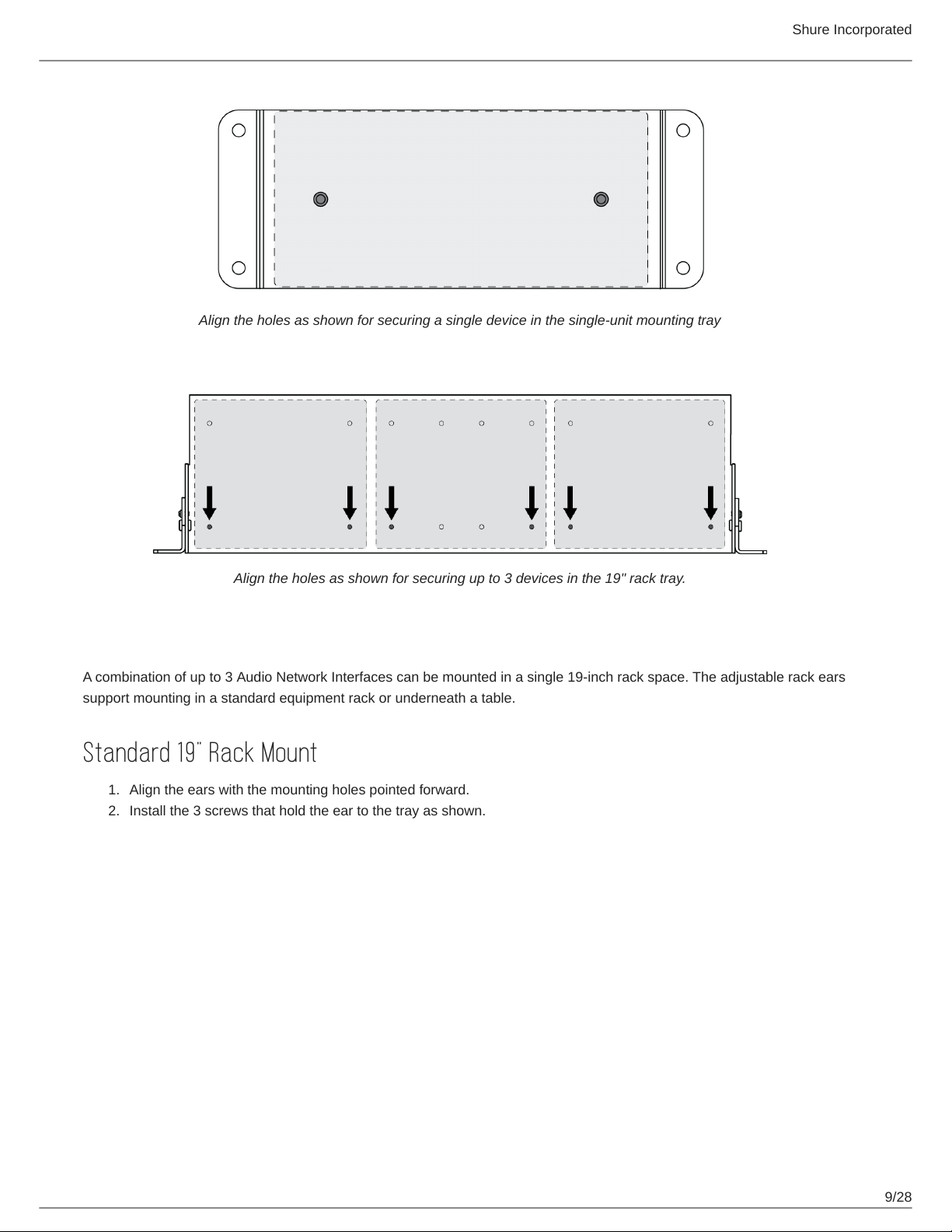

Align the holes as shown for securing a single device in the single-unit mounting tray

Align the holes as shown for securing up to 3 devices in the 19" rack tray.

Rack Ear Configuration

A combination of up to 3 Audio Network Interfaces can be mounted in a single 19-inch rack space. The adjustable rack ears

support mounting in a standard equipment rack or underneath a table.

Standard 19" Rack Mount

Align the ears with the mounting holes pointed forward.

Install the 3 screws that hold the ear to the tray as shown.

Shure Incorporated

10/28

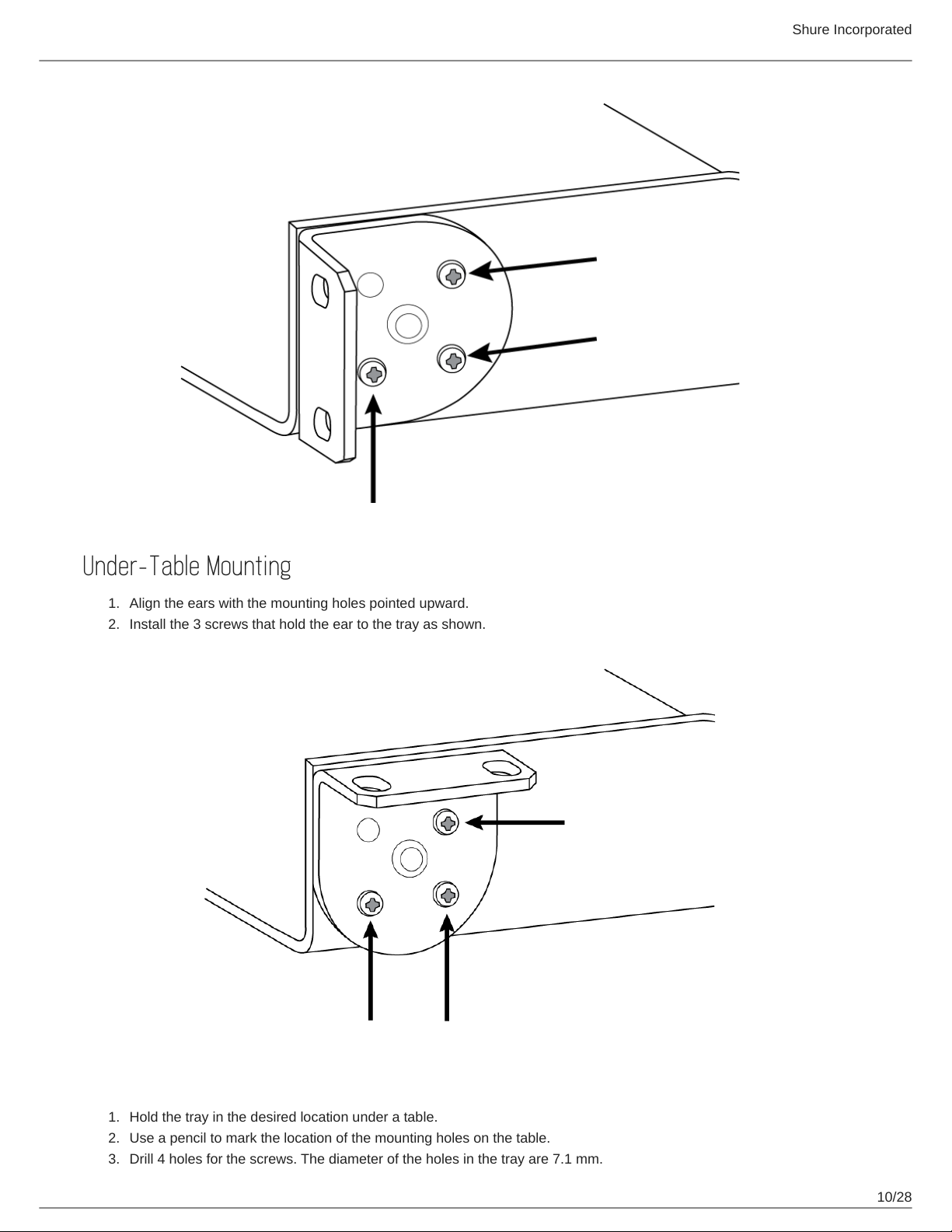

Under-Table Mounting

Align the ears with the mounting holes pointed upward.

Install the 3 screws that hold the ear to the tray as shown.

Installing Underneath a Table

Hold the tray in the desired location under a table.

Use a pencil to mark the location of the mounting holes on the table.

Drill 4 holes for the screws. The diameter of the holes in the tray are 7.1 mm.
