Instruction Manual

1262-IN-001-0-03

July 1998

Models 7SD 7SH 7SM

Controllers

1/16 DIN, THREE DIGIT DISPLAY

TEMPERATURE CONTROLLER

MODEL: 0 7 -4 9 - 0 0-0-0 0

Field. 1 2 3 4 5 6 7 8 9 10 1112 13 1415

Fields 1 through 4. BASE

07SD - Deviation Display Controller

07SM - Dual Display Controller

07SH - Heat/Cool Controller

Field 5. INPUT

4 - TC types J, K, L, N; Pt 100 RTD

NOTE: All inputs are factory calibrated and

selectablebykeys. FactorysetattypeJ.

Field 6. CONTROL ACTION

9 - PID and autotuning (Smart AT)

Field 7. OUTPUT 1

1 - Relay

6 - SSR

Field 8. OUTPUT 2

Models 07SD and 07SM only

0 - None

1 - One alarm (relay input)

Model 07SH only

1 - Relay (cooling/alarm)

Field 9. POWER SUPPLY

Models 07SD and 07SM only

3 - 100 to 240 Vac

Model 07SH only

0 - See Field 10

Field 10. POWER SUPPLY

Models 07SD and 07SM only

0 - See Field 9

Model 07SH only

3 - 100 to 240 Vac

5 - 24 Vac/Vdc

Fields 11 through 15. RESERVED

CONGRATULATIONS

Congratulations on your purchase of one of the easiest to

configure controllers on the market. After a four step

configurationprocedure,yourprocesswillbeupandrunning.

GUIDE TO SIMPLE SET-UP

Only four steps are required to set-up your controller:

1. Wire the instrument (page 7).

2. Configure the instrument (page 12).

3. Check the operating mode parameters (page 19).

4. Check the autotune (Smart AT) process (page 17).

Unpack the

Instrument

Wiring

Configuration

Operating

Parameters

Autotuning

CAUTION: USE WIRE SUITABLE

FOR 75 °C MINIMUM

Index

1/16 DIN, THREE DIGIT DISPLAY

TEMPERATURE CONTROLLER ...................... 2

MOUNTING REQUIREMENTS ................................. 5

DIMENSIONS AND PANEL CUTOUT ....................... 6

WIRING GUIDELINES............................................... 7

CONFIGURATION PROCEDURE ........................... 12

Configuration Key Functions ........................... 12

Configuration Procedure ................................. 12

Advanced Configuration Procedure ................ 16

OPERATING MODE ................................................ 17

Operating Key Functions................................. 17

Autotuning (Smart AT) Function ...................... 17

Manual Reset of the Alarms ............................ 18

Operating Parameters ..................................... 19

Error Messages ............................................... 20

Default Parameters ......................................... 21

Default Configuration Parameters ................... 22

SPECIFICATIONS ................................................... 24

General ........................................................... 24

Control Actions ................................................ 24

Inputs .............................................................. 24

Outputs............................................................ 25

Alarm ............................................................... 25

3 Digit Deviation Bar Characteristics............... 25

3 Digit Dual Display and

3 Digit Heat/Cool Characteristics ........... 25

CALIBRATION PROCEDURE ................................. 26

General Guidelines ......................................... 26

Procedure........................................................ 26

Calibration Parameters ................................... 26

Entering Calibration Values ............................. 27

MAINTENANCE ....................................................... 29

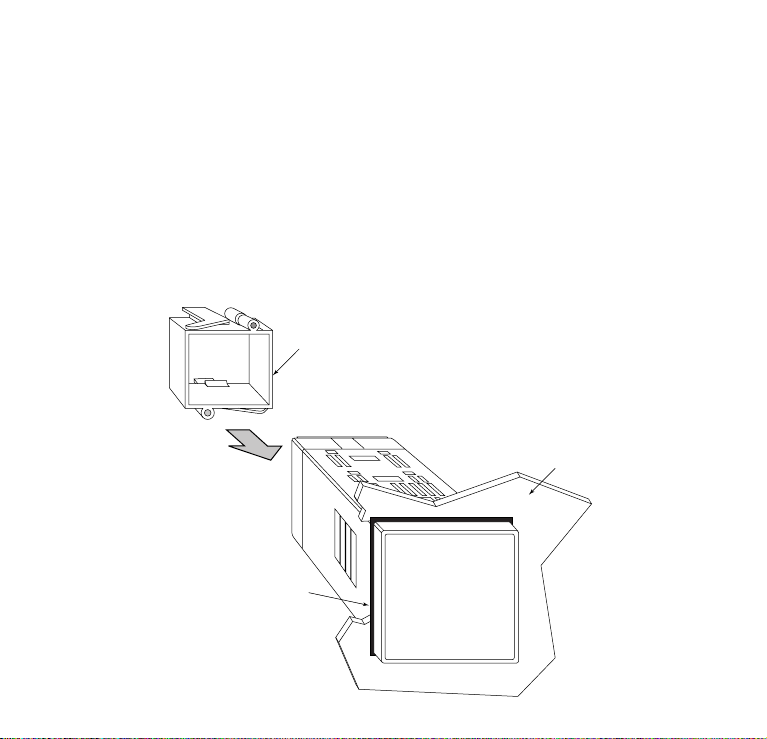

Bracket

Panel

Gasket

MOUNTING REQUIREMENTS

Select a mounting location with the following

characteristics:

1) Low vibration.

2) An ambient temperature range between 0 and 50 °C

(32 and 122 °F).

3) Easy access to the rear of the instrument.

4) No corrosive gases (sulfuric gas, ammonia, etc.).

5) No water or other fluid (i.e., condensation).

6) A relative humidity of 20 to 80% non-condensing.

The instrument can be mounted on a panel up to 15 mm

(0.591in)thick withacutoutof 45 x45mm(1.772 x 1.772

in) - see outline in “Dimensions and Panel Cutout.”

Panel surface texture must be smoother than 6.3 µm.

Toassure IP65 andNEMA4X protection, insertthepanel

gasket between the instrument and the panel as shown

below.

Install the instrument as follows:

1) Insert the instrument case in the gasket.

2) Insert the instrument in the panel cutout.

3) Pushing the instrument against the panel, insert the

mounting bracket.

4) Torque the mountingbracket screws between0.3and

0.4 Nm (0.25 and 0.32 lbin).

5) Make sure the instrument will not move within the

cutout to insure NEMA 4X/IP65 protection.

DIMENSIONS AND PANEL CUTOUT

45 mm, -0, +0.6 mm

(1.772 in, -0, +0.024 in)

45 mm, -0, +0.6 mm

(1.772 in, -0, +0.024 in)

75 mm

(2.953 in)

10 mm

(0.394 in)

60 mm

(2.362 in)

122 mm

(4.803 in)

48 mm

(1.890 in)

48 mm

(1.890 in)

WIRING GUIDELINES

Terminal board

MAIN SSR

PWR LINE

100/240 Vac

or 24 Vac/Vdc

OUT2

NO NC

RTD

MAIN RELAY

NOC

NOTE: Whenarelay output isusedtodrive an inductive

load,connect an externalsnubbernetwork (RC)

across the terminals:

in accordance with the following table:

daoL tnerruC C)Fµ( R)( P)W( dnarotsiseR egatloVroticapaC

Am04<740.00012/1caV062

Am051<1.0222 062caV

pmA5.0<33.0742 062caV

A) Measuring inputs

Any external components (like zener diodes, etc.)

connected between the sensor and input terminals may

causemeasurementerrors (excessive or unbalancedline

resistance or possible leakage currents).

TC input

Shield

SAFETY NOTE:

1) Do not run input wires with power cables.

NOTES:

1) For TC wiring use proper compensating cable,

preferably shielded.

2) Shielded cable should be grounded at one end only.

RTD input

RTD

312

RTD

SAFETY NOTE:

1) Do not run RTD wires with power cables.

NOTES:

1) Ground shielded cable at one end only.

2) Use the correct size copper wires.

3) The resistance of the 3 wires must be the same.

Any external components (like zener diodes, etc.)

connected between the sensor and input terminals may

causemeasurementerrors (excessive or unbalancedline

resistance or possible leakage currents).

Thermocouple compensating cable color codes.

elpuocomrehT lairetaM hsitirB 3481SB naciremA 1.69CMISNA namreG 01734NID hcnerF 100-81EFN

TreppoC natnatsnoC +

-etihW eulB eulB

-eulB deR eulB

-deR nworB nworB

-wolleY eulB eulB

L/J norI natnatsnoC +

-wolleY eulB kcalB

-etihW deR kcalB

-deR eulB eulB

-wolleY kcalB kcalB

KmuimorhClekciN munimulAlekciN +

-nworB eulB deR

-wolleY deR wolleY

-deR neerG neerG

-wolleY elpruP wolleY

RmunitalP/munitalP muidohR%31 +

-etihW eulB neerG

-kcalB deR neerG

-deR etihW etihW

-etihW neerG neerG

SmunitalP/munitalP muidohR%01 +

-etihW eulB neerG

-kcalB deR neerG

-deR etihW etihW

-etihW neerG neerG

ElemorhC natnatsnoC +

-nworB eulB nworB

-teloiV deR teloiV

BhR%03munitalP hR%6munitalP -

-yerG deR yerG

NlisiN/lisorciN----

B.1) Relay outputs

OUT 1

(heating)

OUT 2

(AL1/cooling)

OUT 1 and OUT2: Protected by varistor.

OUT1: Contact rating of 3 Amps/250 Vac resistive load.

OUT2: Contact rating of 1 Amp/250 Vac resistive load.

SAFETY NOTES:

1) To avoid electricshock, connectpower line atthe end

of the wiring procedure.

2) Do not run input wires with power cables.

NOTES:

1) For power connections use 16 AWG or larger wires

rated for at least 75 °C.

2) Use copper conductors only.

B.2) Inductive loads

High voltage transients can occur when switching

inductiveloads. Itis recommended toinstallanadditional

RC network across the internal contacts as shown.

The same problem can occur when a switch is used in

series with the internal contacts.

LOAD

CCRPOWER

LINE

It is recommended to install an additional RC network

across the external contacts as close to the instrument

terminals as possible.

The value of capacitor (C) and resistor (R) are shown in

the following table.

daoL tnerruC C)Fµ( R)( P)W( dnarotsiseR egatloVroticapaC

Am04<740.00012/1caV062

Am051<1.0222 062caV

pmA5.0<33.0742 062caV

pmA1<74.0742 062caV

Relayoutput wiring mustbe as faraway as possiblefrom

input wiring and communication cables.
