Local Service Organization Service Manual

BE INSPIRED

Release Date Department Notes to changes

V1.0 06.06.2005

COM D CCQ SLI APAC New Documents

Our innovation shapes the future

AX75 Level 2 Service Manual

COM D CCQ SLI APAC Page 2 of 34 Internal Use Only

Table of Contents

1 GPRS (GENERAL PACKET RADIO SERVICE)…………………..…….3

2 KEY FEATURES……………………………………………………………………….4

3 COMPARISON WITH PREVIOUS PRODUCT...……………………………………6

4 ACCESSORIES……………………………………………………………………......7

5 UNIT DESCRIPTION AX75......................................................................................9

6 DISASSEMBLY OF AX75…………………………………………………………...11

7 REASSEMBLY OF AX75….………………………………………………………...16

8 MOBILE SOFTWARE PROGRAMMING…………………………………………..17

9 SIEMENS SERVICE EQUIPMENT USER MANUAL……………………………..20

10 JPICS INTERNET.……………………………………………………………………21

11 INTERNATIONAL MOBILE EQUIPMENT IDENTITY, IMEI…….………………..27

12 GENERAL TESTING INFORMATION……………………………….……………..28

Annex 1……………………………………………………………………………….……….33

Annex 2…………………………………………………………………………….………….34

AX75 Level 2 Service Manual

COM D CCQ SLI APAC Page 3 of 34 Internal Use Only

1 GPRS (General Packet Radio Service)

GPRS is a new non-voice value added services that allows information to be sent

and received across a GSM mobile telephone network. It supplements today’s Circuit

Switched Data (CSD) and Short Message Services (SMS). GPRS involves overlaying

a packet based air interface on the existing circuit switched GSM network. This gives

the option to use a packet-based data service. The information is split into separated

but related “packets” before being transmitted and reassembled at the receiving end.

Theoretically, maximum speeds of up to 171.2 kilobits per second (kbps) are

achievable with GPRS using all eight timeslots at the same time. This is about 3

times as fast as the data transmission speed possible over today’s fixed

telecommunications networks and 10 times as fast as current Circuit Switched Data

services on GSM networks.

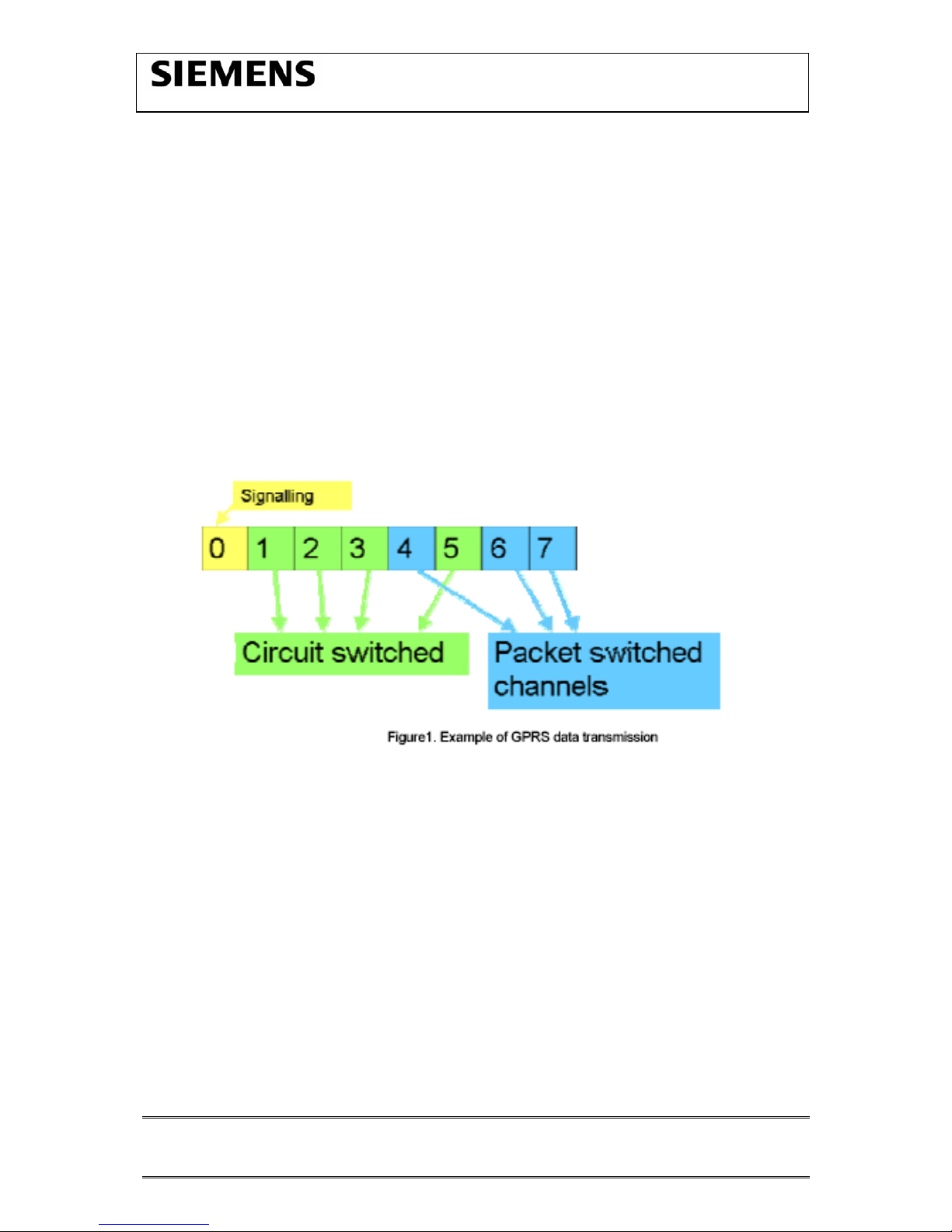

Example: Cell with 1 Frequency channel:

1 physical channel for signaling, 4 physical channels for Circuit switched and 3 physical

channels for Packet switched.

AX75 Level 2 Service Manual

COM D CCQ SLI APAC Page 4 of 34 Internal Use Only

2 Key Features

Bands • Triple Band E-GSM 900 / GSM 1800 / GSM 1900

• EGSM Phase 2 / phase 2+

• GPRS Multi Class 8

Battery • Li-Ion Battery Pack

• Nominal Voltage : 3.7V

• Nominal Capacity : 600 mAh

• GSM Capacity: 580 mAh

• Power Input: 2.0 A (0.6 ms) / 0.25 A (0.4 ms)

• Cut-off Threshold 3.2 V

Stand-by Time • up to 220 h (standard battery)

Talk Time • up to 300 min (standard battery)

SIM Card

• Small (”Plug In”) 3V SIM card (Phase II)

• To insert the SIM card, the battery pack must be

removed.

GSM Antenna • Integrated triple band antenna for EMEA/APAC.

Dimensions • 101 x 44 x 20 mm (L x W x H)

Weight • Approx. 80 g

Charging time • < 2 h for 100%

Receiver Sensitivity • GSM 900: -102dBm (Specification, static & with fading)

• GSM 1800/1900: -102 dBm (Specification, static & with

fading)

Receiver sensitivity must comply with the corresponding GSM

recommendations in all operating conditions (temperature,

battery level, etc)

Transmitter Power • GSM 900: nominal 2W (Specification: Class 4 Mobile

phone)

• GSM 1800/1900: nominal 1W (Specification: Class 1

Mobile phone)

Transmitter output characteristics is according to GSM 11.10

specification implying all specified operating conditions

(temperature, battery level ...).

Transmitter set points will be specified for GSM and PCN when

typical values and statistical values become available.

Speech Codec

• Half Rate, Full Rate, Enhanced Full Rate and Adaptive

Multi Rate speech coders are available as standard.

Temperature

Range • -100C to +550C (Normal operation)

• -300C to +850C (Storage capability)

AX75 Level 2 Service Manual

COM D CCQ SLI APAC Page 5 of 34 Internal Use Only

Display • Type: Full Graphic

• Resolution: 130 x 130 Pixel

• No. of colours: 65K

• Technology: C-STN

• Active area: 27.3mm x 27.3mm

• Pixel size: 0.21mm x 0.21mm. (1 Pixel consists of 3

sub-pixels in red, green and blue)

• Illumination: White (3 LEDs integrated)

• Frame Rate: 15 frames/sec

12-Block Keypad • IMF technology

• 12-key-block (0-9, #, *)

• two function keys (SEND, END)

• ON/OFF key combined with the END key; the symbol (I

inside O) is used as a symbol for ON/OFF.

• 4 way-navikey

• 2 soft-keys for different SW-enabled functions

• tactile finder on key “5“

• 6 amber LEDs for keypad

Acoustics

• Three-in-one-earpiece for handset, handsfree and ringing

tones

• Omnidirectional microphone

• Loud signal emitter (soundringer) (>100dB(A) SPL @5cm,

'Hongkong-Spec.') only for rectangular sound signals (NOT

POSSIBLE for Soundringer melodies)

• Polyphonic ringer tones 16 voices

• Different selectable volume levels for handsfree, handset

and ringer mode (for the amount see SW product

description)

AX75 Level 2 Service Manual

COM D CCQ SLI APAC Page 6 of 34 Internal Use Only

3 Comparison with Previous Product

Feature A65 AX75

Supported Systems Triple Band

EGSM900/GSM1800/GSM190

(EMEA, APAC)

Triple Band

EGSM 900/GSM1800/

GSM1900 (EMEA, APAC)

GSM 850/GSM1800/

GSM1900 (LAM)

Stand-by Time Up to 250 h Up to 220 h

Talk Time Up to 5h Up to 5 h

Battery Technology

Battery Capacity Li-Ion Battery Pack

Nominal Cap.: 700 mAh Li-Ion Battery Pack

Nominal Cap.: 600 mAh

Weight 74.8 g Approx. 80 g

Volume 71.8 cm3Approx. 74.6 cm3

Length 100.7 mm 105.6 mm

Width 44.7 mm 46.75 mm

Thickness 19.3 mm 17.5 mm

SIM Plug-In 3V Plug-In 3V

Antenna Integrated Integrated

Antenna Performance

FBT EMEA/APAC

TRP freespace (avg)

29dBm @900MHz

26dBm @1800MHZ

26dBm @1900MHZ

TIS freespace (avg)

-102dBm

Head SAR < 0.8 W/kg

(1g)

29.4 dBm @ 900 MHz

26.4 dBm @ 1800 MHz

27.8 dBm @ 1900 MHz

-103 dBm @ 900 MHz

-104.5 dBm @ 1800 MHz

-103.7 dBm @ 1900 MHz

SAR = 0.79 W/kg (1g)

AX70 EMEA/APAC

29dBm @ 900 MHz

26dBm @ 1800 MHz

26dBm @ 1900 MHz

-102dBm

SAR < 0.80 W/kg (1g)

Antenna Performance

FBT LAM version

28dBm @850MHz

26dBm @1800MHz

27.5Bm @1900MHz

TIS freespace (avg)

-102dBm

Head SAR < 0.8 W/kg

(1g)

AX7X LAM

28dBm @ 850 MHz

26dBm @ 1800 MHz

26dBm @ 1900 MHz

-102dBm

SAR < 0.80 W/kg (1g)

Half Rate Yes Yes

Enhanced Full Rate Yes Yes

AMR Yes Yes

Fax/Data No Yes

GPRS Yes (Class 8) Yes (Class 8)

Keypad Illumination Yes (amber) Yes (amber)

Display /

Display Illumination CSTN 4k colours (101x80 dots) Main: CSTN 64k colours

(130x130)

Camera No No

Connectivity Serial Serial, IRDA

Ringer volume level Min. 100 dB(A) @ 5cm

Typ. >103 dB(A) @ 5cm Min. 100dB(A) @ 5cm

(only for rectangular sound

signals)

AX75 Level 2 Service Manual

COM D CCQ SLI APAC Page 7 of 34 Internal Use Only

4 Accessories

For AX75, the following accessories will be available.

Description Part number

Belt Case FCL-600 L36880-N7101-A120

Tour Case FCT-650 L36880-N5601-A149

Headset Purestyle HHS-610 L36880-N7101-A500

Headset HHS-510 L36880-N5601-A108

Headset Basic HHS-500 L36880-N5601-A107

Li-Ion Battery 750mAh EBA-660 L36880-N7101-A111

Travel Charger ETC-500 L36880-N5601-A104

Travel Charger ETC-510 L36880-N5601-A105

Car Charger Plus ECC-600 L36880-N7101-A109

Desk Top Stand EDC-500 TBC

Car Charger ECC-500 TBC

Car Kit Easy HKP-700 TBC

Car Kit Portable HKP-500 L36880-N5601-A109

Car Kit Easy Upgrade HKO-700 TBC

QuickPic Camera IQP-500 L36880-N5701-A109

Data Cable DCA-500 (RS232) L36880-N5601-A110

Data Cable USB DCA-510 L36880-N5601-A111

Note: Visit the Communication Market for updated accessories:

https://communication-market.siemens.de/

AX75 Level 2 Service Manual

COM D CCQ SLI APAC Page 8 of 34 Internal Use Only

4.1 AX75 Interface to accessories

There are no specific mechanical interfaces to the car cradle. The car cradle is designed

to fit the existing design. The I/O-Connector (Lumberg-slim-connector) is in use. The

compatible interface is suitable to use the travel charger.

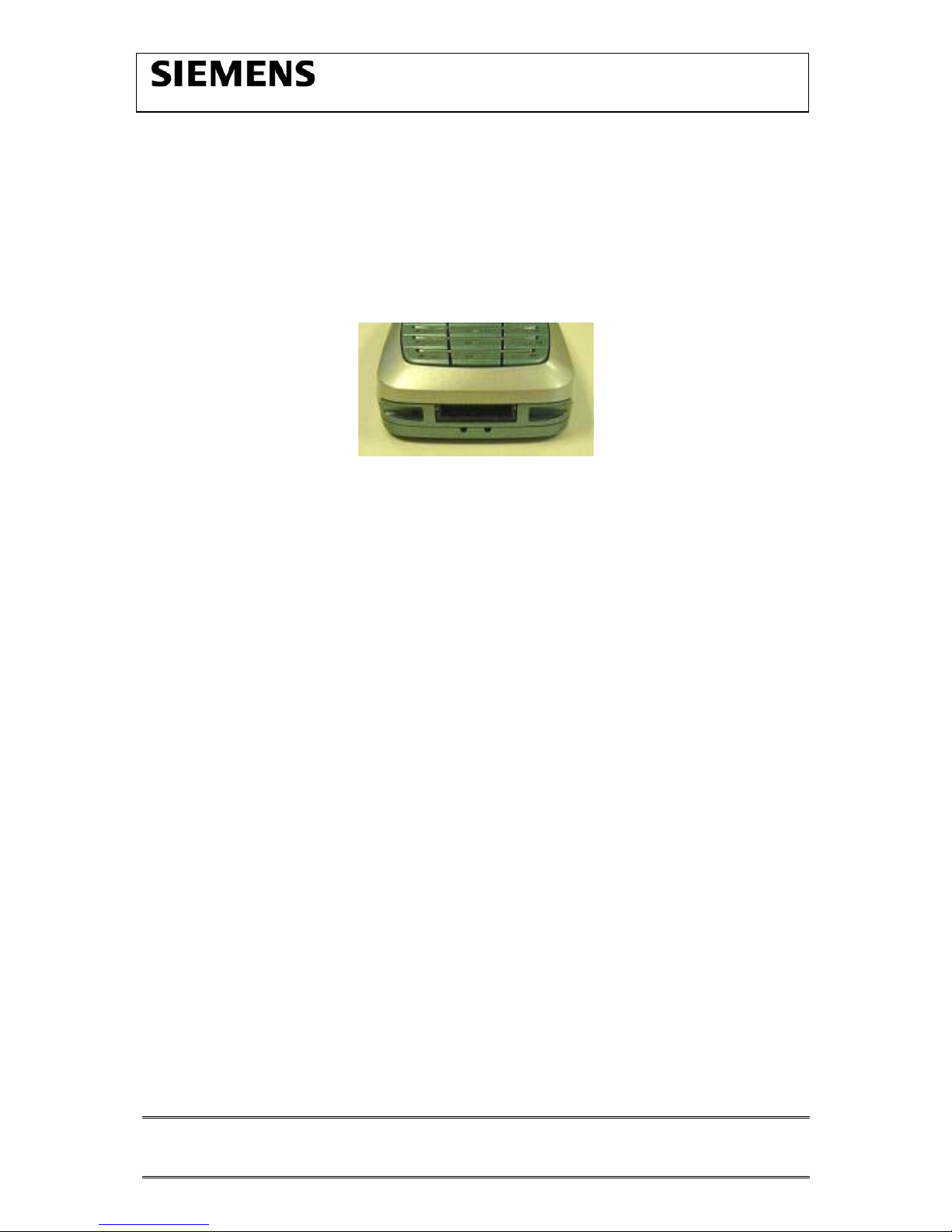

Slim Lumberg I/O Connector

AX75 Level 2 Service Manual

COM D CCQ SLI APAC Page 9 of 34 Internal Use Only

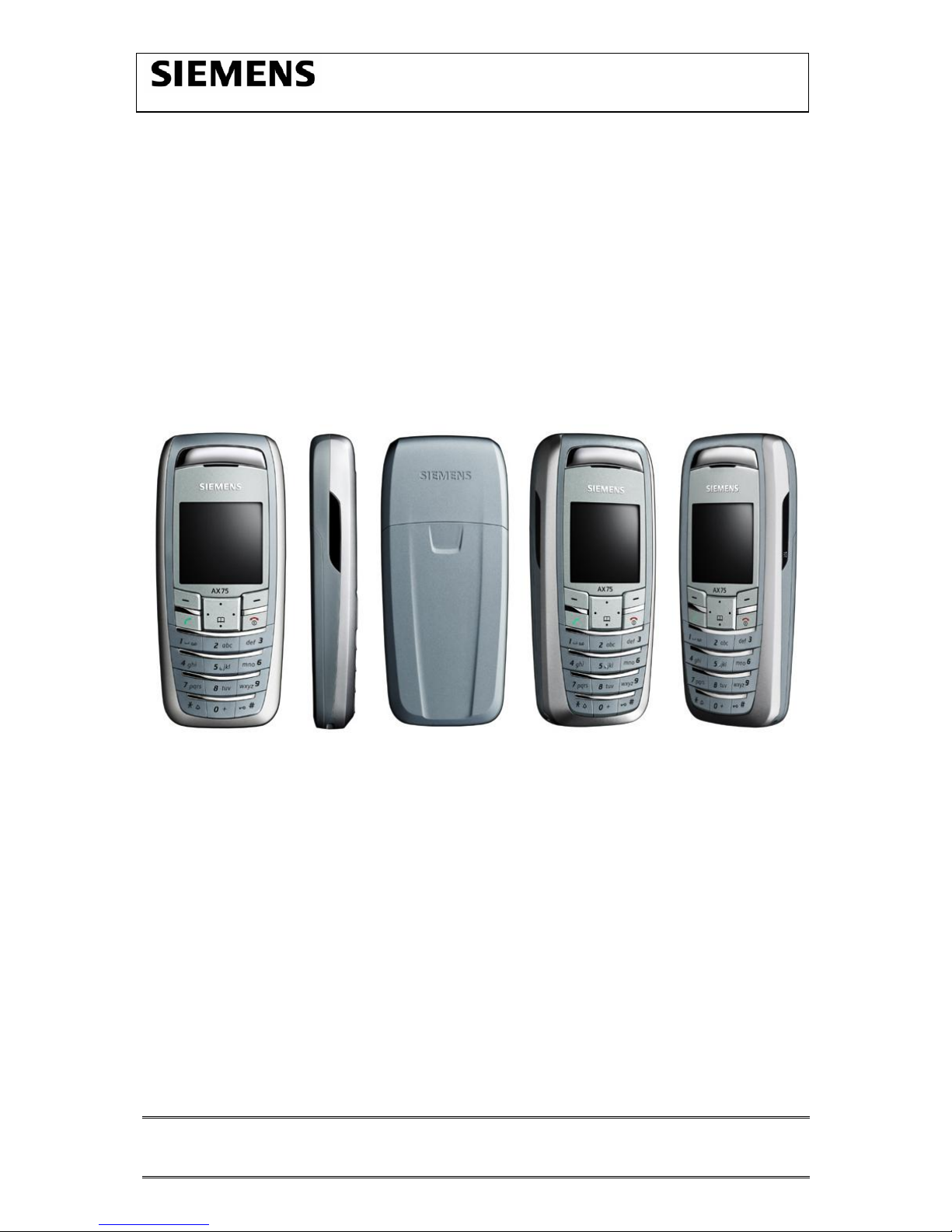

5 Unit Description of AX75

The AX75 Pegasus is designed as a Mono Block with non-exchangeable housing. The

Upper case, lower case and battery cover are painted parts (1k; 2 colours). IMD Lens will

be mounted by Ultrasonic, Display, 130X130(modified from Hera, only mechanical

modification); semi-bridgeless keypad, 4-way Navi-Key, 12 keys block; IMD lens (1 pcs

only); IRDA window; No ID concept will be realized on Battery cover.

AX75 Level 2 Service Manual

COM D CCQ SLI APAC Page 10 of 34 Internal Use Only

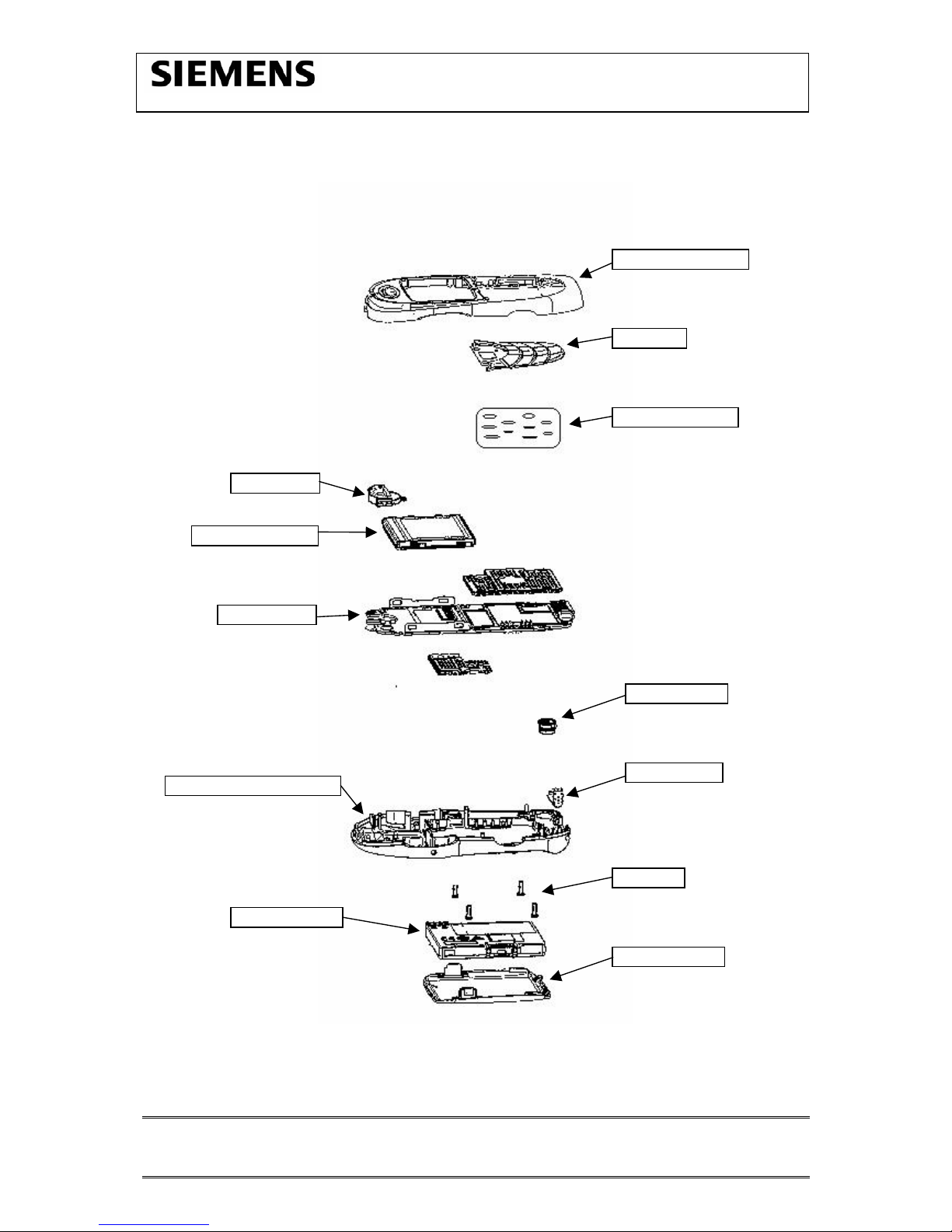

5.1 Exploded View of AX75

Upper case shell

Keypa

Metal dome foil

Microphon

Earphone

Display

Main

Vibramoto

Lower mounting frame

Screw

Battery cove

Battery Li-ion
