Electromotoric actuator

SSB161.05UT

For pressure independent zone valves, small globe valves and 3-party valves

●Operating voltage AC/DC 24 V, positioning signal DC 0...10 V

●Self-calibrating to the valve stroke

●Direct mounting with coupling nut, no tools required

●Manually override

●Position and actuator motion indication (LED)

●Positioning force 200 N

●Parallel operation of multiple actuators possible

A6V13359034_en--_b

Smart Infrastructure

2023-05-17

Siemens

A6V13359034_en--_b

Smart Infrastructure

2023-05-17

Use

●For zone valves VVP.., VXP.., VMP..: compatible with SSB161.05UT

●Typically in chilled ceiling, VAV and fan coil unit applications

●Max.10 units of SSB161.05UT can operate in parallel, provided the controller output

suffices.

Technical design

When the actuator is driven by DC 0…10 V positioning signal, it produces a stroke, which is

transmitted to the valve stem.

DC 0…10 V positioning signal

●The valve opens / closes in proportion to the

positioning signal at Y.

●At DC 0 V, actuator stem is retracted, the normally

closed valve is fully closed.

●When there is no operating voltage, the actuator

maintains its current position.

Y = Positioning signal Y [V]

H = Percentage of calibrated valve stroke

LED indication

Status

LED indication patterns

Variants

SSB161.05UT

    Stroke movement: Stem retracting

Flashing green in sequence: LED1-->LED2-->LED3 (500 ms each)

   Stroke movement: Stem extending

Flashing green in sequence: LED3-->LED2-->LED1 (500 ms each)

Stem stays in position

At H0 - H40: Constant green (LED3)

At H40 - H60: Constant green (LED2)

At H60 - H100: Constant green (LED1)

Calibration

Flashing green (LED2): 100 ms on, 100 ms off

Error*

Constant red (LED2)

Manual operation

Flashing green/red alternatively (LED2): Green 500 ms, red 500 ms

* Hint: Error caused by mechanical jam or calibration failure. Calibration through resetting the

operating voltage required.

Type summary

Type

Stock

number

Operating

voltage

Running

speed

Running time

5.5 mm

Positioning

signal

Actuator

characteristic

SSB161.05UT

S55180-A148

AC/DC 24 V

5 s/mm

27.5 s ±25 %

DC 0…10 V

Linear

Ordering

When ordering, specify both type and quantity.

Siemens

A6V13359034_en--_b

Smart Infrastructure

2023-05-17

Example:

Type

Stock number

Designation

Quantity

SSB161.05UT

S55180-A148

Electromotoric actuator

Delivery

Valves and actuators must be ordered separately. For easier valve assembly, actuators

ordered separately have the actuator stem fully retracted.

Equipment combinations

Combinable valves

Type reference

Valve type

Kvs [m3/h]

PN class

Data sheet

VVP45..

2-port valves

0.25…6.3

PN 25

N4845

VVP45..S

2-port valves, for CONEX compression fittings

0.63…2.5

N4854

VXP45..

3-port valves

0.25…6.3

N4845

VMP45..

3-port valves with T-bypass

0.25…4.0

VMP45..S

3-port valves with T-bypass, for CONEX compression

fittings

0.63…2.5

N4854

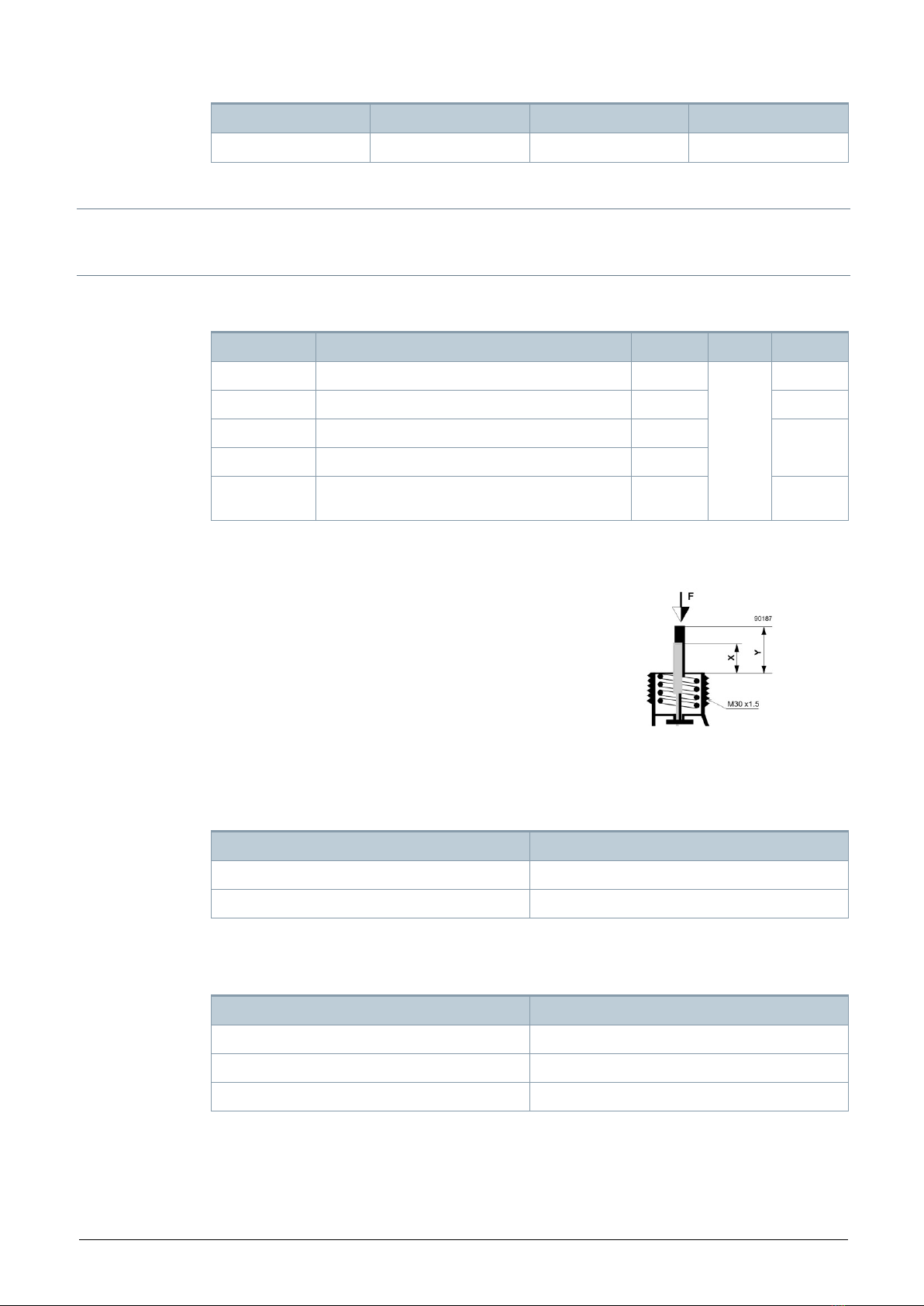

Note: To ensure trouble-free operation of

third-party valves with the actuator, the

valves must satisfy the following

requirements:

●Threaded connections with coupling nut:

¾” inch

●Nominal force: > 200 N

●Dimension X ≥ 8.3 mm

●Dimension Y ≤ 14.8 mm

Controllers

Type

AC/DC 24 V; DC 0…10 V

DXR2

DXR2..

RXB..

RXB39.1..

Combinable room thermostats

Type

Detail

RDG..

RDG160KN, RDG160T, RDG260, RDG405KN

RDU..

RDU340

RCU..

RCU50..

Siemens

A6V13359034_en--_b

Smart Infrastructure

2023-05-17

Product documentation

Topic

Title

Document ID

Mounting and installation

Mounting instructions

A6V13464210

Standards and directives

CE declarations

A5W00254962A

RCM conformity

A5W00254983A

Environmental compatibility

Environmental declarations

A5W00244689A

Related documents such as the environmental declarations, declarations of conformity, etc.,

can be downloaded from the following Internet address:

www.siemens.com/bt/download

Notes

Engineering

The actuators must be electrically connected in accordance with local regulations (see

"Connection diagrams [▶11]”).

CAUTION

National safety regulations

Failure to comply with national safety regulations may result in personal injury and property

damage.

●Observe national provisions and comply with the appropriate safety regulations.

Observe permissible temperatures (see "Technical data [▶9]").

Mounting

WARNING

●Do not use pipe wrenches, pliers or similar tools.

●Avoid lateral pressure or (cable) tension on the mounted actuator!

Valve and actuator are easy to assemble on site before commissioning:

●Remove protective cover from the valve body.

●Position the actuator and tighten the union nut manually.

●See "Mounting instruction" for graphical instructions.

Orientation

Siemens

A6V13359034_en--_b

Smart Infrastructure

2023-05-17

Installation

A [mm]

B [mm]

C [mm]

5.5

6.0

Crimp ferrule on stripped wire of connecting cable.

●Observe all admissible temperatures (see "Technical data [▶9]").

●Do not twist the cable.

●Magnets can damage the actuator.

●Provide a means for isolation from the power supply, e.g., connecting a circuit breaker or

switch fuse upstream of the control unit.

CAUTION

National safety regulations

Failure to comply with national safety regulations may result in personal injury and property

damage.

●Observe national provisions and comply with the appropriate safety regulations.

CAUTION

Phase cut and pulse-duration-modulated (PDM) signals are not permitted.

Regulations and requirements to ensure the safety of people and property must be

observed at all times!

Commissioning

When commissioning, check wiring and functioning of the actuator.

●Actuator stem extends

Normally open valve closes, normally closed valve opens

●Actuator stem retracts

Normally open valve opens, normally closed valve closes

NOTICE

The actuator must be commissioned only with a correctly mounted valve in place!

Siemens

A6V13359034_en--_b

Smart Infrastructure

2023-05-17

Self-calibration

When operating voltage is applied, the actuator self-calibrates (fully retracted ➙fully

extended ➙setpoint).

CAUTION

Never intervene manually during self-calibration.

NOTICE

●Correct calibration is only possible with valve stroke > 1.2 mm. Valve stroke < 1.2 mm

results in calibration failure.

●If calibration fails, the actuator performs another calibration automatically after

10 seconds.

●After three failed calibration attempts, the actuator stem remains in the extended

position and the valves are closed. The state of the LED then changes to "stays red".

Power

Calibration Y

Fully retracted

Fully extended

Siemens

A6V13359034_en--_b

Smart Infrastructure

2023-05-17

Manual operation

A 3-mm Allen wrench can be used to move the actuator to any position.

To move the actuator stem manually

1. Open the cover using a proper screwdriver.

2. Press and hold down button (a) illustrated below for at least three seconds.

–The actuator ignores any positioning signal from the controller.

3. Adjust the position of the actuator stem by rotating Allen wrench (b) illustrated below

clockwise or anti-clockwise.

–The actuator stem moves down if you rotate clockwise; it moves up if you rotate anti-

clockwise. The manually set position is retained.

4. To exit manual operation mode, press and hold down button (a) illustrated below again

for at least three seconds.

–The actuator runs a self-calibration automatically. Positioning signal sent from the

controller takes effect.

NOTICE

If operating voltage is applied to actuator, press button (a) before and after manually

adjusting the position of the actuator stem. If no operating voltage and positioning

signal are applied, manual operation can be done without pressing button (a).

Cabling operation

1. Unscrew cover screw

2. Remove cover

3. Connect or disconnect wire terminals

4. Install the cover

5. Screw in the cover screw

Maintenance

The actuators require no maintenance.

3 mm

(b)

(a)

>3s

A6V13359034Z00

Siemens

A6V13359034_en--_b

Smart Infrastructure

2023-05-17

WARNING

Operating voltage must be switched off during any site!

NOTICE

When carrying out service work on the plant, note the following:

●If necessary, disconnect electrical connections from the terminals.

●The actuator must be commissioned only with a correctly mounted valve in place!

Disposal

The device is considered an electronic device for disposal in accordance

with European guidelines and may not be disposed of as domestic waste.

●Dispose of the device through channels provided for this purpose.

●Comply with all local and currently applicable laws and regulations.

Warranty

Technical data on specific applications are valid only together with Siemens products listed

under "Equipment combinations". Siemens rejects any and all warranties in the event that

third-party products are used.

Open Source Software (OSS)

Software license overview

These devices use Open Source Software (OSS). All Open Source Software components

used in the product (to include copyrights and licensing agreement) are available at

http://siemens.com/bt/download.

Firmware version

OSS document

Device

Document ID

Title

2.10.0 or above

A6V13503690

Readme OSS for Modulating Room Actuator 200N, 300N

All

Siemens

A6V13359034_en--_b

Smart Infrastructure

2023-05-17

Technical data

Power supply

Operating voltage

AC 24 V (±15 %) or DC 24 V (±20 %)

Frequency

50/60 Hz

Power consumption

3 VA

Primary fuse or breaker rating

External, 2 A quick blow

Signal input

Positioning signal

DC 0…10 V

Input impedance

100 kOhm

Parallel operation (number of actuators)

Max. 101)

1) Provided that the controller output is sufficient.

Operating data

Position with de-energized positioning signal Y

See "Technical design [▶2]"

Running speed

< 5 s/mm ±25 %

Positioning force

200 N

Stroke

1.2…6.5 mm

Permissible temperature of medium in the connected valve

1…120℃

Electrical connection (connecting cable integral)

Permissible length for signal lines

<20 m

Wire cross section

0.5...0.75 mm²

Cable diameter

<5 mm

Mounting

Connection to valve

Plastic coupling nut ¾” inch

Orientation

360°

Standards

EU conformity (CE)

A5W00254962A

RCM conformity

A5W00254983A

UKCA

A5W00257055A

Housing protection degree

IP 54

Protection class according to EN 60730

III

Pollution degree

Siemens

A6V13359034_en--_b

Smart Infrastructure

2023-05-17

Standards

Overvoltage category

III

Environmental compatibility

The product environmental declaration

(A5W00244689A) contains data on environmentally

compatible product design and assessments (RoHS

compliance, materials composition, packaging,

environmental benefit, disposal).

UL Approval

Federal Communications Commission

UL as per UL60730-1, UL60730-2-14

http://ul.com/database

cUL as per CSA –CAN E60730-1, E730-2-14

FCC CFR 47 Part 15 Class B

ICES003

CAN ICES-3 (B)/NMB-3(B)

FCC regulations

Modification of this device to receive cellular radio telephone service signals is pro-

hibited under FCC rules and federal law.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Housing color

Cover/base

2003, Ti-Gray

Coupling nut

RAL 9017

General ambient conditions

Operation

Transport

Storage

Temperature

1…50 ℃

-25…70 ℃

Humidity

5…95 % r.h.

non condensing

<95 % r.h.

non condensing

5…95 % r.h.

non condensing

Atmospheric

pressure

Min. 700 hPa, corresponding to

max. 3,000 m above sea level

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Siemens Controllori

Siemens

Siemens SEZ50MB Manuale utente

Siemens

Siemens SIRIUS 3RW44 Guida utente

Siemens

Siemens RWB27 Timeswitch Manuale utente

Siemens

Siemens SIRIUS ET 200S Manuale utente

Siemens

Siemens SINUMERIK 840D sl Manuale elenco delle parti

Siemens

Siemens SIPART PS2 Manuale utente

Siemens

Siemens RVD110 Manuale dell'operatore

Siemens

Siemens Simatic S7-300 Manuale utente

Siemens

Siemens RAJA+ Istruzioni operative

Siemens

Siemens SIMATIC FM 357-2 Manuale utente

Siemens

Siemens SKD32 Series Manuale utente

Siemens

Siemens OZS164 series Manuale utente

Siemens

Siemens Acvatix SAX61 MO Series Manuale dell'operatore

Siemens

Siemens SIMATIC S5-100U Manuale utente

Siemens

Siemens FT2001-A1 Manuale utente

Siemens

Siemens SIMATIC ET 200SP Manuale utente

Siemens

Siemens Simatic S7-300 Manuale utente

Siemens

Siemens SINUMERIK 840D sl Foglio di istruzioni

Siemens

Siemens SIMATIC S7-1200 Manuale utente

Siemens

Siemens rle127 Manuale utente

Siemens

Siemens SIMATIC S7 F Manuale utente

Siemens

Siemens GEB-1E Series Manuale utente

Siemens

Siemens Simatic S5-101U Manuale di installazione

Siemens

Siemens OpenAir GND12x.1 Series Manuale di servizio

Manuali Controllori popolari di altre marche

Digiplex

Digiplex DGP-848 Istruzioni operative

YASKAWA

YASKAWA SGM series Manuale utente

Sinope

Sinope Calypso RM3500ZB Manuale utente

Isimet

Isimet DLA Series Style 2 Manuale di installazione

LSIS

LSIS sv-ip5a Manuale utente

Rockwell Automation

Rockwell Automation 1769-L31 Manuale utente

Airflow

Airflow Uno hab Manuale utente

ABB

ABB ACS580-01 drives Manuale utente

Panasonic

Panasonic GM1 Series Manuale utente

Emerson

Emerson SW93 Manuale utente

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuale utente

Panasonic

Panasonic FP? Positioning Unit RTEX Manuale utente

Samson

Samson Type 5824 Manuale di servizio

Alpha IP

Alpha IP MIOB 21001 Manuale utente

Surecom

Surecom SR-629 Manuale utente

Fishman

Fishman TriplePlay Manuale utente

Regulus

Regulus SRS1 T Manuale utente

3M MicroTouch EX113 Manuale utente
