Siemens WTXL1100 Manuale utente

Table of contents

Instruction manual

Your new dryer ...................................................... 4

Notes on disposal.................................................. 5

Disposing of packaging .................................... 5

Disposing of old dryers.................................... 5

Safety notes........................................................... 6

Using the dryer correctly .................................. 6

Before using the dryer..................................... 6

Observe when drying........................................ 7

Observe at the end of the program .................. 7

Notes on protecting the dryer........................... 7

Environmental protection / notes on economy...... 8

Drying in an economical and environmentally-

aware manner................................................... 8

Dryer description.................................................... 9

Brief instructions............................................... 9

Door operation.................................................. 9

Setting up the dryer........................................10

Control panel.................................................. 11

Notes on laundry.................................................. 12

Labelling of fabrics......................................... 12

Tips on drying................................................. 13

First use............................................................... 14

Drying ............................................................. 14

Selecting a program ............................................ 15

Selecting......................................................... 15

Program sequence......................................... 15

Standard programs......................................... 16

Program Time................................................. 17

Additional function ............................................... 17

Delicates button J........................................... 17

Signal button K............................................... 17

Cleaning and care................................................ 18

Cleaning the dryer......................................... 18

Fluff filter......................................................... 18

Changing the light bulb................................... 19

Troubleshooting................................................... 20

After-sales service............................................... 22

Technical data ..................................................... 23

Setting up and connecting................................... 24

Safety notes.................................................... 24

Setting up the dryer........................................25

Washer-dryer stack connection set................ 26

Assembling the exhaust air hose ................... 26

Electrical connection....................................... 27

Your new dryer

With the purchase of your new dryer, you have

chosen a modern, high-quality domestic

appliance.

A distinctive feature of your dryer is its low energy

consumption.

Every dryer which leaves our factory is carefully

checked to ensure that it functions correctly and

is in perfect condition. Our after-sales service is

available should you have any questions,

particularly on how to set up your dryer.

You will find further information and a selection of

our products on our website:

http://www.siemens.de/hausgeraete

Read and observe this instruction manual and all

other accompanying information for your dryer.

Keep all the documents in a safe place for future

reference or to pass on to the next owner.

Notes on disposal

Disposing of

packaging

!Risk of suffocation!

There is a risk of suffocation from the cardboard

box and plastic film.

Do not allow children to play with the packaging.

All our packaging materials are environmentally

friendly and recyclable. Please dispose of the

packaging in an environmentally-responsible

manner.

Any retailer or your local authority will be able to

advise you on the disposal methods currently

available.

Disposing of

old dryers

!Danger of death!

Danger of death from electrical voltage or

suffocation.

Your old dryer:

 Disconnect it from the mains.

 Cut through the mains cable and discard

along with the plug.

 Break the door lock. This prevents children

from locking themselves in the dryer.

Environmentally-friendly disposal conserves

valuable raw materials.

Any retailer or your local authority will be able

to advise you on the disposal methods

currently available.

!This appliance is marked according to the

European directive 2002/96/EC on Waste

Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European-wide

validity of return and recycling on Waste

Electrical and Electronic Equipment.

Safety notes

Using the dryer

correctly

 Only for domestic use.

 Only for drying fabrics which have been

washed in water.

 Do not leave children unsupervised near the

dryer –

!Risk of explosion/fire!

Solvent danger.

Do not use the dryer if:

 the laundry has been treated with a

solvent or has been colour-treated

(e.g. stain remover, petroleum ether).

Dust danger

Do not use the dryer if:

 the laundry contains dust, e.g. coal dust or

flour

 the laundry contains foam/rubber

 the laundry contains traces of hairspray, nail

varnish remover or similar substances.

Before using

the dryer

 Install the dryer in accordance with the

installation instructions (see page 24).

 Do not connect the dryer if it has visible

signs of damage. If in doubt, contact your

local dealer.

!Risk of explosion/fire!

Do not discharge exhaust air through an outlet pipe

used for waste gas from appliances which burn gas

or fuels.

Observe when

drying

 Do not leave children unsupervised near

the dryer.

 Keep pets away from the dryer.

 Remove all objects from pockets. Look out

for fires in particular –

!Risk of explosion!

Observe at the

end of the

program

 Switch off the dryer when the program has

ended.

Notes on

protecting the

dryer

 Do not climb onto the dryer.

 Do not lean or sit on the door –

!Risk of tipping!

 Do not lift the dryer by any protruding

components.

!Risk of breakage and injury!

 Do not use detergent boosters containing

solvents or dirt and stain removers in the

dryer. These substances may damage the

dryer.

 Empty the dryer completely when it is to

be transported or stored.

iDo not set up the dryer in a room

susceptible to frost.

Environmental protection /

notes on economy

Drying in an

economical and

environmentally-

aware manner

 Spin the laundry thoroughly before

drying.

Spin the laundry thoroughly in the washing

machine before drying. The higher the spin

speed, the shorter the drying time and the

lower the energy consumption. You should

also spin easy-care laundry.

 Fill to full capacity

Fill the dryer to its maximum

recommended capacities. Do not exceed

the capacities:

White and coloureds max. 5.0 kg

Easy-care fabrics max. 2.5 kg

 Ensure sufficient room ventilation

Open a window or door while drying

laundry.

 Clean the fluff filter

Clean the filter after each drying cycle

(see page 18).

 Do not obstruct the cooling air supply

Do not position or affix anything over the

cool air inlet on the rear of the dryer.

Dryer description

Brief

instructions

Before drying

 Open the door.

 Place the laundry in the drum.

 Close the door.

 Turn the program selector to a program

(see the program table on page 16).

 Set the additional function if required

(see page 17).

 Press Start button M.

Adding laundry

 Open the door.

The drying cycle is halted.

Add or remove laundry.

 Close the door.

 Select a different program if necessary

using the program selector (see the table

of programs from page 16 onwards).

 Press Start button M.

After drying

 Open the door.

 Remove the laundry.

 Turn the program selector to Off.

 Clean the fluff filter (see page 18).

Door operation

 Press the door to open.

 Close the door (you will hear a clicking

noise).

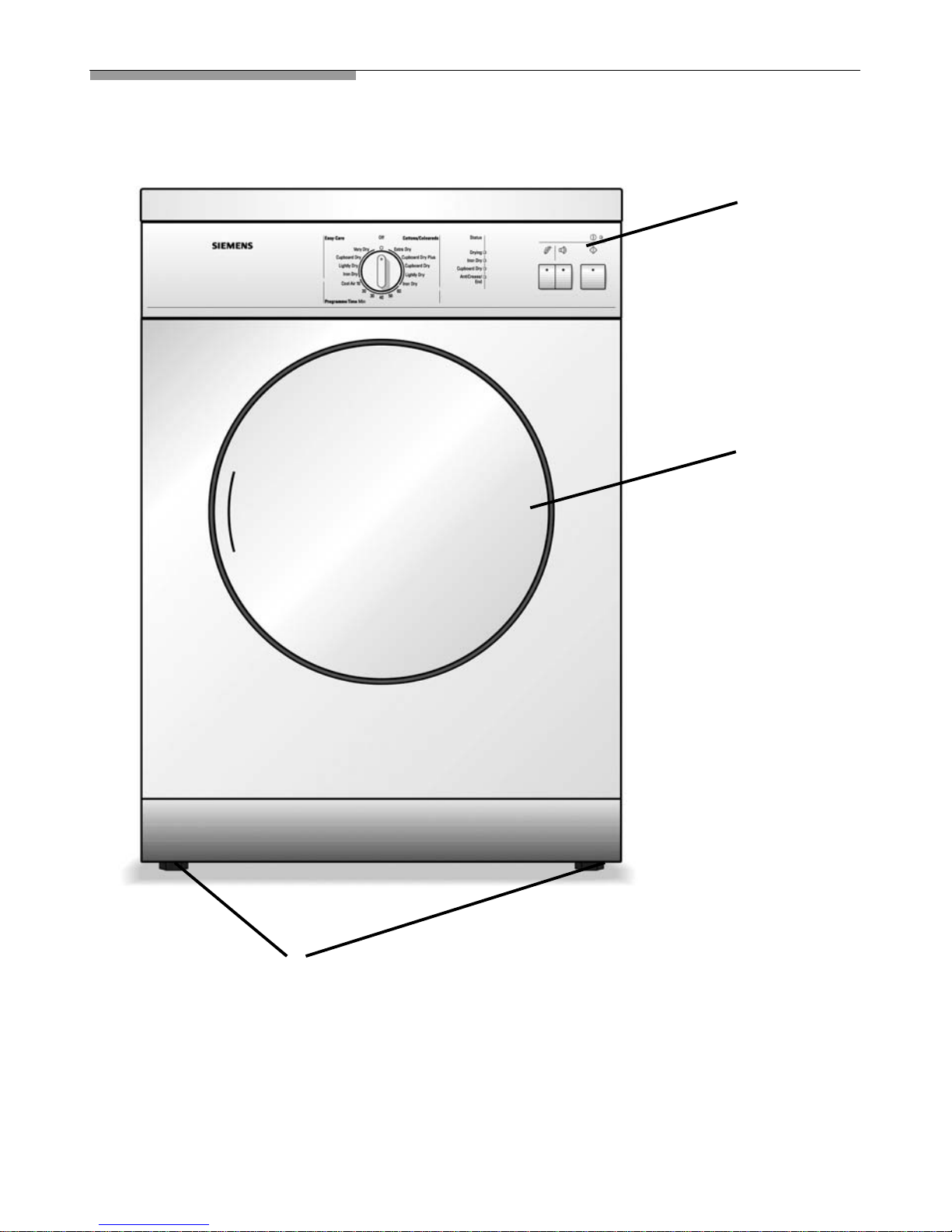

Setting up the dryer

1 Control panel

2 Door with internal filter

3 Adjustable dryer feet
