enContentenInstruction manual In case of damage
Safety regulations
and warnings
■ Avoid open flames or
other ignition sources
keep near the device;
Before using the
device ■ Ventilate the room well for a
few minutes;
Read the operating instructions
and installation instructions
carefully. It contains important
information about installation,
use and maintenance of the
device.
■ Switch off the device
and pull the plug from
the socket;
■ Contact Customer
Service.
The manufacturer assumes
no liability if the instructions
and
warnings in the
operating instructions are not
observed. Keep
the operating instructions and
installation instructions for
later use or for any
subsequent owner.
The more refrigerant the
device contains, the larger the
room in which the device is
installed.
In a space that is too small, a
leak can create a flammable
mixture of gas and air.
The room must be at least 1 m³
per 8 g of refrigerant. The
amount of refrigerant in your
appliance can be found on the
rating plate on the inside of the
appliance.
Technical safety
Fire hazard
A small amount of
environmentally friendly, but
flammable refrigerant (R600a)
flows through the pipes of the
refrigerant circuit. This does not
harm the ozone layer and does not
increase the greenhouse effect.
However, escaping refrigerant
can cause eye damage or catch
fire.
When setting up the device,
make sure that the
connecting cable is not
pinched or damaged.
79
NL
If the connecting cable of the
device is damaged, it must be
replaced by the manufacturer,
its
service or another qualified
person. Improper installation
and repairs can pose great
danger to the user of the device.
When using
■ Never use electrical appliances
in the appliance
(e.g. heating devices, electric
ice cream makers, etc.).
Explosion danger!
■ Never defrost or clean the
appliance with a steam
cleaner! The hot steam can get
into the electrical parts
and cause a short circuit.
Danger of electric shock!
Repairs may only be carried
out by the manufacturer,
customer service or another
qualified person.
■ Apart from the
recommendations of the
manufacturer does not take
additional measures to
speed up defrosting.
Explosion danger!
Only original parts from the
manufacturer may be used. Only
these parts are warranted by the
manufacturer to comply with the
meet safety requirements. ■ Do not use pointed or sharp
objects to remove a layer of
ice or frost. This allows you to
cooling pipes
Refrigerant spraying out
could catch fire or cause eye
damage.
Do not use multiple outlets,
extension cords, or adapters.
Fire hazard
Portable Multiple
wall outlets or portable power
supplies can overheat and cause
a fire. Do not place a portable
multiple outlets or portable
power supplies behind the
device.
■ No products with
flammable propellants
(eg aerosols) and do not
store explosive substances
in the device.
Explosion danger!
80
NL
■ Do not use plinth, pull-out
baskets or drawers, doors,
etc. as a step or for leaning
on.
■ Avoiding risks to children
and vulnerable
persons:
Vulnerable are children/
persons with physical,
mental or sensory
disabilities, as well as
persons who have insufficient
knowledge of the safe
operation of the device.
■ To defrost or clean: unplug
the
mains socket or switch off the
fuse. Always pull the plug,
never the connecting cable.
■ Drinks with a high alcohol
percentage always well closed
and standing
keep.
Make sure that children and
vulnerable persons
understand the dangers.
A person responsible for
safety must supervise
children and vulnerable
persons near or instructing
them.
■ Do not use oil or grease on
plastic parts and door seals.
This
can therefore be porous
turn into.
■ The leg
Never cover or block any
vents on the device.
Only allow children from 8
years to use the appliance.
Children should be supervised
during cleaning and maintenance.
■ Bottles and cans of
liquids – especially
carbonated drinks – do not
store in the freezer
compartment. Such bottles
and cans can burst!
Never let children play with
the appliance.
■ Avoid prolonged contact of
your hands with the
frozen food, ice or the
evaporator tubes, etc.
Risk of frostbite!
■ Never put frozen food in your
mouth immediately after you
have taken it out of the freezer
compartment.
Risk of frostbite!
81
NL
Children in the household Directions about
the drain
■ Packaging materials and parts
thereof are not toys for
children. Risk of suffocation
due to foldable cardboard
boxes and foil!
* Disposal of the packaging
of your new device
The packaging protects your device
against transport damage. The
materials used are harmless to the
environment and can be reused. So help
and take care
that the packaging is disposed of in an environmentally
friendly manner.
■ The device is not a toy for
children!
■ For a device with a door lock:
keep the key out of the reach
of children! You can ask your supplier or the
cleaning service in your municipality
how you can dispose of your old
appliance and the packaging material of
the new appliance for environmentally
friendly processing.
General provisions
The device is suitable
■ for cooling and freezing
foodstuffs,
■ for making ice cream. * Disposal of your old
device
This appliance is intended for
private use in the household and
domestic environment.
Old appliances are not worthless waste!
Valuable raw materials can be recovered
through environmentally friendly
disposal.
The cooling circuit has been
checked for leaks. This appliance is marked in
accordance with the
European Directive 2012/19/EU
on waste
electrical and electronic
equipment (waste electrical and
electronic equipment - WEEE).
This device complies with the
applicable safety regulations for
electrical equipment and is radio
interference suppressed.
This device is intended for use
at altitudes up to 2,000
meters above sea level. The directive sets the framework
for the take-back and disposal of
old appliances that is valid in the
EU.
82
NL
m Warning The right place
With discarded appliances
1. Pull out the mains plug. Any dry, well-ventilated room is suitable.
Do not place the appliance in the sun or
next to a stove,
heating radiator or other heat source. If
installation next to a heat source is
unavoidable, use an insulating plate or
observe the following minimum distances
from the heat source:
2. Cut the connection cable and remove it
together with the plug.
3. Do not remove shelves and storage
compartments to make it difficult for
children to climb in!
4. Do not allow children to play with the
discarded appliance. Choking hazard!
Refrigerators contain refrigerant and gas
in the insulation. Which must be
disposed of carefully. In order to ensure
efficient and environmentally friendly
disposal, the pipes of the cooling circuit
must not be damaged until transport.
■ Next to electric or gas stoves 3 cm.
■ In addition to a central heating system 30 cm.
The floor at the installation site may not
give way, floor possibly
strengthen. Any imperfections
in the floor by putting something
underneath.
Size of
the delivery
Distance to the wall
Fig. #
The device does not require a wall
clearance to the side. The drawers and
shelves can nevertheless be fully
extended.
After unpacking, check all parts
for any
transport damage.
For complaints, please contact the store
where you purchased the device or our
customer service. Switch door stop
(If necessary)
The delivery consists of the following
parts: If necessary: We recommend you
have the door suspension replaced by the
after-sales service. You can request the
costs for changing the door stop from the
service department in your region.
■ Freestanding device
■ Equipment (model dependent)
■ Bag with mounting material
■ Instructions
■ Assembly instructions
■ Customer Service Booklet
■ Warranty Supplement
■ Information about energy consumption and
sounds
83
NL
m Warning Note
The device is fully functional within the
indoor temperature limits of the
indicated climate class. When a device of
climate class SN is used at a lower indoor
temperature,
damage to the device is excluded up to a
temperature of +5 °C.
While changing
door suspension, the appliance must not
be connected to the mains. First pull the
plug from the socket. Place enough soft
material on the floor to avoid damaging
the back of the appliance. Carefully lay
the device on its back.
Note Aeration
When the appliance is placed on its back,
the wall spacer must not be mounted. Fig. $
The sky at the back of
the device heats up. The heated air must
be able to be discharged without
hindrance. Otherwise, the chiller has to
perform more. This increases energy
consumption. The
The ventilation openings must therefore
never be covered!
Pay attention
the ambient temperature
hour and the aeration
Ambient temperature Connect device
The device is designed for a specific
climate class. Depending on the climate
class, the device can be used at the
following ambient temperatures.
After installing the device, you must wait
at least 1 hour before using the device.
During transport, the oil from the
compressor may enter the refrigeration
system.
The climate class can be
found on the type plate, fig. 4.
Before using the appliance for the first
time, clean the interior of the appliance
(see chapter „Cleaning
the device").
Climate class Permissible
ambient temperature
SN
N
ST
t
+ 10 °C to 32 °C
+ 16 °C to 32 °C
+ 16 °C to 38 °C
+ 16 °C to 43 °C
84
NL
Electrical connection
The mains socket must be close to the
device and easily accessible even after
setting up the device.
Meeting with
the device
m Warning
Danger of electric shock!
If the connecting cable is not long enough, do
not under any circumstances use
multiple outlets or extension cords.
Instead, contact customer service for

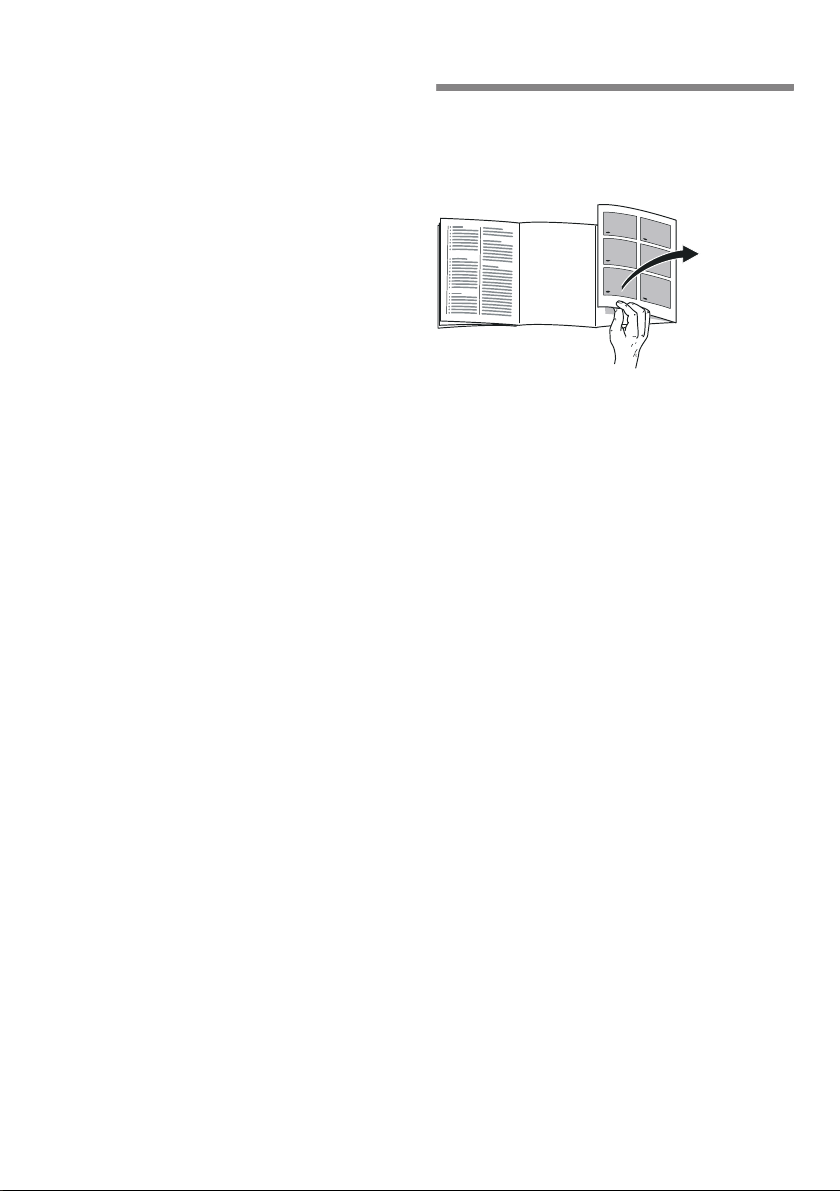

alternative solutions. Unfold the last page with the images. This
manual applies to more than one type.
The device complies with protection class
I. Connect the device to a
installed 220–240 V/50 Hz AC outlet with
ground wire. The socket must be
protected with a 10 A to 16 A fuse.
The equipment of the models may
vary.
Small deviations in the images are
possible.
Fig. !
* Not on all models.
For appliances that are used in non-
European countries, check whether the
connection voltage and the type of current
correspond to the values of your electricity
network. You will find this information on
the type plate, fig.4.
a
B
Cold room
freezer room
1-9
10
11
12*
13
14
15*
16*
17
18
19
20
21
22
Controls
Lighting (LED)
Glass shelf in the cooling
compartment Bottle rack
Fresh cool compartment
vegetable drawer
Butter and cheese box
Storage compartment in the door “EasyLift”
Compartment for large bottles
Freezer drawer (small)
Glass shelf in the freezer compartment
Freezer drawer (large)
Defrost water drainage channel
screw feet
m Warning
Under no circumstances may the device
be connected to electronic
energy saving plugs.
Mains power inverters and sine wave
inverters can be used for our devices.
Mains power inverters are used in
photovoltaic installations that are
directly connected to the public
power grid. For stand-alone systems (eg
on ships or in mountain huts) that do not
have a direct connection to the public
electricity grid, a sine wave inverter must
be used.
85
NL
Controls
Fig. "
1
Enable
the device
Button On/Off
To turn the whole device on
and off.
Fig. "
1. Switch on the appliance with the
On/Off button 1.
2“Super” button (Freezer compartment)
To switch the super freeze
system on and off. An alarm will sound,
the temperature display 4 flashes and the
alarm button 5 lights up.
3Freezer compartment
temperature setting buttons 2. By pressing the alarm button 5 the
alarm signal is switched off.
These buttons adjust the
temperature of the
freezer compartment set. The appliance starts to cool. The
lighting is switched on when the
door is open.
4Temperature indication
freezer room
The numbers correspond to
the set temperatures in the
freezer compartment in °C.
The factory recommends the following
temperatures:
■ Cold room: +4 °C
■ Freezer compartment: -18 °C
5Alarm key
To switch off the alarm signal
(see chapter “Alarm function”). Instructions for use
6Holiday key ■ After switching on, it can take several
hours before the set temperatures are
reached.
Used to switch Holiday Mode on
and off (see Holiday Mode
chapter). Before this time, do not put any food
in the appliance.
7Refrigerator compartment temperature
setting buttons ■ The front of the appliance behind the
door is partially heated slightly, which
prevents the formation of
condensation near the door seal.
The temperature of the refrigerator
compartment is set with these
buttons.
8Temperature display refrigerator
compartmentThe numbers correspond to
the set temperatures in the refrigerator
compartment in °C.
■ If the door of the freezer
compartment cannot be opened
immediately after closing, you
should wait a while until the negative
pressure has disappeared.
9“Super” button (Refrigerator)
To turn the super cooling system
on and off.
86
NL
Set up
the temperature
Vacation mode
If you are absent for a longer period of
time, you can switch the device into
energy-saving holiday mode.
Fig. "
Cold room When the holiday mode is switched
on, the automatic super freeze is
disabled.
The temperature is adjustable from +2 °C
to +8 °C. The temperature in the refrigerator
compartment is automatically set to +14 °C.
Temperature setting button refrigerator compartment 7,
press repeatedly until the desired temperature in the
refrigerator compartment
is set.
Do not store food in the refrigerator
compartment during this time.
The last set value is stored in the
memory. The set temperature is indicated
on the temperature display of the
cold room 8.
Switch on and off
Fig. "
Press Holiday button 6.
When the holiday mode is on, the
button lights up and the
temperature display of the refrigerator compartment
8 no longer shows the temperature.
Do not store sensitive food warmer than
+4 °C.
freezer room
The temperature is adjustable from -16 °C
to -24 °C. Alarm functions
Press the freezer compartment temperature
setting button 3 several times until the desired
freezer compartment temperature is set. door alarm
An alarm is activated if the appliance door
is left open for a long time. Closing the
door switches off the alarm signal.
The last set value is stored in the
memory. The set temperature is indicated
on the freezer compartment temperature
display 4.
87
Questo manuale è adatto per i seguenti modelli
1
Altri manuali Siemens Congelatore
Siemens
Siemens GS29VVW31 Manuale utente
Siemens
Siemens GC28MAW30/20 Manuale utente
Siemens
Siemens FI18NP Series Manuale utente
Siemens
Siemens GS..D SERIES Manuale utente
Siemens
Siemens iQ500 GS N Series Manuale utente
Siemens
Siemens GS..N SERIES Manuale utente
Siemens
Siemens GS58NAW30 Manuale utente
Siemens
Siemens iQ500 KI72L Series Scheda tecnica
Siemens
Siemens iQ500 KI82L Series Manuale utente
Siemens
Siemens KDN Series Manuale utente
Siemens
Siemens GU D Series Manuale utente
Siemens
Siemens KS36VAW41/06 Manuale utente
Siemens
Siemens KG39FSB30 Manuale utente
Siemens
Siemens GSN.. Manuale utente
Siemens
Siemens IQ100 KI86V Series Manuale utente
Siemens
Siemens KG series N Manuale utente
Siemens
Siemens GU15DA55I/01 Manuale utente
Siemens
Siemens CI24R Series Manuale utente
Siemens
Siemens GS V Series Manuale utente
Siemens
Siemens GS58NAW30F Manuale utente
