Building Technologies

Fire Safety & Security Products

SAP14

External power supply

Installation instructions

Product description

The SAP14 is a power supply unit suitable for an E-Bus

and has an output voltage of 12 V at a maximum of 1.3

A. The housing offers space for four type SMT12 (trans-

ponder) and for a battery of up to 12 V, 17 Ah for VdS

applications or up to 12 V, 17 Ah for non-VdS

applications. At least one SMT12 must be fitted to use

the cover tamper contact.

Security

zKeep this document for later reference.

zAlso follow the country-specific safety standards or

regulations for project planning, operating and dispo-

sing of the product.

zThe device is always to be disconnected from the

mains or battery prior to performing maintenance work

or installing additional devices.

Liability claim

zDo not connect the device if components are missing

or damaged.

zOnly make changes to the unit that are explicitly

mentioned in this document or which have been

approved by the manufacturer.

zUse only spare parts and accessories approved by the

manufacturer.

Damages due to a inappropriate mounting location

zObserve the environmental requirements recom-

mended by the manufacturer.

zDo not operate the unit in areas exposed to extreme

dust formation, moisture, vibration or flammable

gases.

Siemens Building Technologies

Fire Safety & Security Products 01.2009

Risk of electrical shock

zEnsure that the connection is secure and the circuit

breaker to the supply circuit is easily accessible when

operating the unit (e.g. fuse up to 16 A).

zDo not connect any external consumers to the fuse.

zGrounding has to adhere to the respective safety

regulations.

Device damage due to overvoltage

zConnect the unit only to current sources with the

specified voltage. Information on the power supply is

available on the power supply unit / rating plate.

Risk of panic reactions

zPrior to testing the system, make sure all important

persons involved and supporting authorities are

informed.

zTo avoid panic, all involved should be informed prior to

testing alarm facilities.

Danger of explosion

zMake sure that the battery poles do not short circuit.

zPlease pay attention to battery polarity.

zAlways fasten the battery in place with the holder

intended for this purpose.

Technical data

Mains voltage 230 V AC, + 10 % / -15 %, 50 Hz

Power intake max. 34 VA (at 230 V AC)

Mains supply fuse 160 mA T (Mains power)

Output voltage/current 13.7 V DC / 1.3 A

Max. ripple at 1.3 A 60 mV

Relay, single-pole

changeover

48 V / 5 A

Battery type according to

VdS

YUASA, Type NP7-12

(12 V / 7.2 Ah) recommended

Battery type not according

to VdS

YUASA, Type NP17-12

(12 V / 17 Ah) recommended

Operating temperature 0 to 40 °C

Steel housing 1.5 mm

Dimensions (W x H x D) 303 x 400 x 87.5 mm

Protection rating IP30

Environmental class II

Weight without battery 5.5 kg

Package contents

The SAP 14 package contains the following:

zOne SAP14 power supply unit

zOne battery holder

zOne set (4 units) of spacers

zInstallation instructions (de, en, fr, it)

zTerminal connection diagram

Siemens Building Technologies

Fire Safety & Security Products 01.2009

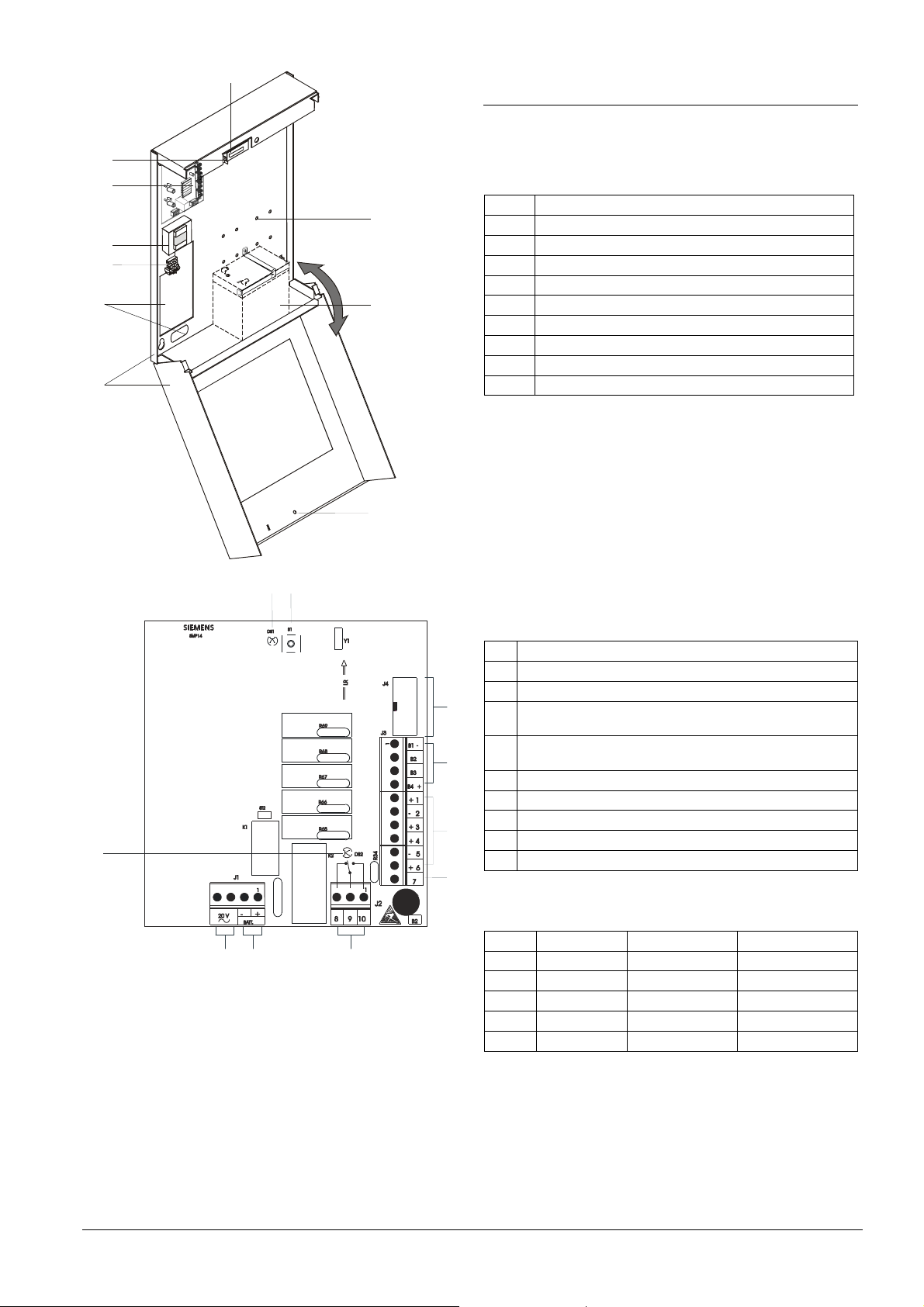

Fig. 1

Assembly

The SAP14 external power supply unit is designed for

mounting in dry indoor rooms. It must not be exposed to

dripping or splashing water.

1 Mounting holes for relay boards (optional)

2 Space for battery up to 12 V / 17 Ah

3 Cover screw

4 Housing

5 Cable inlets

6 Mains supply terminals with F7 fuse.

7 Transformer SMU22

8 Power supply assembly circuit board SMP14

9 Eye for sealing.

10 Tamper contact

Open cover

1. Loosen cover screw (3) Fig. 1

2. Remove cover

R45

(B4+)

(+1)

(+3)

(+4)

(+6)

Fig. 2

Power supply assembly circuit board SMP14

1 LED flashes when E-bus communication is intact

2 Address button

3 Not used

4 E-Bus connection to burglary detection control unit

(B1-, B2, B3, B4+); B4+ is secured by F1.

5 4 outputs +12 V (+1, +3, +4, +6), which are each secured

with a fuse (F2 to F5).

6 Output for mains supply indication (not fused).

7 1 relay output (1 pin 48 V / 5 A switching current)

8 Pre-wired battery terminal; protected by R45

9 Transformer terminal 20 V, 50 Hz

10 LED for mains supply indication

Fuses

No. Connection Function Type

F1 B4+ E-bus (12 V DC) F2A F 250 V

F2 +1 +12 V DC F2A F 250 V

F3 +3 +12 V DC F2A F 250 V

F4 +4 +12 V DC F2A F 250 V

F5 +6 +12 V DC F2A F 250 V

Siemens Building Technologies

Fire Safety & Security Products 01.2009

Ø 6 mm

4,5 x 45

1,5 cm

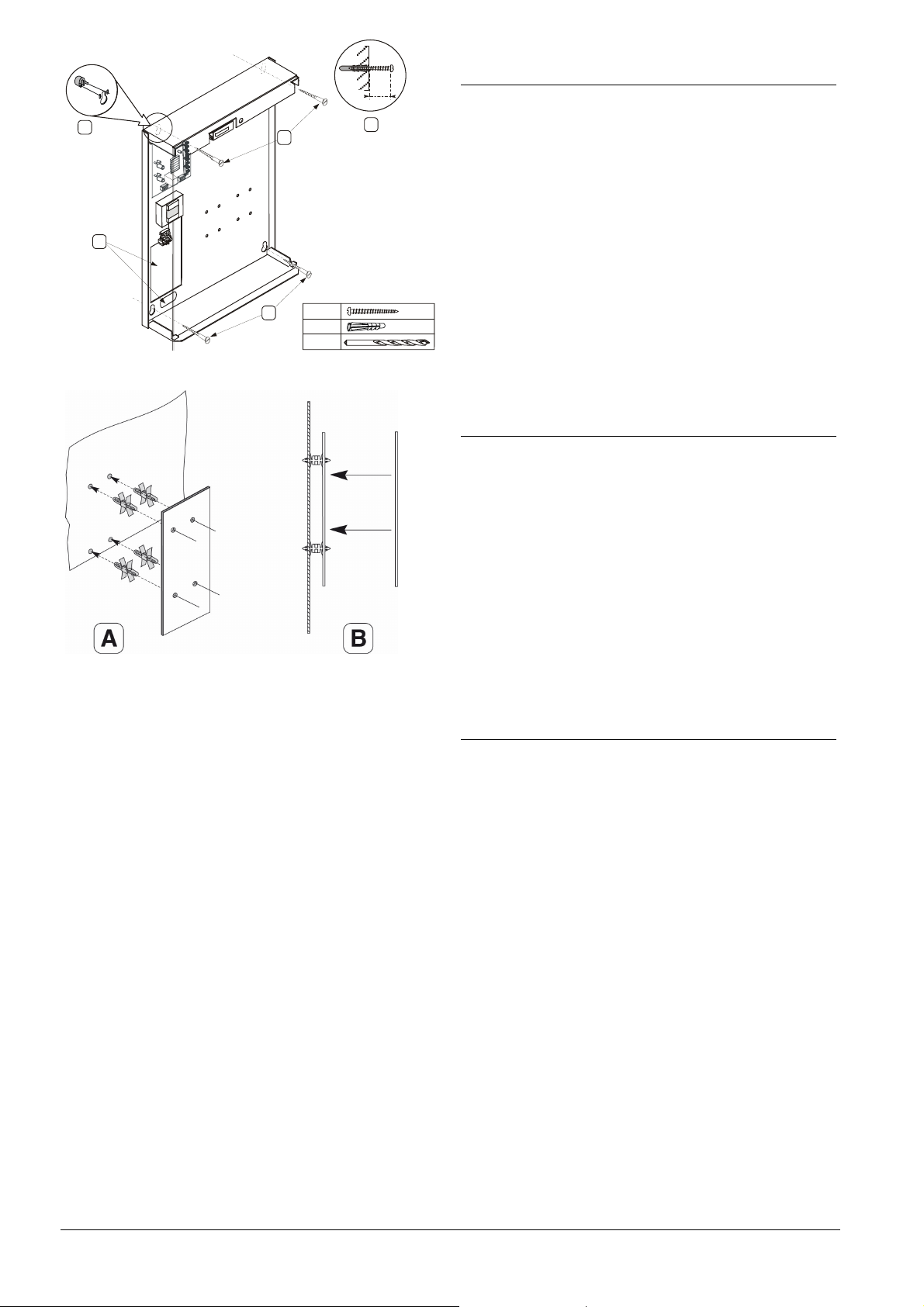

Fig. 3

Mount the housing

1. Mark the drilling position for the four external mounting

holes (A) Fig. 3.

2. Drill holes and insert plugs.

3. Screw in the screws leaving approximately 1.5 cm

proud (B) Fig. 3.

4. Snap the spacers in at the four mounting holes from

the back in the intended slots (Fig. 3).

5. Route the connection cable through the cut-outs (D) in

the back wall and hang the back on the screws .

6. Tighten the screws.

Fig. 4

Mount boards (option)

1. Snap the fastening supports (included with the board)

into the intended holes (A) Fig. 4.

2. Fit circuit boards (B) Fig. 4.

Wiring

The terminals can be seen in Fig. 2 or in the wiring

diagram on the inside of the housing cover.

Siemens Building Technologies

Fire Safety & Security Products 01.2009

Fig. 5

1 Power supplies

2 Mains supply fuse

Connect the mains power supply.

Cable type NYM 3 x 1.5 mm2is recommended.

WARNING

Personal risk and danger of device -

damage

zEnsure that the connection is secure

and the circuit breaker to the supply

circuit is easily accessible when -

operating the unit.

zSecure the device using a fuse of up

to 16 A. Do not connect external

consumers to this fuse.

zWhen working on the device,

disconnect this from the 230 V

supply and from the battery using the

intended cut-off.

1. Ensure that the mains supply terminal is de-energized.

2. Remove the mains fuse (2) Fig. 5

3. Check the protective conductor between the power

supply board and the base of the housing.

4. Connect the mains to the mains supply terminals

(ground wire E, null N and phase U).

5. Secure the cable to the clips in the rear wall using

cable ties.

Fig. 6

A E-bus from control unit

B E-Bus to other accessories

E-Bus

Cable type IYSTY 2 x 2 x , Ø 0.6 mm is recommended.

The total length of the E-Bus cable must not exceed

500 m.

The power supply unit circuit board SMP14 and the

option (SMT12) must be connected to the central control

unit via the E-Bus (B1-, B2, B3, B4+). It may be routed in

parallel to other accessories. If shielded cable is used,

the shield may not be laid on the housing of the SAP14.

The shields of all cables must be connected at one point,

e.g. at one of the NC terminals of SMT12.

Fig. 7

Tamper contact

The tamper contact of the housing must be connected to

the SMT12 circuit board. Refer also to the installation

instructions for the SMT12.

Arcing contact

For the optional arcing contact, use the option SMZ91.

Siemens Building Technologies

Fire Safety & Security Products 01.2009

Fig. 8

Operational setup

Before operating the system, all bus components have to

be connected to the E-bus and thus to the control unit.

Switch on the 230 V mains supply

1. Ensure that everything is correctly connected and

wired and then switch on the mains supply externally

2. Refit fuse F7.

Connect battery (Fig. 8)

1. Place the battery in the space provided in the base of

the housing

2. Mount the battery holder angle.

3. Connect the pre-installed battery cables (- blue, + red).

Fig. 9

Close and seal the housing

1. Glue the circuit diagram to the inside of the cover.

2. Engage the cover in the retainer.

3. Connect the earthing lead (1) Fig. 9 to the cover.

4. Lightly lift and close the cover.

5. Screw the cover closed.

6. Use eye (2) Fig. 9 to seal.

When the cover is opened again, e.g. for servicing, there

is no need to remove the cover completely. After

loosening the screw, the cover can be lifted gently,

swung downwards and suspended in the base.

Siemens Building Technologies

Fire Safety & Security Products 01.2009

Disposal

All electrical and electronic devices are not to be

disposed of as ordinary municipal waste, but rather at

approved disposal facilities for such materials.

A crossed-out trash bin symbol on a product indicates

that the product is subject to EU Directive 2002/96/EC.

Proper disposal and separate collection of such

equipment is intended to prevent potential harm to health

and the environment.

They are prerequisites for re-use and recycling of used

electrical and electronic devices.

Detailed information on the disposal of used equipment

can be obtained from your local authorities, your waste

disposal service or the authorized dealer from whom you

purchased the product.

Published by

Siemens Building Technologies

Fire & Security Products GmbH & Co. oHG

76181 Karlsruhe, Germany

www.buildingtechnologies.siemens.com

Siemens Building Technologies

Liefermöglichkeiten und technische Änderungen vorbehalten.

Data and design subject to change without notice.

Document no. A6V10236281

Edition 19.01.2009
