Installation Instructions

Model NET-7

Communication Interface

INTRODUCTION

The Model NET-7 from Siemens Industry, Inc.,

provides a Style 7 communication interface between

the main MXL and multiple remote panels in an MXL

system using two separately supervised RS-485

pairs. Each NET-7, except the NET-7 connected to

the MMB, electrically isolates the pairs from the local

power supply and isolates ground faults to a single

remote panel. The MMB provides ground fault

detection for the two pairs.

Each NET-7 connected represents one network drop

on the MXL System. There can be a maximum of 32

drops. The NET-7 has a network address which must

be set on the module and installed into the CSG-M

network map.

The NET-7 has two yellow LEDs:

1. XMIT ENABLE lights whenever the NET-7

transmits a message.

2. ANY TROUBLE lights when the NET-7 is unable

to communicate to the MMB on either pair.

Three green LEDs on the NET-7 indicate the state

of two communication pairs. The first two LEDs,

PRIMARY and SECONDARY, light whenever the

NET-7 receives a message on that pair. Use these

two LEDs when troubleshooting to determine if a

pair is active. The third green LED, SELECT,

indicates the communication pair currently connected

to the modules in the enclosure. In normal operation,

the SELECT LED turns on and off every time there is

network activity. If this LED remains in one state

(either on or off), it indicates that one or both of the

pairs is not functional. The SELECT LED lights when

the PRIMARY pair is selected.

The NET-7 can also provide a Style 4 communication

mode. In that configuration all NET-7s must be set to

Style 4. Use P3 on the NET-7 to make this selection.

CAUTION: NET-7s and NET-4s cannot be

combined in the same system.

The NET-7 offers advanced performance over the

NET-4. Each NET-7 determines which modules are

installed in its enclosure and reports this information

to the MMB where it is compared to the CSG-M data

base. That information verifies that the system is

properly installed. The default setting in the MXL has

this feature deactivated. The user can change the

default setting in CSG-M or temporarily change the

setting by selecting the OVERRIDE submenu of the

TEST menu in the MXL. When using the MXL menu,

the change remains in effect until power is removed.

Error checking is available in either Style 4 or Style 7.

All terminals are power limited.

For additional information on the MXL/MXLV System,

refer to the MXL/MXLV Manual, P/N 315-092036.

Siemens Industry, Inc.

Building Technologies Division

Florham Park, NJ

Siemens Building Technologies, Ltd.

Fire Safety & Security Products

2 Kenview Boulevard

Brampton, Ontario

L6T 5E4 Canada

INSTALLATION

Remove all system power before installation,

first battery and then AC. (To power up, first

connect the AC and then the battery.)

All wiring must comply with national and

local codes.

1. Remove the NET-7 from the antistatic bag.

CAUTION: Do not touch the gold plated

card edge on the NET-7.

2. Set the address for the NET-7 using switch S1.

Refer to Table 1 for the switch settings. Be sure

that the address agrees with the CSG-M network

map.

3. Determine whether the communication mode is

Style 4 or Style 7. Place the shorting jumper on

P3 to agree with the style selected. (See Figure 1

for the location of P3.)

NOTE: On the MMB set jumper P15 to the S7

position regardless of the communication

mode (Style 4 or Style 7) selected on the

NET-7.

4. Decide whether to install the NET-7 into a PSR-1

or into the enclosure with the MMB. If the

installation is in a PSR-1, skip to step 8.

5. Install the NET-7 that is in the enclosure with the

MMB in a MOM-4 slot. Any available MOM-4 slot

can be used. Mount one of the two card guides

provided in the MOM-4. Slip the guide under the

mounting screw in the center of the MOM-4 and

tighten.

6. Refer to Figure 2 for the wiring diagram. Check

all wiring prior to installing the NET-7 into the

MOM-4. Failure to properly wire the NET-7 can

cause damage to the board.

7. Install the NET-7 into the MOM-4 slot. Be sure

that the board is firmly seated in the card edge

connector. This completes the installation of the

NET-7 with the MMB.

8. When used with a PSR-1, install the NET-7 into

connector P7.

• If screws are in the location where the card

guide is to be installed, remove the screws

and mount the card guide with the hardware

supplied.

• Mount the two card guides supplied onto the

PSR-1 by loosening the screws above and

below P7. Then slide the guides under the

screws and tighten them.

9. Refer to Figure 2 for the wiring diagram. Connect

the network wires to TB4 on the PSR-1 as shown.

10. Install the NET-7 into P7. Be sure that the board

is firmly seated.

11. If an MKB-2 is installed, the NET-7 must be

located in a MOM slot. In this configuration, the

setting in the CSG-M for the PSR-1 style type

should be none and a NET-7 should be installed

in the network map.

Note on End of Line Resistors

End of line resistors are provided with each NET-7.

DO NOT PLACE AN END OF LINE RESISTOR AT

EACH NET-7. These devices are required at the two

extreme ends of each network pair as shown in

Figure 2. It is not required that the MMB be at one of

the ends. It may be at any location along the net-

work. T-Tapping is not allowed on the network.

ELECTRICAL RATINGS

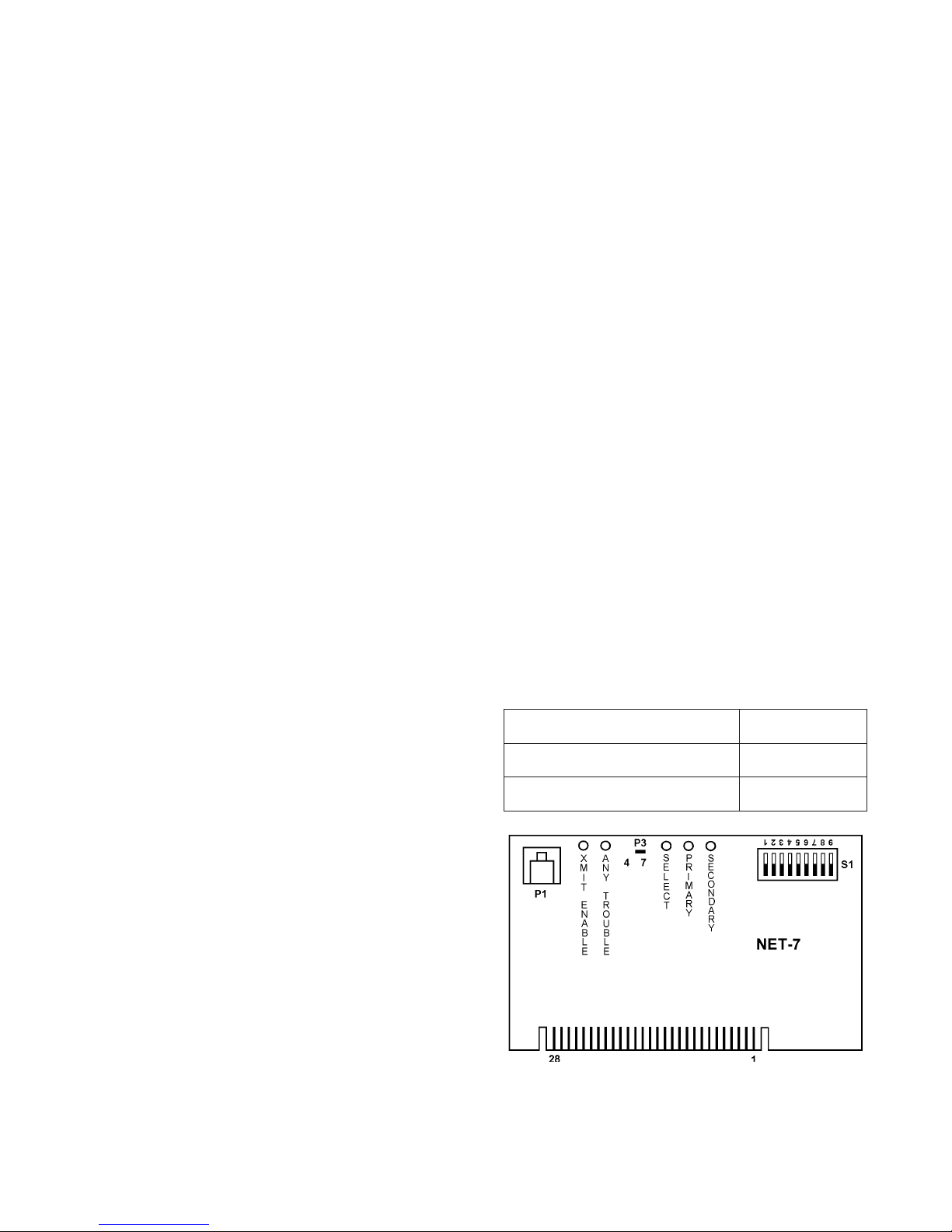

Figure 1 NET-7 Board

tnerruCeludoMCDV5evitcAAm021

tnerruCeludoMCDV42evitcAAm0

tnerruCeludoMCDV42ybdnatSAm03

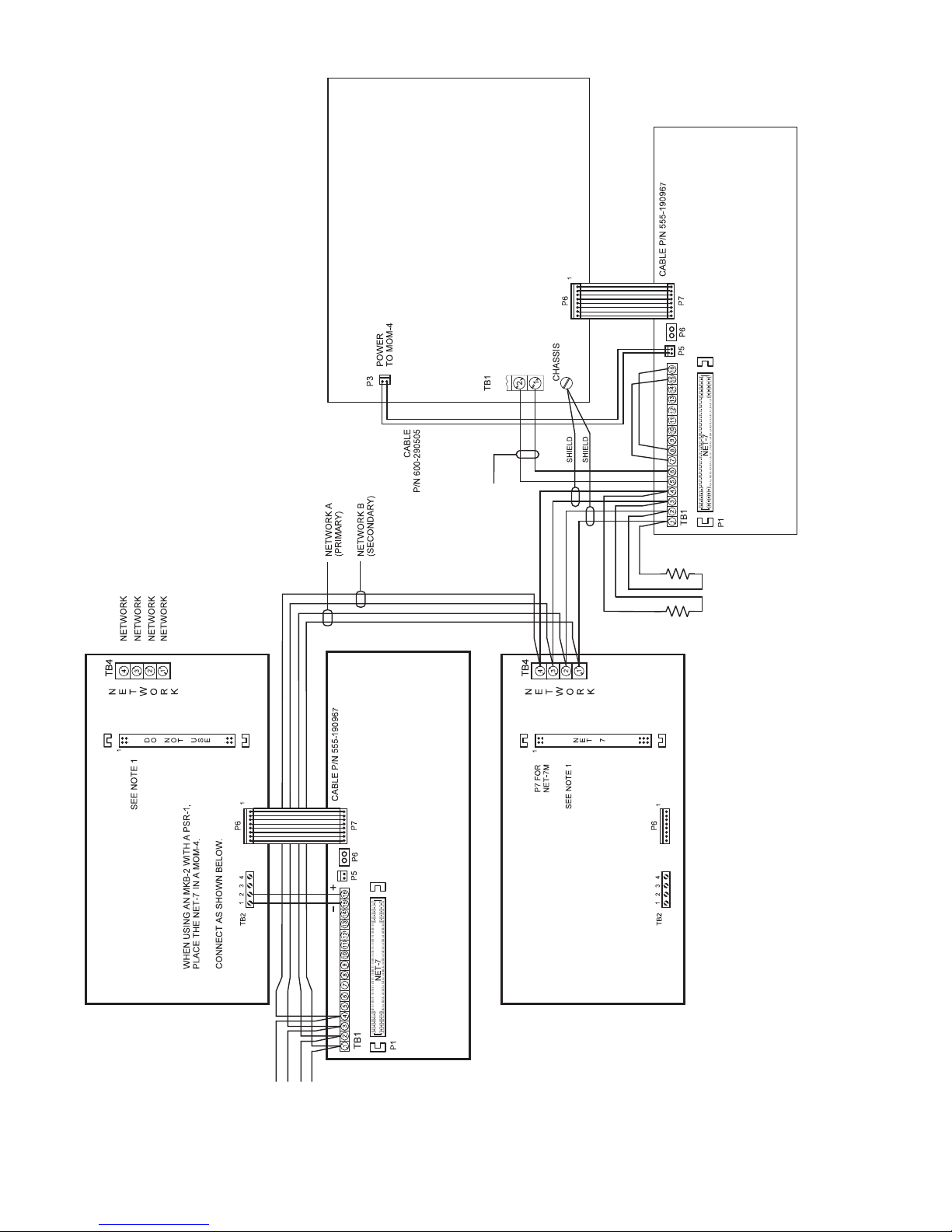

Figure 2 NET-7 Wiring Diagram

MMB

MOM-4

PSR-1

USE ONLY

WITH MMB-1

SEE NOTE 3.

SEE NOTE 2.

NOTES:

1. THE NET-7 IS NOT COMPATIBLE WITH THE PS-5N.

2. TO CONNECT A NET-7 TO A MOI,USE A MER-8 CABLE FROM P5 ON THE MOI-7 TO P6 ON A PSR-1

THAT HAS A NET-7 INSTALLED IN IT.

3. USE THE 120 ¼W, 5% END OF LINE RESISTOR OR RESISTOR ASSEMBLY, AS APPLICABLE:

P/N 140-820150 (MMB-1/-2) OR P/N 140-049099 (MMB-3).

4. FOR MMB-2, SET JUMPER P15 TO S7 WHEN USING NET-7. (SEE MMB-2 INSTALLATION INSTRUCTIONS,

P/N 315-095097.)

5. WHEN USING MMB-3 WITH A NET-7 INSTALLED IN MAIN ENCLOSURE, WIRING MUST BE CONNECTED

AT THE NET-7 ONLY. SET JUMPER P7 TO POSITION 2,3. (SEE MMB-3 INSTALLATION INSTRUCTIONS,

P/N 315-048860.)

- CSG-M CONFIGURATION MUST BE LOADED VIA NET-7 PROGRAMMING PORT (P1).

- MAKE SURE THE CSG-M SETTING “LOCAL NETWORK COMM STYLE” IS SET TO STYLE 7 AND “MMB-3

MNET STYLE 7” IS SET TO NO.

6. REFER TO WIRING SPECIFICATION FOR MXL, MXL-IQ AND MXLV SYSTEMS, P/N 315-091772 REVISION 6

OR HIGHER, FOR ADDITIONAL WIRING INFORMATION.

18 AWG MIN.

80 MAX. PER PAIR

USE TWISTED PAIR OR SHIELDED TWISTED PAIR.TERMINATE THE SHIELD AT THE MMB ENCLOSURE ONLY.

POWER LIMITED TO NFPA 70 PER NEC 760.

MAX. VOLTAGE 8V P-P.

MAX. CURRENT 150mA.

EACH PAIR IS INDEPENDENTLY SUPERVISED BY NET-7s AT THE ENDS OF THE NETWORK.

P/N 315-091914-13

TA B LE 1

NETWORK ADDRESS PROGRAMMING

ADDR 87654321 ADDR 87654321 ADDR 87654321 ADDR 87654321

000 ILLEGAL 064 OXOOOOOO 128 XOOOOOOO 192 XXOOOOOO

001 ILLEGAL 065 OXOOOOOX 129 XOOOOOOX 193 XXOOOOOX

002 ILLEGAL 066 OXOOOOXO 130 XOOOOOXO 194 XXOOOOXO

003

004

005

006

007

008

009

010

011

012

013

014

015

016

017

018

019

020

021

022

023

024

025

026

027

028

029

030

031

032

033

034

035

036

037

038

039

040

041

042

043

044

045

046

047

048

049

050

051

052

053

054

055

OOOOOOXX

OOOOOXOO

OOOOOXOX

OOOOOXXO

OOOOOXXX

OOOOXOOO

OOOOXOOX

OOOOXOXO

OOOOXOXX

OOOOXXOO

OOOOXXOX

OOOOXXXO

OOOOXXXX

OOOXOOOO

OOOXOOOX

OOOXOOXO

OOOXOOXX

OOOXOXOO

OOOXOXOX

OOOXOXXO

OOOXOXXX

OOOXXOOO

OOOXXOOX

OOOXXOXO

OOOXXOXX

OOOXXXOO

OOOXXXOX

OOOXXXXO

OOOXXXXX

OOXOOOOO

OOXOOOOX

OOXOOOXO

OOXOOOXX

OOXOOXOO

OOXOOXOX

OOXOOXXO

OOXOOXXX

OOXOXOOO

OOXOXOOX

OOXOXOXO

OOXOXOXX

OOXOXXOO

OOXOXXOX

OOXOXXXO

OOXOXXXX

OOXXOOOO

OOXXOOOX

OOXXOOXO

OOXXOOXX

OOXXOXOO

OOXXOXOX

OOXXOXXO

OOXXOXXX

067

068

069

070

071

072

073

074

075

076

077

078

079

080

081

082

083

084

085

086

087

088

089

090

091

092

093

094

095

096

097

098

099

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

OXOOOOXX

OXOOOXOO

OXOOOXOX

OXOOOXXO

OXOOOXXX

OXOOXOOO

OXOOXOOX

OXOOXOXO

OXOOXOXX

OXOOXXOO

OXOOXXOX

OXOOXXXO

OXOOXXXX

OXOXOOOO

OXOXOOOX

OXOXOOXO

OXOXOOXX

OXOXOXOO

OXOXOXOX

OXOXOXXO

OXOXOXXX

OXOXXOOO

OXOXXOOX

OXOXXOXO

OXOXXOXX

OXOXXXOO

OXOXXXOX

OXOXXXXO

OXOXXXXX

OXXOOOOO

OXXOOOOX

OXXOOOXO

OXXOOOXX

OXXOOXOO

OXXOOXOX

OXXOOXXO

OXXOOXXX

OXXOXOOO

OXXOXOOX

OXXOXOXO

OXXOXOXX

OXXOXXOO

OXXOXXOX

OXXOXXXO

OXXOXXXX

OXXXOOOO

OXXXOOOX

OXXXOOXO

OXXXOOXX

OXXXOXOO

OXXXOXOX

OXXXOXXO

OXXXOXXX

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

XOOOOOXX

XOOOOXOO

XOOOOXOX

XOOOOXXO

XOOOOXXX

XOOOXOOO

XOOOXOOX

XOOOXOXO

XOOOXOXX

XOOOXXOO

XOOOXXOX

XOOOXXXO

XOOOXXXX

XOOXOOOO

XOOXOOOX

XOOXOOXO

XOOXOOXX

XOOXOXOO

XOOXOXOX

XOOXOXXO

XOOXOXXX

XOOXXOOO

XOOXXOOX

XOOXXOXO

XOOXXOXX

XOOXXXOO

XOOXXXOX

XOOXXXXO

XOOXXXXX

XOXOOOOO

XOXOOOOX

XOXOOOXO

XOXOOOXX

XOXOOXOO

XOXOOXOX

XOXOOXXO

XOXOOXXX

XOXOXOOO

XOXOXOOX

XOXOXOXO

XOXOXOXX

XOXOXXOO

XOXOXXOX

XOXOXXXO

XOXOXXXX

XOXXOOOO

XOXXOOOX

XOXXOOXO

XOXXOOXX

XOXXOXOO

XOXXOXOX

XOXXOXXO

XOXXOXXX

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

XXOOOOXX

XXOOOXOO

XXOOOXOX

XXOOOXXO

XXOOOXXX

XXOOXOOO

XXOOXOOX

XXOOXOXO

XXOOXOXX

XXOOXXOO

XXOOXXOX

XXOOXXXO

XXOOXXXX

XXOXOOOO

XXOXOOOX

XXOXOOXO

XXOXOOXX

XXOXOXOO

XXOXOXOX

XXOXOXXO

XXOXOXXX

XXOXXOOO

XXOXXOOX

XXOXXOXO

XXOXXOXX

XXOXXXOO

XXOXXXOX

XXOXXXXO

XXOXXXXX

XXXOOOOO

XXXOOOOX

XXXOOOXO

XXXOOOXX

XXXOOXOO

XXXOOXOX

XXXOOXXO

XXXOOXXX

XXXOXOOO

XXXOXOOX

XXXOXOXO

XXXOXOXX

XXXOXXOO

XXXOXXOX

XXXOXXXO

XXXOXXXX

XXXXOOOO

XXXXOOOX

XXXXOOXO

XXXXOOXX

XXXXOXOO

XXXXOXOX

XXXXOXXO

XXXXOXXX

056 OOXXXOOO 120 OXXXXOOO 184 XOXXXOOO 248 ILLEGAL

057 OOXXXOOX 121 OXXXXOOX 185 XOXXXOOX 249 ILLEGAL

058 OOXXXOXO 122 OXXXXOXO 186 XOXXXOXO 250 ILLEGAL

059 OOXXXOXX 123 OXXXXOXX 187 XOXXXOXX 251 ILLEGAL

060 OOXXXXOO 124 OXXXXXOO 188 XOXXXXOO 252 ILLEGAL

061 OOXXXXOX 125 OXXXXXOX 189 XOXXXXOX 253 ILLEGAL

062 OOXXXXXO 126 OXXXXXXO 190 XOXXXXXO 254 ILLEGAL

063 OOXXXXXX 127 OXXXXXXX 191 XOXXXXXX 255 ILLEGAL

O = OPEN (or OFF) X = CLOSED ( or ON)

Indice

Altri manuali Siemens Apparecchiature di registrazione

Siemens

Siemens VIU-20 Manuale utente

Siemens

Siemens NCC-1F Manuale utente

Siemens

Siemens D2325CPS Manuale utente

Siemens

Siemens SIMATIC HMI Mobile Panel 277 RO Manuale utente

Siemens

Siemens SIRIUS 3RT2916-2B.01 Manuale utente

Siemens

Siemens SIMATIC KTP400 Basic Manuale utente

Siemens

Siemens SINAMICS V90 Manuale utente

Siemens

Siemens CM 1542-5 Manuale utente

Siemens

Siemens RNI Manuale utente

Siemens

Siemens AEK84 Manuale utente

Siemens

Siemens TC35 Guida utente

Siemens

Siemens SINAMICS S120 Guida rapida

Siemens

Siemens Apogee P1 Manuale utente

Siemens

Siemens SINAMICS V90 Manuale utente

Siemens

Siemens N148/23 Manuale utente

Siemens

Siemens CERBETUS PYROTRONICS VDT Scheda tecnica

Siemens

Siemens 538-735 Manuale utente

Siemens

Siemens RNI Manuale utente

Siemens

Siemens SIMATIC NET DP/AS-i Link 20E Manuale utente

Siemens

Siemens POL903.00/100 Manuale utente

Siemens

Siemens Trunk Interface II Series Manuale utente

Siemens

Siemens 2D-TZ577 Manuale utente

Siemens

Siemens GAMMA instabus 5WG1 220-2AB21 Manuale di servizio

Siemens

Siemens SINAMICS S120 Manuale di installazione e funzionamento

Manuali Apparecchiature di registrazione popolari di altre marche

KV2 Audio

KV2 Audio 500 Series Manuale utente

Robotics Technologies

Robotics Technologies microBus-Cam II Manuale utente

Seca

Seca 460 Manuale utente

Cognex

Cognex MVS-8000 Series Manuale utente

Mect

Mect MPNC006 Series Manuale utente

Bad Caf

Bad Caf THE LEASH Manuale utente

Strymon

Strymon NIGHTSKY Manuale utente

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuale utente

Tews Technologies

Tews Technologies TPMC465 Manuale utente

Honeywell

Honeywell Excel 50 Manuale utente

SeaLevel

SeaLevel COMM+8.LPCI Manuale utente

Arturia

Arturia AUDIOFUSE STUDIO Manuale utente

Rukra

Rukra RK-1240 Manuale utente

Samson

Samson SCOM Manuale utente

Dynacord

Dynacord DPS260 Manuale utente

Nice

Nice Core Manuale utente

Pyle Pro

Pyle Pro PSS8 Manuale utente

RF-System

RF-System TinyGate Manuale per l'uso e la cura
