SIIG CE-HM0021-S1 Manuale utente

HDMI to DVI + Audio

QuickInstallationGuide

Introducing the HDMI to DVI + Audio

The HDMI to DVI + Audio provides an easy solution for

converting digital HDMI to digital video (DVI-D) and

both digital audio (S/PDIF) and analog stereo audio.

This device enables you to connect full digital video and

audio to DVI enabled monitors and coaxial S/PDIF

equipped audio receivers and amplifiers for highest

compatibility to your home theater system.

FeaturesandBenefits

• HDMI 1.2a compliant

• Fully HDCP compliant

• Supports DVI video up to 165 MHz

• Coaxial S/PDIF and stereo analog audio outputs

• Front panel LED indicators

• Works with various types of HDMI based audio/

video devices including DVD players, game

consoles, camcorders, set-top boxes

PackageContents

• HDMI to DVI + Audio converter

• Power Adapter (5V, 2A)

• Quick Installation Guide

04-0495A

TechnicalSpecifications

• Video Amplifier Bandwidth: 1.65 Gbps

• Input Video Signal: 1.2 Volts p-p

• Input DDC Signal: 5 Volts p-p (TTL)

• Single Link Range: 1080p/1920 x 1200

• HDMI connector: 19 pin type female connector

• DVI connector: DVI-I 29 pin female (digital only)

• RCA connector: Coaxial S/PDIF

• Audio out: Analog stereo jack

• Power supply: Output - 5VDC, 2A

• Power consumption: 10 watts (max)

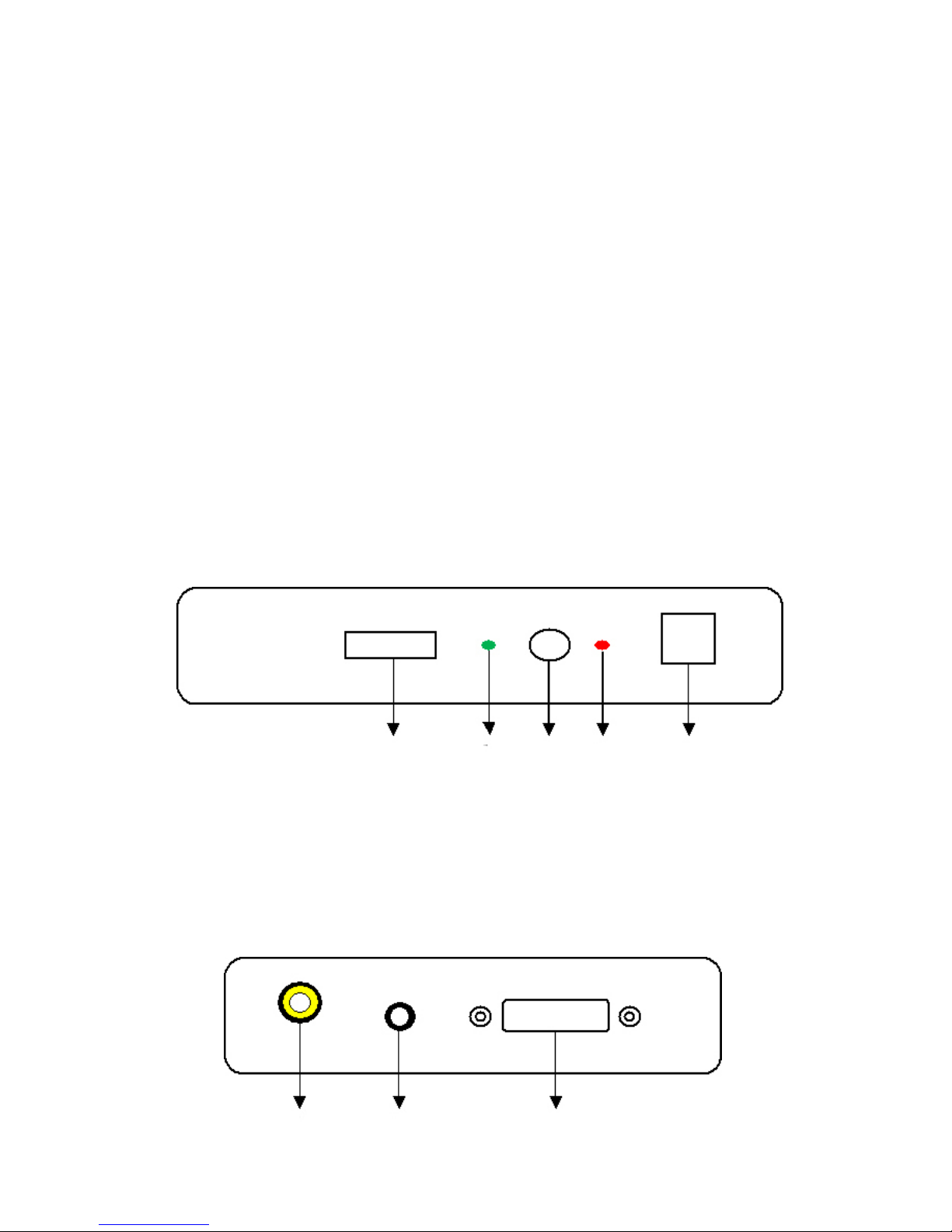

FrontPanel

HDMI Status Rotary Power +5VDC

RearPanel

S/PDIF Audio Out DVI

RotarySwitch

The function of the rotary switch is reserved, please keep

the rotary switch at 0.

• Position 0: Analog audio output

• Position 1: Analog audio output

• Position 2: Analog audio output

• Position 3: Analog audio output

• Position 4 & 5 : Reserved

• Position 6: Restore default EDID

• Position 7: Learn EDID of HDMI equipped device

Hardware Installation

General instructions for connecting devices are provided

below. Please consult your device’s users manual for

more information, if needed.

1. Connect your HDMI source to the HDMI input

connector.

2. Connect your DVI enabled monitor to the DVI out

port.

3. Connect your S/PDIF AV receiver into the S/PDIF

Out.

4. Connect your PC speaker into the Audio Out jack.

5. Plug the power adapter into the +5VDC jack then

plug the power adapter into a reliable power outlet.

Note: S/PDIF format is dependent upon the

embedded digital audio in the HDMI stream. The

S/PDIF receiver must be able to recognize the input

S/PDIF format. This converter only separates the

digital audio in the HDMI stream, and passes the

audio to the output.

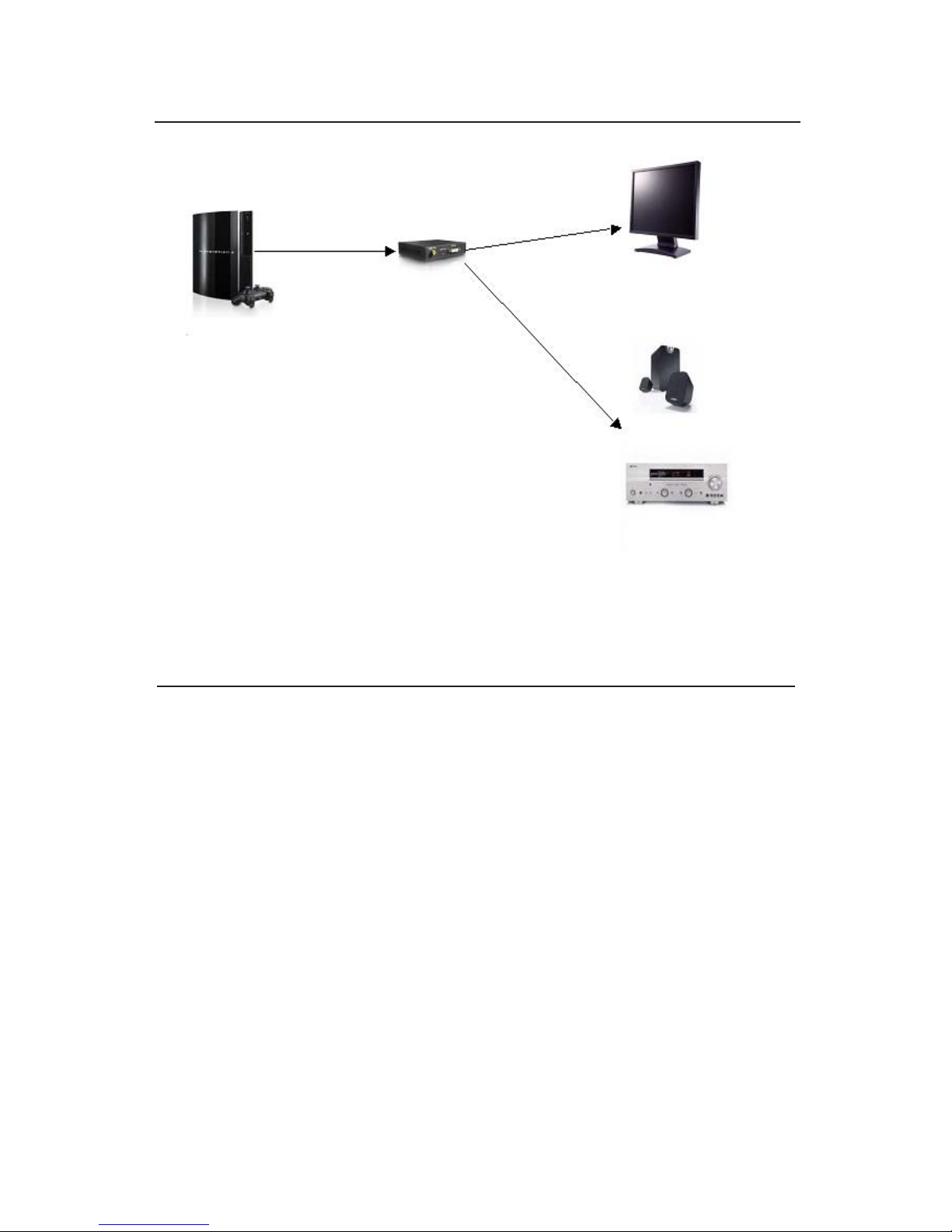

Figure 1: Connecting Devices

Safety Precautions

Like all electronic equipment the HDMI to DVI + Audio

should be used with care. Please read and follow the

safety precautions to protect yourself from possible

injury and minimize the risk of damage to the unit.

• Follow all instructons and warnings marked on the

unit

• Provide proper ventilation and air circulation, do

not use near water

• Do not service the unit yourself, except where

explained in the manual

• Use only the power adapter and accessories that

came with the unit

HDMI to DVI+Audio

Connecting Devices

HDMI Source

DVI LCD monitor

Analog Speakers

S/PDIF AV Amplifier

Notes

• Audio Out jack supports 2-channel stereo audio

only

• S/PDIF Out supports up to 8-channel audio output

(depending on the audio source)

Blank Page

Technical Support and Warranty

QUESTIONS? SIIG’sOnline Support hasanswers! Simply visitour

web site at www.siig.com and click Support. Our online support

database is updated daily with new drivers and solutions. Answers

toyour questionscould bejust a few clicks away. You can also submit

questions online and a technical support analysts will promptly

respond.

SIIGoffers a 2-yearmanufacturer warranty with this product. Please

see our web site for more warranty details. If you encounter any

problems with this product, please follow the procedures below.

A) If it is within the store's return policy period, please return the

product to the store where you purchased from.

B) Ifyour purchase has passed the store's returnpolicy period,please

follow these steps to have the product repaired or replaced.

Step 1: Submit your RMA request.

Go to www.siig.com, click Support, then RMA to submit a

request to SIIG RMA. If the product is determined to be

defective, an RMA number will be issued.

Step 2: After obtaining an RMA number, ship the product.

•Properly pack the product for shipping. All software, cable(s)

and any other accessories that came with the original package

must be included.

•Clearly write your RMA number on the top of the returned

package. SIIG will refuse to accept any shipping package, and

will not be responsible for a product returned without an

RMA number posted on the outside of the shipping carton.

•You are responsible for the cost of shipping. Ship the product

to the following address:

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

RMA #:

•SIIG will ship the repaired or replaced product via Ground

in the U.S. and International Economy outside of the U.S. at

no cost to the customer.

HDMItoDVI+AudioisatrademarkofSIIG,Inc. SIIGandtheSIIGlogoareregisteredtrademarksof

SIIG, Inc. Other names used in this publication are for identification only and may be trademarks of

theirrespectivecompanies.

About SIIG, Inc.

Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer

of I/O connectivity products, including PCIe, PCI & ISA serial and

parallel ports, USB, Serial ATA & UltraATA controllers, FireWire

(1394a/b),networking,sound cards,andother accessories. SIIGisthe

premier one-stop source of upgrades.

SIIGproductsoffer comprehensive usermanuals,many user-friendly

features, and are backed by an extensive manufacturer warranty.

High-quality control standards are evident by the overall ease of

installation and compatibility of our products, as well as one of the

lowest defective return rates in the industry. SIIG products can be

found in computer retail stores, mail order catalogs, through major

distributors, system integrators, and VARs in the Americas and the

UK, and through e-commerce sites.

PRODUCT NAME

HDMIto DVI+Audio

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS

B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE

FCCCOMPLIANCESTATEMENT:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

Ph: 510-657-8688
